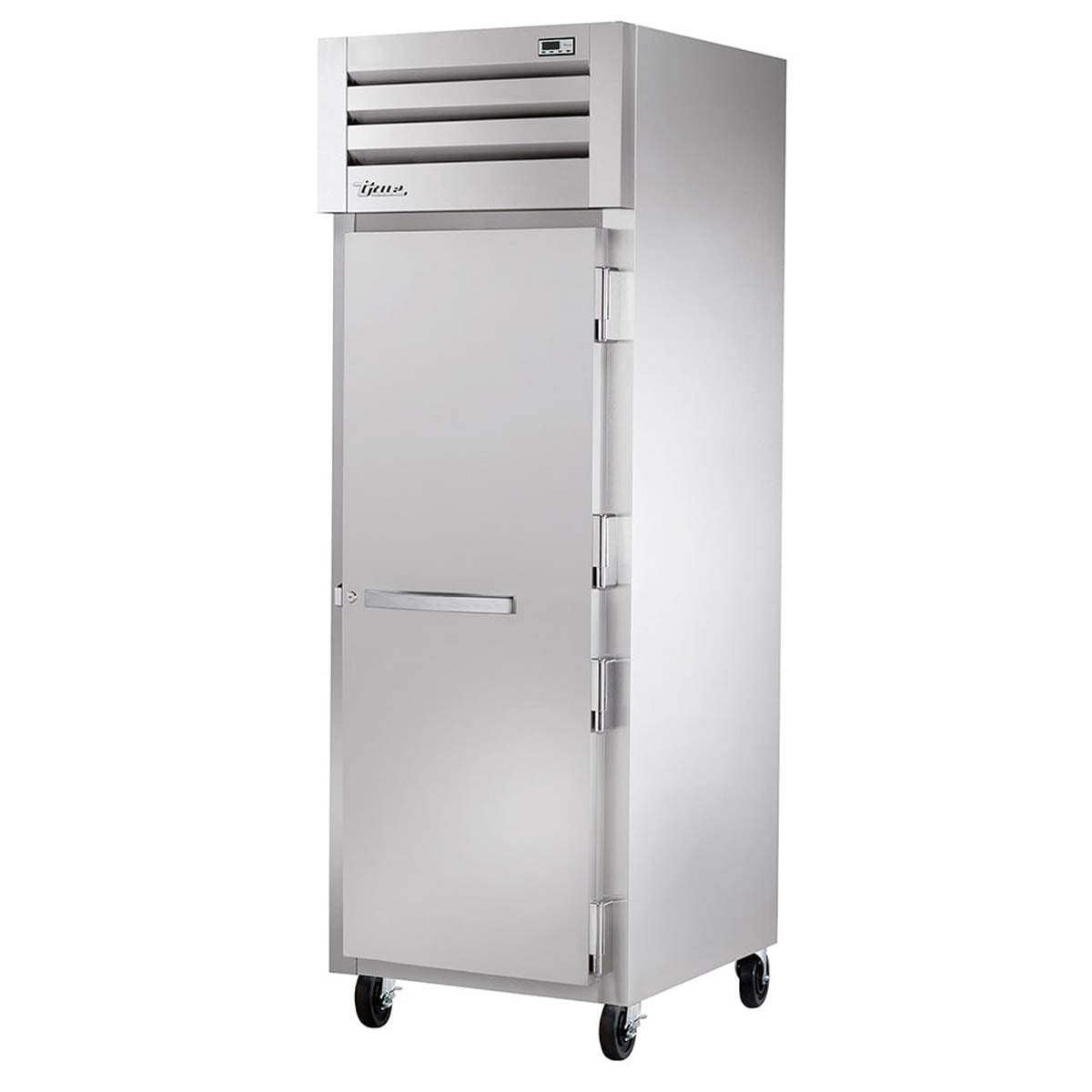

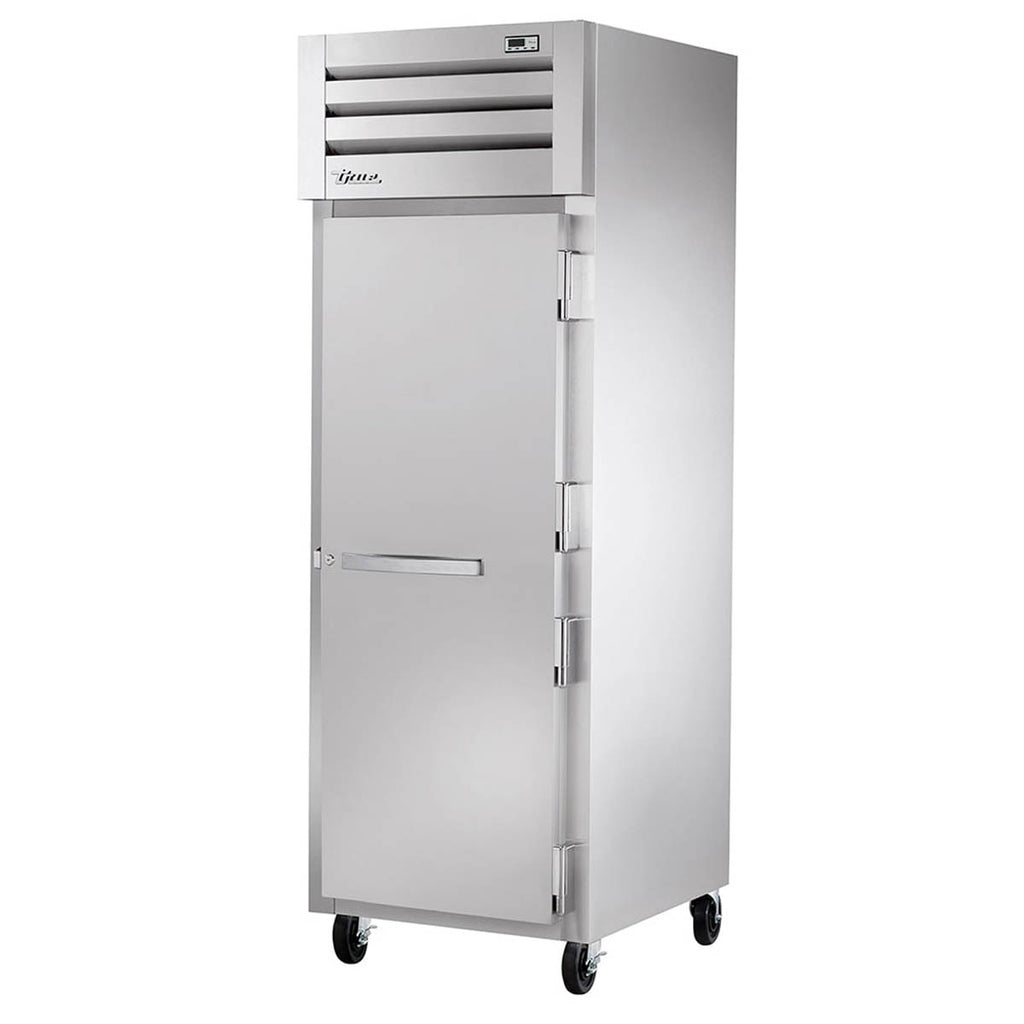

True STG1H-1S Spec Series 27" 1-Section Reach-In Heated Holding Cabinet, 1 Solid Door, 3 Shelves, 1500W, 208-240V
A 1-section heated cabinet that holds cooked and baked food at 140°F to 180°F.
The True STG1H-1S is a 27" wide, 1-section reach-in heated holding cabinet from True's Spec Series, with 1 solid door. It holds warm cooked or baked food at 140°F to 180°F; True notes it is not designed to heat cold or room-temperature product. It comes with 3 heavy-duty chrome-plated wire shelves. It plugs into a dedicated 208-240V, 15 amp outlet with the included NEMA 6-15P cord and draws 1500 watts.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
An electric heater system with low-velocity fans holds 140°F to 180°F for warm cooked or baked food, with an exterior digital temperature display.
A manually controlled vent on top of the cabinet lets you control humidity.
3 heavy-duty chrome-plated wire shelves. Shelving kits with tray slides are available.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
Incandescent interior lighting is safety shielded.
A dedicated 15 amp outlet. The cabinet is rated 208-240/60/1 and comes with a 9 ft. cord and NEMA 6-15P plug; total heat is 1500 watts.
The cabinet is 33-3/4" deep and 27-1/2" wide. Measure the doorway and every turn on the way in.
True rates it to hold 140°F to 180°F. It is made to keep warm cooked or baked food hot, not to heat cold or room-temperature product.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
3 heavy-duty chrome-plated wire shelves. Shelving kits with tray slides and pilasters are available at extra cost.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1H-1S |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 350 lb. |
| Width | 27-1/2 Inches |
| Depth | 33-3/4 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 1500 Watts |
| Plug Type | NEMA 6-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 140 - 180 Degrees F |
| Heater System | Electric Heater, Exterior Digital Temperature DisplayLow-Velocity FansManual Humidity Vent on Top |
| Doors | 1 Solid DoorSelf-Closing, 120° Stay-Open, Locks Standard |
| Shelves | 3 Heavy-Duty Chrome-Plated Wire Shelves |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged LegsAdditional ShelvesStainless BackShelving Kits with Tray Slides and Pilasters |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
