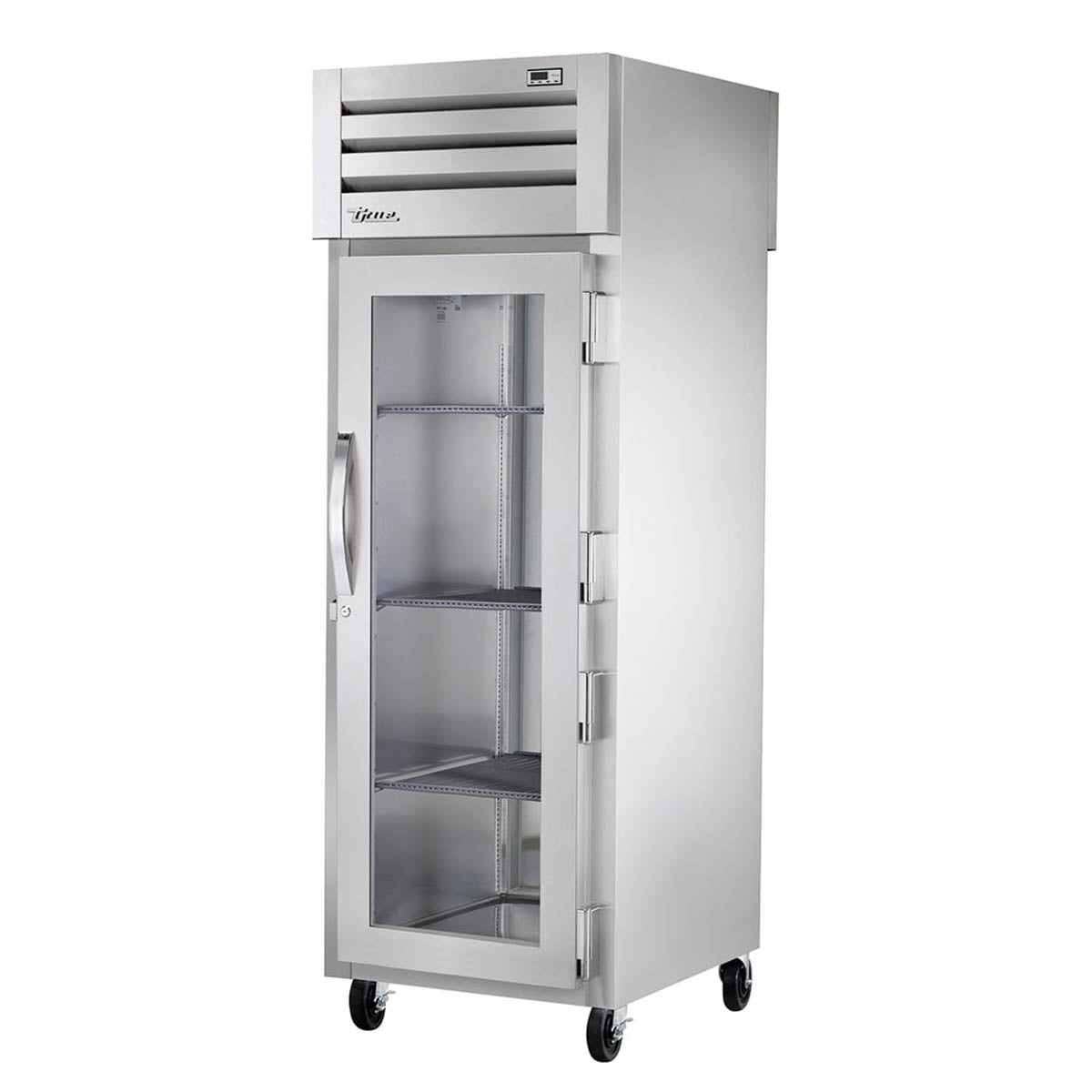

True STG1HPT-1G-1S Spec Series 27" 1-Section Pass-Thru Heated Holding Cabinet, 1 Glass Front Door, 1 Solid Rear Door, 3 Shelves, 1500W, 208-240V
A 1-section pass-thru heated cabinet that loads from one side and serves from the other.
The True STG1HPT-1G-1S is a 27" wide, 1-section pass-thru heated holding cabinet from True's Spec Series, with 1 glass door on the front and 1 solid door on the rear. It holds warm cooked or baked food at 140°F to 180°F; True notes it is not designed to heat cold or room-temperature product. It comes with 3 heavy-duty chrome-plated wire shelves. It plugs into a dedicated 208-240V, 15 amp outlet with the included NEMA 6-15P cord and draws 1500 watts.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
An electric heater system holds 140°F to 180°F for warm cooked or baked food, with an exterior digital temperature display.
A manually controlled vent on top of the cabinet lets you control humidity.
3 heavy-duty chrome-plated wire shelves. Shelving kits with tray slides are available.
Doors on both sides: 1 glass door on the front and 1 solid door on the rear. Load from the kitchen and serve from the other side.
Glass doors use Low-E, double-pane thermal insulated glass, so staff can see stock without opening the door.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
A dedicated 15 amp outlet. The cabinet is rated 208-240/60/1 and comes with a 9 ft. cord and NEMA 6-15P plug; total heat is 1500 watts.
The cabinet is 36-1/8" deep and 27-1/2" wide, plus 1-1/2" for handles. Measure the doorway and every turn on the way in.
True rates it to hold 140°F to 180°F. It is made to keep warm cooked or baked food hot, not to heat cold or room-temperature product.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
3 heavy-duty chrome-plated wire shelves. Shelving kits with tray slides and pilasters are available at extra cost.
The front has 1 glass door and the rear has 1 solid door.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1HPT-1G-1S |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 400 lb. |
| Width | 27-1/2 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-1/2" for Door Handles, Front and Back |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 1500 Watts |
| Plug Type | NEMA 6-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 140 - 180 Degrees F |
| Heater System | Electric Heater, Exterior Digital Temperature DisplayManual Humidity Vent on Top |
| Doors | 1 Glass Door Front1 Solid Door RearSelf-Closing, 120° Stay-Open, Locks Standard |
| Door Glass | Low-E, double-pane thermal insulated glass |
| Shelves | 3 Heavy-Duty Chrome-Plated Wire Shelves |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageShelving Kits with Tray Slides and Pilasters |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
