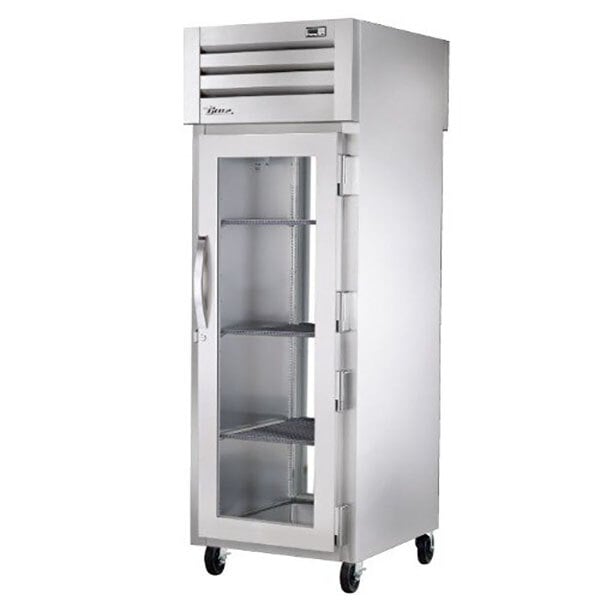

True STG1RPT-1G-1G-HC Spec Series 27" 1-Section Pass-Thru Refrigerator, 1 Glass Front Door, 1 Glass Rear Door, 3 Shelves, R290, 115V
A 1-section pass-thru refrigerator that loads from one side and serves from the other.
The True STG1RPT-1G-1G-HC is a 27" wide, 1-section pass-thru refrigerator from True's Spec Series, with 1 glass door on the front and 1 glass door on the rear. Its top-mounted R290 system holds 33°F to 38°F and keeps the evaporator out of the food zone. It comes with 3 heavy-duty PVC-coated wire shelves. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27-1/2" width.
A factory-balanced, self-contained system holds 33°F to 38°F, with an exterior digital temperature display.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential, in a TXV expansion valve system.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides are available.
Doors on both sides: 1 glass door on the front and 1 glass door on the rear. Load from the kitchen and serve from the other side.
Glass doors use Low-E, double-pane thermal insulated glass, so staff can see stock without opening the door.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
A dedicated 115V, 15 amp outlet. The unit draws 3.8 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 36-1/8" deep and 27-1/2" wide, plus 1-1/2" for handles. Measure the doorway and every turn on the way in.
True rates the STG1RPT-1G-1G-HC to hold 33°F to 38°F.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
3 heavy-duty PVC-coated wire shelves. Shelving kits with tray slides and pilasters are available at extra cost.
The front has 1 glass door and the rear has 1 glass door.
R290, a natural hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG1RPT-1G-1G-HC |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 440 lb. |
| Width | 27-1/2 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-1/2" for Door Handles, Front and Back |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3.8 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| Compressor Location | Top Mount |
| System | Self-Contained, Expansion Valve TXVECM Evaporator and Condenser Fan MotorsEpoxy-Coated EvaporatorElectronic Control |
| Doors | 1 Glass Door Front1 Glass Door RearSelf-Closing, 120° Stay-Open, Locks Standard |
| Door Glass | Low-E, double-pane thermal insulated glass |
| Shelves | 3 Heavy-Duty PVC-Coated Wire Shelves |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageShelving Kits with Tray Slides and Pilasters |
| Curb Mounting | Curb Mounting Ready |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
