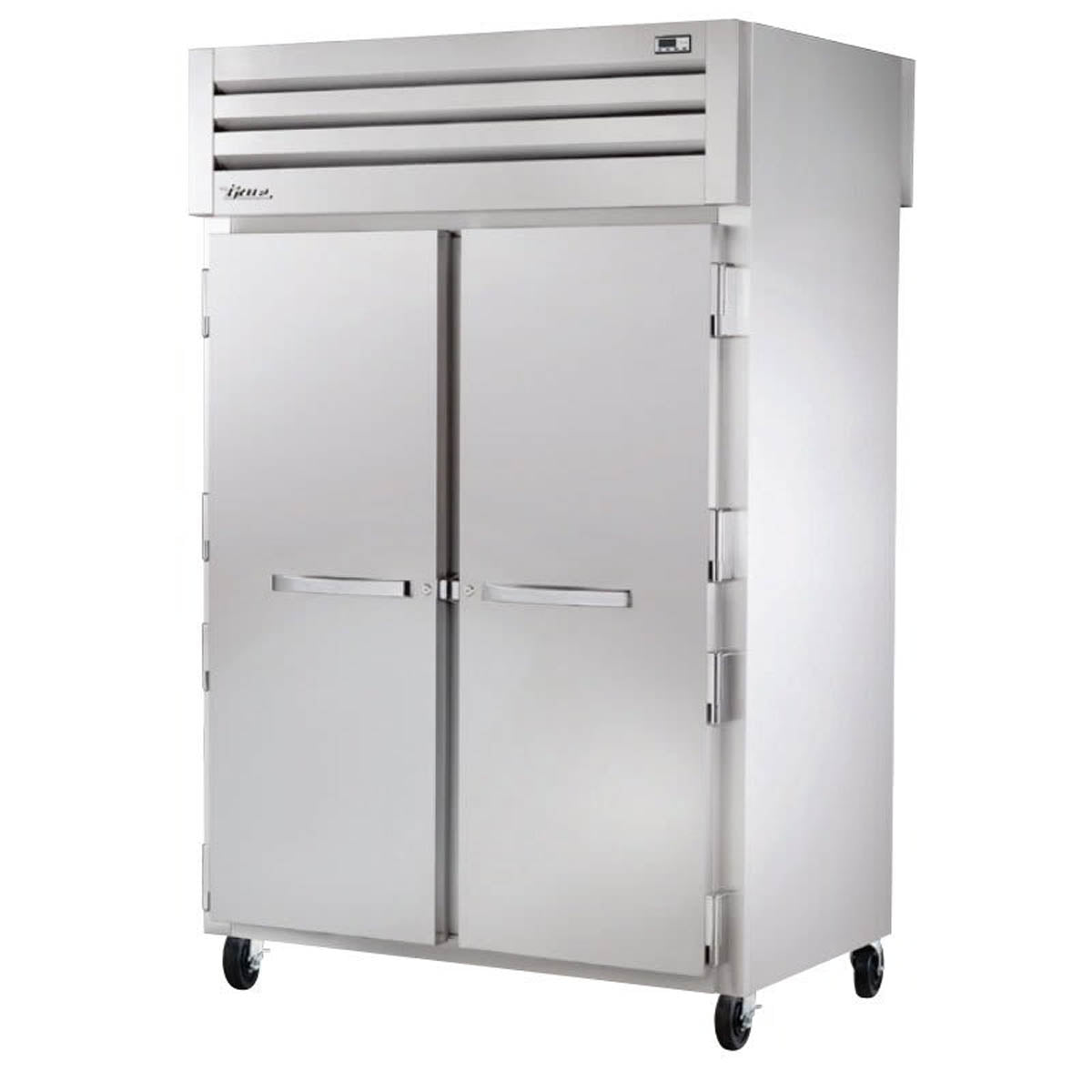

True STG2HPT-2S-2S Spec Series 52" 2-Section Pass-Thru Heated Holding Cabinet, 2 Solid Front Doors, 2 Solid Rear Doors, 6 Shelves, 3000W, 208-240V
A 2-section pass-thru heated cabinet that loads from one side and serves from the other.
The True STG2HPT-2S-2S is a 52" wide, 2-section pass-thru heated holding cabinet from True's Spec Series, with 2 solid doors on the front and 2 solid doors on the rear. It holds warm cooked or baked food at 140°F to 180°F; True notes it is not designed to heat cold or room-temperature product. It comes with 6 heavy-duty chrome-plated wire shelves, 3 per section. It is hardwired to a dedicated 208-240V circuit and draws 3000 watts.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 36-1/8" cabinet depth, before handles.
An electric heater system holds 140°F to 180°F for warm cooked or baked food, with an exterior digital temperature display.
A manually controlled vent on top of the cabinet lets you control humidity.
6 heavy-duty chrome-plated wire shelves, 3 per section. Shelving kits with tray slides are available.
Doors on both sides: 2 solid doors on the front and 2 solid doors on the rear. Load from the kitchen and serve from the other side.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
Incandescent interior lighting is safety shielded.
True requires a sole-use circuit. The cabinet comes with feed wires to be hardwired on site to a 208-240/60 Hz, single-phase, 20 amp dedicated circuit. Total heat is 3000 watts.
The cabinet is 36-1/8" deep and 52-5/8" wide, plus 1-1/2" for handles. Measure the doorway and every turn on the way in.
True rates it to hold 140°F to 180°F. It is made to keep warm cooked or baked food hot, not to heat cold or room-temperature product.
The cabinet is 77-3/4" tall; add 6-1/8" for the standard castors or 6" for optional legs.
6 heavy-duty chrome-plated wire shelves, 3 per section. Shelving kits with tray slides and pilasters are available at extra cost.
The front has 2 solid doors and the rear has 2 solid doors.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG2HPT-2S-2S |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 565 lb. |
| Width | 52-5/8 Inches |
| Depth | 36-1/8 Inches |
| Height | 77-3/4 Inches |
| Height Note | Add 6-1/8" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-1/2" for Door Handles, Front and Back |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 3000 Watts |
| Connection | Hardwired, No Cord or Plug |
| Circuit | Dedicated 20 Amp Circuit2 Pole, 3 Wire |
| Temperature Range | 140 - 180 Degrees F |
| Heater System | Electric Heater, Exterior Digital Temperature DisplayManual Humidity Vent on Top |
| Doors | 2 Solid Doors Front2 Solid Doors RearSelf-Closing, 120° Stay-Open, Locks Standard |
| Shelves | 6 Heavy-Duty Chrome-Plated Wire Shelves, 3 per Section |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Plate Castors, Locks on Front Set |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs6" Stainless Steel LegsAdditional ShelvesSecurity PackageShelving Kits with Tray Slides and Pilasters |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
