True STG2HRT-2S-2S Spec Series 68" 2-Section Roll-Thru Heated Holding Cabinet, 2 Solid Front Doors, 2 Solid Rear Doors, 4000W, 115/208-240V
A 2-section roll-thru heated cabinet that takes racks in one side and out the other.

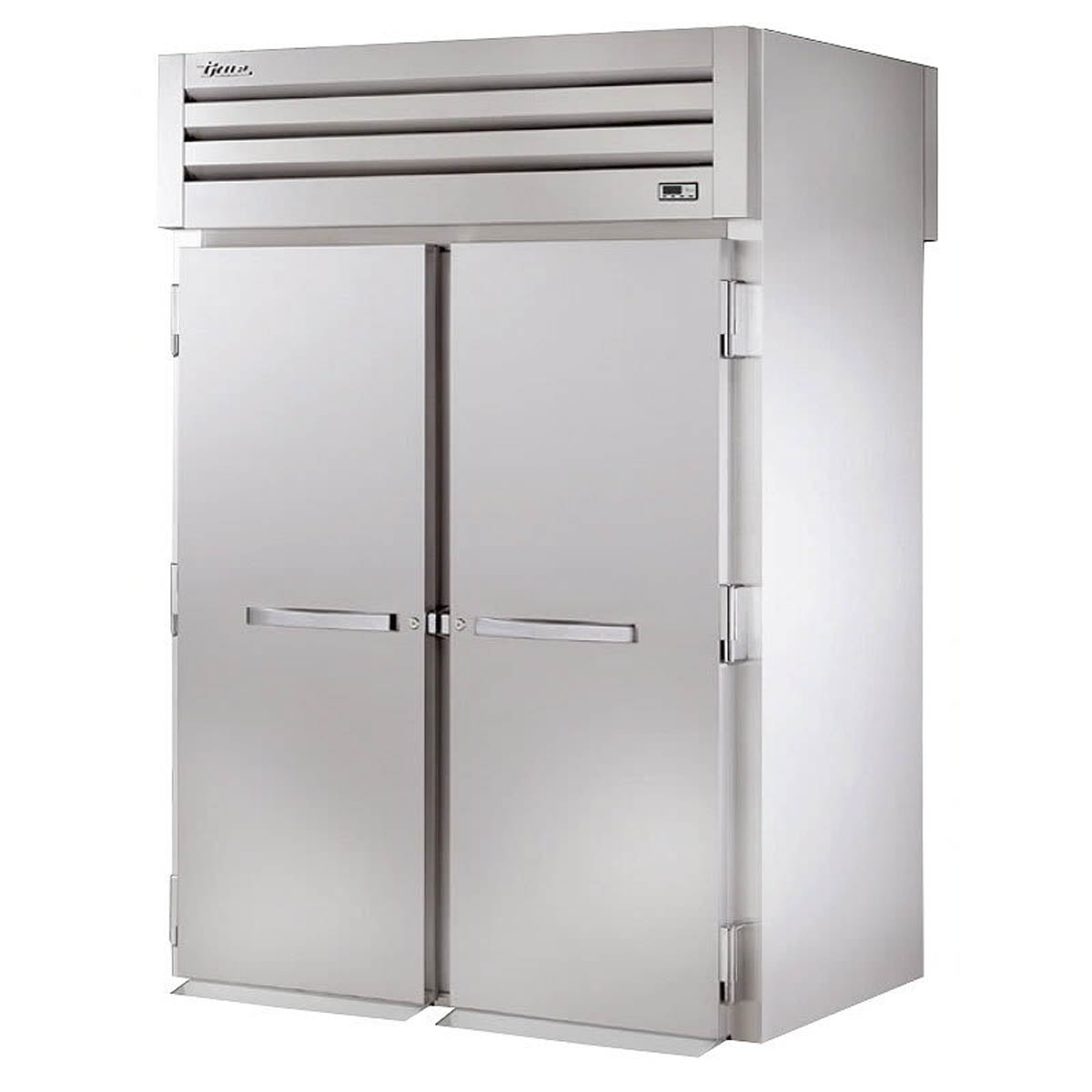

The True STG2HRT-2S-2S is a 68" wide, 2-section roll-thru heated holding cabinet from True's Spec Series, with 2 solid doors on the front and 2 solid doors on the rear. It holds warm cooked or baked food at 140°F to 180°F; True notes it is not designed to heat cold or room-temperature product. It accepts roll-in racks with inboard castors up to 27"L x 29"D x 66"H (racks supplied by others). It is hardwired to a dedicated 115/208-240V circuit and draws 4000 watts.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 37-1/2" cabinet depth.
An electric heater system with low-velocity fans holds 140°F to 180°F for warm cooked or baked food.
A manually controlled vent on top of the cabinet lets you control humidity.
Takes racks up to 27"L x 29"D x 66"H with inboard castors. 1 heavy-gauge stainless steel ramp per door is included; interior bumpers protect the walls from carts.
Outside: stainless steel door with matching aluminum sides. Inside: aluminum side walls and back and stainless steel floor and ceiling. Doors are self-closing with a 120° stay-open feature and have locks. One-piece magnetic gaskets come off without tools for cleaning.
Incandescent interior lighting is safety shielded.
True requires a sole-use circuit. The cabinet comes with feed wires to be hardwired on site to a 115/208-240/60 Hz dedicated circuit. Total heat is 4000 watts.
The cabinet is 37-1/2" deep and 68" wide, plus 4-1/8" each side for the ramps. Measure the doorway and every turn on the way in.
True rates it to hold 140°F to 180°F. It is made to keep warm cooked or baked food hot, not to heat cold or room-temperature product.
The cabinet is 83-3/4" tall, plus 1" for system mechanical parts on top. It sits on the floor, with no castors.
Roll-in racks with inboard castors up to 27"L x 29"D x 66"H. Racks are not included.
Yes. Pick the hinging you need from the options above the price before you add it to the cart.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STG2HRT-2S-2S |
| Series | Spec Series |
| Quantity | 1/Each |
| Product Weight | 820 lb. |
| Width | 68 Inches |
| Depth | 37-1/2 Inches |
| Height | 83-3/4 Inches |
| Height Note | Add 1" for System Mechanical Components |
| Depth Note | Add 4-1/8" for Ramp, Each Side |
| Max Rack Size | 27"L x 29"D x 66"H, Inboard Castors, Racks by Others |
| Voltage | 115/208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 4000 Watts |
| Connection | Hardwired, No Cord or Plug |
| Circuit | Dedicated Circuit |
| Temperature Range | 140 - 180 Degrees F |
| Heater System | Electric HeaterLow-Velocity FansManual Humidity Vent on Top |
| Doors | 2 Solid Doors Front2 Solid Doors RearSelf-Closing, 120° Stay-Open, Locks Standard |
| Exterior | Stainless steel door with matching aluminum sides |
| Interior | Aluminum side walls and backStainless steel floor and ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Ramps | 1 Heavy-Gauge Stainless Steel Ramp per Door |
| Interior Bumpers | Protect Cabinet Walls from Roll-In Carts |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| True Options | Security Package |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
