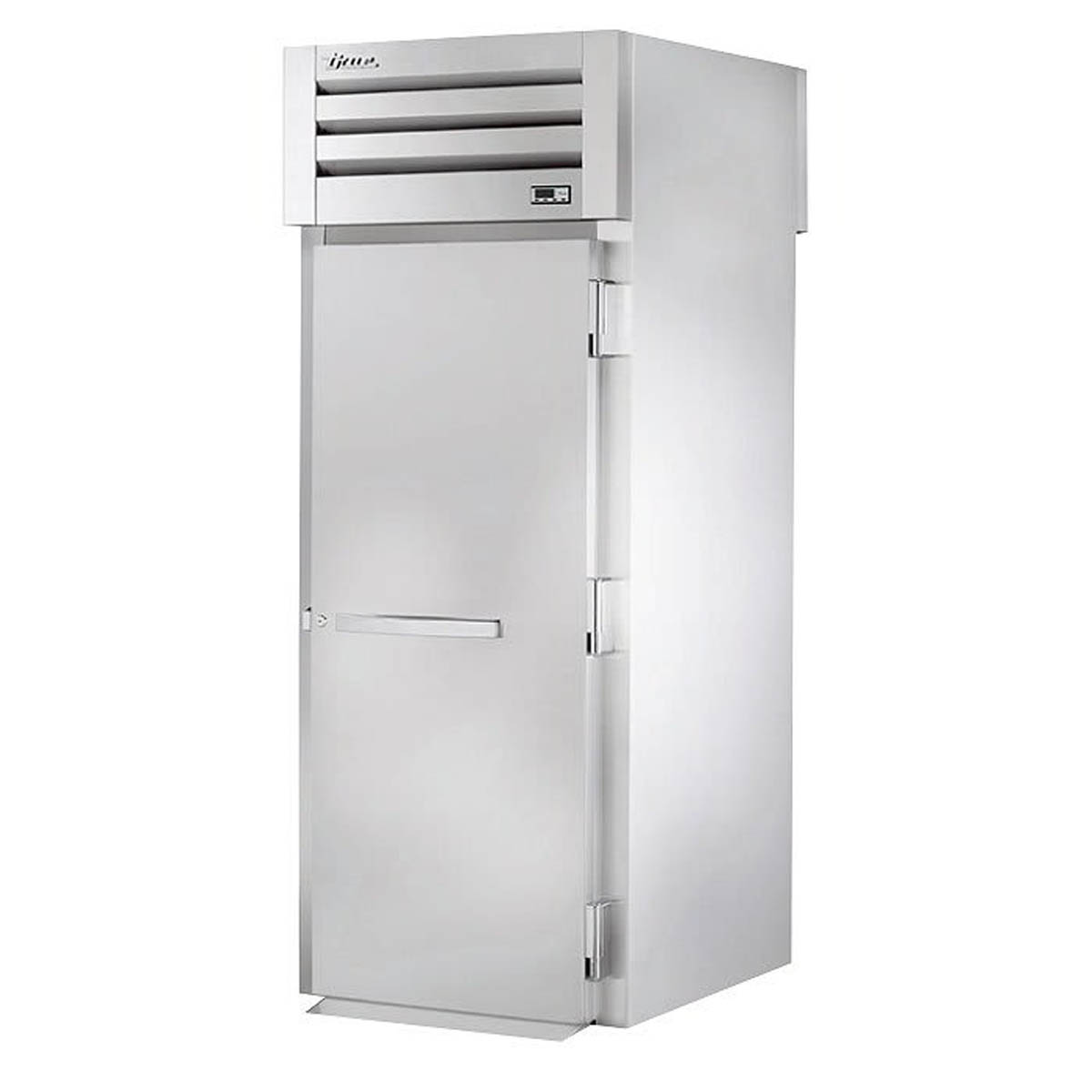

True STR1HRT89-1S-1S 35" One-Section Spec Series Roll-Thru Heated Cabinet, 1 Solid Door Front, 1 Solid Door Rear, 140-180°F, 115/208-230V
A one-section roll-thru heated cabinet that holds cooked and baked food at 140°F to 180°F.
The True STR1HRT89-1S-1S is a 35" Spec Series roll-thru heated holding cabinet with 1 solid door on the front and 1 solid door on the back. Two 1000 watt finned tube elements and low-velocity fans hold 140°F to 180°F, and it takes roll-in racks up to 27" x 29" x 72" H. It plugs into a dedicated 115/208-230V circuit with the included NEMA 14-20P cord. True designs it to hold hot food, not to heat cold product.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 35" width.
Two 1000 watt stainless finned tube elements and low-velocity fans spread heat evenly; an electronic control sets the temperature.
A manual vent on top lets moisture out, and a 12" x 20" water pan is included when food needs more humidity.
Doors on both the front and back let racks go in one side and out the other.
Takes roll-in racks up to 27" L x 29" D x 72" H; interior bumpers protect the walls from carts.
Stainless steel doors, front and sides, plus stainless side walls, back, floor, door liner and ceiling.
Self-closing doors stay open at 120°, lock as standard and seal with one-piece magnetic gaskets you remove without tools.
A dedicated 20 amp, single phase, 3 pole, 4 wire 115/208-230V circuit. The 2000 watt cabinet comes pre-wired with a 9 ft. cord and NEMA 14-20P plug.
The cabinet is 35" wide, 37-1/2" deep and 88-3/4" tall. Add 4-1/8" each side for ramps. Measure the doorway and every turn on the way in.
No. True designs this cabinet to hold warm baked or cooked food at 140°F to 180°F; it is not made to heat ambient or cold product.
Roll-in racks with inboard castors up to 27" L x 29" D x 72" H. Racks are not included.
Yes. Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | STR1HRT89-1S-1S |
| Series | Spec Series |
| Quantity | 1/Each |
| Weight | 480 lb. |
| Width | 35 Inches |
| Depth | 37-1/2 Inches |
| Height | 88-3/4 Inches |
| Height Note | Add 1" for System Mechanical Components |
| Depth Note | Add 4-1/8" Each Side for Ramps |
| Voltage | 115/208-230 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Wattage | 2000 Watts |
| Plug Type | NEMA 14-20P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 20 Amp Circuit, Single Phase, 3 Pole, 4 Wire |
| Temperature Range | 140 - 180 Degrees F |
| Heating System | Two 1000 Watt Stainless Steel Finned Tube ElementsLow-Velocity FansElectronic Temperature ControlManual Humidity Vent |
| Water Pan | 12" x 20" Pan Included for Added Humidity |
| Doors | Front: 1 solid doorRear: 1 solid doorSelf-Closing with 120° Stay-OpenLocks Standard |
| Hinges | External Cam-Lift Hinges, 3 per Door Section |
| Rack Capacity | Accepts Roll-In Racks up to 27" L x 29" D x 72" H, Inboard Castors, Racks Not Included |
| Ramps | Heavy Gauge Stainless Steel Ramp |
| Exterior | Stainless Steel Doors, Front and Sides |
| Interior | Stainless Steel Side Walls, Back, Floor, Door Liner and Ceiling |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Lighting | Incandescent Interior Lighting, Safety Shielded |
| Display | Exterior Color-Coded Temperature Display |
| True Options | Security Package |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 4 Compliant for Open Food Product |
