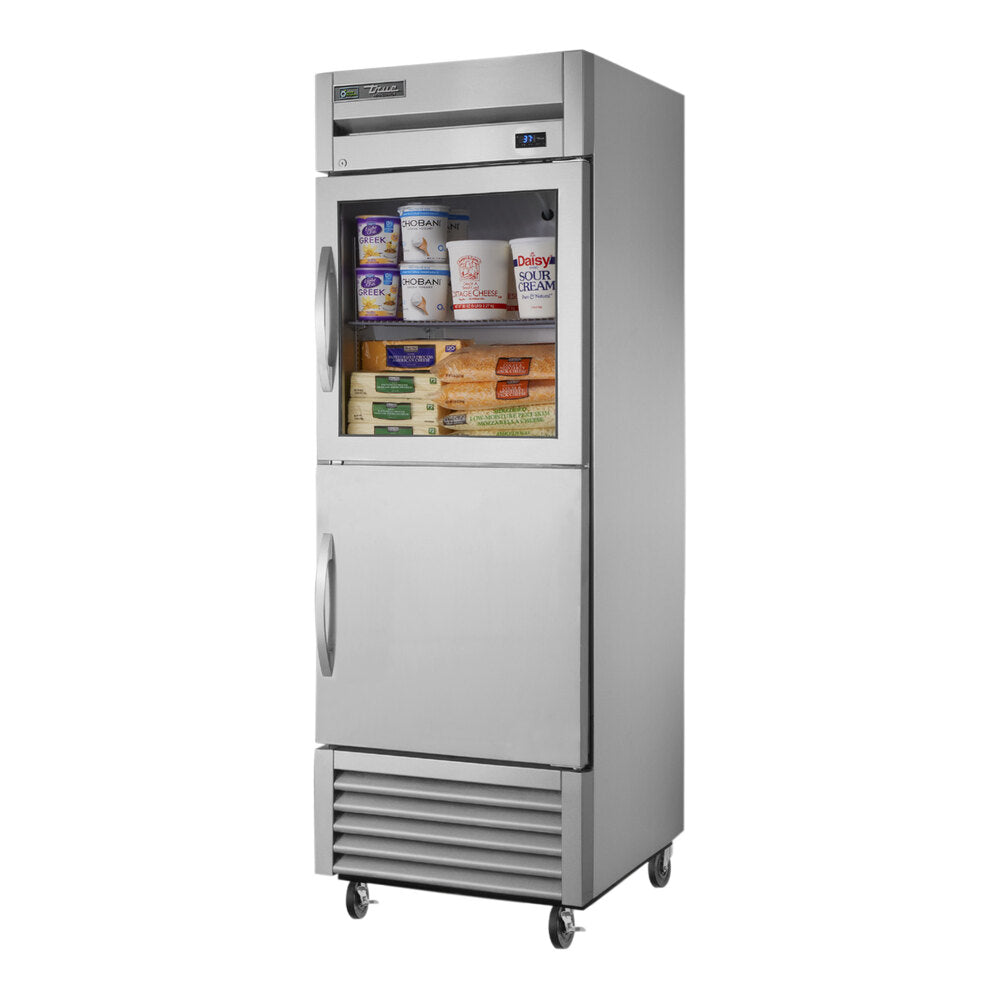

True T-23-1-G-1-HC~FGD01 27" 2 Half-Door Glass/Solid Reach-In Refrigerator, Bottom Mount, R290, 3 Shelves, 115V
A reach-in with one glass half door and one solid half door that holds 33°F to 38°F for a busy kitchen line.
The True T-23-1-G-1-HC~FGD01 is a 27-inch reach-in refrigerator with one glass half door and one solid half door. Its bottom-mounted R290 system holds 33°F to 38°F, and three adjustable shelves carry the load. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27" cabinet width.
A factory-balanced, self-contained system keeps the cabinet between 33°F and 38°F, with an exterior temperature display.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
The condensing unit sits low, in the coolest and least greasy part of the kitchen, and leaves the top of the cabinet free for storage.
Heavy-duty wire shelves adjust in 1/2" steps.
Low-E double-pane glass doors, door locks, self-closing doors and magnetic gaskets you can remove without tools.
A dedicated 115V, 15 amp outlet. The unit draws 2.2 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
The cabinet is 29-3/4" deep and 27" wide. Measure the doorway and every turn on the way in. The depth does not include 1-5/8" for door handle.
True rates the T-23-1-G-1-HC~FGD01 to hold 33°F to 38°F.
The cabinet is 78-3/8" tall; add 5" for the standard castors or 6" for optional legs.
Alternate door hinging is a factory-installed option on True's sheet. Ask us before you order if you need it.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | T-23-1-G-1-HC~FGD01 |
| Series | T-Series Reach-In |
| Quantity | 1/Each |
| Shipping Weight | 311 lb. |
| Width | 27 Inches |
| Depth | 29-3/4 Inches |
| Height | 78-3/8 Inches |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-5/8" for Door Handle |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.2 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan Motors |
| Temperature Display | Exterior Temperature Display |
| Doors | 1 Glass and 1 Solid Half Swing Doors, Self-Closing, Locks Standard |
| Glass | Low-E Double-Pane Thermal Glass |
| Shelves | 3 Adjustable Wire Shelves |
| Exterior | Stainless Steel FrontAnodized Aluminum EndsGalFan Coated Steel Back |
| Interior | Clear Coated Aluminum LinerStainless Steel Floor with Coved Corners |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Stem Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged LegsAlternate Door HingingAdditional ShelvesHalf Door Bun Tray Racks |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
