True T-23DT-G-HC~FGD01 27" 2 Half-Door Glass Reach-In Dual-Temp Refrigerator/Freezer, Bottom Mount, R290, 3 Shelves, 115V
A refrigerator and a freezer in one 27" cabinet, each on its own system.

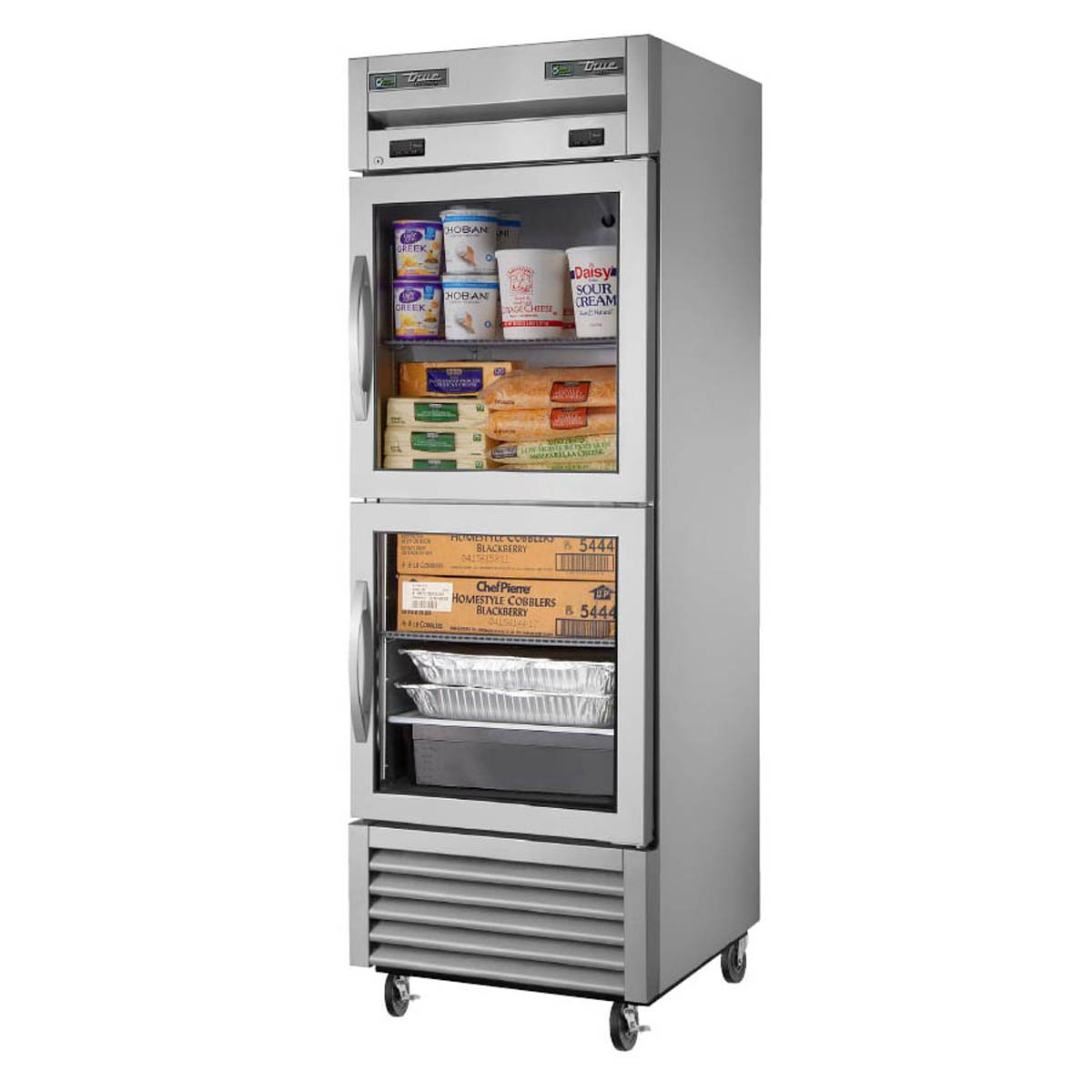

The True T-23DT-G-HC~FGD01 is a 27-inch reach-in dual-temperature refrigerator/freezer with two glass half doors. Two independent R290 systems hold 33°F to 38°F in the refrigerator and -10°F in the freezer. The refrigerator is in the top section and the freezer is on the bottom. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27" cabinet width.
Separate R290 systems hold 33°F to 38°F in the refrigerator and -10°F in the freezer, with two exterior digital temperature displays, one per section.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.
The condensing unit sits low, in the coolest and least greasy part of the kitchen, and leaves the top of the cabinet free for storage.
The freezer defrost cycle is time-initiated and time-terminated, which keeps defrosts short.
Heavy-duty PVC-coated wire shelves, 22-7/8" x 23-1/4", adjust in 1/2" steps.
Low-E double-pane glass on the refrigerator door and triple-pane glass on the freezer door, door locks, self-closing doors and magnetic gaskets you can remove without tools.
A dedicated 115V, 15 amp outlet. The unit draws 6.3 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
The cabinet is 29-3/4" deep and 27" wide. Measure the doorway and every turn on the way in. The depth does not include 1-3/8" for door handle.
The refrigerator is in the top section and the freezer is on the bottom. The refrigerator holds 33°F to 38°F and the freezer holds -10°F.
The cabinet is 78-3/8" tall; add 5" for the standard castors or 6" for optional legs.
Yes. The freezer defrost cycle is time-initiated and time-terminated.
Yes. Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | T-23DT-G-HC~FGD01 |
| Series | T-Series Reach-In |
| Quantity | 1/Each |
| Shipping Weight | 380 lb. |
| Width | 27 Inches |
| Depth | 29-3/4 Inches |
| Height | 78-3/8 Inches |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-3/8" for Door Handle |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6.3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F Refrigerator, -10 Degrees F Freezer |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/10 HP Refrigerator, 1/2 HP Freezer |
| Compressor Location | Bottom Mount |
| System | Two Independent Self-Contained SystemsECM Evaporator and Condenser Fan MotorsAutomatic Defrost |
| Temperature Display | Two Exterior Digital Temperature Displays, One for Refrigerator Section and One for Freezer |
| Doors | 2 Glass Half Swing Doors, Self-Closing, Locks Standard |
| Glass | Low-E Double-Pane Glass Refrigerator DoorTriple-Pane Glass Freezer Door |
| Shelves | 3 Adjustable PVC-Coated Wire Shelves, 22-7/8" L x 23-1/4" D |
| Exterior | Stainless Steel FrontAnodized Aluminum EndsGalFan Coated Steel Back |
| Interior | Clear Coated Aluminum LinerStainless Steel Floor with Coved Corners |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Stem Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Standard or Seismic/Flanged Legs2-1/2" CastorsAdditional ShelvesAlternate Door HingingHalf Door Bun Tray Racks (refrigerator Section Only) |
| Certifications | ENERGY STAR, cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
Certifications
