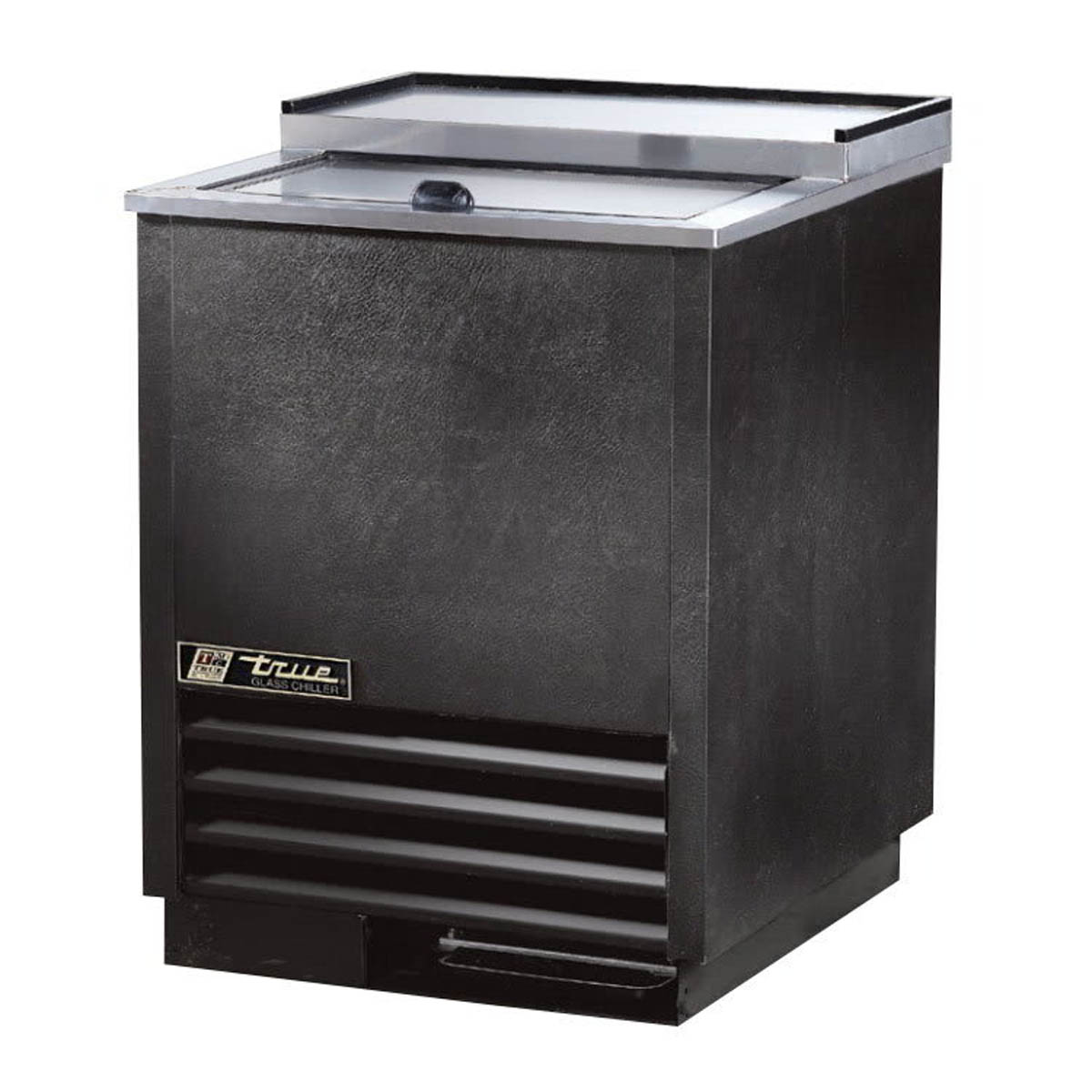

True T-24-GC-HC 24" Glass and Plate Froster, 1 Slide Lid, 90 Mugs, Black, 0°F, R290, 115V
An underbar froster that chills dry glasses and plates to 0°F and below for frosty beer mugs at service.
The True T-24-GC-HC is a 24" underbar glass and plate froster for bars, pubs and restaurants. It holds up to 90 8" mugs or 85 10 oz. steins behind a solid slide lid and keeps the cabinet at 0°F and below with forced-air R290 refrigeration. The black powder-coated cabinet with a stainless steel top plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure the underbar space: the cabinet is 26-7/8" deep and 33-1/2" tall.
A factory-balanced, self-contained R290 system keeps the cabinet at 0°F and below.
Forced-air cooling guides air through the cabinet; True says this design frosts dry glasses and plates fast.
Three adjustable PVC-coated wire shelves: two 17-3/16" x 19-5/16" top shelves and a 5-1/2" x 19-5/16" bottom shelf.
The condensing unit is reached from behind the front grill and slides out for maintenance. Automatic defrost is time-initiated and time-terminated.
Stainless steel countertop and lid over a black powder-coated steel cabinet, with a heavy-duty galvanized steel interior and epoxy-coated evaporator.
A dedicated 115V, 15 amp outlet. The unit draws 2.3 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
True rates it for 90 8" mugs or 85 10 oz. steins.
True rates the cabinet at 0°F and below, cold enough to frost glasses and plates.
True designs the forced-air system for fast frosting of dry glasses and plates.
The cabinet is 24-1/2" wide, 26-7/8" deep and 33-1/2" tall. Measure your underbar opening before you order.
A ratchet lock and handle is an option on True's sheet. Ask us before you order if you need it.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | T-24-GC-HC |
| Series | Underbar Glass and Plate Chiller/Froster |
| Quantity | 1/Each |
| Mug Capacity | 90 8" Mugs |
| Stein Capacity | 85 10 oz. Steins |
| Width | 24-1/2 Inches |
| Depth | 26-7/8 Inches |
| Height | 33-1/2 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 0 Degrees F and Below |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/5 HP |
| System | Self-Contained, Capillary TubeForced-Air CoolingECM Evaporator and Condenser Fan MotorsAutomatic Defrost, Time-Initiated and Time-TerminatedSlide-Out Condensing Unit Behind Front Grill |
| Lids | 1 Solid Slide Lid |
| Shelves | 3 Adjustable PVC-Coated Wire Shelves2 Top Shelves 17-3/16" L x 19-5/16" DBottom Shelf 5-1/2" L x 19-5/16" D |
| Exterior | Stainless Steel Countertop and LidBlack Powder-Coated Cold Rolled Steel Front, Sides and Back |
| Interior | Heavy-Duty Galvanized Steel |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Frame | Welded Heavy-Duty Steel Frame Rail, Black Powder Coated |
| True Options | 6" Legs6" Seismic/Flanged Legs2-1/2" Castors3" CastorsRatchet Lock and HandleFloor Racks |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 for Packaged or Bottled Product |
| Warranty | 5-Year Compressor Warranty, USA |
