True T-49FG-HC~FGD01 54" 2-Door Glass Reach-In Freezer, Bottom Mount, R290, 6 Shelves, 115V
A two-door glass reach-in freezer that holds -10°F for frozen food and ice cream.
The True T-49FG-HC~FGD01 is a 54-inch reach-in freezer with two glass swing doors. Its bottom-mounted R290 system holds -10°F, which True rates for both frozen food and ice cream, with automatic defrost. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 29-3/4" cabinet depth.
A factory-balanced system holds -10°F, rated for frozen food and ice cream, with an exterior temperature display.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 0.02 global warming potential.

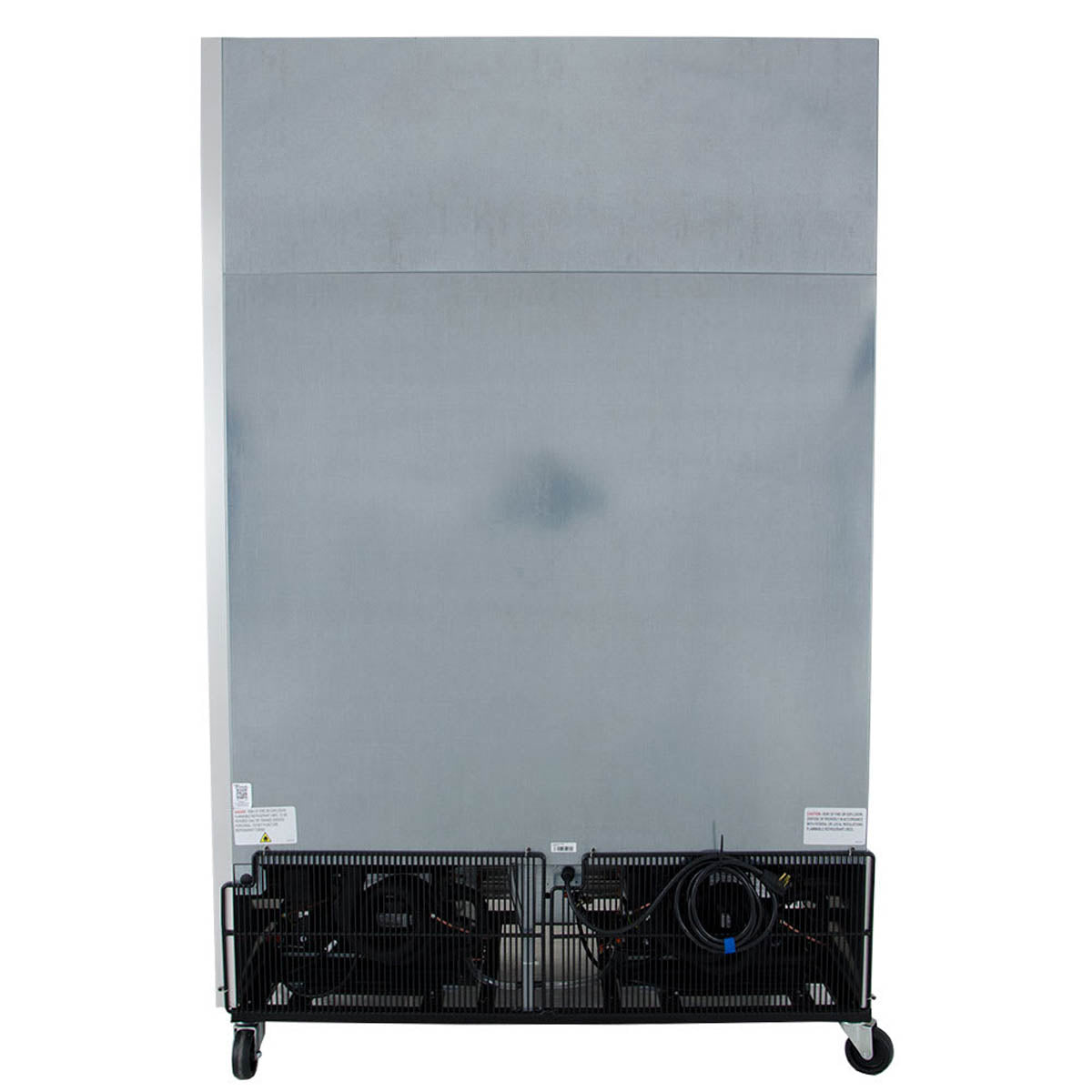

The condensing unit sits low, in the coolest and least greasy part of the kitchen, and leaves the top of the cabinet free for storage.
The defrost cycle is time-initiated and temperature-terminated, which keeps defrosts short.

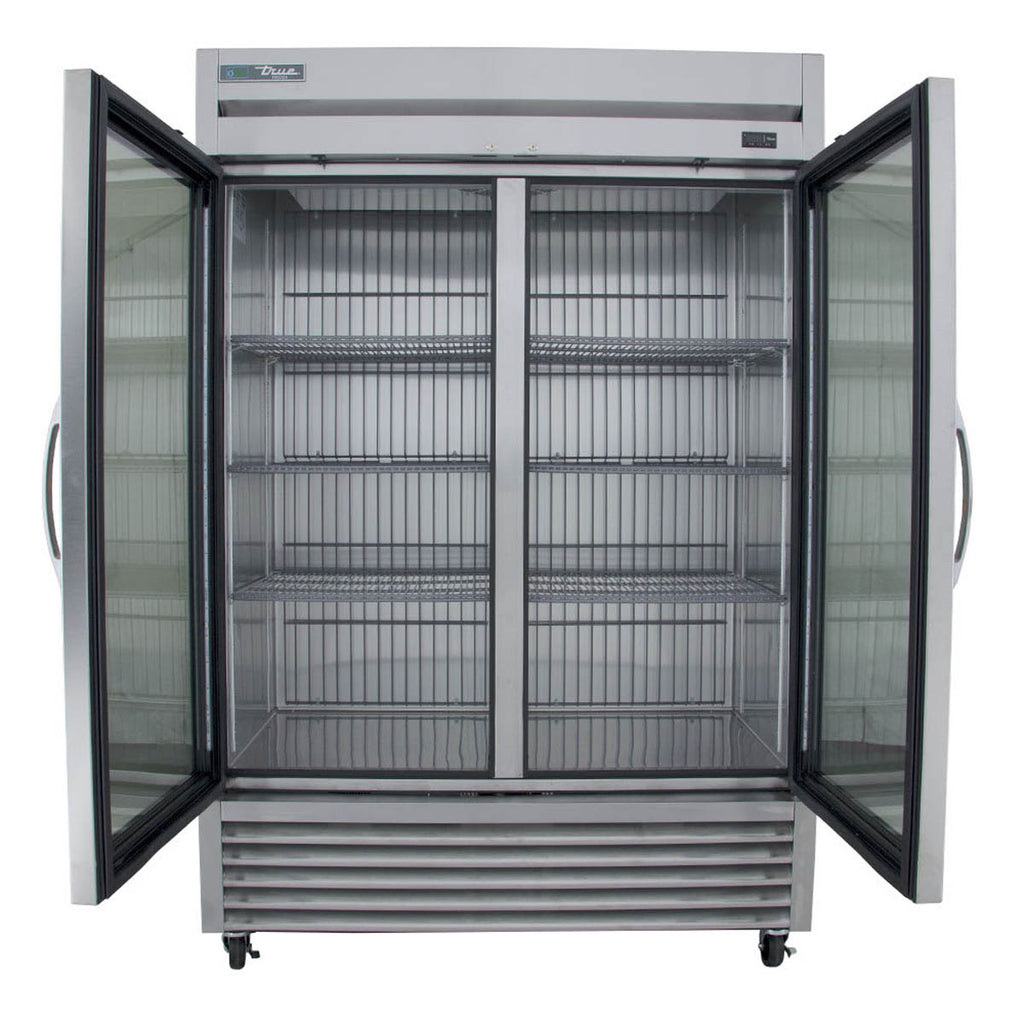

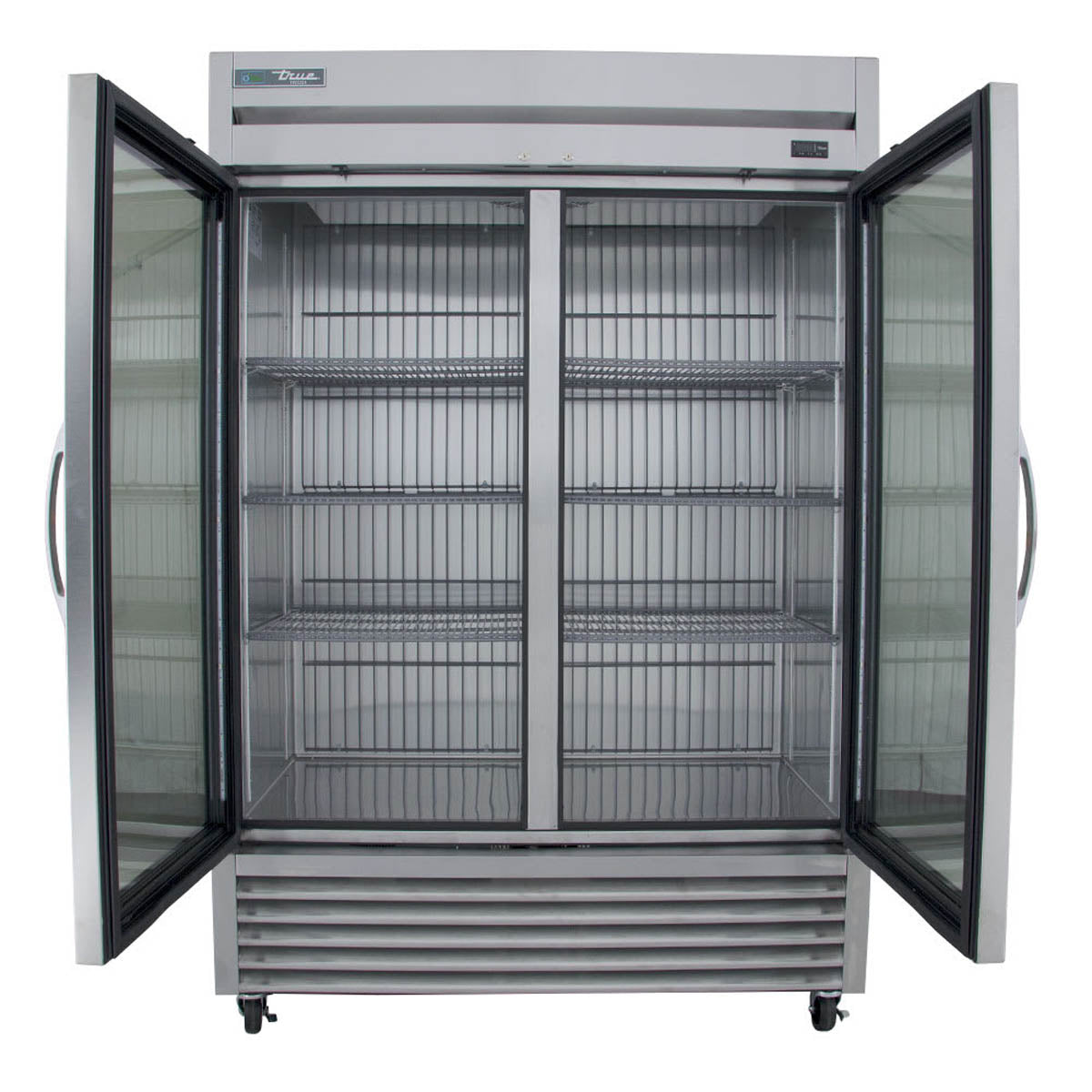

Heavy-duty PVC-coated wire shelves, 24-9/16" x 22-3/8", adjust in 1/2" steps.
Triple-pane glass doors, door locks, self-closing doors and magnetic gaskets you can remove without tools.
A dedicated 115V, 15 amp outlet. The unit draws 8.4 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
The cabinet is 29-3/4" deep and 54-1/8" wide. Measure the doorway and every turn on the way in. The depth does not include 1-3/8" for door handle.
True rates the T-49FG-HC~FGD01 to hold -10°F, for both frozen food and ice cream.
The cabinet is 78-3/8" tall; add 5" for the standard castors or 6" for optional legs.
Yes. The defrost cycle is time-initiated and temperature-terminated.
Yes. Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | T-49FG-HC~FGD01 |
| Series | T-Series Reach-In |
| Quantity | 1/Each |
| Shipping Weight | 650 lb. |
| Width | 54-1/8 Inches |
| Depth | 29-3/4 Inches |
| Height | 78-3/8 Inches |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Depth Note | Add 1-3/8" for Door Handle |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 8.4 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsAutomatic Defrost |
| Temperature Display | Exterior Temperature Display |
| Doors | 2 Glass Swing Doors, Self-Closing, Locks Standard |
| Glass | Triple-Pane Thermal Glass |
| Shelves | 6 Adjustable PVC-Coated Wire Shelves, 24-9/16" L x 22-3/8" D |
| Exterior | Stainless Steel FrontAnodized Aluminum EndsGalFan Coated Steel Back |
| Interior | Clear Coated Aluminum LinerStainless Steel Floor with Coved Corners |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Stem Castors, Locks on Front Set |
| Lighting | LED Interior Lighting, Safety Shielded |
| True Options | 6" Standard Legs6" Seismic/Flanged Legs2-1/2" Standard Legs2-1/2" Stem CastorsAlternate Door HingingNovelty BasketsHalf Door Bun Tray RacksFull Door Bun Tray Racks |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
