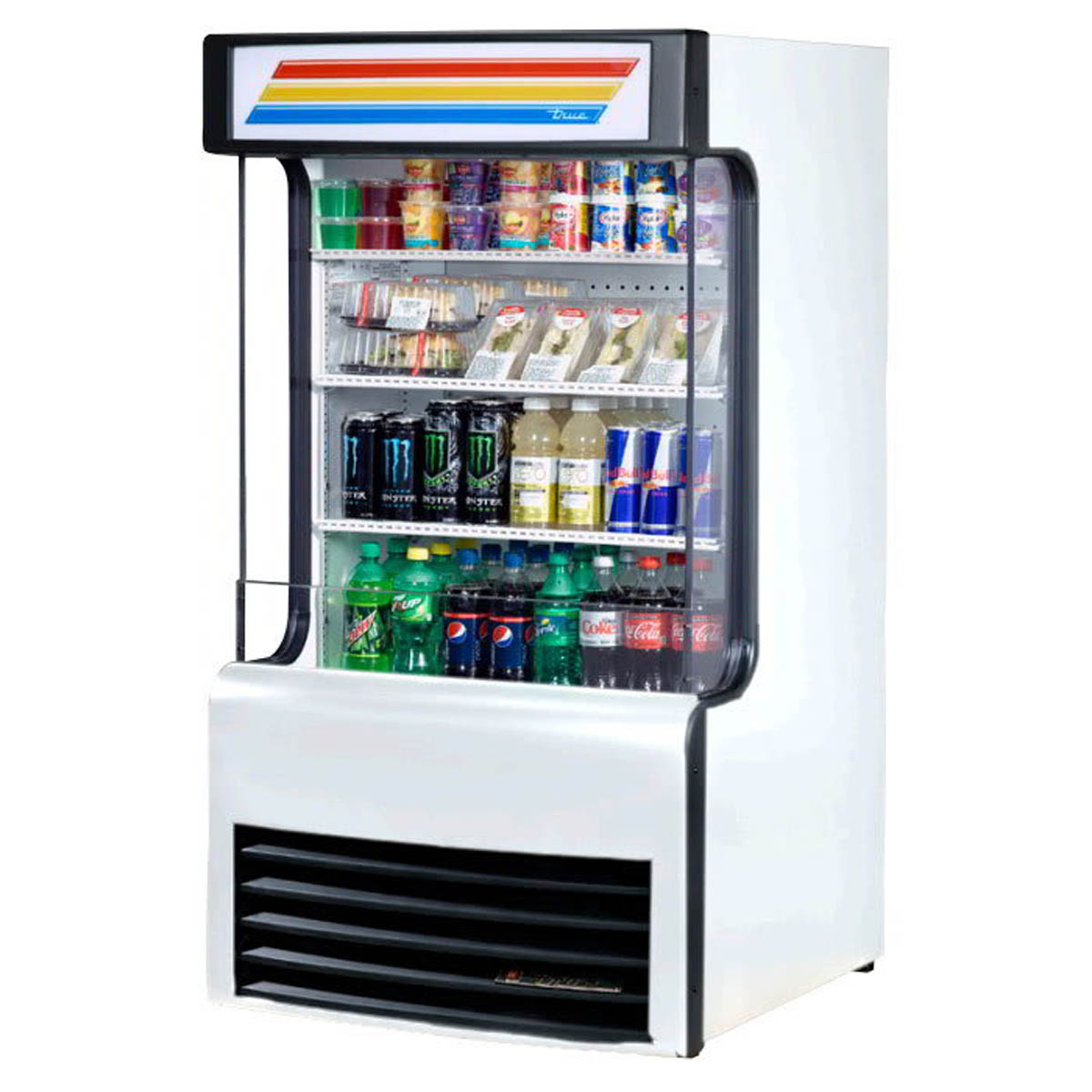

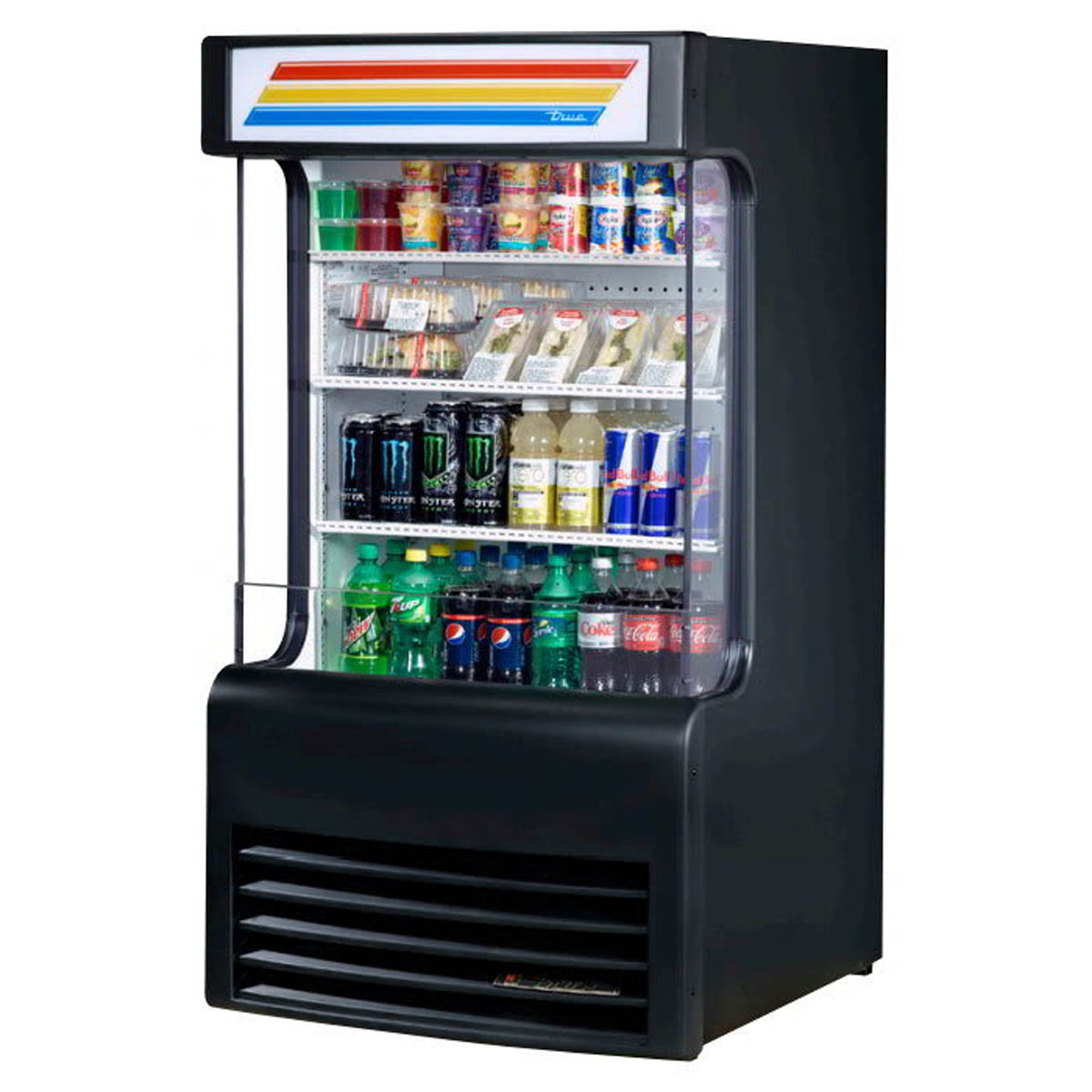

True TAC-14GS-LD 30" Open Air Curtain Merchandiser Refrigerator, Glass Sided, 3 Shelves, LED, 115V
A 30" open-front air curtain merchandiser that keeps grab-and-go drinks and food at 35°F to 40°F.
The True TAC-14GS-LD is a vertical air curtain merchandiser with a large open front, so customers reach in without opening a door. Its oversized refrigeration system holds 35°F to 40°F, and three adjustable shelves sit under LED lighting with clear plexiglass lower front and side panels. It plugs into a dedicated 115V, 15 amp outlet.
True recommends a drain plumbing hookup and notes air curtain models are much louder than standard refrigeration.
An oversized, factory-balanced system with an extra large evaporator coil and condenser holds 35°F to 40°F.
A large open front gives customers easy reach to every display level and puts attention on the product.
Heavy-duty PVC-coated wire shelves, 25-11/16" L x 17-1/2" D, adjust in 1/2" steps.
Plexiglass lower front and side panels resist breaking and keep product visible; an illuminated sign panel sits on top.
The condenser fan motor reverses during off cycles to help keep the coil clear; True still recommends regular coil cleaning.
Black vinyl front and sides, black aluminum back, white aluminum liner and stainless steel floor and deck pans.
A dedicated 115V, 15 amp outlet. The unit draws 11.2 A and comes pre-wired with a 6.5 ft. cord and NEMA 5-15P plug.
True says to keep it away from HVAC vents, fans and doorways that disturb the air curtain, out of direct sunlight, and in a room not above 75°F and 55% relative humidity.
True rates it for 35°F to 40°F. It runs most efficiently when fully loaded with product.
True advises that air curtain models are substantially louder than standard refrigeration models.
True recommends a drain plumbing hookup.
True's sheet lists a three year warranty on all parts and labor and an additional 2 year warranty on the compressor, USA only. True excludes residential and non-commercial installs.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TAC-14GS-LD |
| Series | TAC Vertical Air Curtain |
| Quantity | 1/Each |
| Shipping Weight | 315 lb. |
| Width | 30-1/4 Inches |
| Depth | 32-1/8 Inches |
| Height | 56-3/8 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 11.2 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 6.5 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 35 - 40 Degrees F |
| Refrigerant | 134A |
| Horsepower | 3/4 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeReversing Condenser Fan MotorTime-Initiated, Time-Terminated Off Cycle DefrostSealed Cast Iron Evaporator Fan Motors |
| Front | Open Air Curtain |
| Shelves | 3 Adjustable Heavy-Duty PVC-Coated Wire Shelves, 25-11/16" L x 17-1/2" D, 1/2" Increments |
| Exterior | Black Vinyl Front and SidesBlack Aluminum BackPlexiglass Lower Front and Side Panels |
| Interior | White Aluminum LinerStainless Steel Floor and Deck PansPerforated Back Wall |
| Lighting | LED Interior Lighting, Safety ShieldedIlluminated Exterior Sign Panel |
| Insulation | Foamed-In-Place High Density Polyurethane, Ecomate |
| Base | Welded Steel Frame Rail with Leg Levelers |
| True Options | 4" Castors, Set of 4Sign PanelsWhite or Stainless Steel ExteriorBlack Interior with Black ShelvesAdditional ShelvesTrueFlex and TrueTrac OrganizersPricing Strips |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF-7 for Storage and Display of Packaged or Bottled Product |
| Operating Conditions | Max 75°F and 55% Relative HumidityDrain Plumbing Hookup Recommended |
| Warranty | 3 Years Parts and Labor, Plus 2 Additional Years on Compressor, USA Only |
| Warranty Note | No Coverage for Residential or Non-Commercial Installs |
