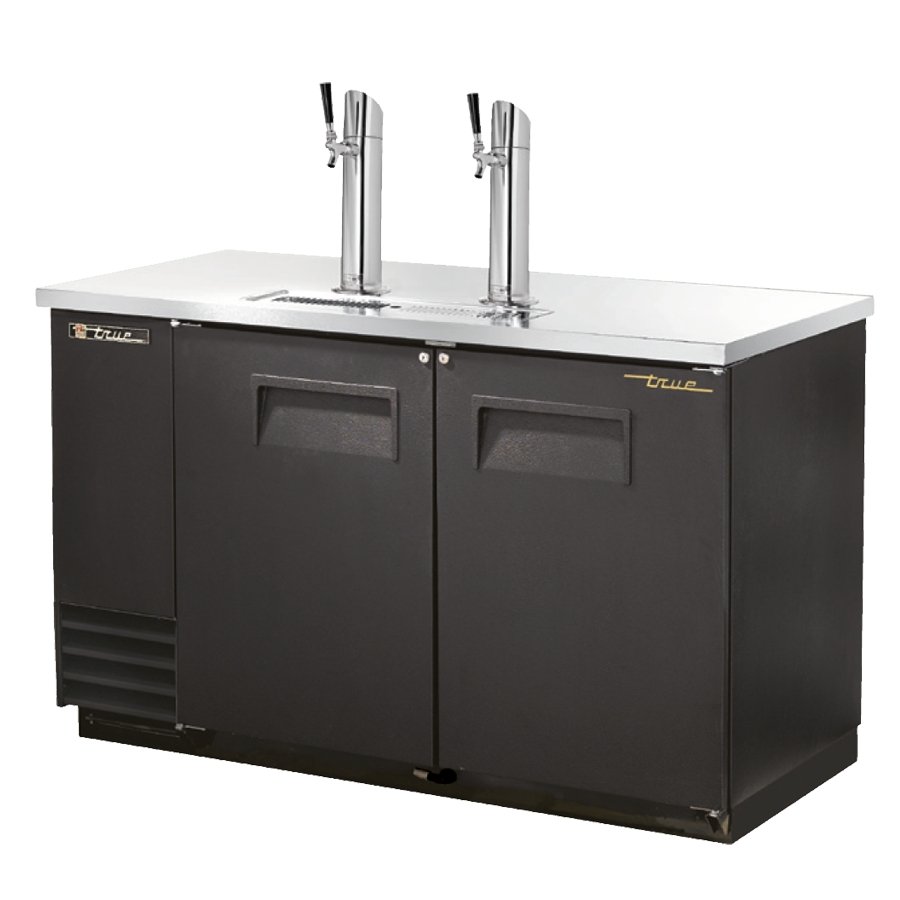

True TDD-2-HC 59" 2-Door Direct Draw Beer Dispenser, Black, 2 Half Barrels, R290, 115V
A 59" direct draw beer dispenser that holds 2 half barrels at 33°F to 38°F and pours from chilled columns.
The True TDD-2-HC is a 59" black direct draw beer dispenser with 2 solid doors. It comes with two 3" stainless steel insulated beer columns and a 2-way tapper manifold, and it holds 33°F to 38°F. True lists room for 2 half barrels. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure your bar opening and every doorway on the delivery path; the smallest outside dimension is the 27-1/8" cabinet depth.
A factory-balanced, self-contained system keeps the cabinet at 33°F to 38°F.
Stainless steel insulated 3" columns get cold air directed into them to reduce foaming; a 2-way tapper manifold comes standard.
True lists room for 2 half barrels.
True uses natural R290 hydrocarbon refrigerant in a factory engineered, self-contained capillary tube system.
Electronically commutated fan motors run cooler and use less energy than standard motors.
True lists room for 2 half barrels.
Yes. Two 3" stainless steel insulated beer columns come standard with a 2-way tapper manifold. Double and triple headed columns are factory options.
The cabinet is 37" tall. Add 15-3/4" for the draft arms. Measure the clear height under your bar top before you order.
A dedicated 115V, 15 amp outlet. It draws 2.8 A and comes pre-wired with a 7 ft. cord and NEMA 5-15P plug.
True rates the TDD-2-HC to hold 33°F to 38°F.
Yes, as factory options: 6" legs, 6" seismic/flanged legs, or 2-1/2" or 4" castors. Ask us before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TDD-2-HC |
| Series | Direct Draw Beer Dispenser (TDD) |
| Quantity | 1/Each |
| Shipping Weight | 360 lb. |
| Width | 58-7/8 Inches |
| Depth | 27-1/8 Inches |
| Height | 37 Inches |
| Depth Note | Does Not Include 1" for rear bumpers |
| Height Note | Does Not Include 15-3/4" for draft arms |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.8 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 7 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan Motors |
| Kegs | 2 half barrels |
| Beer Columns | 2 x 3" Stainless Steel Insulated2-Way Tapper Manifold |
| Doors | 2 Solid Swing DoorsLocks Standard |
| Exterior | Black, powder coated cold-rolled steel with stainless steel countertop |
| Lighting | LED Interior Lighting |
| True Options | 6" Legs6" Seismic Legs2-1/2" or 4" CastorsDouble or Triple Headed Draft Column |
| Certifications | cULus, UL EPH Classified, ENERGY STAR |
| Sanitation | NSF/ANSI Standard 7 Compliant for Packaged or Bottled Product |
| Compressor Warranty | 7 Years, USA and Canada |
