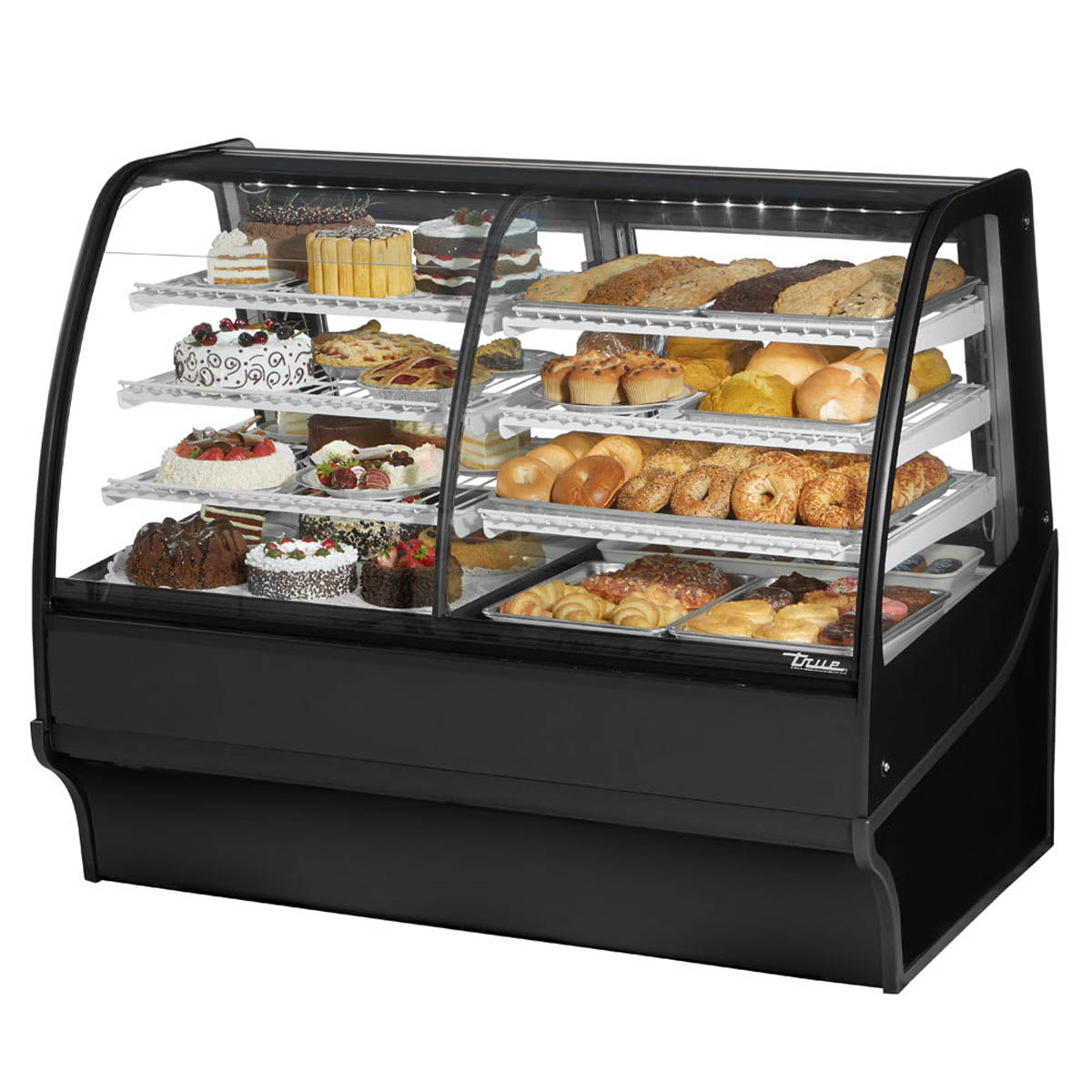

True TDM-DZ-59-GE/GE-B-W 59" Curved Glass Dual Zone Refrigerated/Dry Bakery Display Case, Glass Ends, Black Exterior, 6 Shelves, 115V
A 59" curved glass case with a refrigerated section and a dry section in one cabinet.
The True TDM-DZ-59-GE/GE-B-W is a 59" True Display Merchandiser with a curved glass front, glass ends, a black exterior and a white interior. True builds it as a combination refrigerated and dry case; the refrigerated section holds 33°F to 41°F on an R290 system. 6 adjustable wire shelves on three tiers sit under safety-shielded LED lighting, and staff load from the back through two sliding glass doors. It plugs into a dedicated 115V, 15 amp outlet.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 39" depth.
One cabinet with a refrigerated section that holds 33°F to 41°F and a dry section, on a factory-balanced R290 system.
Curved front and side panels are single pane tempered glass. The front glass swings up for cleaning and full front access.
Heavy-duty wire cantilever shelves on three levels hold up to 150 lb. each and match the interior color; stainless units get chrome-plated shelves.
Two rear sliding glass doors with 12" aluminum handles ride on a stainless steel V-channel with stainless bearings.
True's self-cleaning RCU technology removes the need to clean the condenser coil, and the condensing unit pulls out for service.
Safety-shielded LED interior lighting spreads light evenly across the case.
A dedicated 115V, 15 amp outlet. The case draws 10.0 A and comes pre-wired with an 8 ft. cord and NEMA 5-15P plug.
The case is 59-1/4" wide, 39" deep and 49-1/8" tall. Measure the doorway and every turn on the way in; the smallest outside dimension is the 39" depth.
True builds this case as a combination refrigerated and dry merchandiser. The refrigerated section holds 33°F to 41°F; the dry section holds product that does not need cooling.
6 adjustable heavy-duty wire shelves, each rated for up to 150 lb. Pans are not included.
Staff load and serve from the back through two sliding glass doors. The front glass swings up for cleaning and full front access.
True's self-cleaning RCU technology removes the need to clean the condenser coil. The condensing unit also slides out for easy cleaning and maintenance.
Exterior and interior come in black, white or stainless steel under different model numbers. White, black, chrome, glass or mezzanine shelves and castors or legs are factory options.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TDM-DZ-59-GE/GE-B-W |
| Series | TDM True Display Merchandiser, Curved Glass, Glass End |
| Quantity | 1/Each |
| Shipping Weight | 770 lb. |
| Width | 59-1/4 Inches |
| Depth | 39 Inches |
| Height | 49-1/8 Inches |
| Banking Note | 1/2" Gap Remains Between Banked Units Because of Side Panel |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 10.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 8 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 41 Degrees F Refrigerated Section |
| Optional Temperature Range | 42 - 65 Degrees F, Chocolate and Wine, Factory Option |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| System | Self-Contained, Capillary TubeSelf-Cleaning RCU CondenserPull-Out Condensing UnitElectronic Temperature ControlEpoxy-Coated Evaporator |
| Zones | Combination Refrigerated and Dry Display |
| Front Glass | Curved Single Pane Tempered Glass, Swings Up for Cleaning |
| End Panels | Clear Glass Ends with Black Trim |
| Rear Doors | 2 Sliding Glass Doors, 12" Aluminum Handles, Stainless Steel V-Channel and Bearings |
| Shelves | 6 Adjustable Heavy-Duty Wire Cantilever Shelves, 3 Levels, 150 lb. Max Each |
| Shelf Finish | Matches Interior ColorChrome Plated Standard on Stainless Units |
| Exterior | Black, Rounded Front and Back |
| Interior | White |
| Lighting | LED Interior Lighting, Safety Shielded |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Base | Welded Steel Frame Rail with Leg Levelers |
| True Options | Glass or Frosted Glass ShelvesRatchet LockElectrical ReceptacleExterior Top and Front Shelf Kits4" or 2-1/2" Castors6" Legs |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product, NSF Type II |
