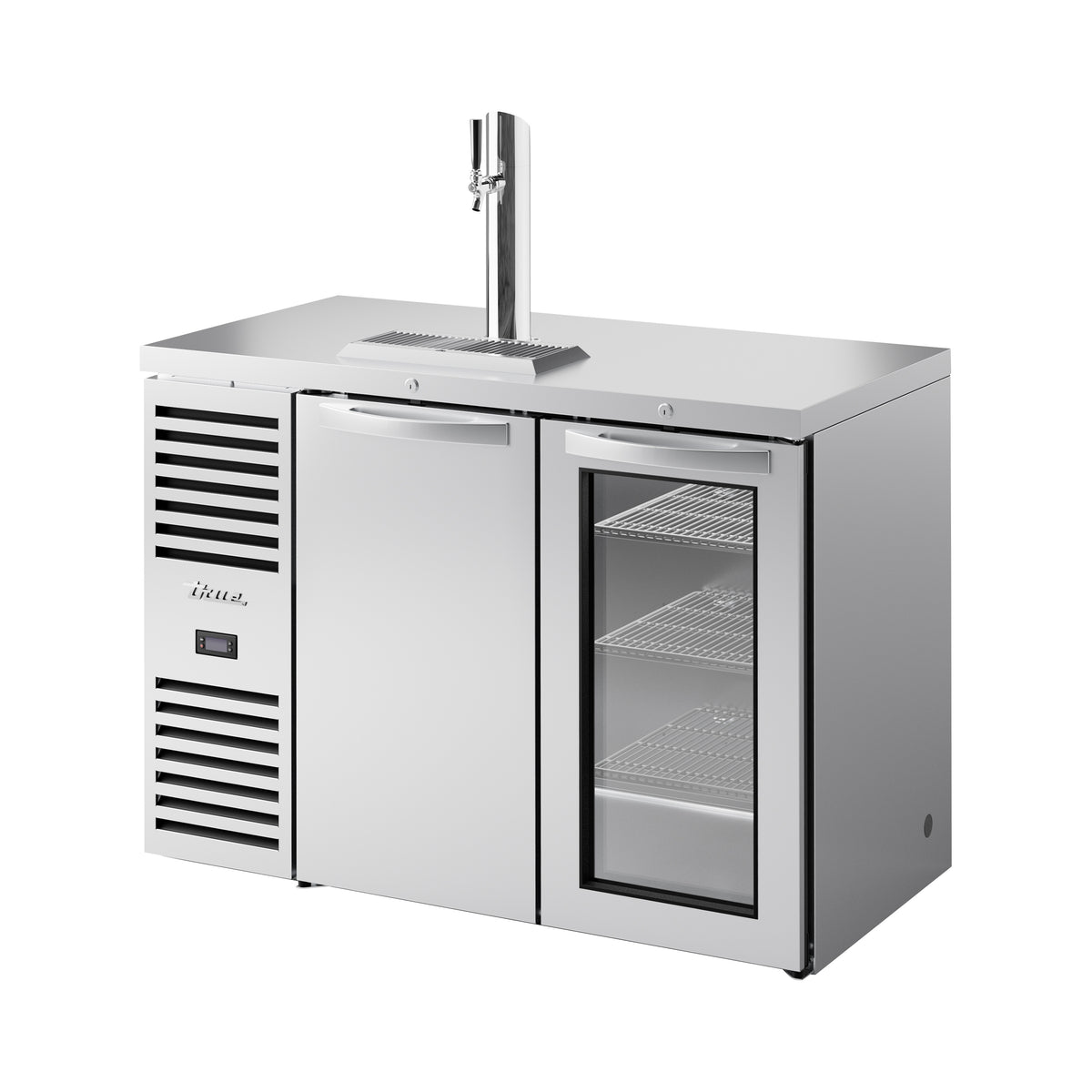

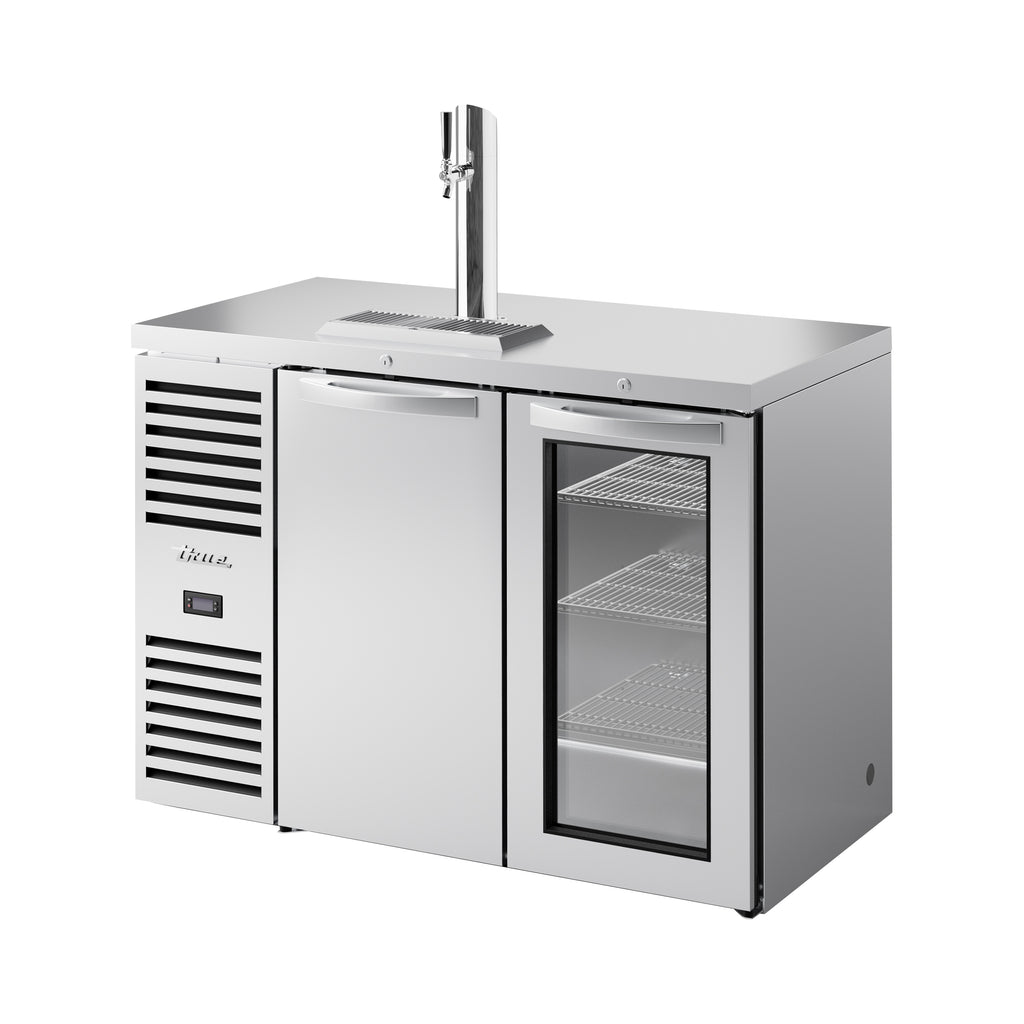

True TDR48-RISZ1-L-S-SG-1 48" 2-Door Solid and Glass Door Direct Draw Beer Dispenser, Stainless Steel, 2 Sixth Barrels, R290, 115V
A 48" draft beer dispenser that keeps kegs at 33°F to 38°F and pours from chilled, insulated draft columns.
The True TDR48-RISZ1-L-S-SG-1 is a 48" stainless steel draft beer refrigerator with 2 doors (one solid, one glass). It comes with 3" insulated draft columns with single faucets, a 2-way manifold and a 15" drip tray, and it holds 33°F to 38°F. True rates it at 38 six-packs of 12 oz. cans or 21 six-packs of 12 oz. bottles. By keg size, True lists 1 slim quarter, 2 sixth barrels or 2 home brew kegs (limited per section). It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure your bar opening and every doorway on the delivery path; the smallest outside dimension is the 24-7/8" cabinet depth.
Electronic temperature control with an exterior digital display keeps the cabinet at 33°F to 38°F.
Insulated, chilled 3" draft columns with single faucets come standard, with a 2-way manifold and a 15" surface mounted drip tray.
By keg size, True lists 1 slim quarter, 2 sixth barrels or 2 home brew kegs, limited per section.
True uses natural R290 hydrocarbon refrigerant in a factory engineered, self-contained capillary tube system.
True's self-cleaning RCU technology removes the need to clean the condenser coil and helps hold temperature.
Front air intake and discharge let it sit flush at the sides and back, and it is UL rated for outdoor use.
By keg size, True lists 1 slim quarter, 2 sixth barrels or 2 home brew kegs, limited per section.
Yes. Insulated 3" draft columns with single faucets come standard, plus a 2-way manifold. Other columns, manifolds and a CO2 regulator are factory options.
The cabinet is 34-3/4" tall. Add 1/4" for leg levelers and 15-3/4" for the draft towers above the countertop. Measure the clear height under your bar top before you order.
A dedicated 115V, 15 amp outlet. It draws 1.8 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
No. True lists zero clearance at the sides and back, with front air intake and discharge.
True lists it as UL rated for outdoor use.
True's self-cleaning RCU technology removes the need to clean the condenser coil.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TDR48-RISZ1-L-S-SG-1 |
| Series | True Draft Refrigerator (TDR) |
| Quantity | 1/Each |
| Shipping Weight | 330 lb. |
| Width | 48 Inches |
| Depth | 24-7/8 Inches |
| Height | 34-3/4 Inches |
| Depth Note | Does Not Include 1-1/2" for door handles |
| Height Note | Does Not Include 15-3/4" for draft towers or 1/4" for leg levelers |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 1.8 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/5 HP |
| Compressor Location | Left Side (Right Side Optional) |
| System | Self-Contained, Capillary TubeSelf-Cleaning RCU CondenserFront Air Intake and Discharge, Zero Side and Back Clearance |
| 12 oz. Cans | 38 Six-Packs |
| 12 oz. Bottles | 21 Six-Packs |
| Kegs | 1 slim quarter2 sixth barrels2 home brew kegs |
| Draft Columns | 3" Insulated, Chilled Columns with Single Faucet2-Way Manifold |
| Drip Tray | 15" Surface Mounted Drip Tray Trough |
| Access Ports | 3 Interior Access Ports |
| Doors | 2 Doors: 1 Solid, 1 Low-E GlassField Reversible, Locks Standard |
| Shelves | 3 Adjustable PVC-Coated Wire Shelves |
| Exterior | Stainless steel front, sides and countertop |
| Lighting | TruLumina LED Interior Lighting |
| Base | Leg Levelers |
| True Options | Castors6" Legs6" Seismic LegsOther Draft Columns and ManifoldsCO2 Pressure RegulatorRight Side Compressor |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Packaged or Bottled Product |
| Outdoor Use | UL Rated for Outdoor Use |
