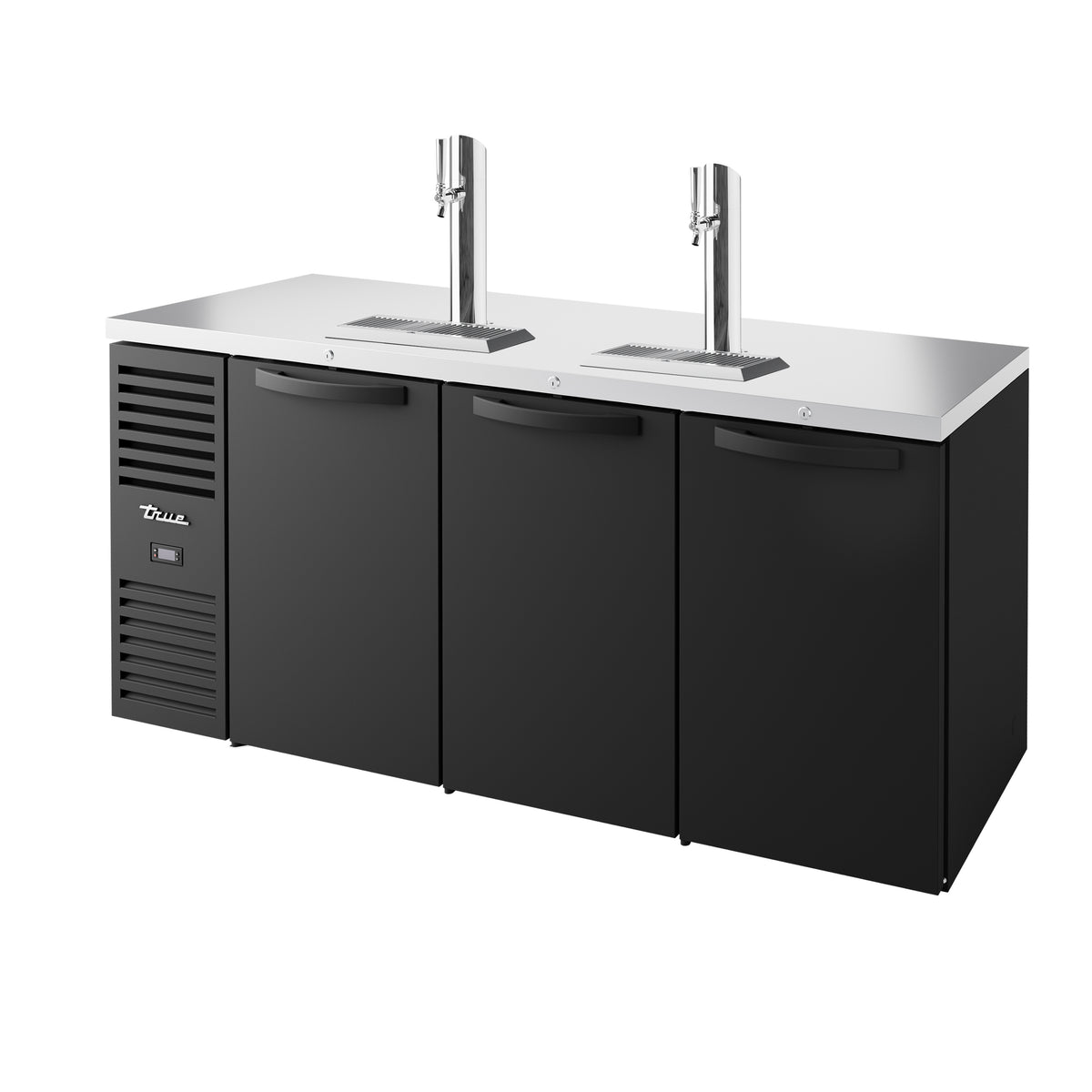

True TDR72-RI 72" 3-Door Direct Draw Beer Dispenser, Reach-In, 33-38°F, R290, 115V
A 72" draft beer dispenser that keeps kegs at 33°F to 38°F under the bar.
The True TDR72-RI is True's base model for its 72" draft refrigerator with 3 doors in front. True builds this size in black or stainless steel, and the full model number (for example TDR72-RISZ1-L-S-SSS-1) sets the finish and door style. Every version holds 33°F to 38°F with R290 refrigerant and plugs into a dedicated 115V, 15 amp outlet. Contact us to confirm the finish and door style before you order.
Measure your bar opening and every doorway on the delivery path; the smallest outside dimension is the 24-7/8" cabinet depth.
A factory-balanced, self-contained system keeps the cabinet at 33°F to 38°F.
Current True sheets for this size list insulated, chilled 3" columns with single faucets and a 4-way manifold as standard; confirm the tower when you order.
By keg size, True lists 3 half barrels, 3 quarter barrels, 6 slim quarters, 11 sixth barrels or 12 home brew kegs (solid-door versions), limited per section.
True uses natural R290 hydrocarbon refrigerant in a factory engineered, self-contained capillary tube system.
True's self-cleaning RCU technology removes the need to clean the condenser coil and helps hold temperature.
By keg size, True lists 3 half barrels, 3 quarter barrels, 6 slim quarters, 11 sixth barrels or 12 home brew kegs (solid-door versions), limited per section.
True's current sheets for the configured versions of this size list 3" insulated draft columns with single faucets as standard, with a 4-way manifold. True's 2020 base sheet showed the column as optional, so confirm the tower with us before you order.
The cabinet is 34-3/4" tall. Add 1/4" for leg levelers and 15-3/4" for the draft towers above the countertop. Measure the clear height under your bar top before you order.
A dedicated 115V, 15 amp outlet. It draws 3.2 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
TDR72-RI is True's base model number for this size. True builds it in black or stainless steel, and the full model number sets the finish and door style; contact us to confirm the exact configuration before you order.
True's self-cleaning RCU technology removes the need to clean the condenser coil.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TDR72-RI |
| Series | True Draft Refrigerator (TDR) |
| Quantity | 1/Each |
| Width | 72 Inches |
| Depth | 24-7/8 Inches |
| Height | 34-3/4 Inches |
| Depth Note | Does Not Include 1-1/2" for door handles |
| Height Note | Does Not Include 15-3/4" for draft towers or 1/4" for leg levelers |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3.2 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| Compressor Location | Left Side |
| System | Self-Contained, Capillary TubeSelf-Cleaning RCU Condenser |
| Refrigerant Charge | 85 Grams |
| Factory Setting | 34 Degrees F |
| Defrost | Automatic, Off Cycle |
| Capacity | 20.52 cu. ft. |
| Kegs | 3 half barrels3 quarter barrels6 slim quarters11 sixth barrels12 home brew kegs |
| Draft Columns | 3" Insulated Columns with Single Faucet4-Way Manifold |
| Doors | 3 Front Doors; Style by Configuration |
| Base | Leg Levelers |
