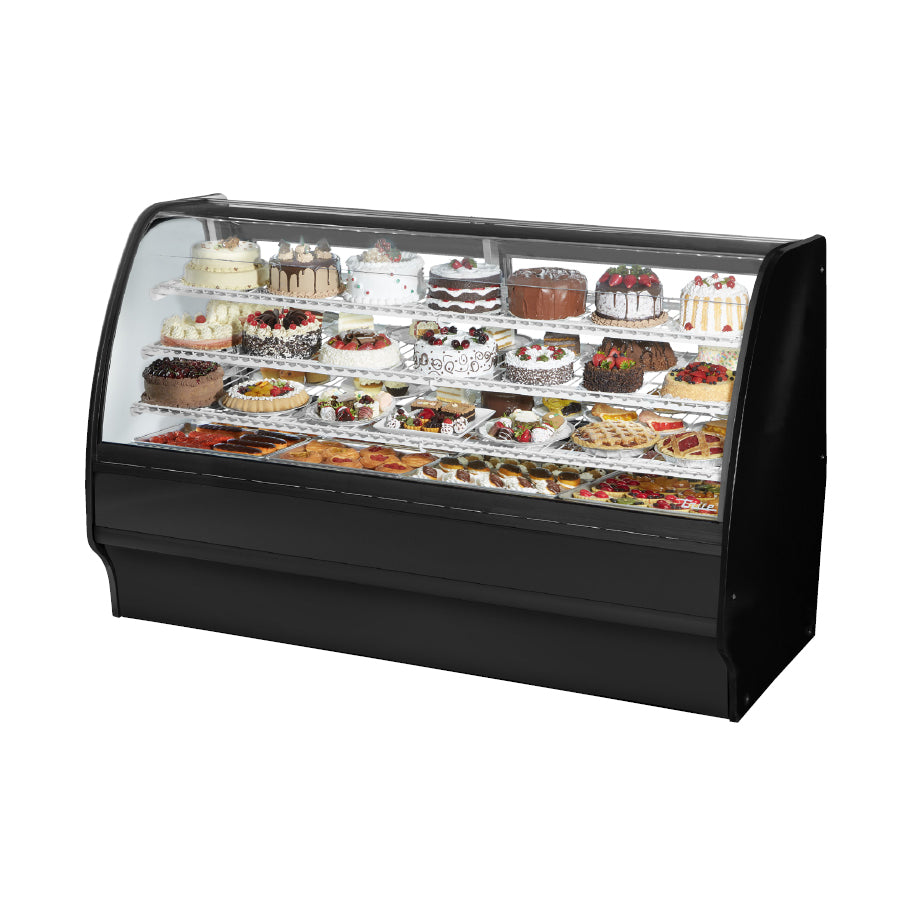

True TGM-R-77-SC/SC-S-W 77" Curved Glass Refrigerated Bakery Display Case, Solid Ends, Stainless Steel Exterior, 6 Shelves, 115V
A 77" curved glass case that holds 33°F to 41°F to show cakes, desserts and pastries.
The True TGM-R-77-SC/SC-S-W is a 77" True Glass Merchandiser with a curved glass front, solid colored ends, a stainless steel exterior and a white interior. Its R290 system holds 33°F to 41°F, suited to refrigerated bakery and cold deli products. 6 adjustable wire shelves on three tiers sit under safety-shielded LED lighting, and staff load from the back through two sliding glass doors. It plugs into a dedicated 115V, 15 amp outlet.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 39" depth.
A factory-balanced R290 system with electronic temperature control, suited to refrigerated bakery and cold deli products.
Single pane tempered curved glass with an extra large viewing area to show product.
Heavy-duty wire cantilever shelves on three levels hold up to 150 lb. each and match the interior color; stainless units get chrome-plated shelves.
Two rear sliding glass doors with 12" aluminum handles ride on a stainless steel V-channel with stainless bearings.
True's self-cleaning RCU technology removes the need to clean the condenser coil, and the condensing unit pulls out for service.
Safety-shielded LED interior lighting spreads light evenly across the case.
A dedicated 115V, 15 amp outlet. The case draws 12.0 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The case is 77-1/4" wide, 39" deep and 49-1/8" tall. Measure the doorway and every turn on the way in; the smallest outside dimension is the 39" depth.
True rates it for 33°F to 41°F, suited to refrigerated bakery and cold deli products. A 42°F to 65°F range for chocolate and wine is a factory option.
6 adjustable shelves, up to 150 lb. each. True says the cabinet holds eight 18" x 26" display pans, with other pan mixes listed on the spec sheet; pans are not included.
Staff load and serve from the back through two sliding glass doors.
True's self-cleaning RCU technology removes the need to clean the condenser coil. The condensing unit also slides out for easy cleaning and maintenance.
Exterior and interior come in black, white or stainless steel under different model numbers. White, black, chrome, glass or mezzanine shelves and castors or legs are factory options.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TGM-R-77-SC/SC-S-W |
| Series | TGM True Glass Merchandiser, Curved Glass, Solid Colored End |
| Quantity | 1/Each |
| Width | 77-1/4 Inches |
| Depth | 39 Inches |
| Height | 49-1/8 Inches |
| Banking Note | 1/2" Gap Remains Between Banked Units Because of Side Panel |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 12.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 41 Degrees F |
| Optional Temperature Range | 42 - 65 Degrees F, Chocolate and Wine, Factory Option |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/2 HP |
| System | Self-Contained, Capillary TubeSelf-Cleaning RCU CondenserPull-Out Condensing UnitElectronic Temperature ControlEpoxy-Coated Evaporator |
| Front Glass | Curved Single Pane Tempered Glass |
| End Panels | Solid Colored Ends |
| Rear Doors | 2 Sliding Glass Doors, 12" Aluminum Handles, Stainless Steel V-Channel and Bearings |
| Shelves | 6 Adjustable Heavy-Duty Wire Cantilever Shelves, 3 Levels, 150 lb. Max Each |
| Shelf Finish | Matches Interior ColorChrome Plated Standard on Stainless Units |
| Pan Capacity | 8 Display Pans 18" L x 26" D, Pans Not Included |
| Exterior | Stainless Steel, Rounded Front and Back |
| Interior | White |
| Lighting | LED Interior Lighting, Safety Shielded |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Base | Welded Steel Frame Rail with Leg Levelers |
| True Options | Glass or Frosted Glass ShelvesRatchet LockElectrical ReceptacleExterior Top and Front Shelf Kits4" or 2-1/2" Castors6" Legs |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product, NSF Type II |
