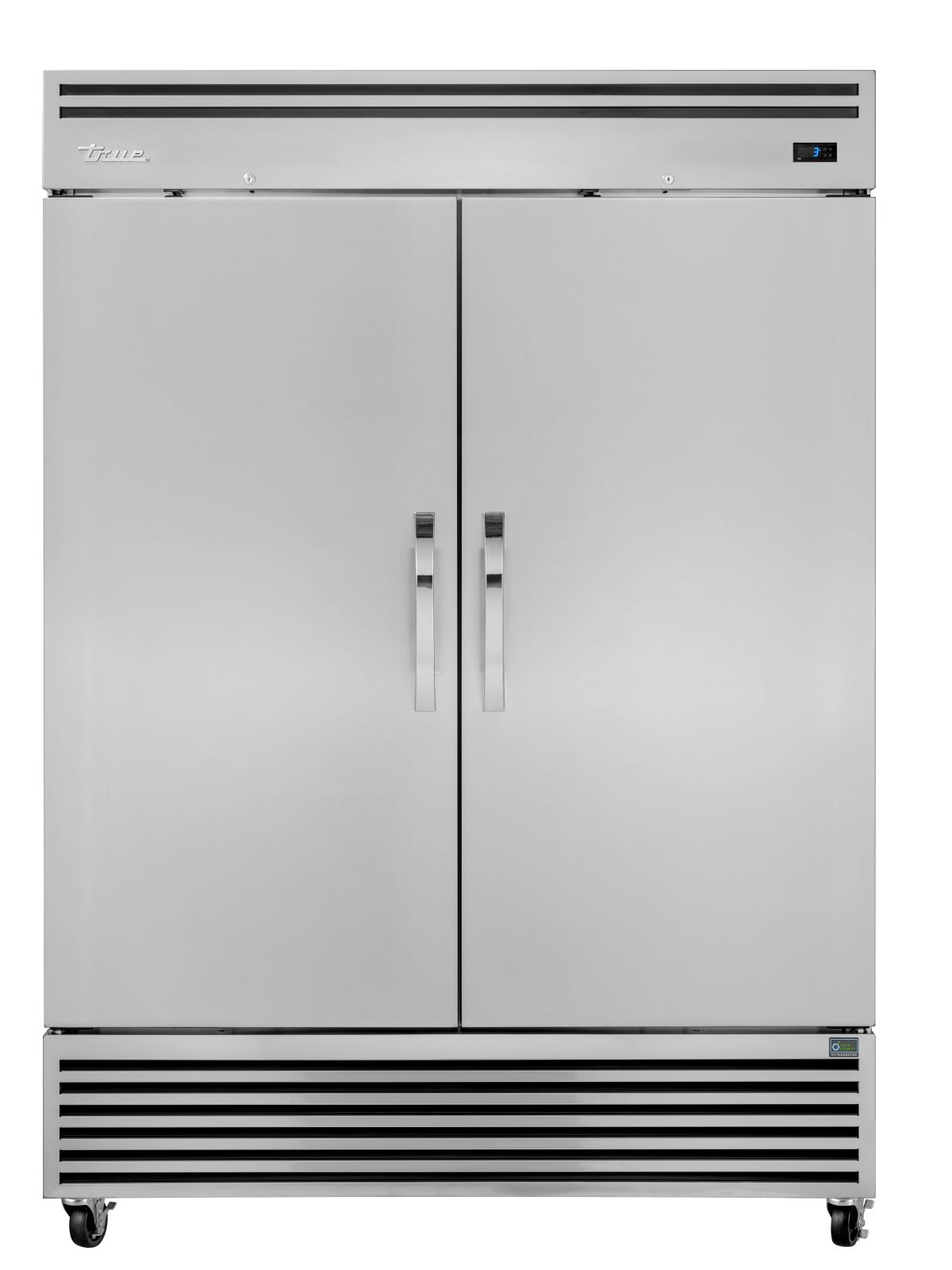

True TGN-2F-2S 57-5/8" 2-Door Solid Door Reach-In Freezer, Gastronorm Slides, Bottom Mount, R290, 120V
A two-door reach-in freezer with Gastronorm slides that holds -10°F to 5°F.
The True TGN-2F-2S is a 57-5/8" wide, 2-door solid door reach-in freezer from True's TGN Series. Its bottom-mounted R290 system holds -10°F to 5°F, and each section has a Gastronorm slide system with gray wire shelves and room for 12" x 20" food pans. It plugs into a dedicated 120V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 33-7/8" cabinet depth.
A factory-balanced, self-contained R290 system holds -10°F to 5°F, with an exterior temperature display and automatic defrost.
Each section has a Gastronorm dual tray slide with three gray wire shelves, 20-7/8" x 25-19/32", and takes two 12" x 20" food pans (sold separately).
True's self-cleaning reverse condensing unit reverses the fan at each startup to blow dirt, dust and debris out of the condenser coil.
Stainless steel doors with a clear aluminum liner. Barrel locks are standard, and the magnetic gaskets come off without tools.
Stainless steel front, anodized aluminum ends, GalFan coated back and top, LED interior lighting and a welded steel frame rail on 4" castors.
A dedicated 120V, 15 amp outlet. The unit draws 5.9 A and comes pre-wired with a 10 ft. cord and NEMA 5-15P plug.
The cabinet is 57-5/8" wide and 33-7/8" deep, plus 1-3/4" for the door handle and 1/2" for rear mechanical parts. Measure the doorway and every turn on the way in.
True rates the TGN-2F-2S to hold -10°F to 5°F.
The cabinet is 78-1/2" tall; add 5" for the standard castors.
Yes. Each section's Gastronorm dual tray slide takes two 12" x 20" food pans (sold separately). True also offers #1 angled and #3 universal tray slide kits.
True's self-cleaning reverse condensing unit technology removes the need to clean the condenser coil. It reverses the fan at each startup to blow debris out of the coil.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TGN-2F-2S |
| Series | TGN Series Reach-In |
| Quantity | 1/Each |
| Shipping Weight | 520 lb. |
| Width | 57-5/8 Inches |
| Depth | 33-7/8 Inches |
| Height | 78-1/2 Inches |
| Height Note | Add 5" for Castors |
| Depth Note | Add 1-3/4" for Door Handle and 1/2" for Rear Mechanical Components |
| Voltage | 120 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5.9 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 - 5 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeSelf-Cleaning Reverse Condensing UnitECM Evaporator and Condenser Fan MotorsAutomatic Defrost, Time-Initiated, Temperature-Terminated |
| Doors | 2 Solid Stainless Steel Swing Doors, Clear Aluminum Liner, Barrel Locks Standard |
| Shelves | 6 Gray Wire Shelves, 3 per Section, 20-7/8" L x 25-19/32" D |
| Exterior | Stainless Steel FrontAnodized Aluminum EndsGalFan Coated Steel Back and Top |
| Interior | Clear Coated AluminumStainless Steel Floor |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Stem Castors, Locks on Front Set |
| Lighting | LED Interior Lighting |
| Controls | Exterior Temperature Display |
| True Options | 220-240V/50-60 Hz4" Legs6" Legs6" Seismic/Flanged LegsAdditional ShelvesAdditional Slides#1 Angled Tray Slide Kit#3 Universal Tray Slide Kit |
| Certifications | cULus, UL EPH Classified, CE |
