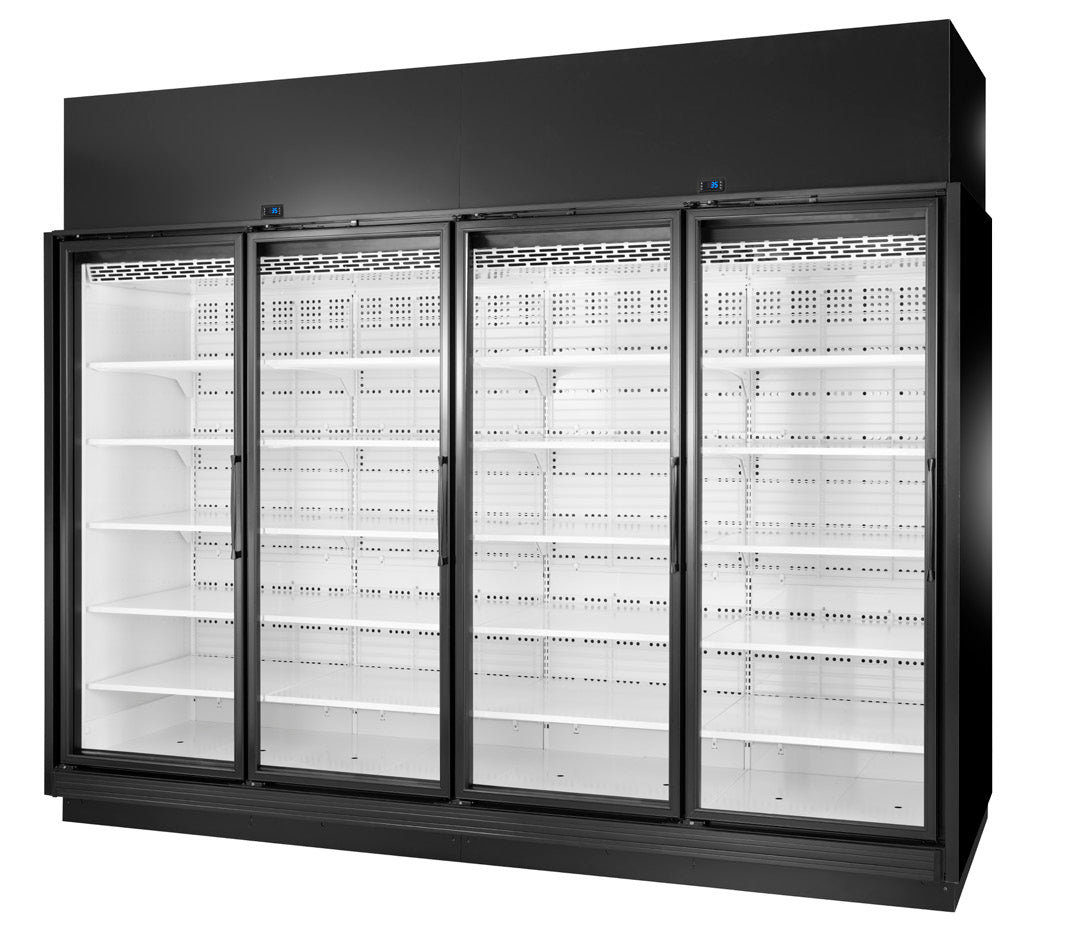

True TRM4L-YN-BLK-WHT-1BLKLLLL-4 127" 4-Door Glass Door Merchandiser Freezer, 154.4 cu. ft., Black, 208-240V
A 4-door glass door merchandiser that holds -10°F to 6°F for frozen packaged product.
The True TRM4L-YN-BLK-WHT-1BLKLLLL-4 is a 4-door True Retail Merchandiser (TRM) with a black exterior, white interior and black aluminum-frame glass doors. Its R290 system holds -10°F to 6°F, and 20 adjustable cantilever shelves, 5 per door, sit behind Low-E triple pane glass with 4000K LED lighting. It arrives as a cabinet plus 3 refrigeration decks that install on site; the case then plugs into a 208-240V outlet.
True designs the cabinet for air-conditioned areas not above 80°F ambient and 55% relative humidity.
The self-contained, factory-charged R290 system uses 3 refrigeration decks; True's Dynamic Refrigeration Response System pulls product down where cooling is needed.
The compact sealed decks install on site and the case plugs in. True says no refrigeration connections, refrigeration tech or electrician are needed.
Solid white powder-coated cantilever shelves, 5 per door, each 30" W x 25" D.
Low-E triple pane glass doors give a 70" viewable glass height, lit by 4000K LED interior lighting.
Self-closing doors with a stay-open feature and one-piece magnetic gaskets you can remove without tools for cleaning.
Reverse condensing fan motor technology helps prevent condenser blockage, and True's refrigeration redundancy architecture helps prevent product loss.
A 208-240V, 60 Hz, single-phase receptacle for the NEMA L6-30P plug on the 10 ft. cord. True lists 19.6 A total.
True says TRM cases fit through openings 82" high and 41" wide, with the refrigeration decks shipped separately. Set up, the cabinet is 127-1/4" wide, 38-7/8" deep plus 1-1/2" for handles, and 102" tall.
True rates it for -10°F to 6°F. The cabinet is designed for air-conditioned areas not above 80°F ambient and 55% relative humidity.
They describe the end panels. On this YN model True's sheet lists an in-line left panel and finished right panel. The panel choice changes the cabinet width slightly; this one is 127-1/4" wide.
All doors on this model hinge on the left (LLLL in the model number). True's TRM sheet says the right-most door is field reversible on this end-panel version.
20 adjustable solid white powder-coated cantilever shelves, 5 per door, each 30" W x 25" D. Black or white shelves are a factory option.
Yes. True's sheet shows ENERGY STAR certification and a daily energy use of 33.58 kWh.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TRM4L-YN-BLK-WHT-1BLKLLLL-4 |
| Series | TRM True Retail Merchandiser |
| Quantity | 1/Each |
| Shipping Weight | 1760 lb. |
| Product Weight | 1512 lb. |
| Refrigeration Decks | 3, Ship Separately, 480 lb. Crated Each |
| Width | 127-1/4 Inches |
| Depth | 38-7/8 Inches |
| Height | 102 Inches |
| Dimension Notes | Depth Does Not Include 1-1/2" for Door HandlesHeight Does Not Include 1/4" for Leg Levelers |
| Interior Dimensions | 123-5/8" W x 28" D x 68-1/8" H |
| Install Opening | Fits Through 82" High x 41" Wide Openings, Decks Ship Separately |
| End Panels | In-Line Left Panel, Finished Right Panel |
| Capacity | 154.4 cu. ft. |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 19.6 Amps |
| Plug Type | NEMA L6-30P |
| Cord Length | 10 ft. |
| Daily Energy Use | 33.58 kWh/Day |
| Temperature Range | -10 - 6 Degrees F |
| Refrigerant | R290 (Hydrocarbon), 5.25 oz. per Deck |
| Horsepower | 1-1/4 HP per Deck |
| Condenser | Air Cooled, Self-Cleaning Reverse Fan Motor Technology |
| System | Self-Contained, Factory-Charged and SealedVariable Speed CompressorDynamic Refrigeration Response System |
| Rejected Heat | 8471 Btu/h Total |
| Doors | 4 Low-E Triple Pane Glass Swing Doors, Black Aluminum Frame, Self-Closing with Stay-Open |
| Door Hinging | All Left (LLLL)The right-most door is field reversible on this end-panel version |
| Viewable Glass Height | 70 Inches |
| Shelves | 20 Adjustable Solid White Powder-Coated Cantilever Shelves, 30" W x 25" D, 5 per Door |
| Exterior | Black |
| Interior | White |
| Lighting | 4000K LED Interior Lighting |
| Insulation | High-Density Polyurethane, Zero ODP |
| Legs | Leg Levelers, True Level Leveling System |
| True Options | Peg Hook KitsBalloon Guard KitHeated Drain Pan AssemblyProduct ID StripsBlack Corner KitBlack or White Cantilever ShelvesBlack Interior |
| Certifications | ENERGY STAR, cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Storage and Display of Packaged Products Only |
| Operating Conditions | Air-Conditioned Areas, Max 80°F Ambient and 55% Relative Humidity |
