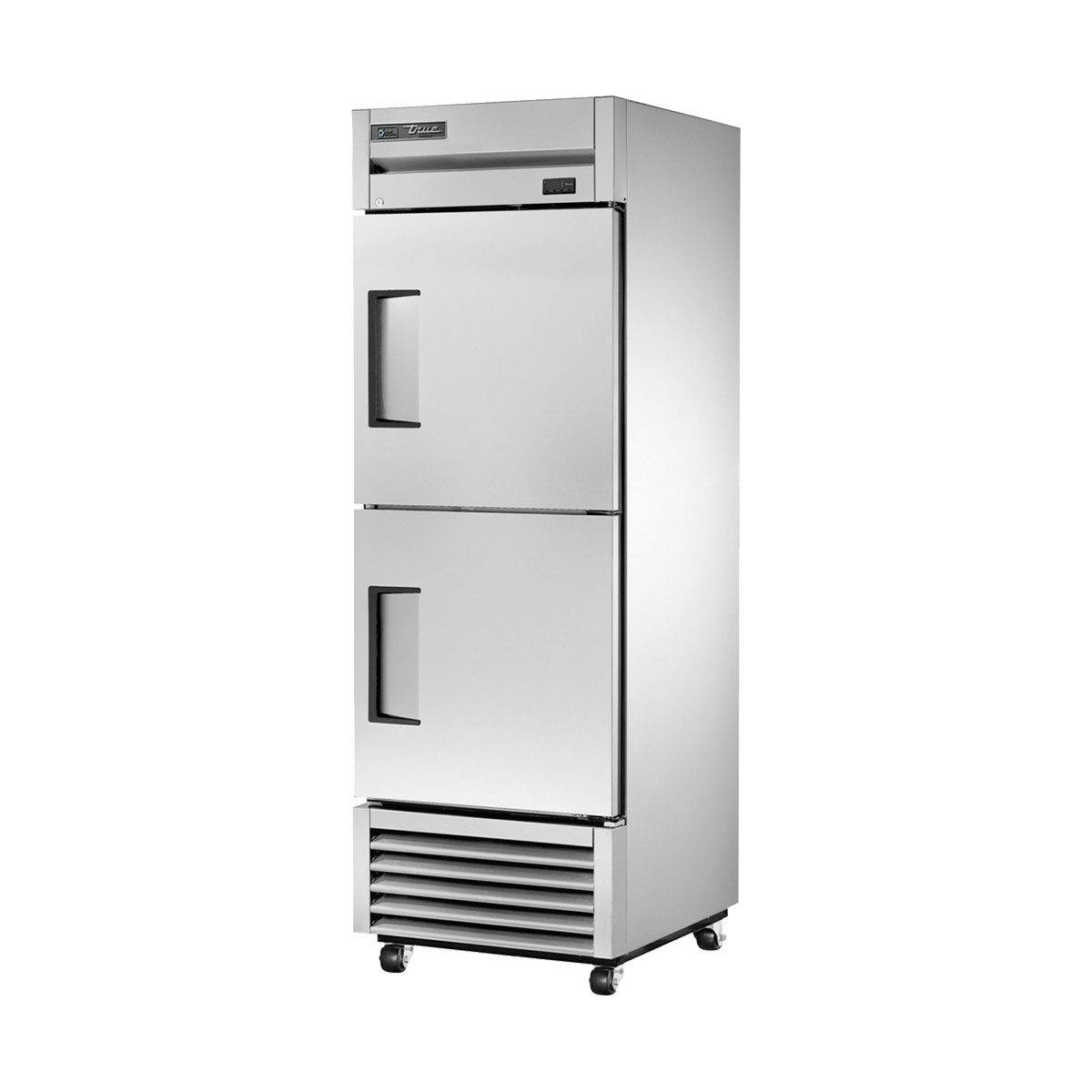

True TS-23F-2-HC 27" Stainless 2 Half-Door Solid Reach-In Freezer, Bottom Mount, R290, 3 Shelves, 115V
A reach-in freezer with two solid half doors that holds -10°F for frozen food and ice cream.
The True TS-23F-2-HC is a 27-inch reach-in freezer with two solid half doors, from True's TS series with a stainless steel interior. Its bottom-mounted R290 system holds -10°F, which True rates for both frozen food and ice cream, with automatic defrost. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27" cabinet width.
A factory-balanced system holds -10°F, rated for frozen food and ice cream, with an exterior digital temperature display.
True uses natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a 3 global warming potential.
The condensing unit sits low, in the coolest and least greasy part of the kitchen, and leaves the top of the cabinet free for storage.
The defrost cycle is time-initiated and temperature-terminated, which keeps defrosts short.
Heavy-duty gray PVC-coated wire shelves, 22-7/8" x 23-1/4", adjust in 1/2" steps.
Door locks, self-closing doors and magnetic gaskets you can remove without tools.
A dedicated 115V, 15 amp outlet. The unit draws 3.7 A and comes pre-wired with a 9 ft. cord and NEMA 5-15P plug.
The cabinet is 29-1/2" deep and 27" wide. Measure the doorway and every turn on the way in.
True rates the TS-23F-2-HC to hold -10°F, for both frozen food and ice cream.
The cabinet is 78-3/8" tall; add 5" for the standard castors or 6" for optional legs.
Yes. The defrost cycle is time-initiated and temperature-terminated.
Yes. Pick the hinging you need from the options above the price before you order.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TS-23F-2-HC |
| Series | TS Series Reach-In |
| Quantity | 1/Each |
| Shipping Weight | 330 lb. |
| Product Weight | 310 lb. |
| Width | 27 Inches |
| Depth | 29-1/2 Inches |
| Height | 78-3/8 Inches |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3.7 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/2 HP |
| Compressor Location | Bottom Mount |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsAutomatic Defrost |
| Temperature Display | Exterior Solar, Digital Temperature Display |
| Doors | 2 Solid Half Swing Doors, Self-Closing, Locks Standard |
| Shelves | 3 Adjustable Gray PVC-Coated Wire Shelves, 22-7/8" L x 23-1/4" D |
| Exterior | Stainless Steel Doors, Front and SidesMatching Aluminum Back |
| Interior | Stainless Steel Liner and Floor |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Stem Castors, Locks on Front Set |
| Lighting | Interior Lighting, Rocker Switch |
| True Options | 230-240V/50 Hz6" Standard Legs6" Seismic/Flanged LegsAlternate Door HingingNovelty BasketsAdditional Shelves. 83-5/16" |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
| Warranty | 5-Year Compressor Warranty, USA |
