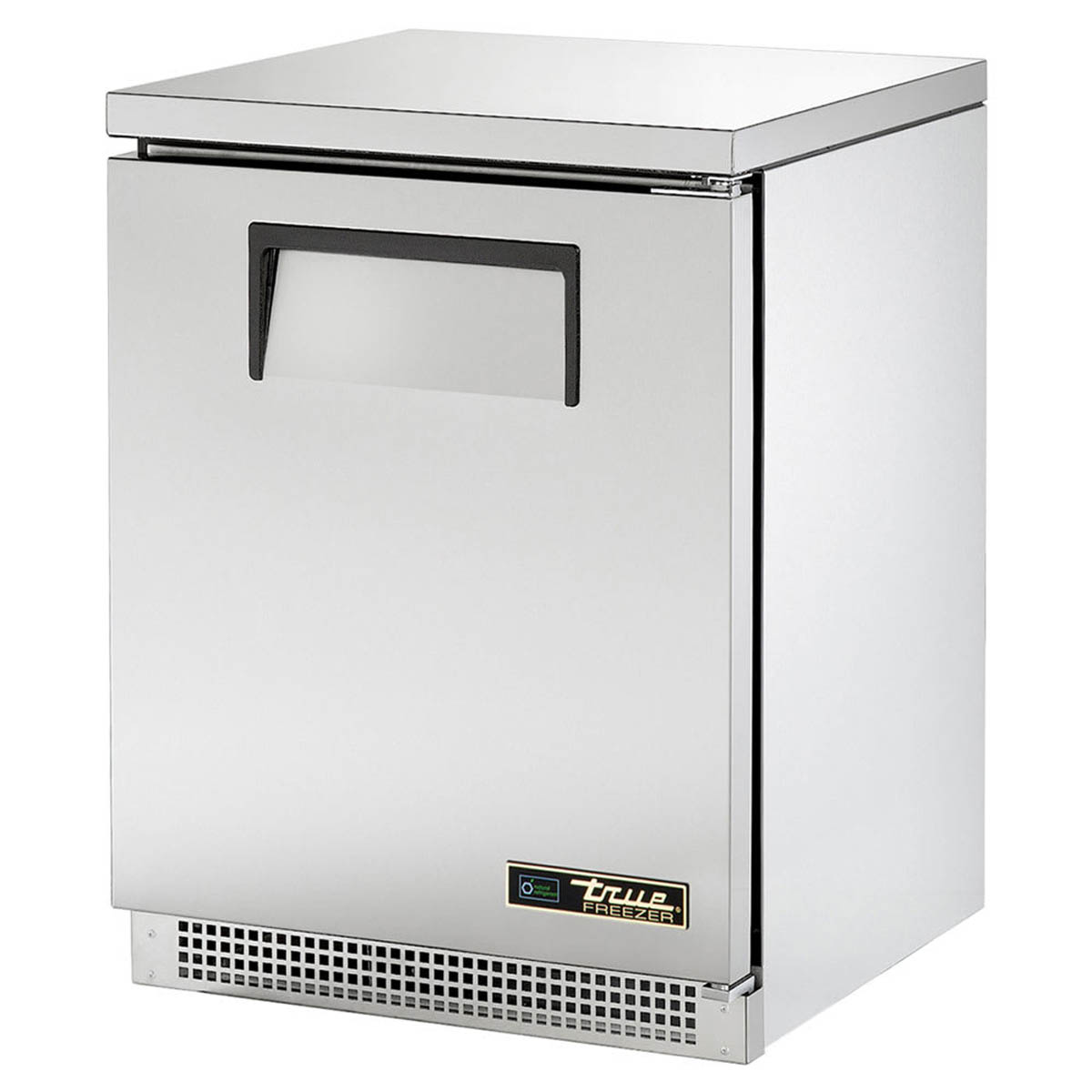

True TUC-24F-HC 24" 1-Door Undercounter Freezer, 31-5/8" Work Height, -10°F, R290, 115V
A 24" undercounter freezer that keeps frozen product right under the work surface.
The True TUC-24F-HC is a 24" wide undercounter freezer with one solid door. Its R290 system holds -10°F, and the cabinet stands 31-5/8" to the work surface on four stationary castors (two front leg levelers are included for alternate use). It plugs into a 115V outlet with the included 10 ft. cord and NEMA 5-15P plug.
Measure the opening under your counter and every doorway on the way in: the cabinet is 24-3/4" deep and 24" wide.
A factory-balanced R290 system with forced airflow holds -10°F.
PVC-coated wire shelves (20"L x 13-7/8"D) adjust in 1/2" steps.
The condensing unit is reached from the back of the cabinet and slides out for maintenance.
Stainless steel front, top and ends with an aluminum-lined interior; stainless steel floor with coved corners.
The cabinet is 31-5/8" tall on its four stationary castors, which True lists as the work surface height. Two front leg levelers are included. Measure your counter opening before you order.
The condensing unit is reached from the back of the cabinet and slides out for maintenance. True's sheet does not list clearance figures, so plan access to the back and ask us before you build it in.
It comes with two adjustable PVC-coated wire shelves: 20"L x 13-7/8"D.
A 115V outlet, on a dedicated 15 amp circuit. It draws 2.3 A and comes with a 10 ft. cord and NEMA 5-15P plug.
Yes. Choose right-hand (standard) or left hinging above the price.
True rates the TUC-24F-HC to hold -10°F.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TUC-24F-HC |
| Series | TUC Undercounter |
| Quantity | 1/Each |
| Shipping Weight | 165 lb. |
| Width | 24 Inches |
| Depth | 24-3/4 Inches |
| Height | 31-5/8 Inches |
| Depth Note | Does not include 1" for rear bumpers |
| Work Surface Height | 31-5/8 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsAutomatic Time-Initiated, Time-Terminated Defrost |
| Condensing Unit Access | Back of Cabinet, Slides Out |
| Doors | 1 Solid Swing Door, Self-Closing, 90 Degree Stay-Open |
| Shelves | 2 Adjustable PVC-Coated Wire Shelves20"L x 13-7/8"D |
| Exterior | Stainless Steel Front, Top and EndsCorrosion-Resistant GalFan Coated Steel Back |
| Interior | Clear Coated Aluminum LinerStainless Steel Floor with Coved Corners |
| Handles | 12" Recessed Handles, Foamed-In-Place |
| Hinges | Field Reversible |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | Four Stationary Castors, Two Front Leg Levelers Included |
| True Options | 16-Gauge TopExterior Digital Temperature DisplayLeft HingingSPEC3 Package |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
