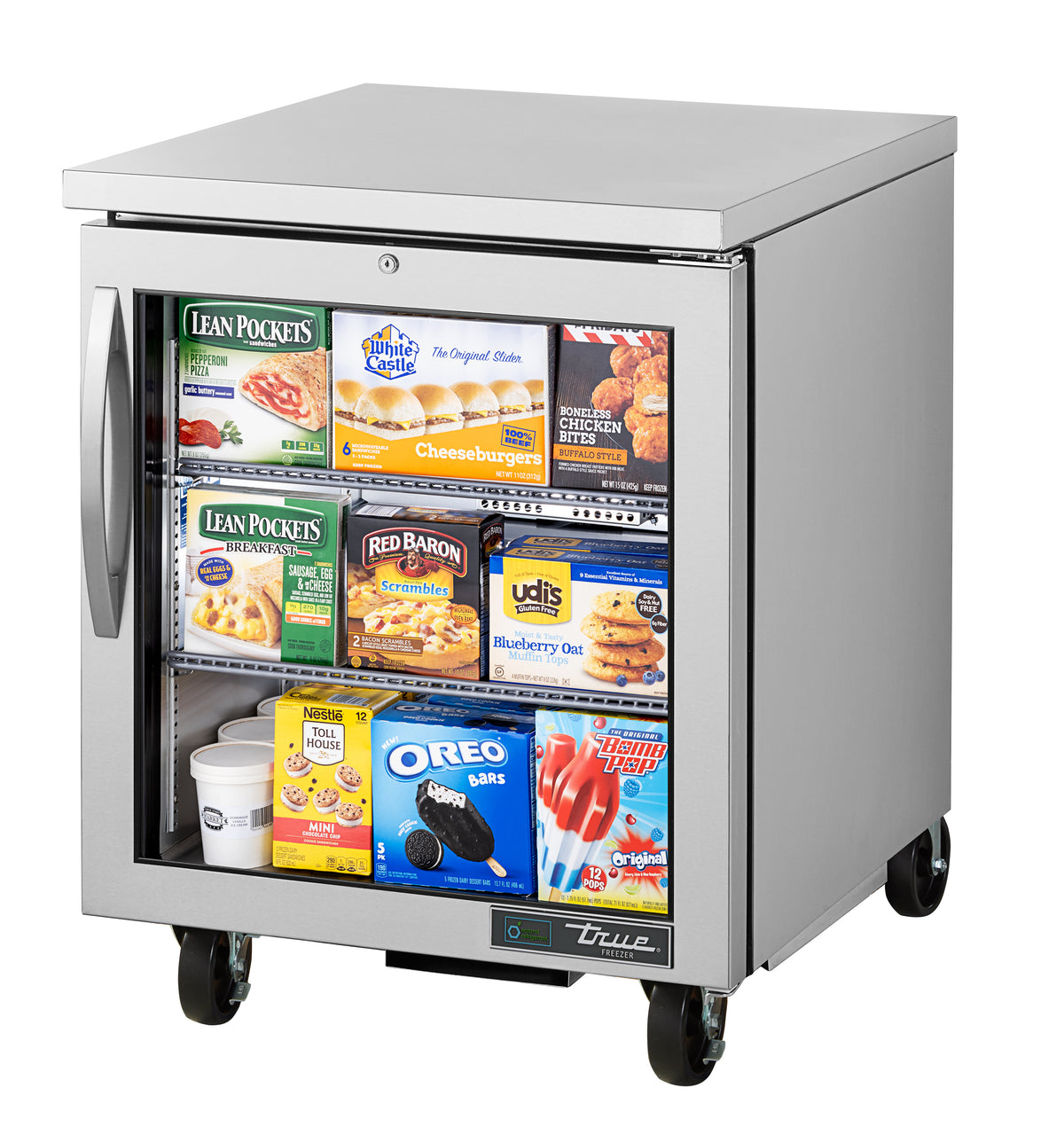

True TUC-27FG-HC~FGD01 27" 1-Door Glass Undercounter Freezer, 36" Work Height, -10 to 6°F, R290, 115V
A 27" glass door undercounter freezer that keeps frozen product right under the work surface.
The True TUC-27FG-HC~FGD01 is a 27-5/8" wide undercounter freezer with one glass door. Its R290 system holds -10°F to 6°F, and the cabinet stands 36" to the work surface on 5" stem castors with locks on the front set. It plugs into a 115V outlet with the included 10 ft. cord and NEMA 5-15P plug.
Measure the opening under your counter and every doorway on the way in: the cabinet is 30-1/8" deep and 27-5/8" wide.
A factory-balanced R290 system with forced airflow holds -10°F to 6°F.
PVC-coated wire shelves (top 23-1/4"L x 19-1/4"D, bottom 23-1/4"L x 13-3/4"D) adjust in 1/2" steps.
Triple-pane insulated glass shows the product, and LED interior lighting lights the cabinet.
True's self-cleaning technology removes the need to clean the condenser coil.
Stainless steel front, top and ends with an aluminum-lined interior; stainless steel floor with coved corners.
The cabinet is 29-3/4" tall without castors. On the standard 5" stem castors the work surface is 36" from the floor. Measure your counter opening before you order.
The condensing unit is reached from the back of the cabinet and slides out for maintenance. True's sheet does not list clearance figures, so plan access to the back and ask us before you build it in.
It comes with two adjustable PVC-coated wire shelves: top 23-1/4"L x 19-1/4"D, bottom 23-1/4"L x 13-3/4"D.
A 115V outlet, on a dedicated 15 amp circuit. It draws 2.3 A and comes with a 10 ft. cord and NEMA 5-15P plug.
Yes. Choose right-hand (standard) or left hinging above the price.
True rates the TUC-27FG-HC~FGD01 to hold -10°F to 6°F.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TUC-27FG-HC~FGD01 |
| Series | TUC Undercounter |
| Quantity | 1/Each |
| Shipping Weight | 225 lb. |
| Width | 27-5/8 Inches |
| Depth | 30-1/8 Inches |
| Height | 29-3/4 Inches |
| Height Note | Does not include 6-1/4" for castors or 6" for optional legs |
| Depth Note | Does not include 3/8" for door handle or 1" for rear bumpers |
| Work Surface Height | 36 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | -10 - 6 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/2 HP |
| System | Self-Contained, Capillary TubeECM Evaporator and Condenser Fan MotorsAutomatic Time-Initiated, Time-Terminated DefrostSelf-Cleaning Condenser |
| Condensing Unit Access | Back of Cabinet, Slides Out |
| Doors | 1 Glass Swing Door, Self-Closing |
| Glass | Triple-Pane Thermal Glass, Extruded Aluminum Frame |
| Shelves | 2 Adjustable PVC-Coated Wire Shelvestop 23-1/4"L x 19-1/4"D, bottom 23-1/4"L x 13-3/4"D |
| Exterior | Stainless Steel Front, Top and EndsCorrosion-Resistant GalFan Coated Steel Back |
| Interior | Clear Coated Aluminum LinerStainless Steel Floor with Coved Corners |
| Handles | 12" Extruded Aluminum Handles |
| Locks | Barrel Locks Standard |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 5" Stem Castors, Locks on Front Set |
| Lighting | LED Interior Lighting |
| True Options | 6" Legs6" Seismic/Flanged Legs2-1/2" Castors3" Seismic/Flanged Legs1-1/2" CastorsSingle OvershelfDouble OvershelfStacking CollarPolyethylene or Composite Cutting Board with "L" Brackets16-Gauge Top |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
