Description

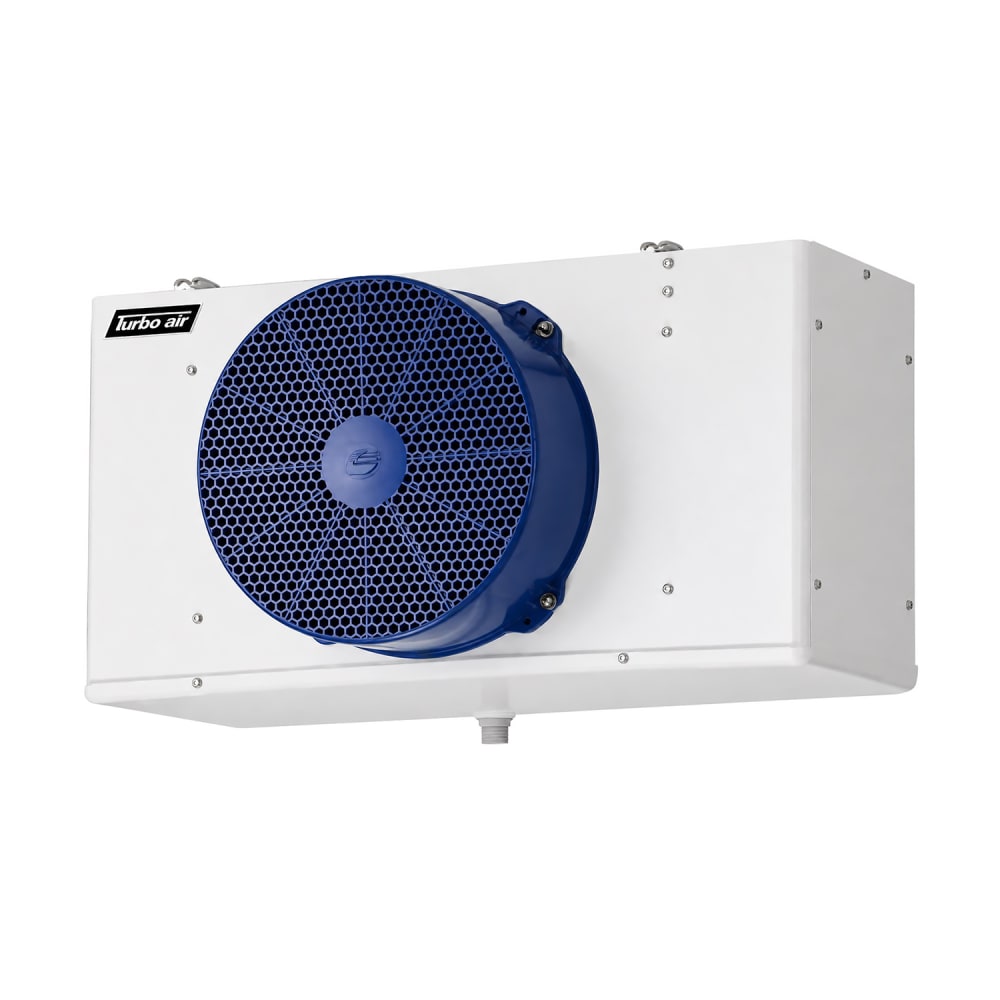

The Turbo Air ADM124AE is a medium-profile evaporator coil for indoor walk-in refrigeration. This unit cooler uses air defrost and has a listed capacity of 12,444 BTU. Its electrical specification is 115V, single-phase, 60 Hz, and the refrigerant specification lists R-404A / R-448A.
Coil construction and airflow
Blue anti-corrosion fins are part of the coil construction. The copper tubing is seamless and internally grooved. Its fin design is corrugated. A powder-coated aluminum case encloses the assembly.
Air movement is driven by an EC motor. The fan uses a spiral guard. The fan and motor have a protruding placement. Listed airflow is 2,465 CFM.
Defrost, controls and access
Air defrost is specified for the ADM124AE. A solenoid wiring harness is standard. An external equalizer connection is provided. The coil has a front-access design. A hinged double drain pan is included.
Dimensions and ordering checks
Overall dimensions are 39.38 inches wide, 26.31 inches deep and 24.94 inches high. This model is intended for mounting inside the walk-in. Check the available space, 115V supply and required control configuration before choosing it for an installation or replacement.
The product information identifies UL and cUL certification. The listed warranty is one year for parts. Confirm application compatibility using the complete model number, rather than assuming that similarly named coils have the same valves, controls or electrical requirements.

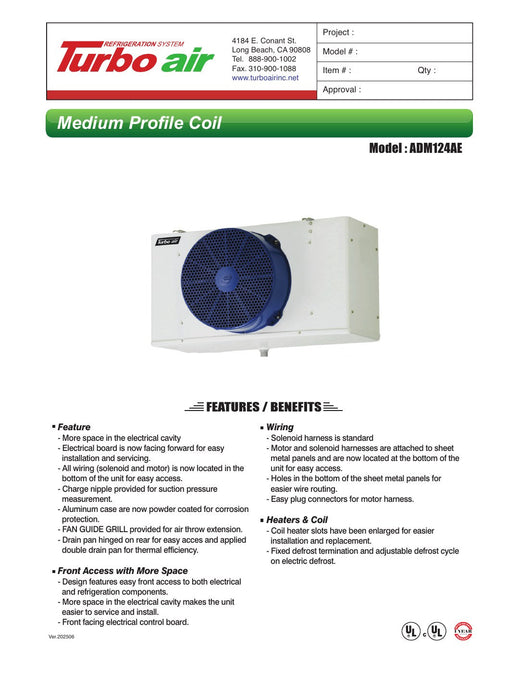

The available ADM124AE technical document can be opened from Resources & Documents. Have your refrigeration professional check capacity and component matching for the project; the listed BTU figure is not, by itself, a recommendation for a particular walk-in room size.
Specs
| Brand | Turbo Air |
|---|---|
| Model | ADM124AE |
| Equipment Type | Evaporators / Unit Coolers |
| Cooling Capacity (BTU/h) | 12444 |
| Voltage | 115V |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Width (in) | 39.38 |
| Depth (in) | 26.31 |
| Height (in) | 24.94 |
| Installation | Indoor |
| Mounting Location | Walk-In Interior |
| Refrigerant | R404A/R448A |
| Defrost Type | Air Defrost |
| Coil Profile | Medium Profile |
| Application | Walk-In Refrigeration |
| Warranty | 1-year Parts |
