Description

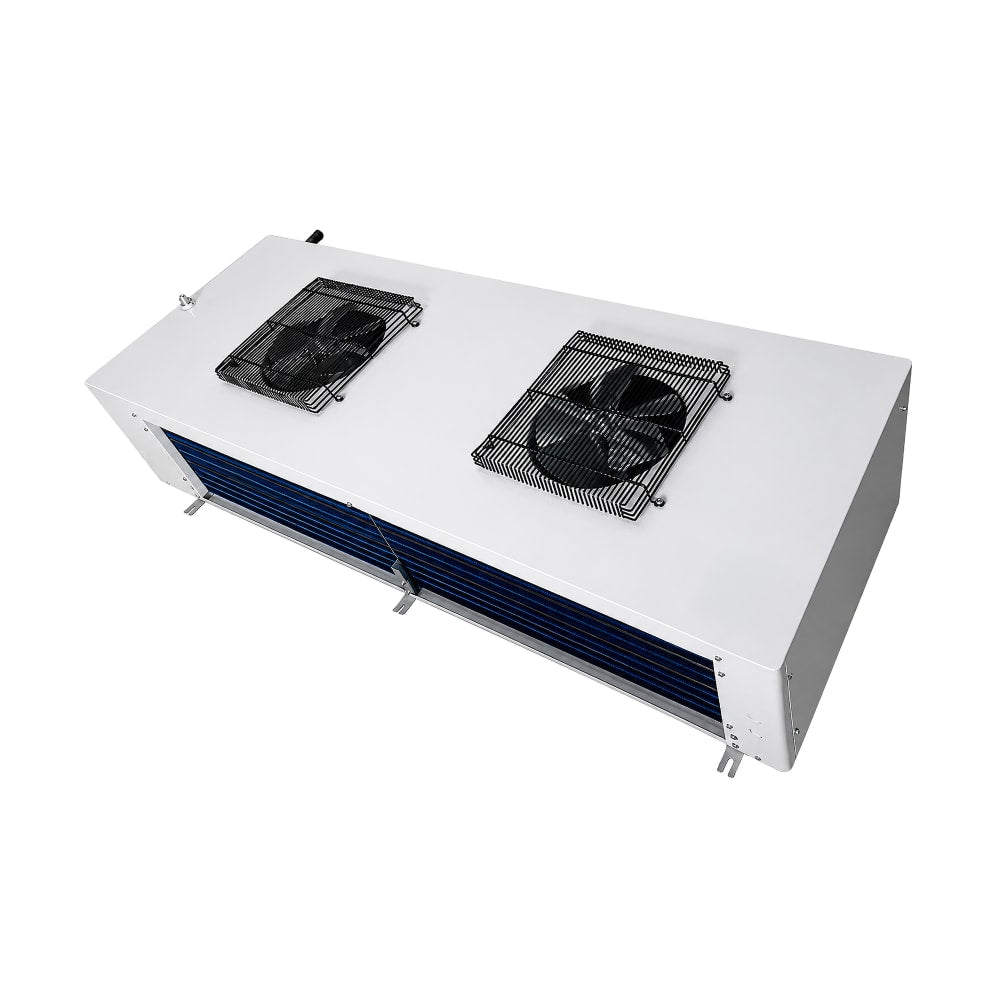

The Turbo Air TCA207AENM is a center-mount evaporator coil for indoor walk-in refrigeration. This unit cooler uses air defrost and has a listed capacity of 20,738 BTU. Its electrical specification is 115V, single-phase, 60 Hz, and the refrigerant specification lists R-448A.
Coil construction and airflow
The fins have a blue anti-corrosion hydrophobic coating. The coil uses internally grooved copper tubing.
The EC motor is specified as single-speed and single-voltage. This is a low-velocity, center-mount coil configuration. An air-pass guard is included.
Defrost, controls and access
Air defrost is specified for the TCA207AENM. A mounted thermostatic expansion valve (TXV) is included. A solenoid valve is included. The thermostat is listed as an option.
Dimensions and ordering checks
Overall dimensions are 79.3 inches wide, 28 inches deep and 14.2 inches high. This model is intended for mounting inside the walk-in. Check the available space, 115V supply and required control configuration before choosing it for an installation or replacement.
The product information identifies UL and cUL certification, along with NSF. The listed warranty is one year for parts. Confirm application compatibility using the complete model number, rather than assuming that similarly named coils have the same valves, controls or electrical requirements.

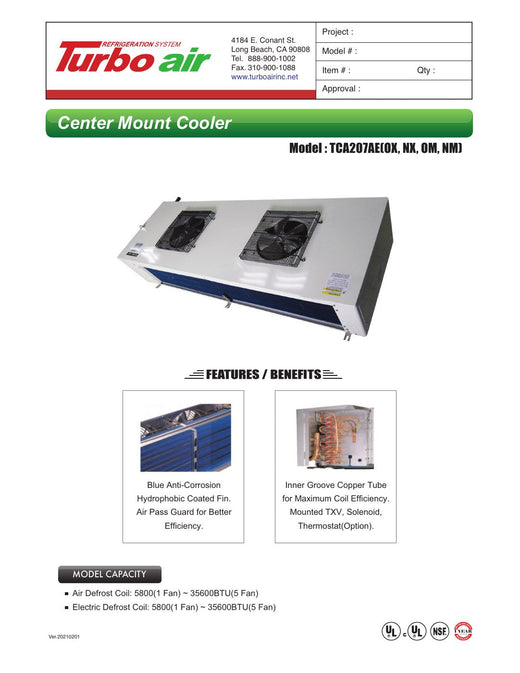

The available TCA207AENM technical document can be opened from Resources & Documents. Have your refrigeration professional check capacity and component matching for the project; the listed BTU figure is not, by itself, a recommendation for a particular walk-in room size.
Specs
| Brand | Turbo Air |
|---|---|
| Model | TCA207AENM |
| Equipment Type | Evaporators / Unit Coolers |
| Cooling Capacity (BTU/h) | 20738 |
| Voltage | 115V |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Width (in) | 79.3 |
| Depth (in) | 28 |
| Height (in) | 14.2 |
| Installation | Indoor |
| Mounting Location | Walk-In Interior |
| Refrigerant | R448A |
| Defrost Type | Air Defrost |
| Coil Profile | Center Mount |
| Application | Walk-In Refrigeration |
| Warranty | 1-year Parts |
