Unity U-17M 17" Black Slim Single Glass Door Merchandiser Refrigerator, 5.12 cu. ft., 7 Shelves, LED Lighted Top Panel, 32-50°F, 110V
A tall, 17" wide glass door cooler that fits cold drinks into the narrowest spot in the store.

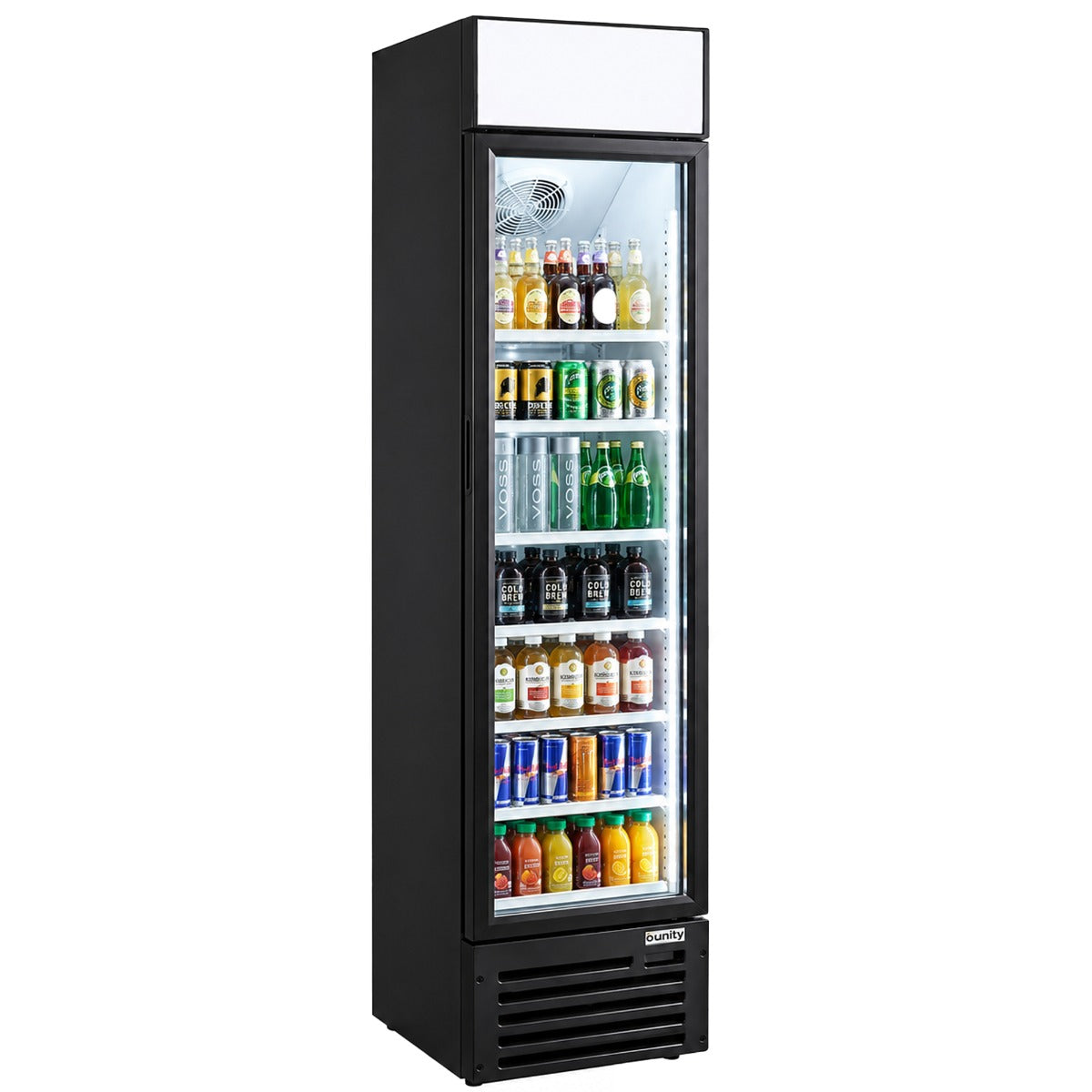

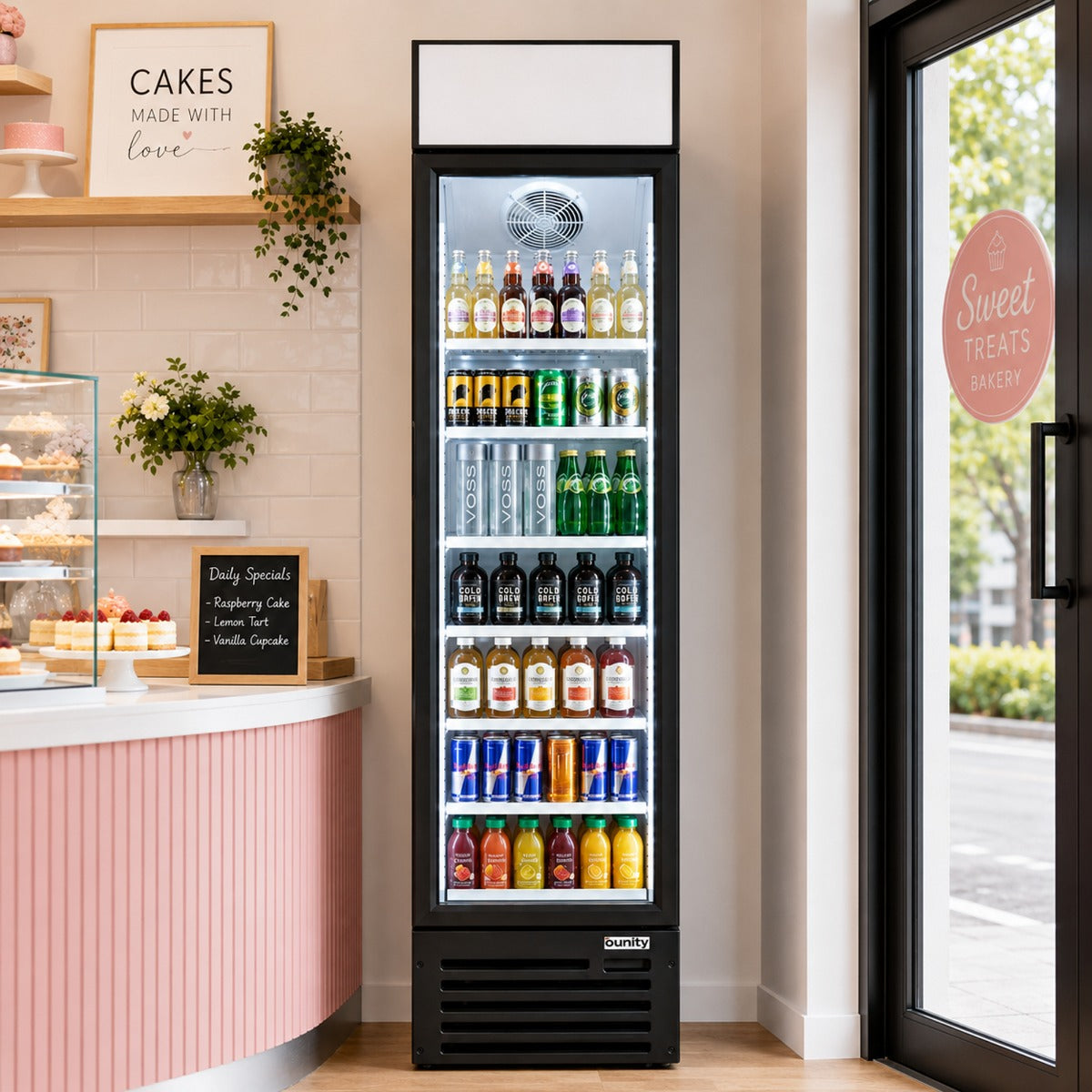

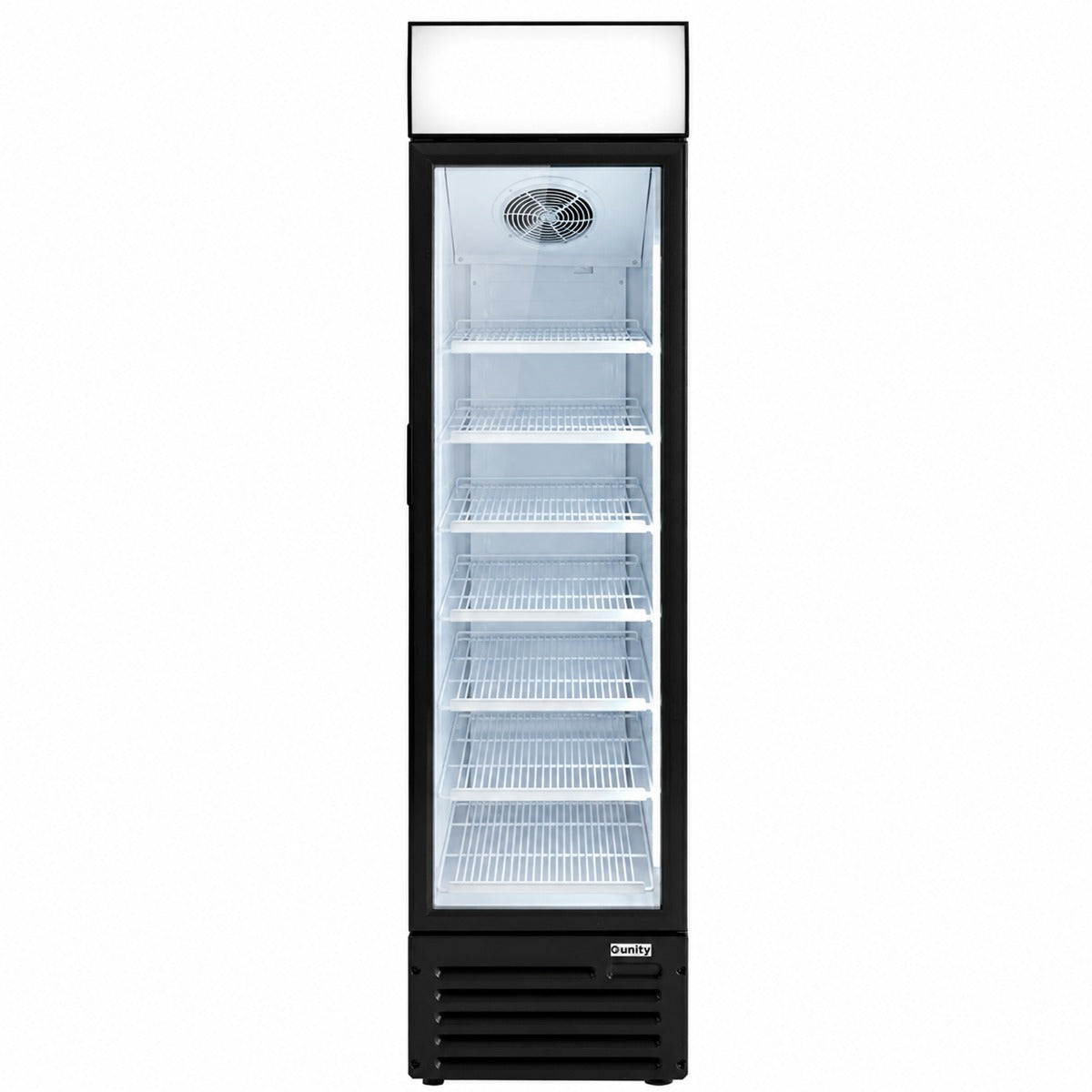

The Unity U-17M is a slim swing glass door merchandiser refrigerator for cafes, bakeries, delis and convenience stores. It holds 5.12 cu. ft. at 32°F to 50°F on 7 adjustable PVC-coated shelves, with vertical LED lights and an illuminated top panel for signage. It is 16.53" wide and plugs into a 110V NEMA 5-15P outlet (2.5 A) on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 16.53" width.
16.53" wide for tight corners and counters.
Adjustable PVC-coated shelves for cans and bottles.

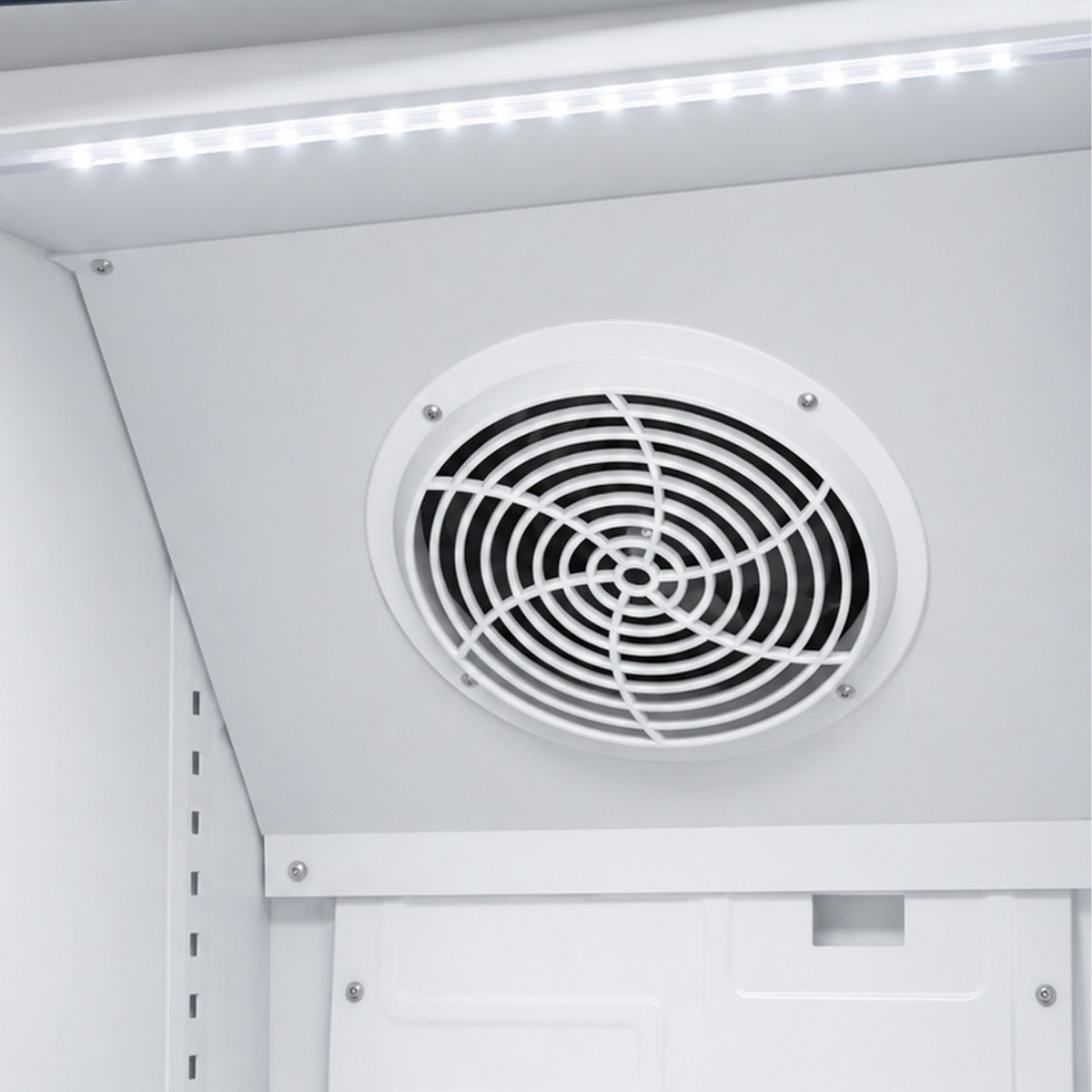

Vertical LED lights and an illuminated top panel.
Magnetic door gasket and recessed handle.
A standard 110V NEMA 5-15R outlet for its NEMA 5-15P plug (72" cord). It draws 2.5 A (150 W). USR Brands asks for a dedicated 15 A circuit installed by a licensed electrician, so do not share the outlet or use an extension cord.

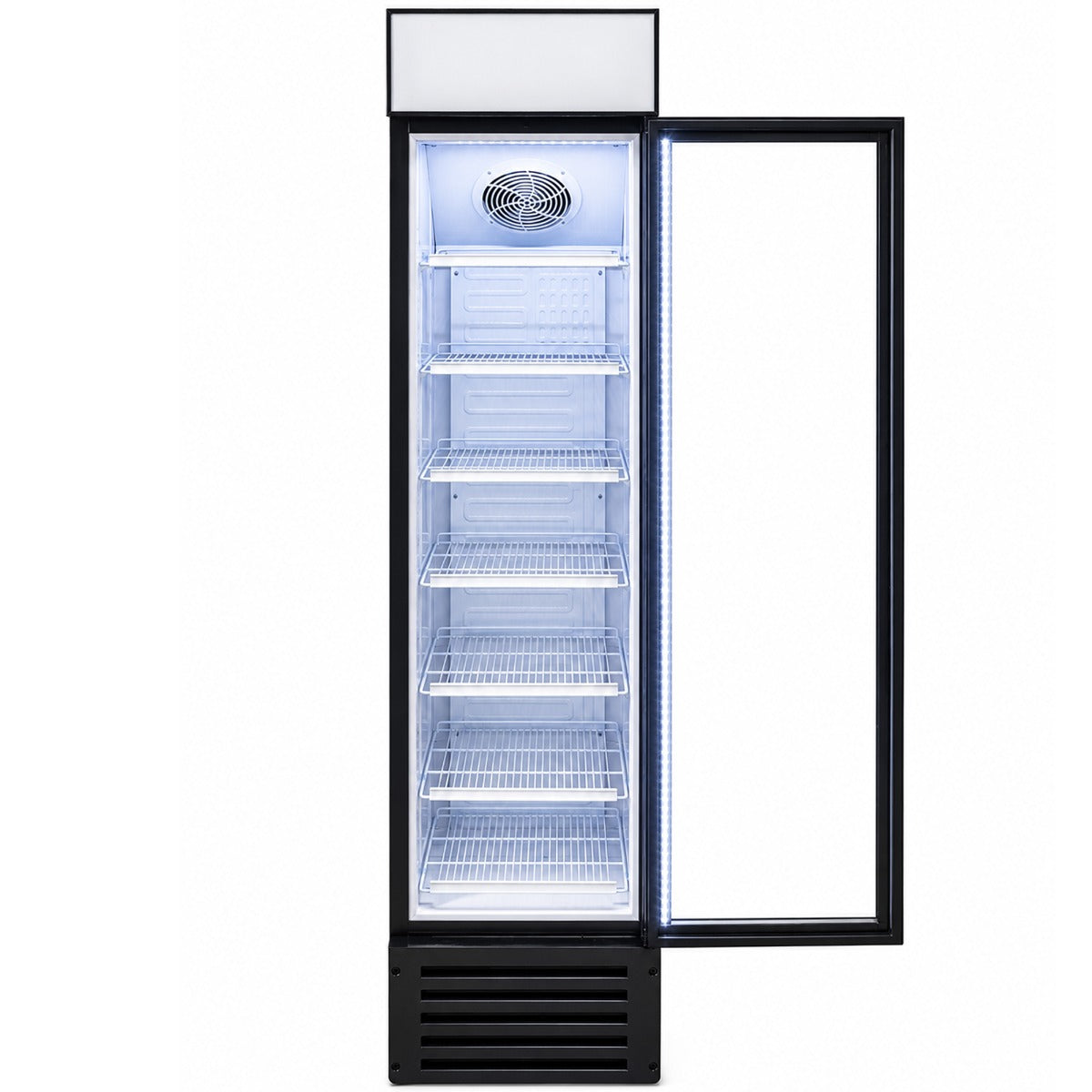

5.12 cu. ft. on 7 adjustable PVC-coated steel shelves, each 13.38" L x 12.6" D, for cans and bottles.
It holds 32°F to 50°F for drinks and packaged cold food.
The illuminated top panel is designed for signage, and the LED lights have their own switches.
It measures 16.53" W x 17.52" D x 74.21" H and ships in a 19.76" L × 20.83" D × 77.12" H carton at 133 lb. The smallest outside dimension is the 16.53" width; measure every doorway on the delivery path.
The U-17M is not named in either current Unity warranty statement (REV 01-2026), so call us to confirm the warranty terms before ordering.
Specs
| Manufacturer | Unity (USR Brands) |
|---|---|
| Model Number | U-17M |
| Quantity | 1/Each |
| Shipping Weight | 133 lb. |
| Net Weight | 115 lb. |
| Width | 16.53 Inches |
| Depth | 17.52 Inches |
| Height | 74.21 Inches |
| Interior Dimensions | 13.38" L x 13.38" D x 52.16" H |
| Packaging Dimensions | 19.76" L x 20.83" D x 77.12" H |
| Capacity | 5.12 cu. ft. |
| Voltage | 110 Volts |
| Amps | 2.5 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 150 W |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72" |
| Electrical Requirement | Dedicated 15 Amp Circuit, Installed by a Licensed Electrician |
| Temperature Range | 32 - 50 Degrees F |
| Refrigerant | Hydrocarbon |
| Controls | Intuitive Controls |
| Type | Glass Door Merchandiser Refrigerator |
| Door | 1 Swing Glass DoorRecessed HandleMagnetic Gasket |
| Shelves | 7 Adjustable PVC-Coated Steel13.38" L x 12.6" D |
| Lighting | Vertical LEDIlluminated Top PanelIndependent LED Switches |
| Exterior | Black Coated Sheet |
| Interior | Aluminum |
| Insulation | High-Density Foamed-in-Place Polyurethane |

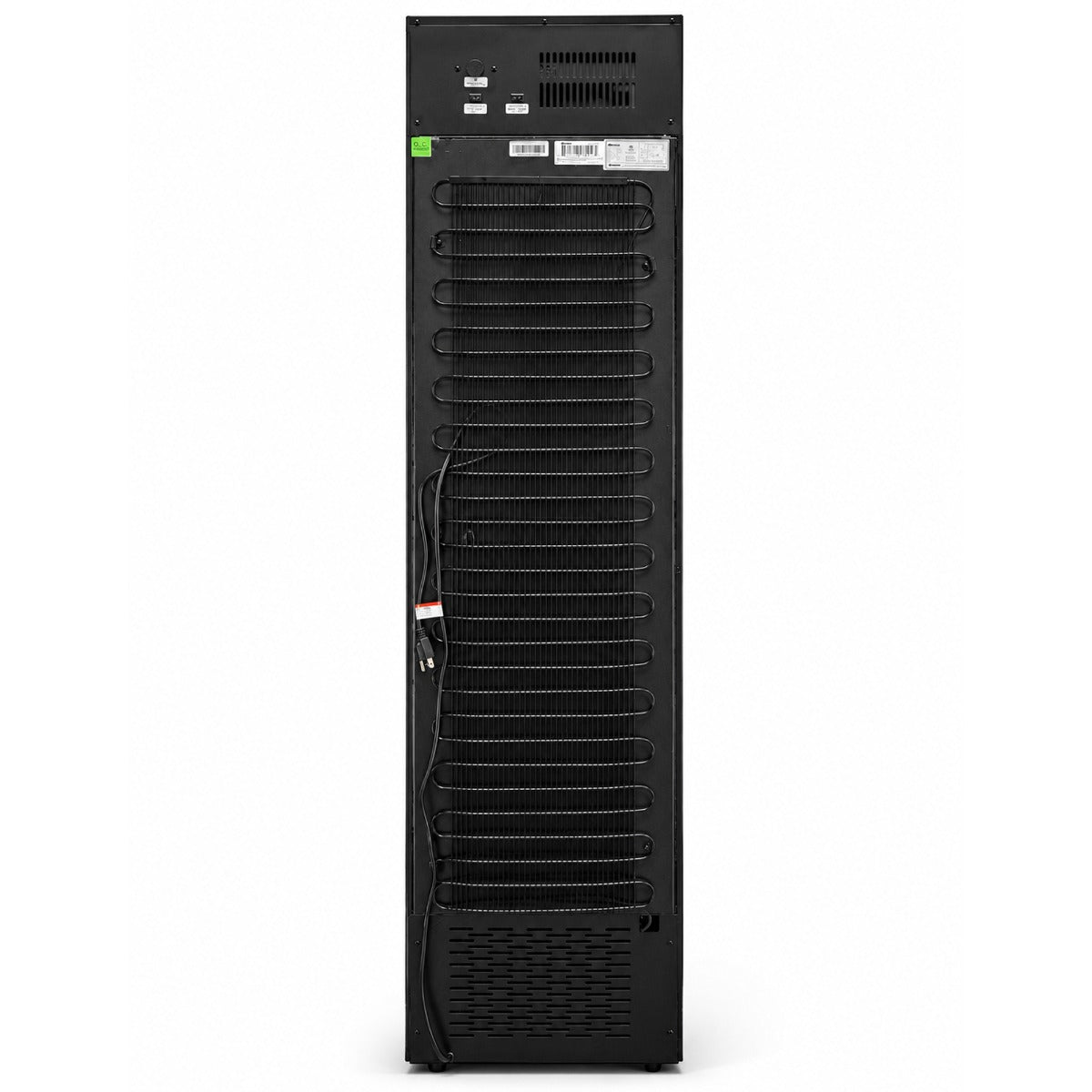

| Refrigeration System | Bottom Mounted |
| Feet | Adjustable |
| Certifications | cETLus |
