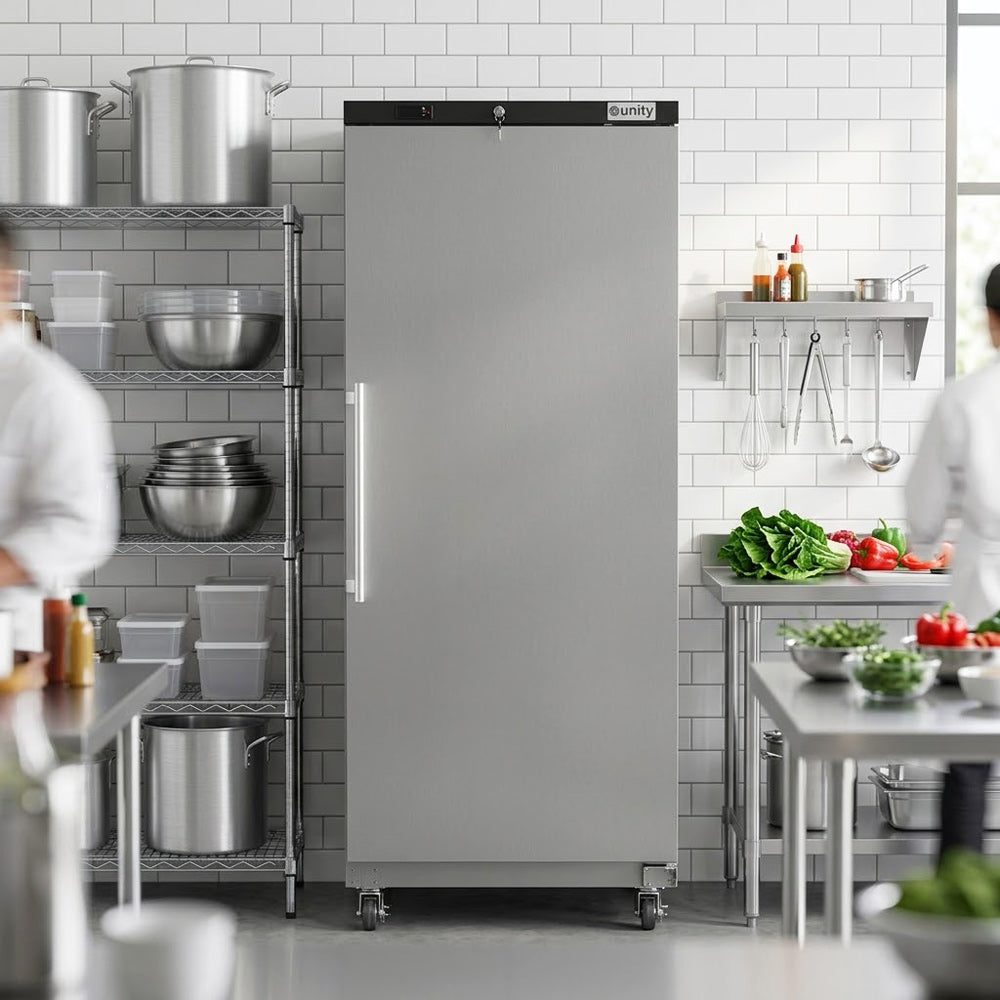

Unity U-22FE 31" Economy One Section Solid Door Reach-In Freezer, 18 cu. ft., 5 Shelves, -7 to 0°F, 110V
A budget one-door reach-in freezer for kitchens that need 18 cu. ft. of frozen storage on a standard outlet.
The Unity U-22FE is an economy one section solid door reach-in freezer for restaurants, cafes, delis and small kitchens. It holds 18 cu. ft. at -7°F to 0°F with a digital controller, automatic defrost and LED lighting, on 4 adjustable coated shelves plus a half-size bottom shelf. The door locks and is field reversible, it rolls on 4 pre-installed 2" casters, and it plugs into a 110V NEMA 5-15P outlet (4.6 A) on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 30.7" width.
18 cu. ft. at -7°F to 0°F with automatic defrost.
Field reversible solid door with a lock and stainless handle.
Rail-based system with 4 shelves plus a half-size bottom shelf.
4 pre-installed 2" casters, 2 with brakes.
A standard 110V NEMA 5-15R outlet for its NEMA 5-15P plug (70" cord). It draws 4.6 A (168 W). USR Brands asks for a dedicated 15 A circuit installed by a licensed electrician, so do not share the outlet or use an extension cord.

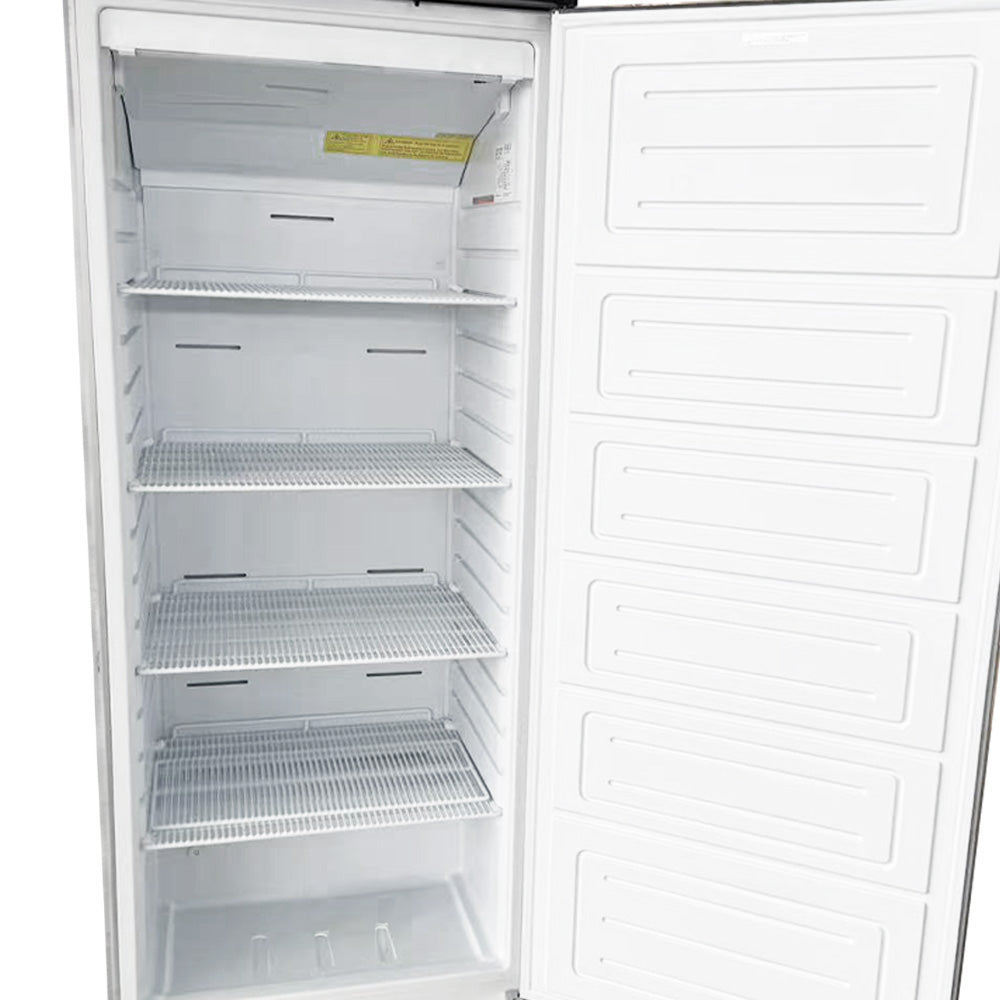

18 cu. ft. on 4 adjustable coated shelves (25" L x 20" D) and one half-size bottom shelf (25" L x 10" D), on a rail-based shelf system.
Yes. The door is field reversible, and it has a lock to keep food secure overnight.
Yes. Defrost is automatic, and the digital controller holds -7°F to 0°F.

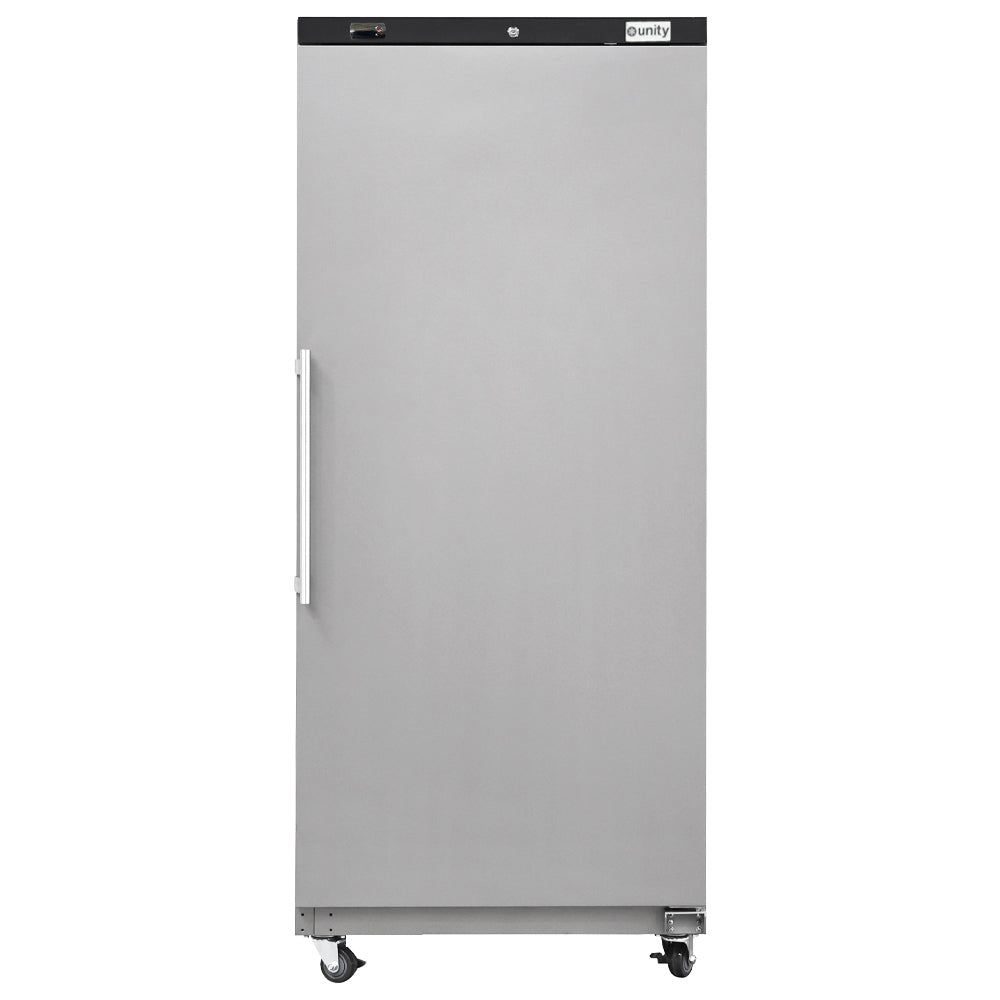

It measures 30.7" W x 30.8" D x 74" H and ships in a 31" L × 33.9" D × 79.7" H carton at 264 lb. The smallest outside dimension is the 30.7" width; measure every doorway on the delivery path.
USR Brands covers the Unity U-22FE for 1 year parts and labor from delivery, in the contiguous US. Glass is not covered; food truck and farm installs are parts only, and residential use is not covered.
The Unity warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Unity (USR Brands) |
|---|---|
| Model Number | U-22FE |
| Quantity | 1/Each |
| Shipping Weight | 264 lb. |
| Net Weight | 237 lb. |
| Width | 30.7 Inches |
| Depth | 30.8 Inches |
| Height | 74 Inches |
| Interior Dimensions | 21.9" L x 25" D x 67.2" H |
| Packaging Dimensions | 31" L x 33.9" D x 79.7" H |
| Capacity | 18 cu. ft. |
| Voltage | 110 Volts |
| Amps | 4.6 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 168 W |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 70" |
| Electrical Requirement | Dedicated 15 Amp Circuit, Installed by a Licensed Electrician |
| Temperature Range | -7 - 0 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 3/8 HP |
| Defrost | Automatic |
| Controls | Digital |
| Type | Economy Solid Door Reach-In Freezer |
| Door | 1 Solid Swing DoorField ReversibleLockStainless Steel HandleRemovable Snap-In Gasket |
| Shelves | 4 Adjustable Coated Steel, 25" L x 20" D1 Half-Size Bottom, 25" L x 10" DRail-Based Shelf System |
| Lighting | LED Interior |
| Exterior | Painted Steel |
| Interior | HIPS (High Impact Polystyrene) |
| Insulation | Foamed-in-Place Polyurethane |
| Refrigeration System | Bottom Mounted Compressor |
| Casters | 4 Pre-Installed 2"2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
