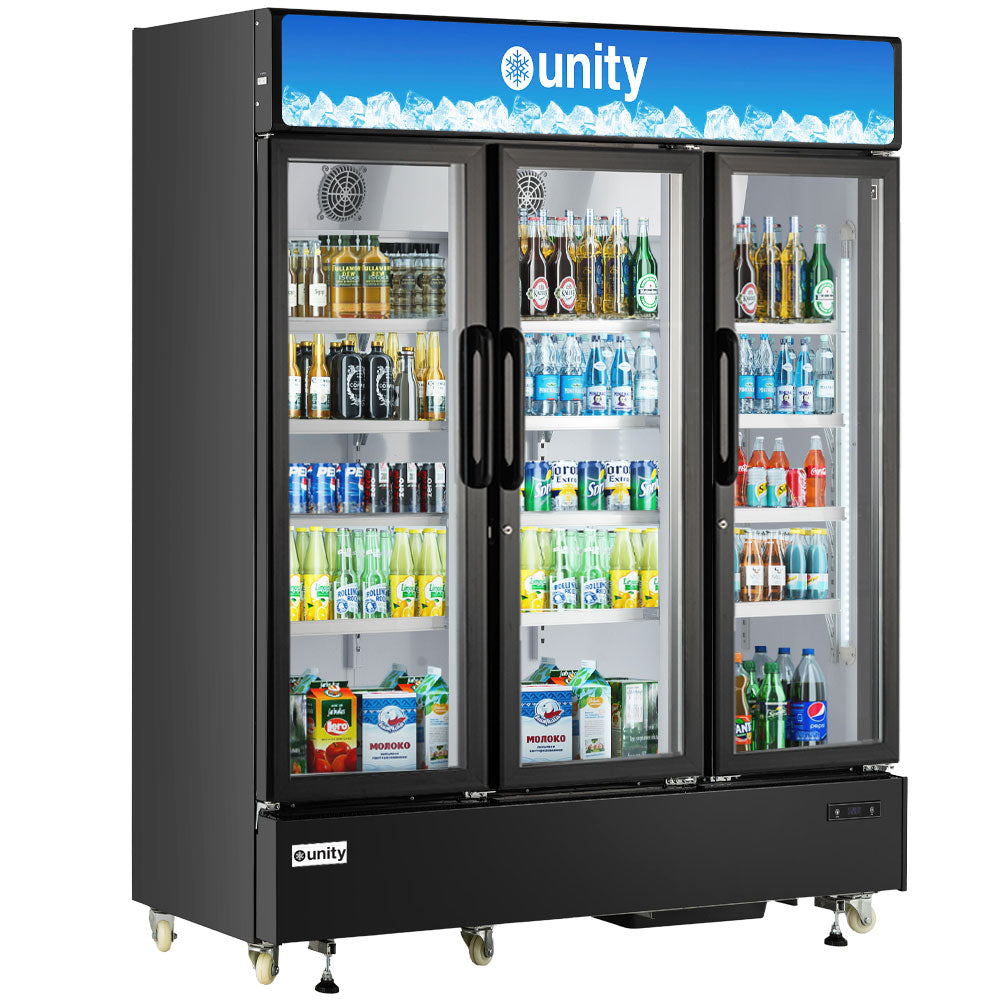

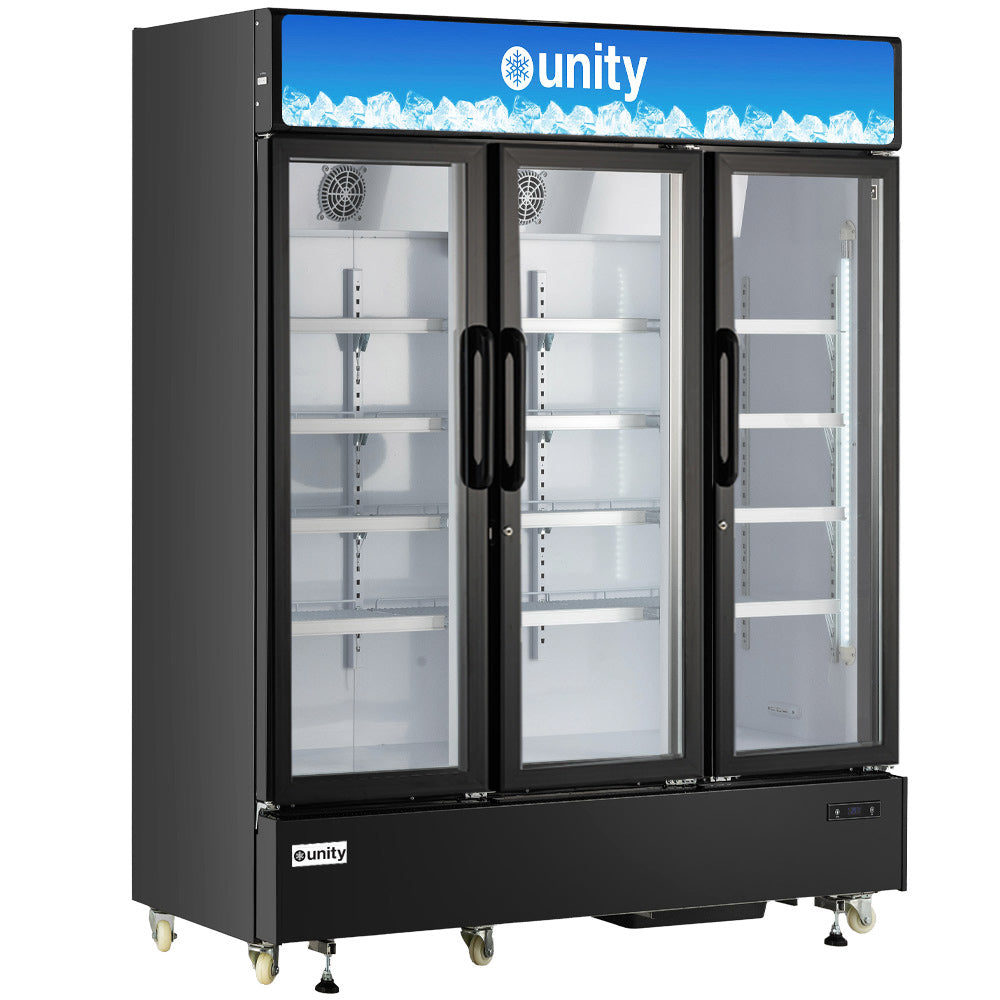

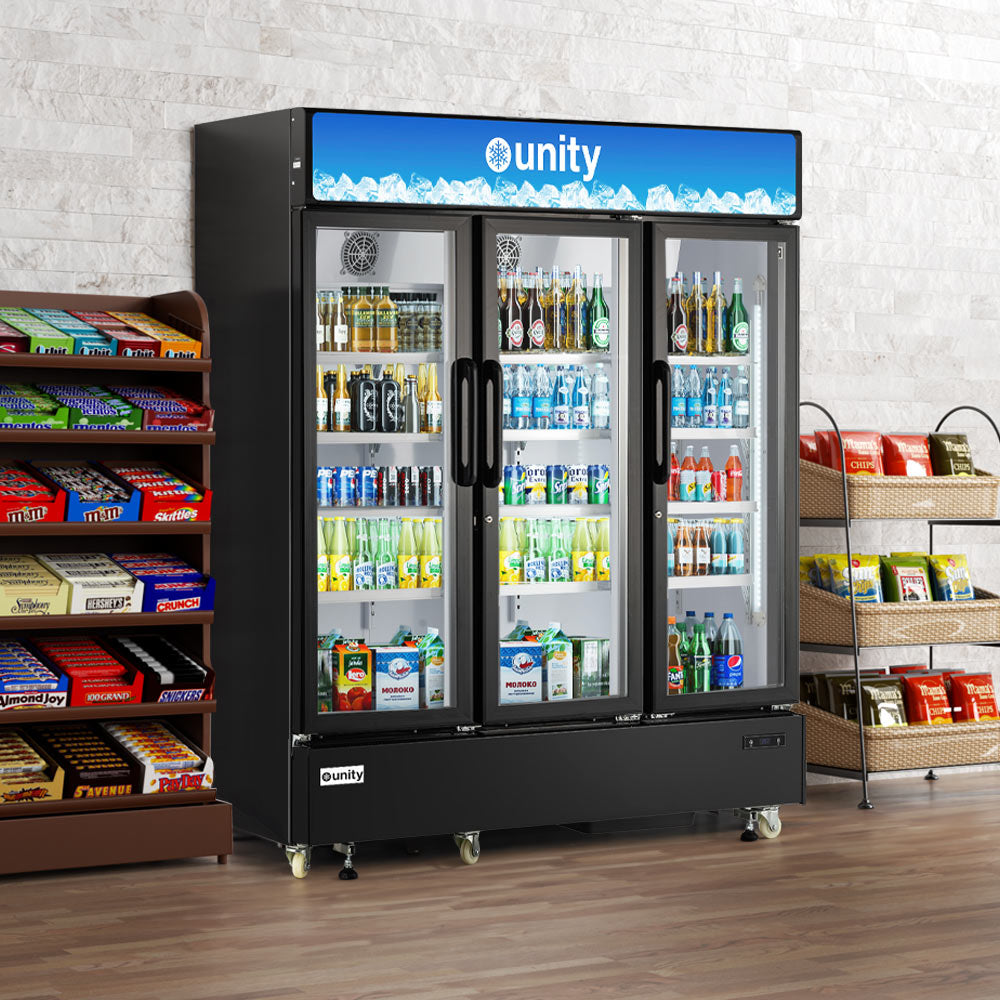

Unity U-72M 71" Black Three Swing Glass Door Merchandiser Refrigerator, 42 cu. ft., 8 Shelves, LED Lighted Header, 32-50°F, 115V
A 71" black 3-door glass merchandiser that keeps 42 cu. ft. of drinks cold under a lighted sign panel.
The Unity U-72M is a three swing glass door merchandiser refrigerator for convenience stores, delis, cafes and markets. It holds 42 cu. ft. at 32°F to 50°F on 8 adjustable PVC-coated shelves, with digital controls, automatic defrost, vertical LED lights and a lighted top panel for your sign. The self-closing doors use anti-fog tempered glass and lock with a key. It plugs into a 115V NEMA 5-15P outlet (7.5 A) on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 23.23" depth.
Lighted top panel for your logo or menu.
Self-closing tempered glass doors with lock and key.
Adjustable PVC-coated shelves for cans and bottles.
6 low-profile casters and 3 leveling feet.
A standard 115V NEMA 5-15R outlet for its NEMA 5-15P plug (90" cord). It draws 7.5 A (620 W). USR Brands asks for a dedicated 15 A circuit installed by a licensed electrician, so do not share the outlet or use an extension cord.
42 cu. ft. on 8 adjustable PVC-coated steel shelves (4 at 21.34" L x 14.7" D and 4 at 44.94" L x 14.7" D).
Yes. The lighted top panel takes a self-adhesive sticker; USR Brands lists the U-72M sticker size as 1762 x 238 mm, and any print shop can make one from your artwork.
Yes. Defrost is automatic, and the digital controls hold 32°F to 50°F. The anti-fog tempered glass doors close by themselves.
It measures 70.87" W x 23.23" D x 79.33" H and ships in a 74" L × 25" D × 80" H carton at 466 lb. It is 79.33" tall: check ceiling height and door headers as well as widths. The smallest outside dimension is the 23.23" depth; measure every doorway on the delivery path.
USR Brands covers the Unity U-72M for 1 year parts and labor from delivery, plus 5 years on the compressor (replacement part only, no labor), in the contiguous US. Glass is not covered; food truck and farm installs are parts only, and residential use is not covered.
The Unity warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Unity (USR Brands) |
|---|---|
| Model Number | U-72M |
| Quantity | 1/Each |
| Shipping Weight | 466 lb. |
| Net Weight | 380 lb. |
| Width | 70.87 Inches |
| Depth | 23.23 Inches |
| Height | 79.33 Inches |
| Interior Dimensions | 67.72" L x 17.91" D x 50.59" H |
| Packaging Dimensions | 74" L x 25" D x 80" H |
| Capacity | 42 cu. ft. |
| Voltage | 115 Volts |
| Amps | 7.5 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 620 W |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 90" |
| Electrical Requirement | Dedicated 15 Amp Circuit, Installed by a Licensed Electrician |
| Temperature Range | 32 - 50 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Defrost | Automatic |
| Controls | Digital |
| Type | Three Glass Door Merchandiser Refrigerator |
| Doors | 3 Swing Glass DoorsSelf-ClosingAnti-Fog Tempered GlassErgonomic HandlesMagnetic GasketsLock and Key |
| Shelves | 8 Adjustable PVC-Coated Steel(4) 21.34" L x 14.7" D(4) 44.94" L x 14.7" D |
| Lighting | Vertical LEDLighted Top Panel |
| Exterior | Black Coated Steel |
| Interior | Coated Steel |
| Insulation | High-Density Foamed-in-Place Polyurethane |
| Refrigeration System | Bottom Mounted |
| Casters | 6 Pre-Installed Low-Profile3 Leveling Feet |
| Sign Sticker Size | 1762 x 238 mm (Lightbox) |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
