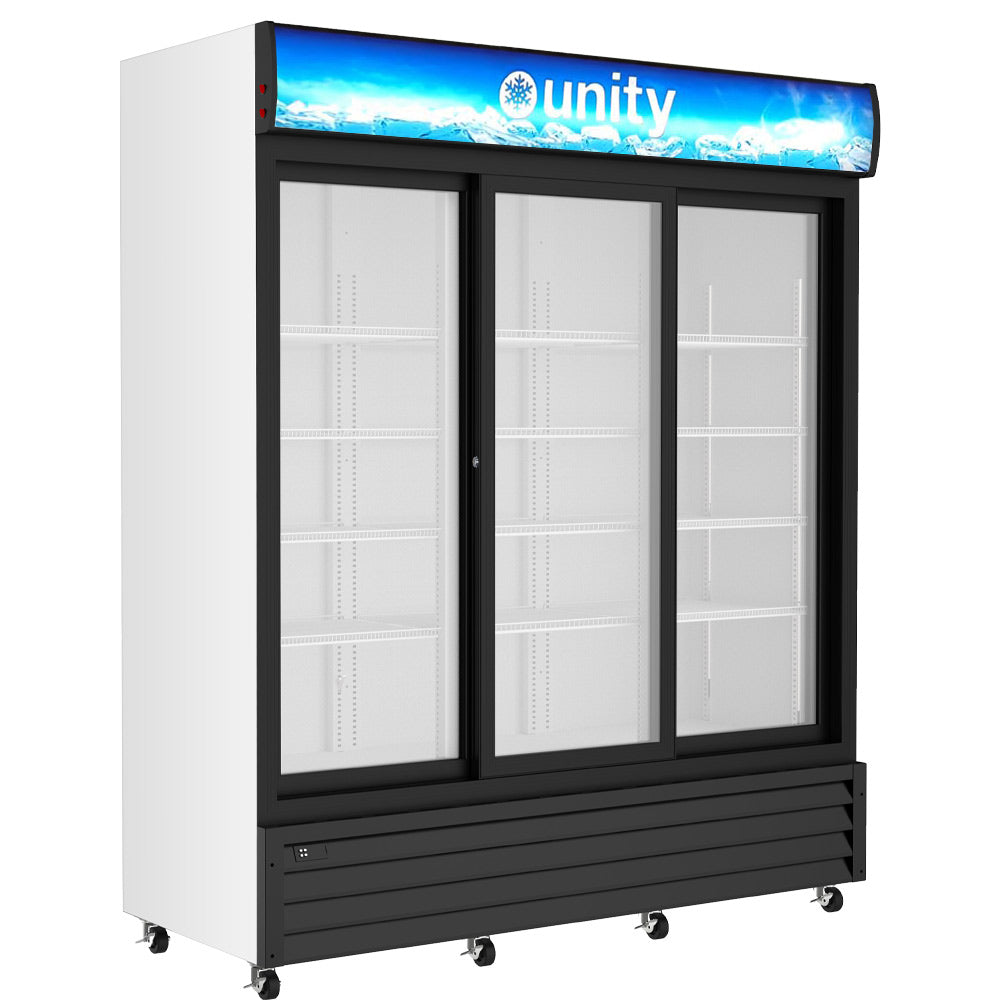

Unity U-GM3-S 68" 3-Door Sliding Glass Door Merchandiser Refrigerator, 50 cu. ft., 15 Shelves, LED, 33-50°F, 115V
A 68" three-door glass merchandiser that keeps 50 cu. ft. of drinks cold and in view.
The Unity U-GM3-S is a three-section sliding glass door merchandiser refrigerator for convenience stores, delis, cafes and markets. It holds 50 cu. ft. at 33°F to 50°F on 15 adjustable shelves, with LED lighting and a lighted header to show products. It plugs into a standard 115V outlet with a NEMA 5-15P plug on a dedicated 15 amp circuit and rolls on 8 casters, 4 with brakes.
Measure every doorway, ceiling and turn on the delivery path; its smallest outside dimension is the 27.56" depth.
Three self-closing sliding doors save aisle space and keep the cold in.
Five PVC-coated steel shelves per section adjust to bottles, cans and packaged food.
LED interior lights and a lighted header make products easy to see.
Digital control, automatic defrost and a removable board for condenser cleaning.
It runs on 115V, 60 Hz, single phase and draws 6.8 A (700 W) through a NEMA 5-15P plug on an 84" cord. USR Brands states it needs a dedicated 15 amp circuit, and the manual says not to use extension cords or power strips.
The cabinet is 67.32" wide, 27.56" deep and 81.22" high and weighs 454 lb. It ships at 527 lb. in a 69.29" x 29.52" x 84.3" crate. Measure every doorway, ceiling and turn on the delivery path; its smallest outside dimension is the 27.56" depth.
50 cu. ft. on 15 adjustable PVC-coated steel shelves, 5 per section. The side shelves are 19.88" x 18.23" and the middle shelves 22.72" x 18.23".
The three self-closing sliding doors open without swinging into the aisle, so the case fits tight store layouts.
Indoors only, on a floor strong enough for the loaded unit. The manual describes it as a cooler for storing and displaying beverages for sale, and asks for a dedicated wall outlet.
USR Brands covers the U-GM3-S for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered, and food truck or farm installs are parts only.
The Unity warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Unity (USR Brands) |
|---|---|
| Model Number | U-GM3-S |
| Quantity | 1/Each |
| Shipping Weight | 527 lb. |
| Net Weight | 454 lb. |
| Width | 67.32 Inches |
| Depth | 27.56 Inches |
| Height | 81.22 Inches |
| Interior Dimensions | 63.46" W x 19.76" D x 62.32" H |
| Packaging Dimensions | 69.29" L x 29.52" D x 84.3" H |
| Voltage | 115 Volts |
| Amps | 6.8 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 700 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 50 cu. ft. |
| Temperature Range | 33 - 50 Degrees F |
| Refrigerant | R290 |
| Horsepower | 3/4 HP |
| Defrost | Automatic |
| Controls | Digital |
| Doors | 3 SlidingGlassSelf-Closing |
| Shelves | 15 Adjustable10 at 19.88" x 18.23" (Sides)5 at 22.72" x 18.23" (Middle) |
| Shelf Material | PVC Coated Steel |
| Interior Lighting | LED |
| Exterior | White Painted Steel |
| Interior | Painted Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 84 with Brakes, 4 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | IndoorBeverage Display and Storage |
