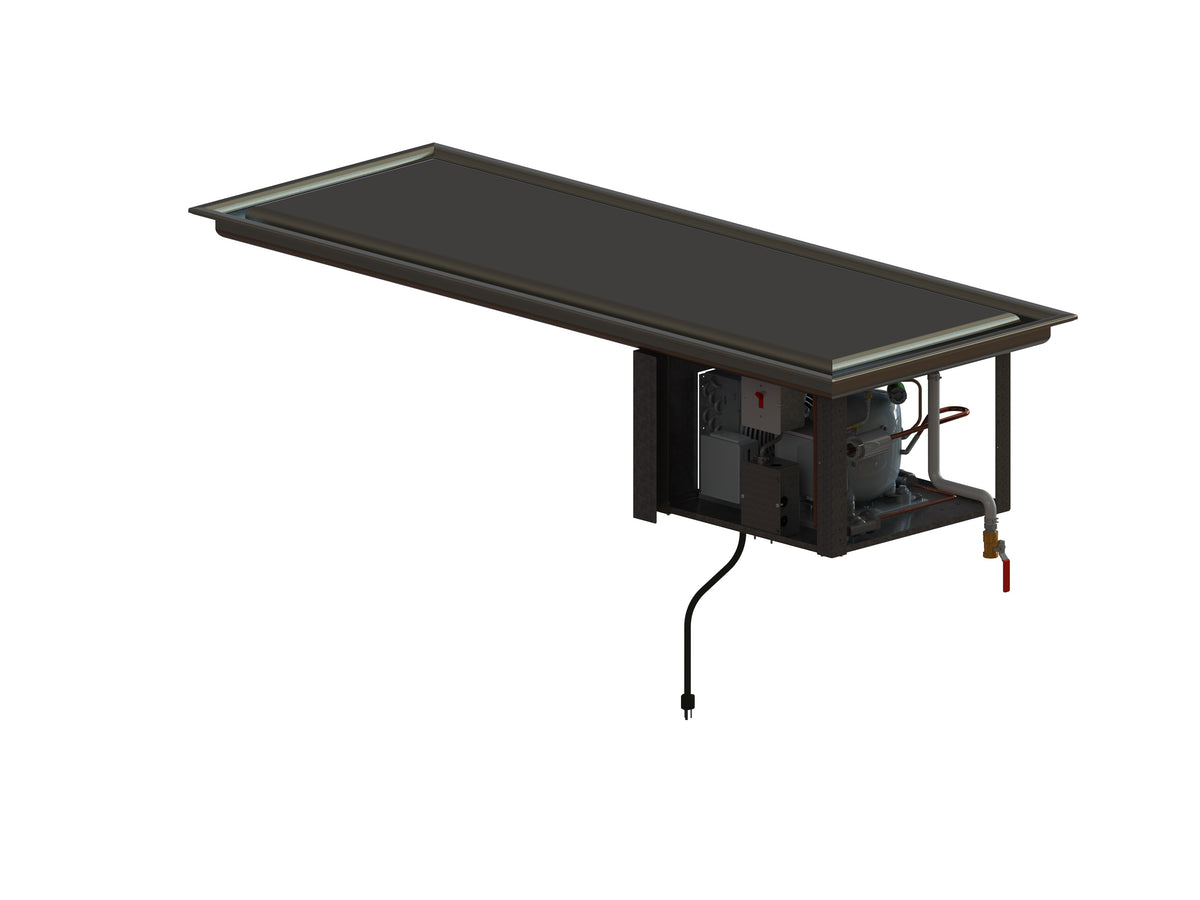

Vollrath FC-4CP-02120-F 28" Stainless Drop-in Frost Top

Vollrath FC-4CP-02120-F 28" Stainless Drop-in Frost Top

Features And Benefits

• Flange and display are 300-series stainless steel.
• Units utilize R290 refrigerant, which has a lower GWP (Global Warming Potential) than many previously-used refrigerants.
• Frost-top display area is one-piece.
• Unit is designed for top-mount installation, flush with countertop.
• Under-drip-edge gasket is included.
• A full-perimeter drip edge contains spills and condensation within the stainless steel countertop area.
• Refrigeration coils are attached underneath and to the sides for maximum cooling and a full-frost pattern.
• Cooling coils are insulated with extruded polystyrene insulation for efficiency and performance.
• Display surface averages 0 °F (-18 °C) at 70 °F (21 °C) ambient temperature.
• Condensing unit is N below the top.
• Remote on/off switch with 4 ft. (1.2 m) cord, can be mounted to any cabinet side.
• 6 ft (1.5 m) cord with plug is included.

Clearance And Environment

• Needed clearance is zero on sides, 3" (7.6 cm) from the condenser air inlet and outlet, and 1.5" (3.8 cm) at the bottom.
• Follow all regulations, warnings, and cautionary guidance specific to products that utilize R290 refrigerant.
• This unit is made for indoor use only.
• Requires at least 80 square inches for both fresh-air intake and exhaust. See back page for details.
• Frost tops are intended to hold plated, pre-chilled food and beverages for short periods of time. Frost tops are not intended for direct contact with food.
