Description
A 27" prep counter with cold storage underneath and a backsplash to protect the wall.

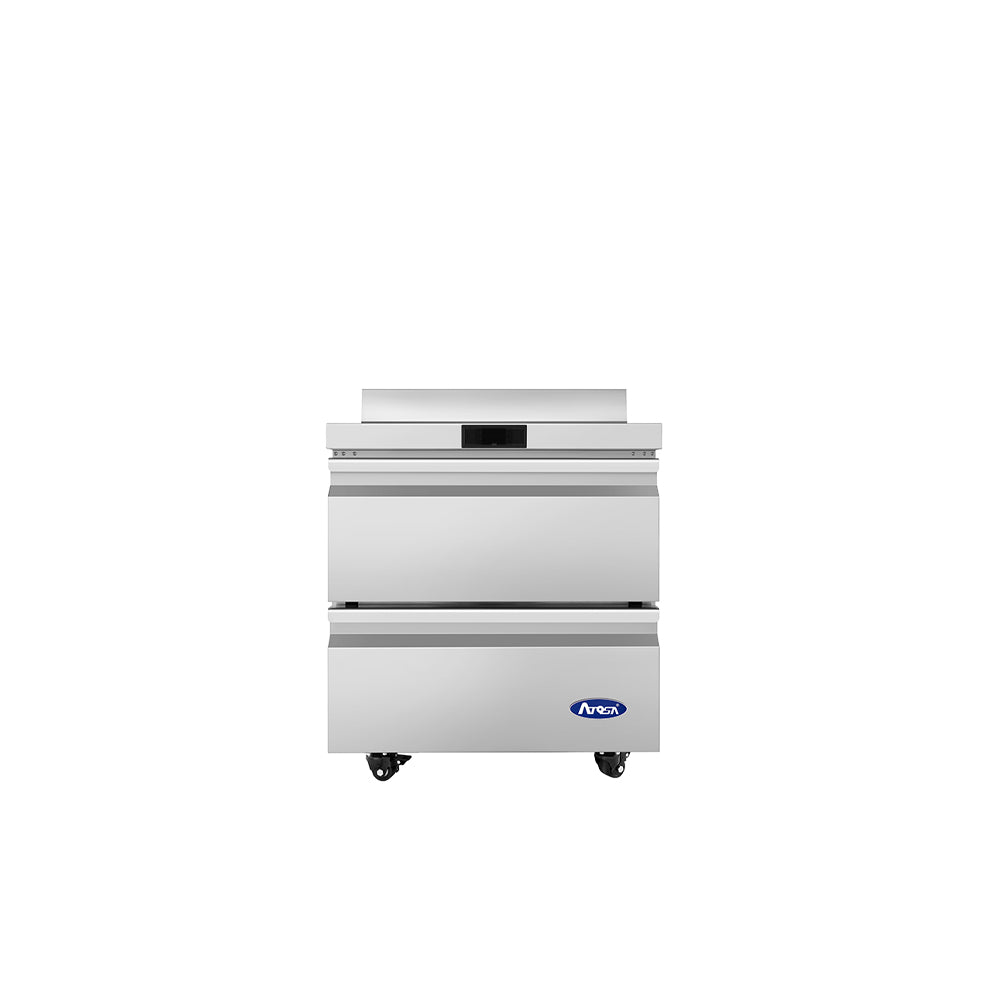

The Atosa AWR27D2 combines a reinforced stainless steel work top and backsplash with 6.53 cu. ft. of refrigerated storage: 2 drawers that hold 1/6-size pans (pans included), held at 35°F to 38°F. It is 27-1/2" wide, 30" deep and 38-7/8" tall on pre-installed 5" casters, and plugs into a standard 115V outlet (3.4 amps).
Will it fit · Will it plug in
- Outside size
- 27-1/2" W × 30" D × 38-7/8" H (with 5" casters, incl. 3-1/2" backsplash)
- Drawers open
- 50-3/8" deep with the drawer pulled out (Atosa drawing)
- Power
- 115V, 60 Hz, 1-phase, 3.4 amps; NEMA 5-15P plug
- Shipping weight
- 198 lb. (143 lb. net)
Measure every doorway and turn on the delivery path before ordering. Leave room around the unit for airflow.
Prep on top
Reinforced stainless steel top with backsplash.
Holds temperature
Electronic controller holds 35°F to 38°F; magnetic drawer gaskets seal each drawer.
Mobile
Pre-installed 5" swivel casters for cleaning behind and under the unit.
Pan drawers
Drawers come with 1/6-size pans for ingredients at the line.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight with the 5" casters pre-installed; inspect it for damage before signing for the delivery.
Questions buyers ask
What outlet does it need?
A grounded 115V outlet for the NEMA 5-15P plug. It draws 3.4 amps.
How high is the work surface?
Overall height is 38-7/8" on the standard 5" casters, including the 3-1/2" backsplash, so the top sits about 35-3/8" up (38-7/8 - 3-1/2). Atosa offers 1.2", 1.5" and 2" low-profile casters to lower it.
Will it fit through my doorway?
Its smallest outside dimension is the 30" depth (or the 27-1/2" width on 27" models). Measure doors and turns on the delivery path first.
What pans fit in the drawers?
Atosa ships it with 1/6-size pans; its drawing shows nine 1/6 pans in the top drawer, and optional layouts use 1/1, 1/3, 1/2 or 1/4-size pans. Pan depth is not published.
How much clearance does it need?
Atosa publishes no exact clearance; its spec sheet asks you to leave the unit room to breathe and to clean the condenser frequently.
What does the warranty cover?
Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the compressor (parts only for the extra 2 years), counted from shipment from Atosa. The spec sheet badge still shows 2 years parts and labor, so keep your invoice and confirm coverage when you register the unit.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | AWR27D2 |
| Quantity | 1/Each |
| Shipping Weight | 198 lb. |
| Net Weight | 143 lb. |
| Width | 27-1/2 Inches |
| Depth | 30 Inches |
| Height | 38-7/8 Inches (with 5" casters, incl. backsplash) |
| Backsplash Height | 3-1/2 Inches |
| Depth with Drawer Open | 50-3/8 Inches |
| Caster Size | 5 Inches |
| Voltage | 115 Volts |
| Amps | 3.4 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 6.53 cu. ft. |
| Temperature Range | 35 - 38 Degrees F |
| Horsepower | 1/7+ hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained |
| Controls | Electronic Temperature Controller |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Top | Reinforced Stainless Steel with Backsplash |
| Number of Drawers | 2 |
| Pans | 1/6-Size Pans Included |
| Casters | Pre-Installed 5" Swivel Casters |
| Certifications | ETL Sanitation, cETLusUL 471CSA C22.2 No. 120 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
