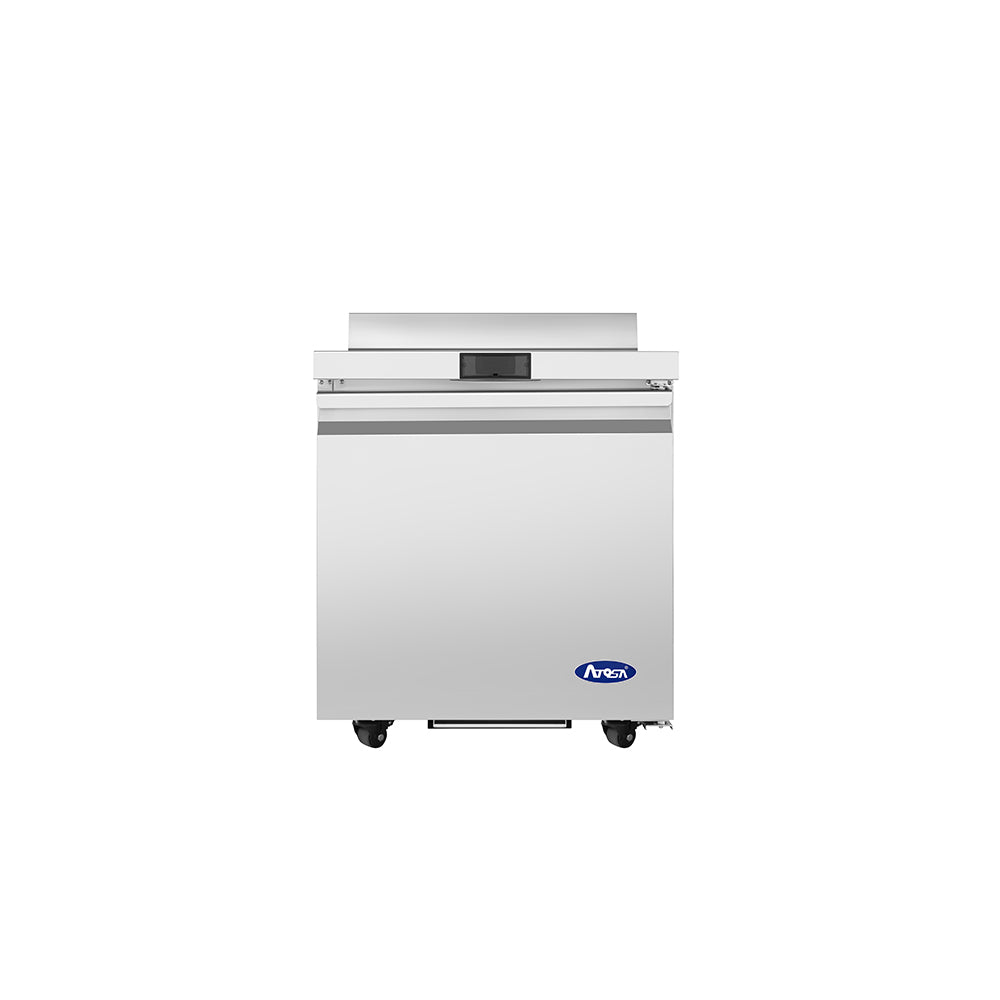

Atosa AWF27SD 27-1/2" 1-Door Worktop Freezer with Backsplash, 6.53 cu. ft., -8 to 0°F, 115V, Stainless Steel
A 27" prep counter with frozen storage underneath and a backsplash to protect the wall.
The Atosa AWF27SD combines a reinforced stainless steel work top and backsplash with 6.53 cu. ft. of freezer storage: 1 door and 2 epoxy-coated shelves, held at -8°F to 0°F. It is 27-1/2" wide, 30" deep and 38-7/8" tall on pre-installed 5" casters, and plugs into a standard 115V outlet (3.9 amps).
Measure every doorway and turn on the delivery path before ordering. Leave room around the unit for airflow.
Reinforced stainless steel top with a foamed-in-place backsplash.
Electronic controller holds -8°F to 0°F; self-closing doors with stay-open feature and magnetic gaskets.
Pre-installed 5" swivel casters for cleaning behind and under the unit.
A grounded 115V outlet for the NEMA 5-15P plug. It draws 3.9 amps.
Overall height is 38-7/8" on the 5" casters, including the 3-1/2" backsplash, so the top sits about 35-3/8" up (38-7/8 - 3-1/2).
Its smallest outside dimension is the 30" depth (or the 27-1/2" width on 27" models). Measure doors and turns on the delivery path first.
Yes. Atosa lists the doors as field reversible.
Atosa publishes no exact clearance; its spec sheet asks you to leave the unit room to breathe and to clean the condenser frequently.
Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the compressor (parts only for the extra 2 years), counted from shipment from Atosa. The spec sheet badge still shows 2 years parts and labor, so keep your invoice and confirm coverage when you register the unit.
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | AWF27SD |
| Quantity | 1/Each |
| Shipping Weight | 198 lb. |
| Net Weight | 143 lb. |
| Width | 27-1/2 Inches |
| Depth | 30 Inches |
| Height | 38-7/8 Inches (with 5" casters, incl. backsplash) |
| Backsplash Height | 3-1/2 Inches |
| Depth with Door Open | 54-3/4 Inches |
| Interior Width | 23-7/8 Inches (drawing) |
| Caster Size | 5 Inches |
| Voltage | 115 Volts |
| Amps | 3.9 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 6.53 cu. ft. |
| Temperature Range | -8 - 0 Degrees F |
| Horsepower | 1/5 hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained |
| Controls | Electronic Temperature Controller |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Top | Reinforced Stainless Steel with Backsplash |
| Number of Doors | 1 |
| Door Features | Field ReversibleSelf-Closing with Stay-Open FeatureMagnetic Gasket |
| Number of Shelves | 2 (Epoxy-Coated) |
| Casters | Pre-Installed 5" Swivel Casters |
| Certifications | ETL Sanitation, cETLusUL 471CSA C22.2 No. 120 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
