Atosa MSF8309227A00 2-Drawer Cartridge Kit for Atosa MSF8301GR / MSF8305GR Prep Tables, Field Retrofit, 100 lb. per Drawer
Turns one door of an Atosa prep table into two pull-out drawers, so cooks reach ingredients without bending into the cabinet.

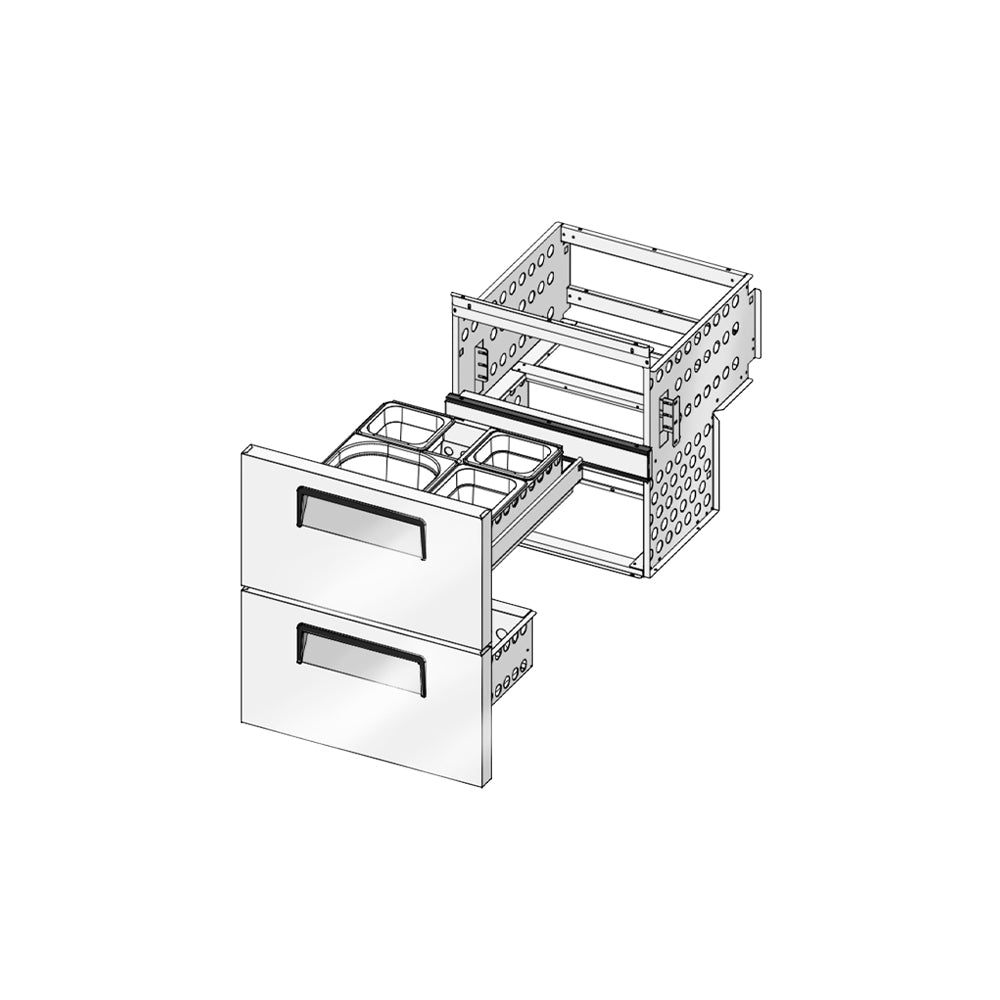

The Atosa MSF8309227A00 is a field-retrofittable drawer cartridge for Atosa MSF8301GR and MSF8305GR sandwich prep tables and MGF8401GR and MGF8408GR refrigerators. It replaces one door with a frame and two drawers that hold 6" deep food pans, each rated for 100 lb. Atosa supplies installation instructions; you need a marker, a Phillips screwdriver, a drill and a 5/16" bit.
Check the model number on your Atosa unit before ordering; each cartridge is made for specific models and door positions.
Installs into an existing Atosa unit: remove the door, hinges, shelf and pilasters, then fit the frame and drawers.
Top: (3) 1/6 and (3) 1/3 pans, or (9) 1/6 pans. Bottom: (3) 1/3 pans or (6) 1/6 pans.
Each drawer is rated for up to 100 lb.
Atosa lists the MSF8309227A00 for MSF8301GR and MSF8305GR sandwich prep tables and MGF8401GR and MGF8408GR refrigerators.
Atosa's instructions remove the door, hinges, shelf, pilasters and support legs, then screw the drawer frame in with the 17 included M4 self-drilling screws. Atosa recommends a qualified installer.
Atosa's sheet lists the pan layouts the drawers accept (6" deep pans) but does not list pans as included. Plan to use your own pans.
Atosa rates each drawer for up to 100 lb.
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | MSF8309227A00 |
| Quantity | 1 Kit (Frame + 2 Drawers) |
| Product Type | Drawer Cartridge for Prep Tables |
| Drawer Depth | 24 Inches (Drawing) |
| Drawer Front Height | 13-3/8 Inches Each (Drawing) |
| Top Drawer | (3) 1/6 and (3) 1/3 pans, or (9) 1/6 pans |
| Bottom Drawer | (3) 1/3 pans or (6) 1/6 pans |
| Pan Depth | 6 Inches |
| Max Load | 100 lb. per Drawer |
| Type | Field Retrofit, Replaces One Door |
| Hardware Included | 17 M4 Self-Drilling Screws |
| Tools Needed | MarkerPhillips ScrewdriverDrill5/16" Drill Bit |
| Compatible Models | Atosa MSF8301GR and MSF8305GR, MGF8401GR and MGF8408GR |
