Description
A 30-3/4" modular ice machine head that makes up to 800 lb. of half-diced ice a day on top of the bin you choose.
The Atosa YRM0800A-261 is an air-cooled modular ice machine head for restaurants, bars and hotels. It makes up to 800 lb. of half-diced cube ice a day and needs a bin underneath, sold separately: Atosa BYR0400 30" bin (no adapter needed). It runs on 208-230V with a NEMA 6-20P plug and includes a 3M water filter system.
Will it fit · Will it plug in
- Outside size
- 30-3/4" W × 24-1/4" D × 31-3/4" H (head only)
- Clearance
- At least 2" on the left and right and 1" on top for airflow (Atosa manual)
- Power
- 208-230V, 60 Hz, 1-phase, 9.1 amps; NEMA 6-20P plug
- Water and drain
- Cold water at 30-70 psi and a gravity drain
- Bin
- Not included; Atosa BYR0400 30" bin (no adapter needed)
- Room
- 41-110°F air, 37-90°F water (Atosa manual)
Measure every doorway and turn on the delivery path, and add the bin height when you check ceiling and hood clearance.
Pick your bin
Sits on an Atosa BYR0400 30" bin without an adapter.
Half-diced cubes
3/8" x 7/8" x 7/8" cubes cool drinks fast and pack well in a bin.
Filter included
A 3M water filter system comes standard; Atosa recommends a new cartridge about every 6 months.
Easy upkeep

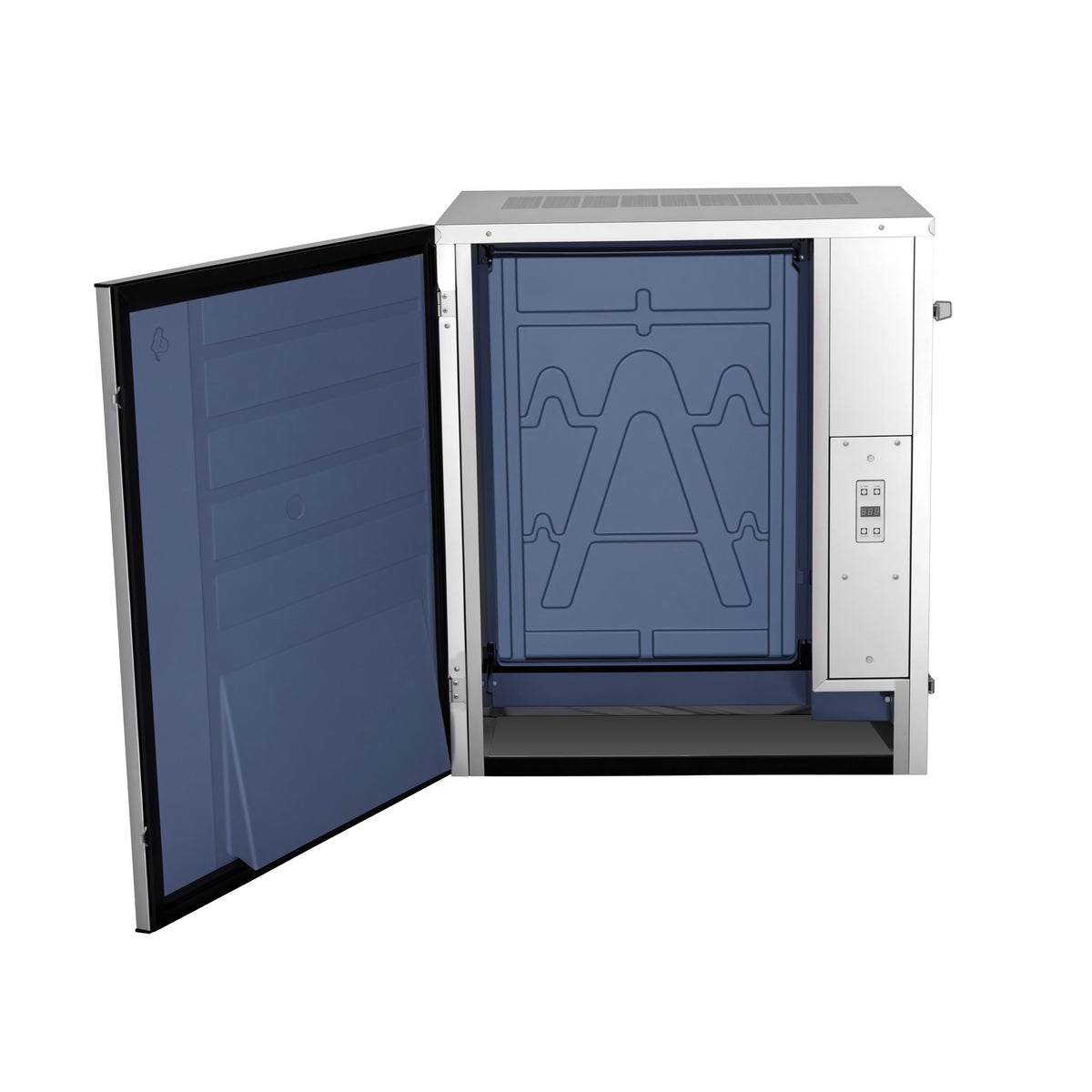

Removable air filter and a screwless front panel for cleaning and service.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on a pallet.
- Inspect the cabinet for damage before signing for the delivery.
- A plumber should connect the water supply and drain; install the 3M water filter that comes with it.
- The ice bin is sold separately.
Questions buyers ask
What outlet does it need?
A 208-230V single-phase circuit with a NEMA 6-20 receptacle for the NEMA 6-20P plug. Atosa lists a 9.1 amp minimum circuit and a 16 amp fuse or breaker. Have an electrician confirm the circuit before delivery.
Does it come with a bin?
No. This is the ice machine head only. It sits on the Atosa BYR0400 30" bin without an adapter. For a beverage dispenser instead of a bin, Atosa calls for bin thermostat kit BYR0400217031.
How much ice will it really make?
Atosa rates it at up to 800 lb. per 24 hours with 70°F air and 50°F water. Its manual lists 600 lb. at 90°F air and 70°F water, and 480 lb. at 100°F air and 90°F water, so a hot kitchen makes less.
What water and drain hookups does it need?
A cold water line at 30 to 70 psi (37 to 90°F water) and a gravity drain. Atosa says the bin drain and the machine drain should run separately, with about 1" of drop for every 40" of drain hose.
Does it need a water filter?
Atosa includes a 3M water filter system and says every Atosa ice machine should run with it installed. Replace the cartridge about every 6 months, more often with hard water.
What does the warranty cover?
Atosa's 2026 ice machine warranty gives 2 years parts and labor and 5 years on the sealed compressor (parts only after year 2), counted from shipment. Cleaning and maintenance are not covered, and Atosa expects the included 3M water filter to be installed.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | YRM0800A-261 |
| Quantity | 1/Each |
| Net Weight | 194 lb. |
| Width | 30-3/4 Inches |
| Depth | 24-1/4 Inches |
| Height | 31-3/4 Inches |
| Side Clearance | 2 Inches Left and Right, 1 Inch Top (Manual) |
| Voltage | 208-230 Volts |
| Amps | 9.1 Amps |
| Watts | 2000 Watts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 6-20P |
| Fuse / Breaker | 16 Amps (Manual) |
| Ice Production | Up to 800 lb. per 24 Hours (70°F Air, 50°F Water) |
| Production at 90°F Air, 70°F Water | 600 lb. per 24 Hours (Manual) |
| Production at 100°F Air, 90°F Water | 480 lb. per 24 Hours (Manual) |
| Ice Type | Half-Diced Cube, 3/8 x 7/8 x 7/8 Inches |
| Condenser | Air Cooled |
| Refrigerant | R404A |
| Controls | Digital |
| Water Pressure | 30 - 70 PSI |
| Water Temperature | 37 - 90 Degrees F |
| Ambient Temperature | 41 - 110 Degrees F |
| Water Filter | 3M Water Filter System Included |
| Drain | Required |
| Ice Bin | Not IncludedAtosa BYR0400 30" bin (no adapter needed) |
| Optional Accessories | Bin Thermostat Kit BYR0400217031 |
| Exterior | Stainless Steel |
| Features | Removable Air FilterScrewless Front Panel |
| Certifications | ETL Sanitation, cETLus |
| Standards | UL 471, CSA C22.2 No. 120 |
| Warranty | 2 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
