Fagor FBB-24-48 49-5/8" Slim Line 2-Door Solid Door Back Bar Cooler, 24-5/8" Deep, Black, 300 Cans, 33°F to 38°F, 115V
A slim, 24-5/8" deep back bar cooler for bars where every inch behind the counter counts.

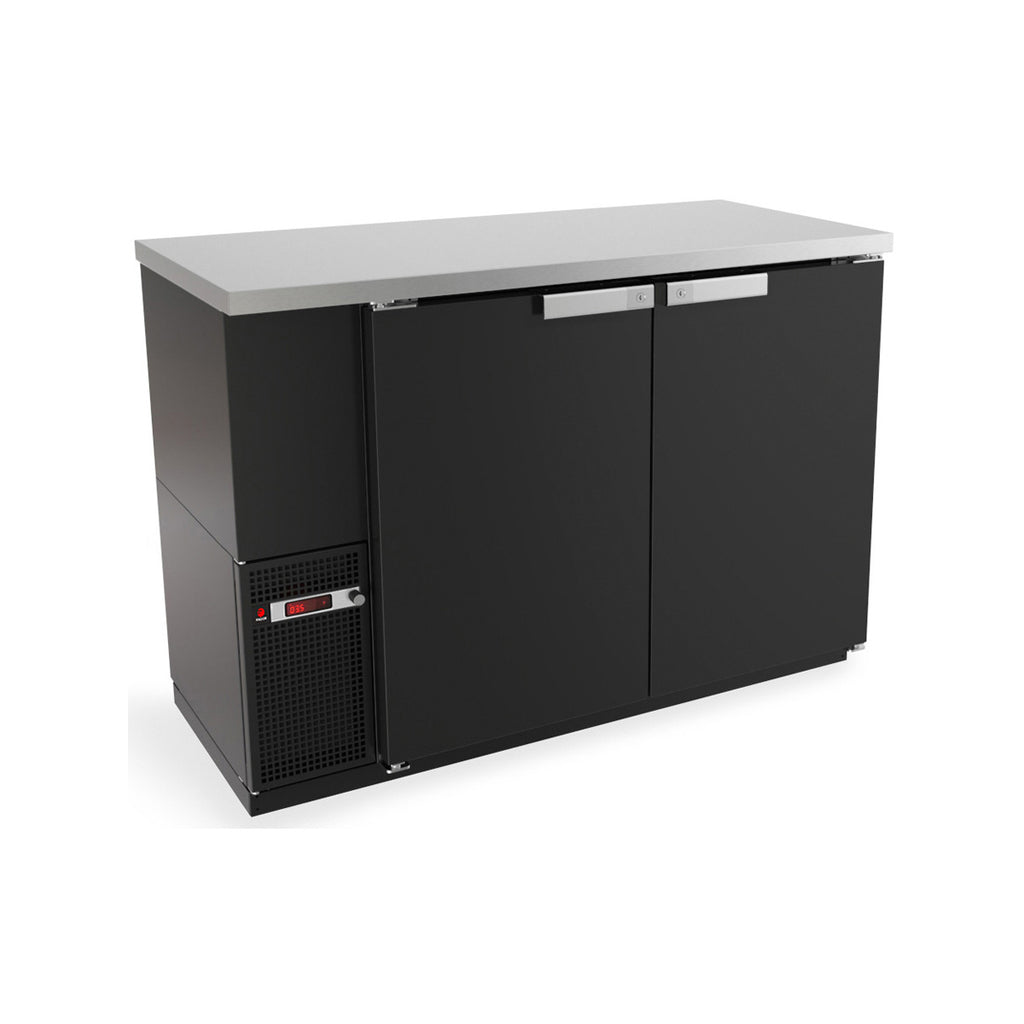

The Fagor FBB-24-48 is a two-door, solid-door back bar cooler from Fagor's slim line series. At 24-5/8" deep it fits narrow back bars that a standard 29" deep cooler would crowd, and it still holds 300 12 oz. cans at 33°F to 38°F. It breathes from the front, plugs into a standard 115V outlet and draws 2.0 amps.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 24-5/8" depth. Keep the front grille on the left clear, since the unit breathes from the front.
Only 24-5/8" deep and 35-1/2" tall, so it slides under lower and narrower back bars.
Front breathing with the compressor on the left side. Fagor rates the line for 100°F rooms.
The condensing unit slides out from behind the front grille, and an automatic condensate evaporator means no drain line.
Two epoxy-coated shelves per door: flat shelves on one side, adjustable bottle rails on the other.
A standard grounded 115V outlet for the NEMA 5-15P plug on the 8 ft. cord. It draws 2.0 amps.
It is 24-5/8" deep. Fagor's standard FBB back bars are 29" deep.
Fagor rates it at 300 12 oz. cans.
No. Condensate goes to a pan in the compressor housing with an automatic evaporator.
Fagor lists 3" casters and 6" stainless steel legs as options. Call us if you need them with your order.
Fagor gives 3 years parts and labor plus 2 more years on the compressor, 5 years in total, in the continental US and Canada only.
Specs
| Manufacturer | Fagor |
|---|---|
| Model Number | FBB-24-48 |
| Also Listed As | FBB-24-48-HC |
| Quantity | 1/Each |
| Shipping Weight | 235 lb. |
| Shipping Cube | 33 cu. ft. |
| Width | 49-5/8 Inches |
| Depth | 24-5/8 Inches |
| Height | 35-1/2 Inches |
| Depth with Doors Open | 41-7/8 Inches |
| Interior Width x Depth | 36-1/4 x 18-1/2 Inches |
| Voltage | 115 Volts |
| Amps | 2.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 8 ft. |
| Capacity | 300 12 oz. Cans |
| Temperature Range | 33 - 38 Degrees F |
| Horsepower | 1/4 HP |
| Refrigerant | R290 Hydrocarbon |
| Refrigeration System | Self-Contained, Capillary TubeFront Breathing, Compressor on Left Side |
| Condensing Unit | Slides Out from Behind the Front Grille |
| Condensate | Automatic Condensate Evaporator, No Drain Connection Required |
| Number of Doors | 2 |
| Door Type | Solid, Black Vinyl-Coated Steel, Field Interchangeable with Glass |
| Door Features | Lock per DoorMagnetic Gaskets, Removable Without Tools |
| Exterior | Black Vinyl Front, Sides and Back18-Gauge Stainless Steel Top |
| Interior | Stainless Steel Walls, Coved Stainless Steel Floor |
| Insulation | 2" Foamed-in-Place Polyurethane, CFC-Free |
| Number of Shelves | 4 Epoxy-Coated, 2 per DoorFlat Shelves Behind One Door, Adjustable Bottle Rails Behind the Other |
| Lighting | Interior LED Light Under the Mullion |
| Fagor Options | Additional Adjustable Rails3" Casters6" Adjustable Stainless Steel Legs220V/50Hz |
| Certifications | ETL Sanitation, cETLus |
| Standards | Conforms to UL and NSF-7DOE 2017 Compliant |
| Warranty | 3 Years Parts & Labor, 5 Years Compressor |
| Warranty Coverage | Continental US & Canada |
