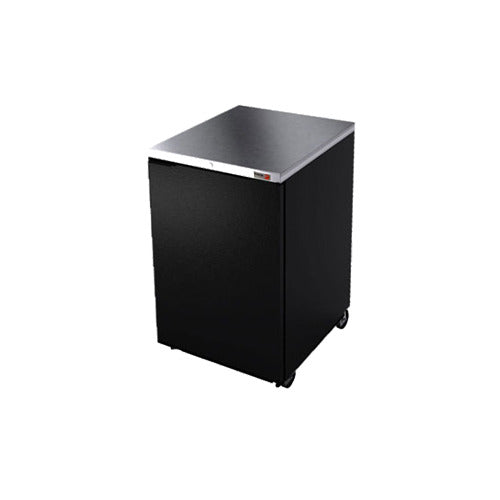

Fagor FBB-24-N 24-7/8" 1-Door Solid Door Back Bar Cooler, Black, 415 Cans, 33°F to 38°F, 115V, R290
A 24-7/8" wide single-door back bar cooler for bottles and cans at the end of the bar.
The Fagor FBB-24-N is a single-door, black solid-door back bar cooler from Fagor's FDD/FBB 24 kegerator series. It is 24-7/8" wide and holds 415 12 oz. cans at 33°F to 38°F, so it fits the end of a bar, a service station or a small café. It plugs into a standard 115V outlet and draws 1.5 amps.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 24-7/8" width. The unit breathes from the back, so keep the back grille open to room air; Fagor does not state a clearance.
24-7/8" wide and 39-3/8" high, built by Fagor to handle the knocks of a portable unit.
A top-mounted evaporator and a large fan circulate air through the whole cabinet.
The condensing unit slides out from behind the back grille, and an automatic condensate evaporator means no drain line.
Epoxy-coated shelves and an LED light under the mullion; Fagor offers extra shelves.
A standard grounded 115V outlet for the NEMA 5-15P plug on the 8 ft. cord. It draws 1.5 amps.
Fagor rates it at 415 12 oz. cans.
From the back. Keep the back grille open to room air; Fagor does not state a clearance, so call us before you build it into a closed space.
No. Condensate goes to a pan in the compressor housing with an automatic evaporator.
Fagor's 2019 catalog lists 2 epoxy-coated shelves as standard, and Fagor offers additional shelves.
Yes. Fagor builds a 220V/50Hz export version; you can choose it in the voltage option above the Add to Cart button.
Fagor gives 3 years parts and labor plus 2 more years on the compressor, 5 years in total, in the continental US and Canada only.
Specs
| Manufacturer | Fagor |
|---|---|
| Model Number | FBB-24-N |
| Also Listed As | FBB-24-HC |
| Quantity | 1/Each |
| Shipping Weight | 187 lb. |
| Shipping Cube | 23 cu. ft. |
| Width | 24-7/8 Inches |
| Depth | 30 Inches |
| Height | 39-3/8 Inches |
| Depth without Bumper | 27-5/8 InchesDepth Includes a 2-3/8" Bumper |
| Depth with Door Open | 53-5/8 Inches |
| Voltage | 115 Volts |
| Amps | 1.5 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 8 ft. |
| Capacity | 415 12 oz. Cans |
| Temperature Range | 33 - 38 Degrees F |
| Horsepower | 1/10 HP |
| Refrigerant | R290 Hydrocarbon |
| Refrigeration System | Self-Contained, Capillary TubeRear Breathing Compressor |
| Evaporator | Mounted to the Interior Top |
| Condensing Unit | Slides Out from Behind the Back Grille |
| Condensate | Automatic Condensate Evaporator, No Drain Connection Required |
| Number of Doors | 1 |
| Door Type | Solid, Black Vinyl-Coated Steel |
| Door Features | LockMagnetic Gasket, Removable Without Tools |
| Exterior | Black Vinyl Front, Sides and Back18-Gauge Stainless Steel Top |
| Interior | Galvanized Steel Walls, Coved Stainless Steel Floor |
| Insulation | 2" Foamed-in-Place Polyurethane, CFC-Free |
| Shelves | Epoxy-Coated2 Standard per Fagor's 2019 Catalog |
| Lighting | Interior LED Light Under the Mullion |
| Casters | Shown on Fagor's 2021 DrawingListed as Standard in Fagor's 2019 Catalog |
| Fagor Options | Additional Shelves220V/50Hz |
| Certifications | ETL Sanitation, cETLus |
| Standards | Conforms to UL and NSF-7DOE 2017 Compliant |
| Warranty | 3 Years Parts & Labor, 5 Years Compressor |
| Warranty Coverage | Continental US & Canada |
