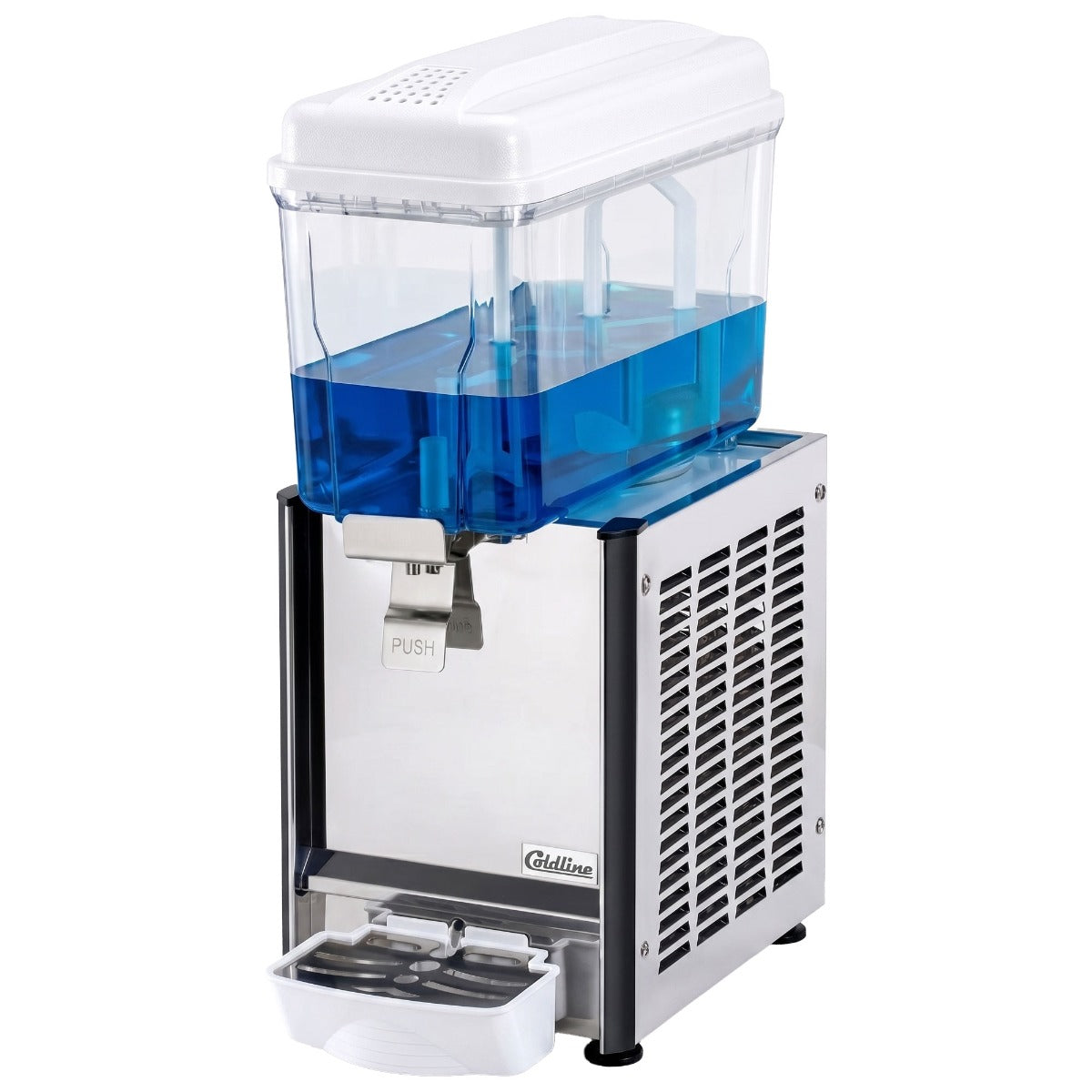

Coldline CBD-1 Single 3 Gallon Bowl Refrigerated Beverage Dispenser with Stirring System, 3.2 Gallons, 115V
A countertop refrigerated drink dispenser with a 3.2 gallon bowl that keeps juice, lemonade or iced tea cold and mixed.
The Coldline CBD-1 serves chilled drinks at restaurants, diners, cafeterias, concession stands and convenience stores. Its food grade polycarbonate bowl holds 3.2 gallons, 3.2 gallons in all, and a rotating cylinder and paddle keep the drink mixed at 44.6°F to 53.6°F. It sits on non-slip feet in a 10.24" wide footprint and plugs into a standard 115V outlet.
A rotating cylinder and paddle keep pulp and mixes from settling.
Stainless steel base, drip tray, valve, handle and cylinder.

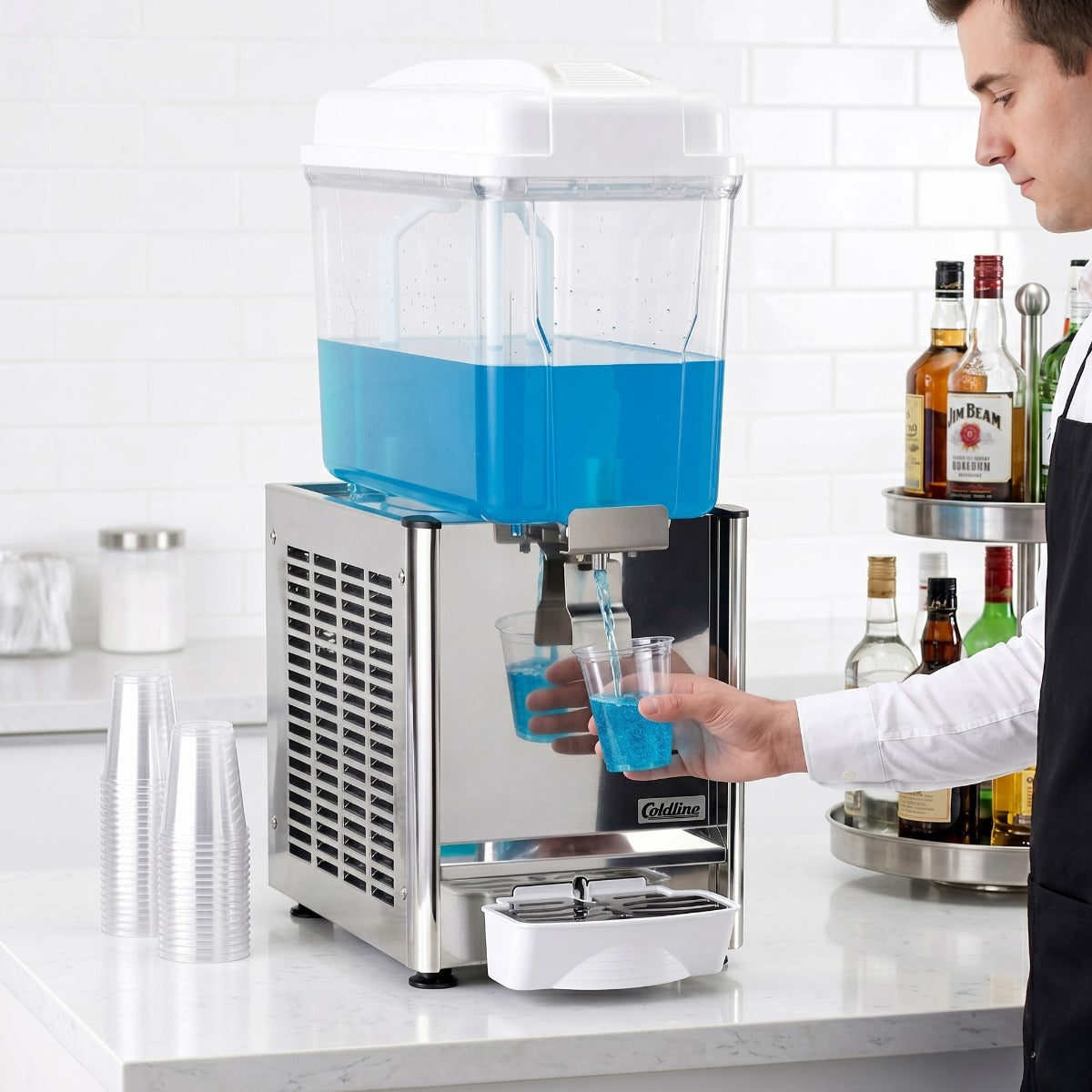

Press the cup against the push lever and the drink flows from the valve.
10.24" wide on non-slip feet with a 6' cord.
It runs on 115V, 60 Hz, single phase and draws 1.8 A (180 W). It has a NEMA 5-15P plug on a 72" (6') cord, so it plugs into a standard grounded outlet.
The Coldline sheet gives a range of 44.6°F to 53.6°F. Start with chilled product: the manual says drinks poured in too warm slow the cooling down.
Coldline names juice, lemonade, iced tea and other cold drinks. The stirring paddle keeps them mixed. Fill only to the marked level; the manual warns that overfilling lets drink into the stirring tube and can burn out the stirrer.
The footprint is 10.24" wide and 17.24" deep, 26.2" high. The manual asks for about 150 mm (6") of free space around it for air flow, a flat surface out of direct sun, and the front set slightly lower than the back so the drip tray drains.
The Coldline sheet shows only the CE mark. It lists no cETLus, ETL Sanitation or NSF listing, so check with your health inspector if your area requires one.
USR Brands covers the Coldline BD/CBD-Series drink dispensers for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are covered for parts only, and residential use is not covered.
The Coldline one-year warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CBD-1 |
| Manufacturer Item Number | LSJ12L×1 |
| Quantity | 1/Each |
| Shipping Weight | 49 lb. |
| Net Weight | 44 lb. |
| Width | 10.24 Inches |
| Depth | 17.24 Inches |
| Height | 26.2 Inches |
| Packaging Dimensions | 11.8" W x 18.9" D x 28" H |
| Voltage | 115 Volts |
| Amps | 1.8 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 180 W |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Capacity | 3.2 Gallons |
| Number of Bowls | 1 |
| Capacity per Bowl | 3.2 Gallons |
| Number of 12 oz. Servings | 34 |
| Temperature Range | 44.6 - 53.6 Degrees F |
| Refrigerant | R290 |
| Dispenser Type | Stirring System (Rotating Cylinder and Paddle) |
| Bowl Material | Food Grade Polycarbonate, with Lid |
| Exterior | Stainless SteelPolycarbonate |
| Stainless Steel Parts | Base, Drip Tray, Valve, Handle, Cylinder |
| Feet | Non-Slip |
| Controls | ON/OFF Power Switch |
| Certifications | CE |
| Warranty | 1 Year Parts & Labor |
