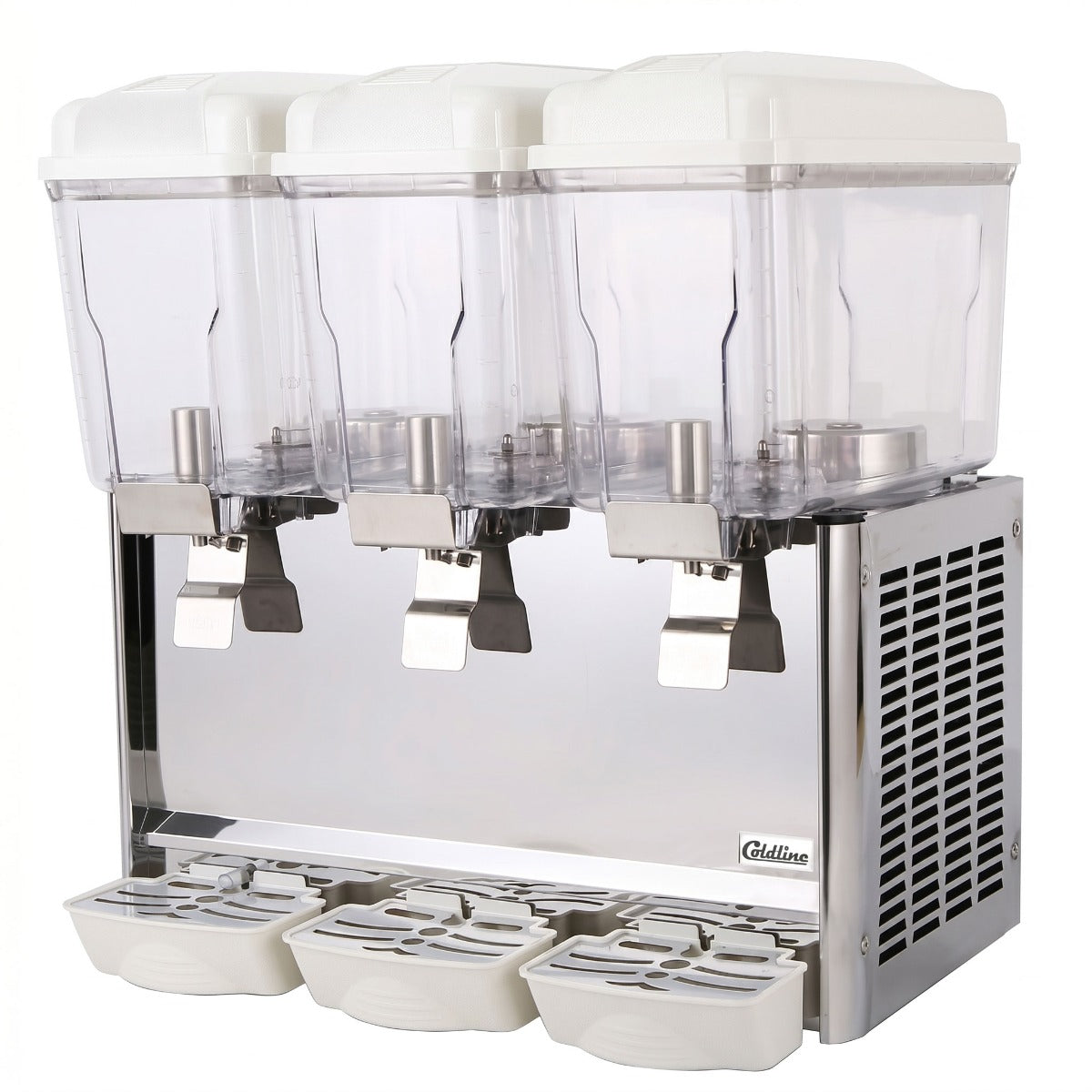

Coldline CBD-3 Triple Bowl Refrigerated Beverage Dispenser, 3 x 3.2 Gallon, Stirring System, 44.6-53.6°F, 115V
A three-bowl refrigerated drink dispenser that serves juice, lemonade and iced tea from the counter.
The Coldline CBD-3 is a countertop beverage dispenser for restaurants, diners, cafeterias, convenience stores and concession stands. Three 3.2-gallon polycarbonate bowls hold 9.6 gallons of three different drinks at 44.6°F to 53.6°F, and a rotating cylinder and paddle in each bowl keeps them mixed. It plugs into a standard 115V outlet with a NEMA 5-15P plug (3 A) and has stainless steel valves, handles and drip trays.
Check that the counter can carry the unit plus 9.6 gallons of drinks.
Three 3.2-gallon bowls let you serve three flavors side by side.
A rotating cylinder and paddle keep juice and lemonade from settling.
R290 refrigeration holds 44.6°F to 53.6°F.
Bowls, lids and stainless drip trays come off for washing.
A grounded 115V outlet for the NEMA 5-15P plug on a 6' cord. It draws 3 A (320 W).
Three 3.2-gallon bowls, 9.6 gallons in all, or about 102 servings of 12 oz. Keep each bowl below its fill line; the manual warns that overfilling lets drink run into the stirring tube.
Coldline rates it at 44.6°F to 53.6°F. Pour in drinks that are already cool: the manual says warm liquid hurts cooling performance.
It is 23.4" wide, 17.2" deep and 26.2" tall. The manual asks for about 150 mm (6") of free space around it for airflow, on a flat surface out of direct sun, set slightly lower at the front so drip tray water drains.
The spec sheet shows a CE mark only, not ETL, UL or NSF. Check with your local health inspector before ordering if a listing is required.
USR Brands covers CBD-Series dispensers for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only; residential use is not covered.
The Coldline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CBD-3 |
| Quantity | 1/Each |
| Shipping Weight | 80 lb. |
| Net Weight | 73 lb. |
| Width | 23.4 Inches |
| Depth | 17.2 Inches |
| Height | 26.2 Inches |
| Packaging Dimensions | 25.2" W x 18.9" D x 28" H |
| Voltage | 115 Volts |
| Amps | 3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 320 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Capacity | 9.6 Gallons3 x 3.2 Gallon Bowls |
| Servings | 102 x 12 oz. |
| Temperature Range | 44.6 - 53.6 Degrees F |
| Refrigerant | R290 |
| Dispenser Type | Stirring System |
| Bowls | 3Food Grade Polycarbonate with Lids |
| Exterior | Stainless SteelPolycarbonate |
| Feet | Non-Slip |
| Controls | On/Off Switch |
| Certifications | CE |
| Warranty | 1 Year Parts & Labor |
| Usage | CommercialJuice, Lemonade, Iced Tea and Cold Drinks |
