Coldline DC80-B 80" Curved Glass Refrigerated Deli Display Case, Black, 24.4 cu. ft., 32-43°F, 115V
A 80" curved glass deli case that puts meats, cheeses and salads on show at the counter and keeps them at 32°F to 43°F.

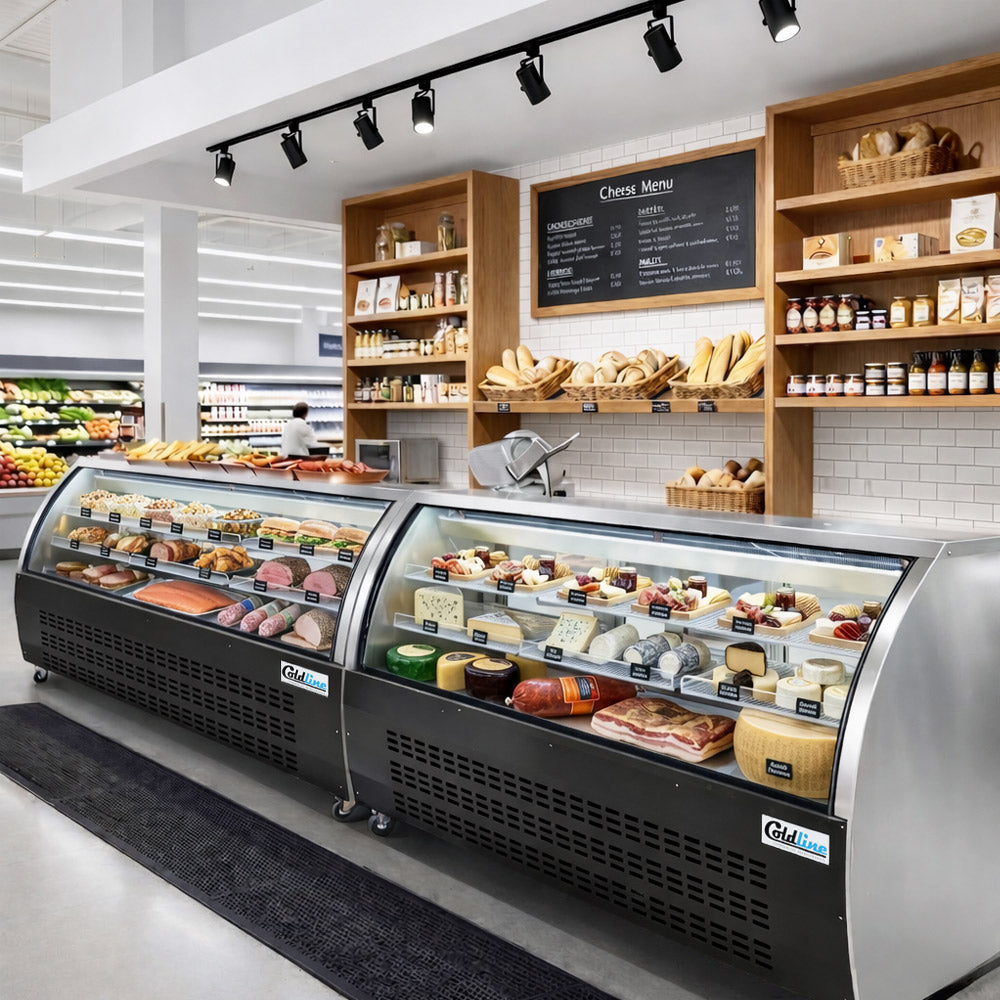

The Coldline DC80-B is a full-service refrigerated display case for delis, butcher counters, restaurants, bakeries and cafes. It shows 24.4 cu. ft. of product behind curved front glass on the base deck and adjustable LED-lit wire shelves, and staff work from sliding rear glass doors. It has a black coated steel exterior with stainless steel trim, rides on 6 preinstalled casters, and plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 32.4" depth.

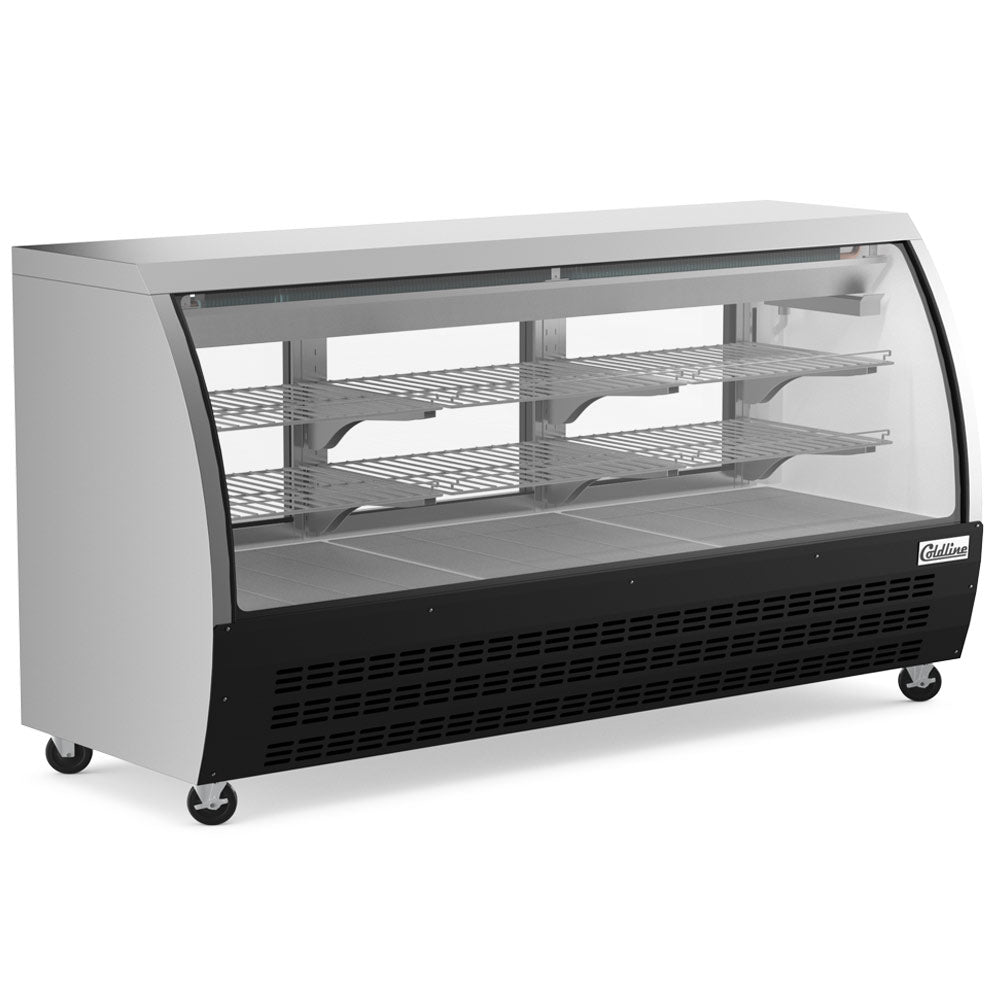

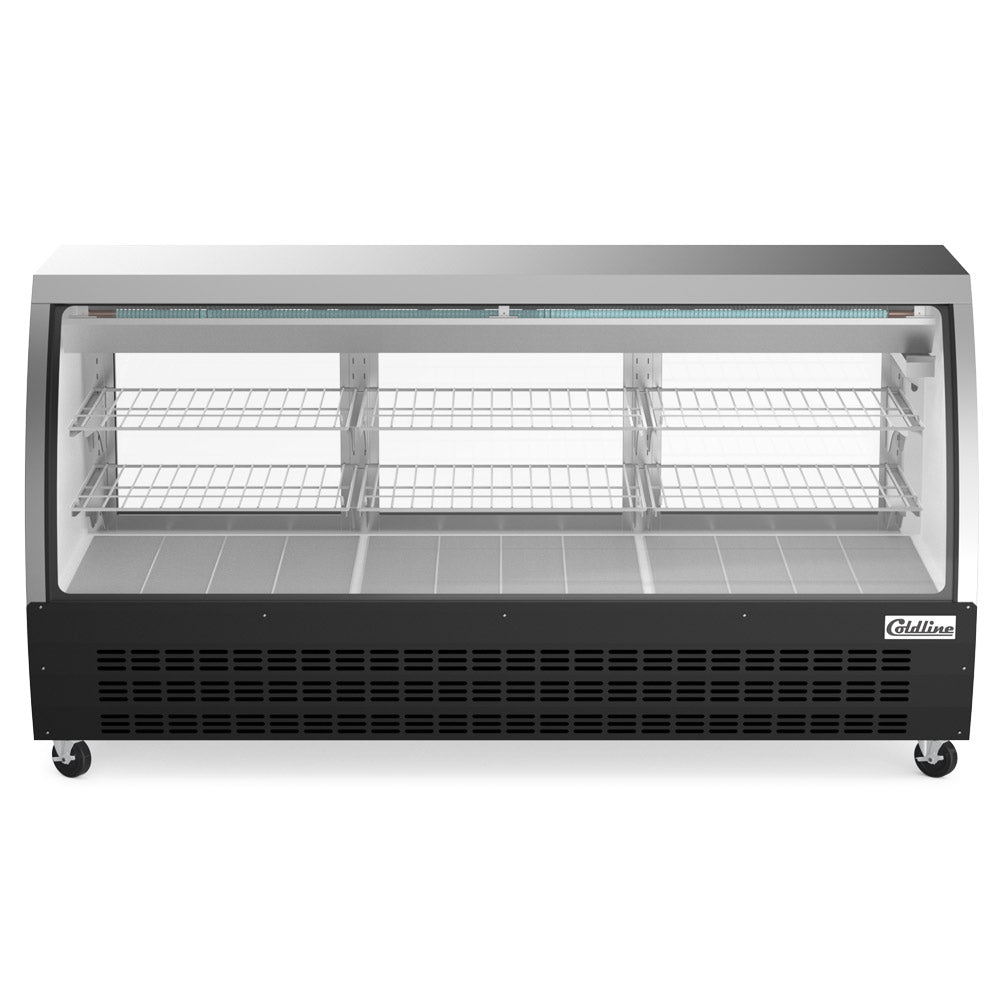

Curved front glass with LED interior lighting shows 24.4 cu. ft. of product.

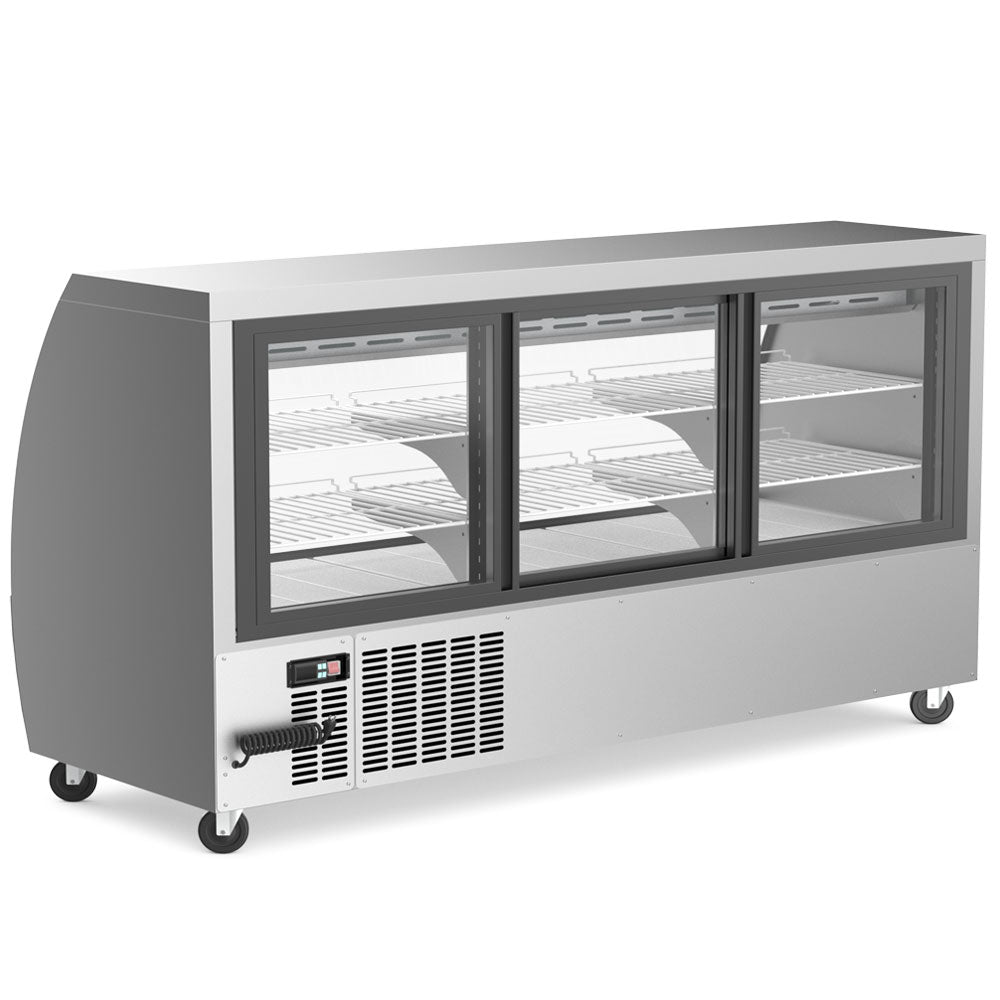

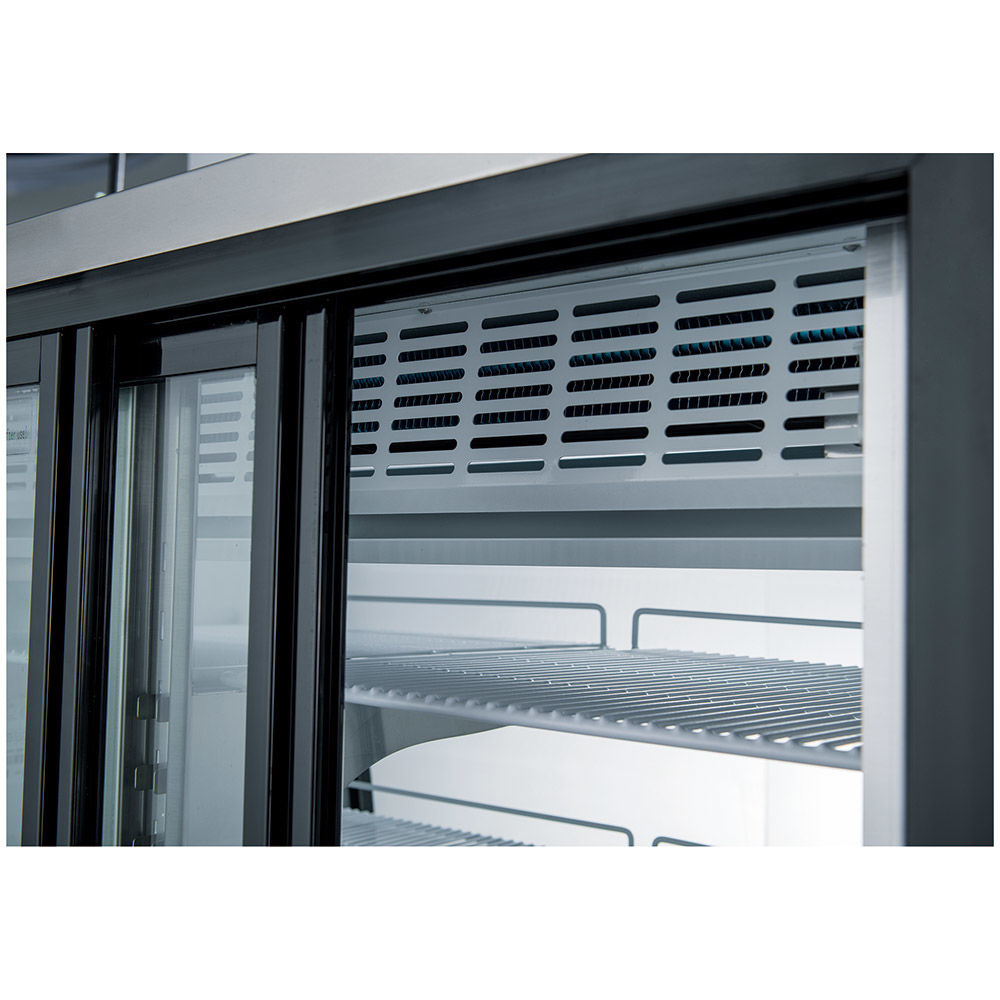

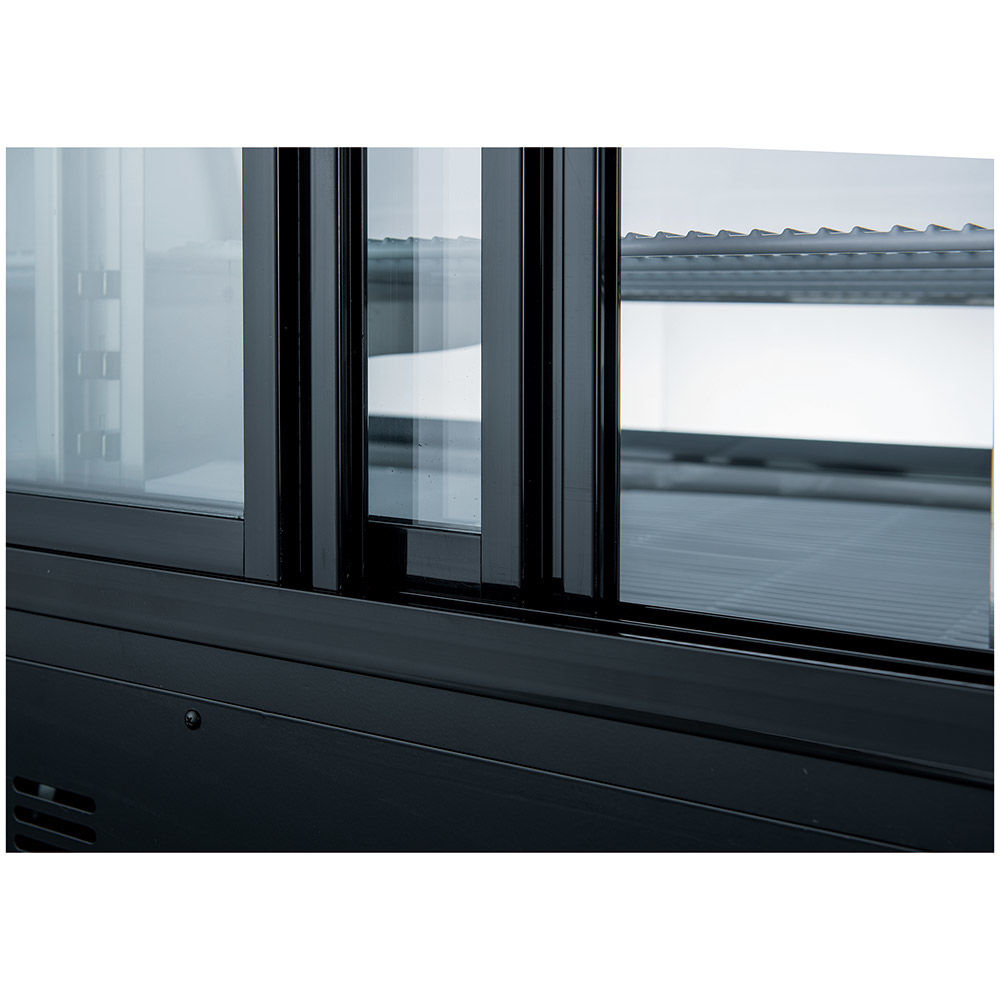

Sliding rear glass doors for staff access, and a removable installation board.
Digital controller, automatic defrost and a 4/5 HP R290 system hold 32°F to 43°F.
6 preinstalled heavy-duty casters, 3 with brakes, for cleaning behind the case.
It runs on 115V, 60 Hz, single phase and draws 3.37 A. It has a NEMA 5-15P plug on a 96" cord, and Coldline requires a dedicated 15 A circuit installed by a licensed electrician. The manual says not to use an extension cord or adapter plug; that voids the warranty.

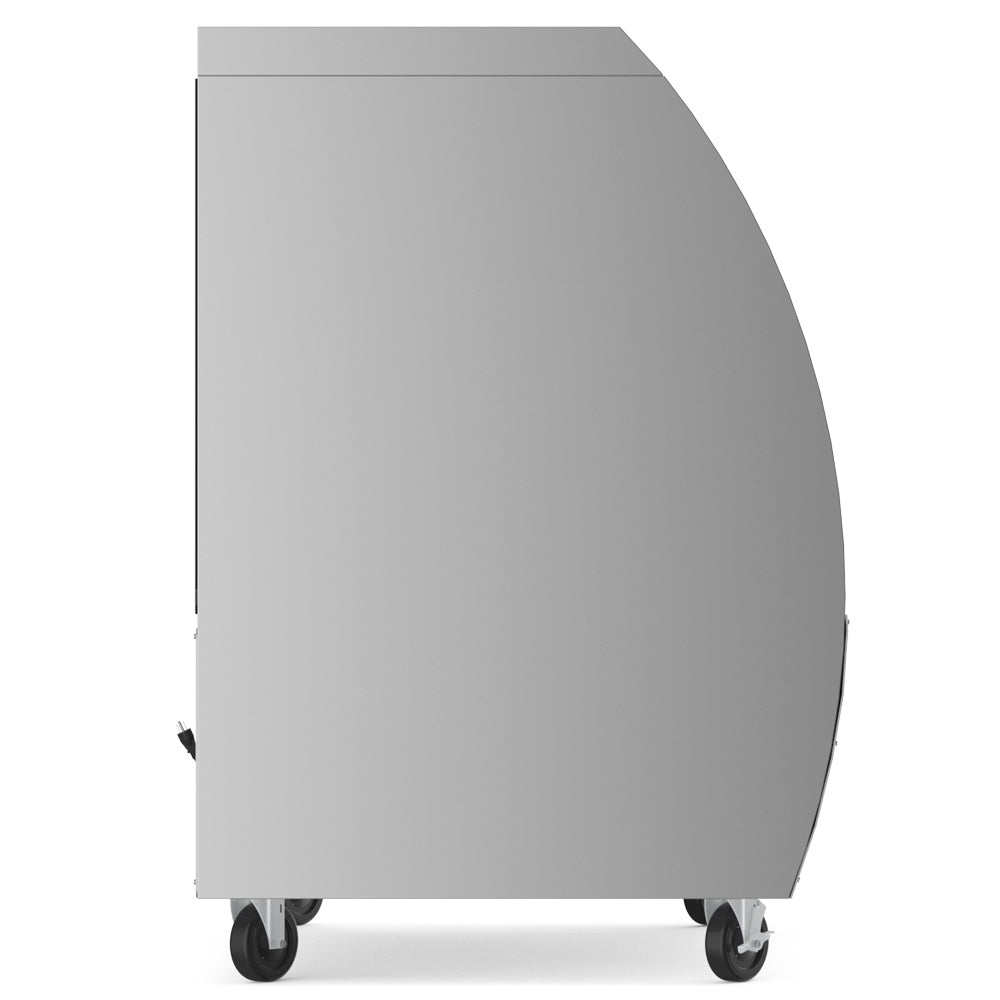

The case is 82" wide, 32.4" deep and 47.5" high on its casters (42.5" without them), and ships at 602 lb. Measure every doorway and turn on the delivery path; its smallest outside dimension is the 32.4" depth. The manual says not to tilt it more than 45° when moving it.
The installation section of the Coldline manual asks for at least 4" between the cabinet and surrounding walls for air circulation, away from heat sources, in a dry spot. Keep the vents clear.
It is a refrigerated case for deli meats, cheeses, salads and other cold foods, with 24.4 cu. ft. on the base deck and adjustable wire shelves at 32°F to 43°F. Staff load and serve through the sliding rear glass doors.
Clean the condenser every 30 days with a soft brush or vacuum; the manual says failures from a dirty condenser are not covered by the warranty. Run the case for 2 to 3 hours before loading it, and keep the room at or below the 90°F maximum ambient temperature on the sheet.
USR Brands covers the Coldline DC-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | DC80-B |
| Quantity | 1/Each |
| Shipping Weight | 602 lb. |
| Net Weight | 507 lb. |
| Width | 82 Inches |
| Depth | 32.4 Inches |
| Height | 47.5 Inches |
| Height without Casters | 42.5 Inches |
| Interior Dimensions | 76" L x 26.8" D x 26.8" H |
| Packaging Dimensions | 82" L x 36.3" D x 50.8" H |
| Voltage | 115 Volts |
| Amps | 3.37 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 24.4 cu. ft. |
| Temperature Range | 32 - 43 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 4/5 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Front Glass | Curved |
| Rear Doors | Sliding Glass |
| Shelf Quantity | 9 |

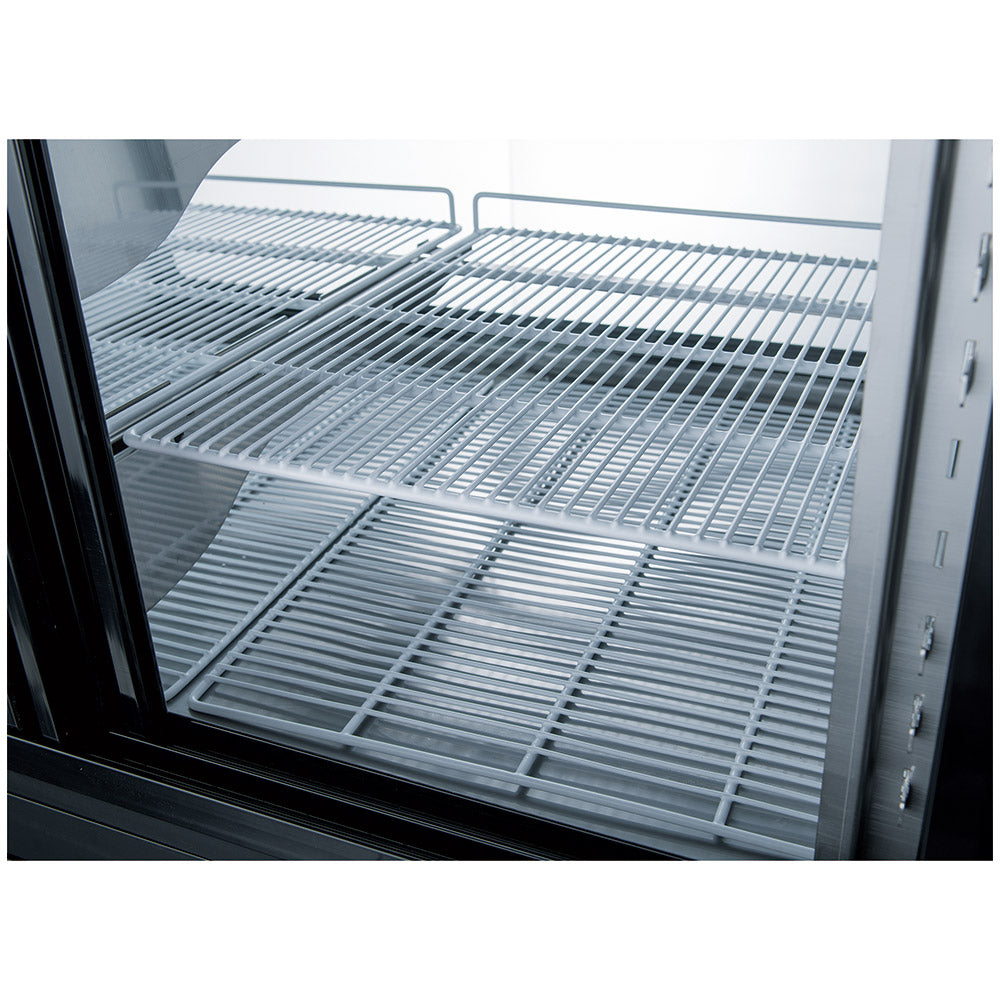

| Shelves | Adjustable Epoxy Coated Wire |
| Interior Lighting | LED |
| Exterior | Black Coated Steel and Tempered GlassStainless Steel Trim |
| Interior | Aluminum Liner and Stainless Steel Floor |
| Casters | (6) Heavy-Duty, 3 with Brakes, Preinstalled |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
