Coldline D30-B 31" Glass Door Merchandiser Freezer, 22.32 cu. ft., LED Lighting, Black, -10 to 0°F, 115V
A 31" full-height glass door freezer with 22 cu. ft. of frozen display and a lighted sign panel.

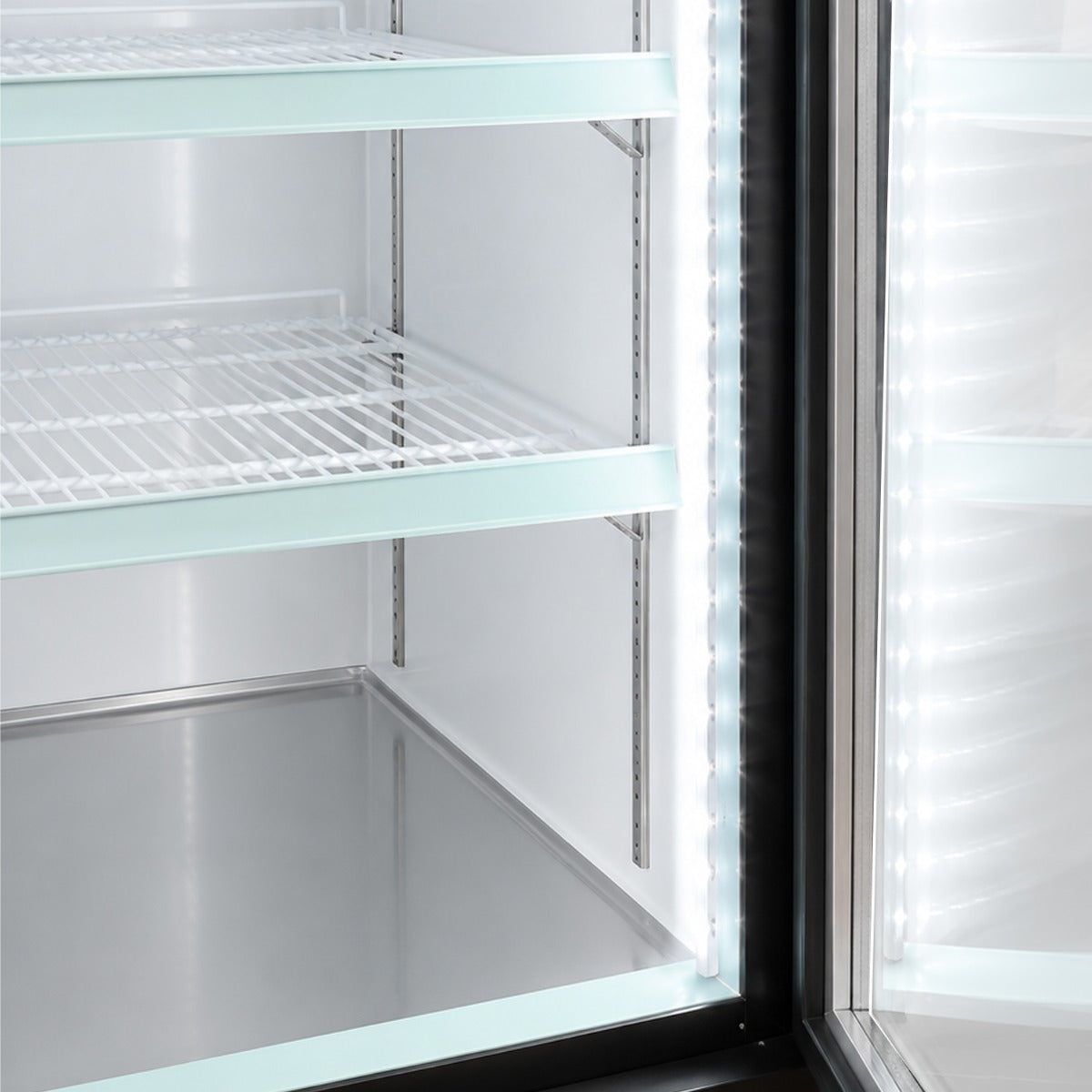

The Coldline D30-B is a black one-door glass merchandiser freezer for convenience stores, markets, cafes and delis. It holds 22.32 cu. ft. at -10°F to 0°F on 4 adjustable shelves under LED lighting, behind a self-closing glass door that stays open at 90°. A lighted top panel takes your own sign. It rolls on 4 casters, 2 with brakes, and plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the 31.13" width is its smallest outside dimension.
22.32 cu. ft. in a 31.13" wide cabinet, for more frozen stock per foot of floor.
A digital controller holds -10°F to 0°F; the 1 HP R290 system defrosts automatically.
The lighted top panel takes a custom 782 x 220 mm acrylic sign.

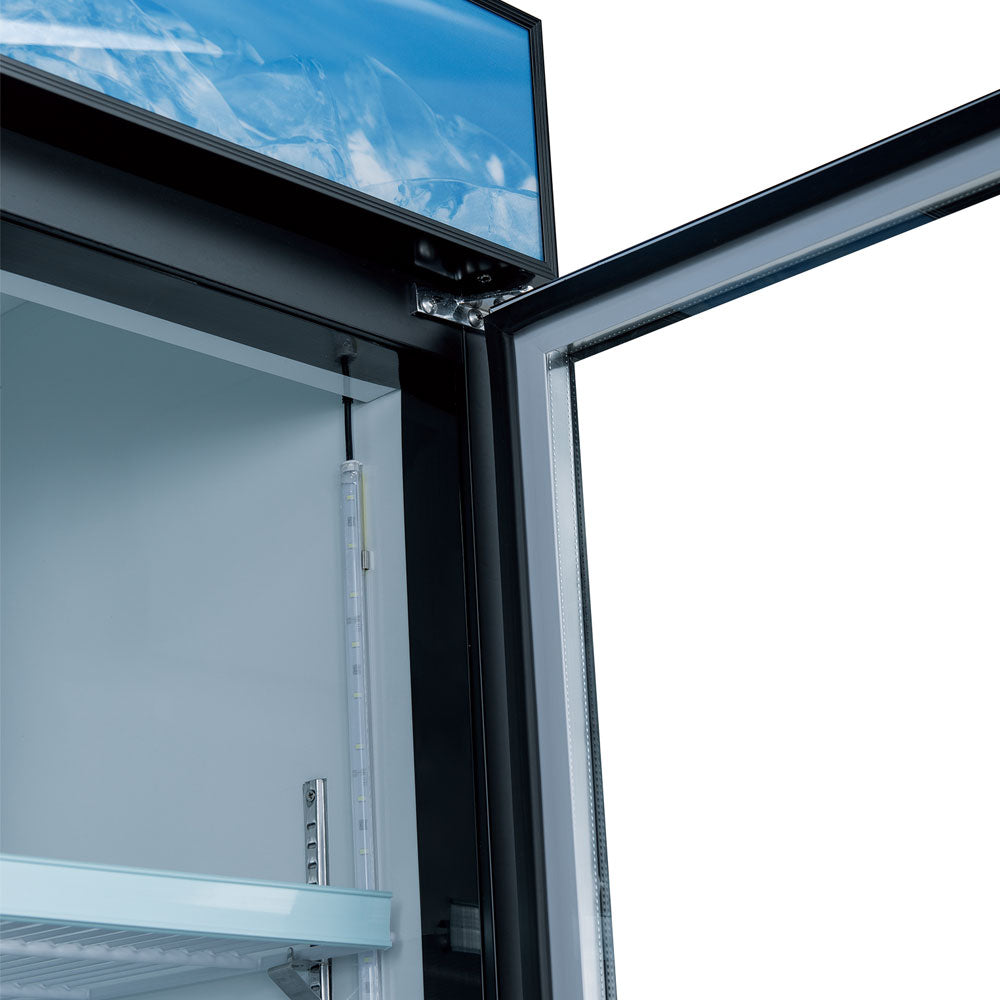

A self-closing glass door with a pull out handle holds open at 90°.
It runs on 115V, 60 Hz, single phase and draws 4.9 A through a NEMA 5-15P plug on a 84" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician.
It is 31.13" wide, 33" deep and 85.8" tall and ships in a 33.9" W × 37" D × 89" H carton. Measure every doorway and turn on the delivery path; the smallest outside dimension is the 31.13" width.
Plan 58.6" of total depth for the door to open (Coldline drawing). Keep the front and back ventilation clear; Coldline rates it for rooms up to 90°F.
It holds -10°F to 0°F for frozen food, frozen meals and packaged ice cream in convenience stores, markets and delis. Check the storage temperature your products require.
Yes. USR Brands publishes a custom sign template: the D30 lightbox sign is 782 × 220 mm, 2 mm acrylic, which a local print shop can make. Installation takes about 10 minutes.
The Coldline merchandiser manual asks for at least 6" of clearance on both sides and at the back, on a strong, level floor away from heat and moisture. After unplugging, wait at least 6 minutes before plugging it back in.
USR Brands covers the Coldline D-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered; food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | D30-B |
| Quantity | 1/Each |
| Shipping Weight | 352 lb. |
| Net Weight | 320 lb. |
| Width | 31.13 Inches |
| Depth | 33 Inches |
| Height | 85.8 Inches |
| Depth with Door Open | 58.6 Inches |
| Interior Dimensions | 25.2" W x 28.3" D x 62.3" H |
| Packaging Dimensions | 33.9" W x 37" D x 89" H |
| Voltage | 115 Volts |
| Amps | 4.9 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 22.32 cu. ft. |
| Temperature Range | -10 - 0 Degrees F |
| Refrigerant | R290 |
| Horsepower | 1 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Number of Doors | 1 |
| Door Type | GlassSwingSelf-Closing90° Stay-Open |
| Handle | Pull Out |
| Shelves | 4 Adjustable Epoxy Coated Steel24.3" W x 23.3" D |
| Shelf Load Capacity | 90 lb. |
| Interior Lighting | LED |
| Exterior | Black Coated Steel |
| Interior | White AluminumStainless Steel Floor |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 42 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
