Coldline XS360 50" Curved Glass Top Ice Cream Display Freezer, 13 cu. ft., LED, -15°F, 115V
A 50" curved glass ice cream freezer with LED lighting that sells frozen treats on impulse.

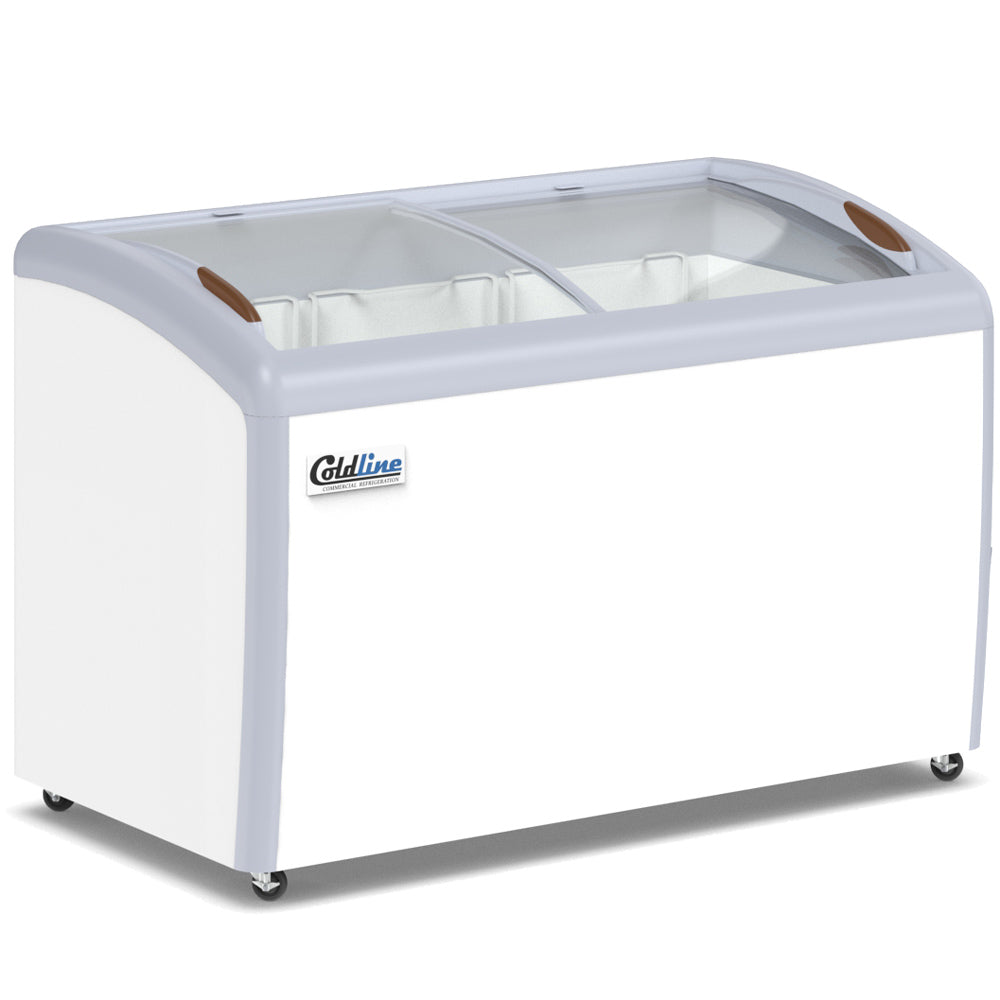

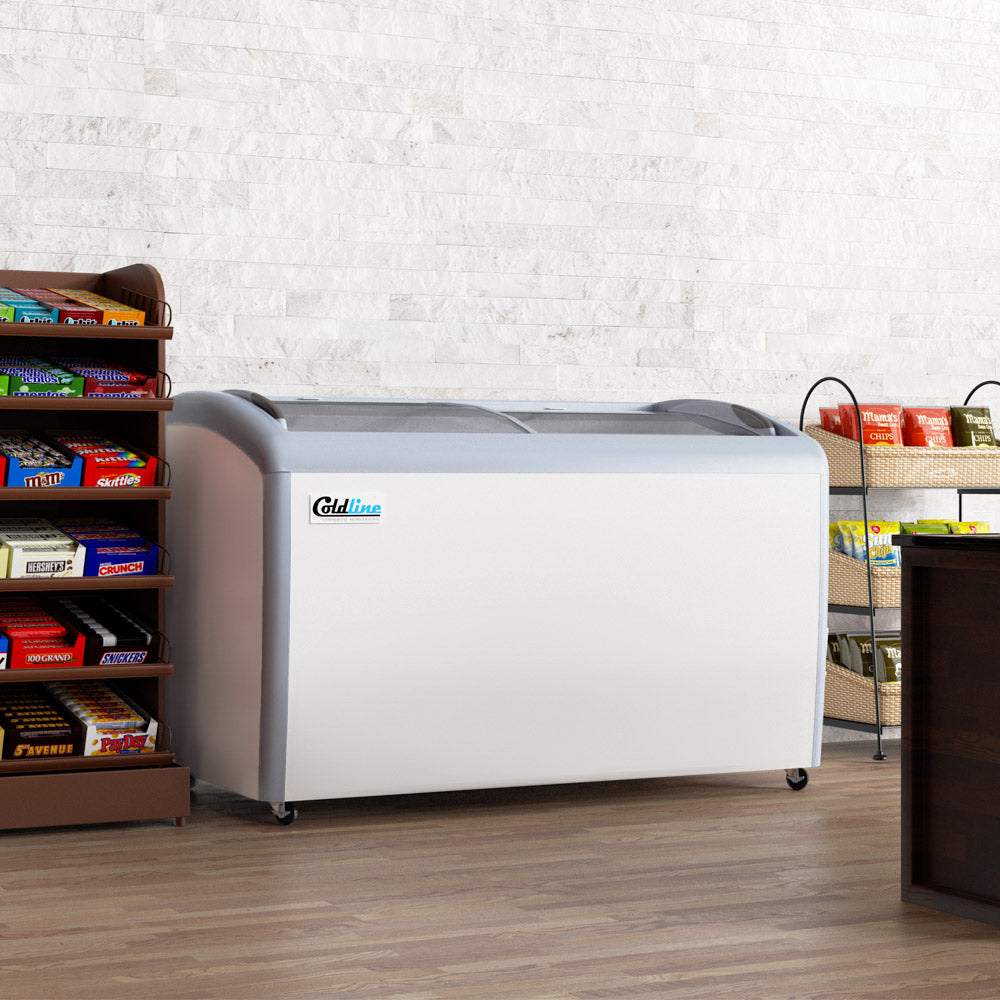

The Coldline XS360 is a curved glass top display freezer for convenience stores, diners, school concession stands and cafes. It holds 13 cu. ft. at -15°F and below under two sliding Low-E tempered glass lids with LED lighting and a built-in lock, with 3 coated wire baskets included. It plugs into a 115V outlet (NEMA 5-15P, 4 A) on a dedicated 15 amp circuit and rolls on four casters, two with brakes.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 27.8" depth. Coldline says not to tilt it more than 60° while moving it.

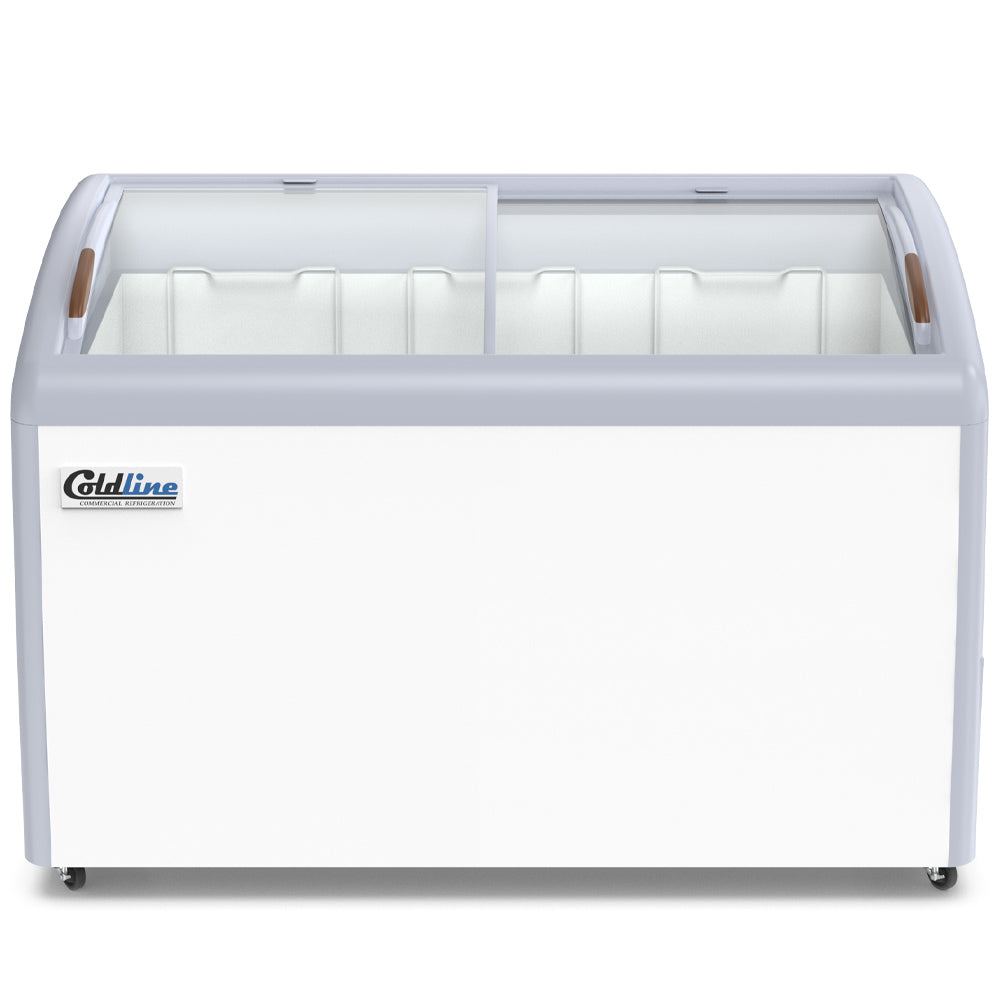

Curved glass top with sliding Low-E tempered lids shows the product and keeps the cold in.
3 coated wire baskets, each 22.5" L x 9.6" D x 11.8" H keep pints, bars and novelties organized.
Manual control holds -15°F and below with R290 refrigerant.
4 low-profile casters, 2 with brakes, plus a rear drain plug for defrosting.
A grounded 115V outlet for the NEMA 5-15P plug on a 72" cord. It draws 4 A. USR Brands says it needs a dedicated 15 amp circuit installed by a licensed electrician.
It is 50" wide, 27.8" deep and 34.5" tall. The Coldline manual asks for more than 10 cm (about 4") between the freezer and the wall, in a dry, ventilated spot out of direct sun and away from heat sources.
Coldline rates it at -15°F and below in rooms up to 90°F. It is meant for ice cream and other frozen desserts, not for bottled or canned drinks.

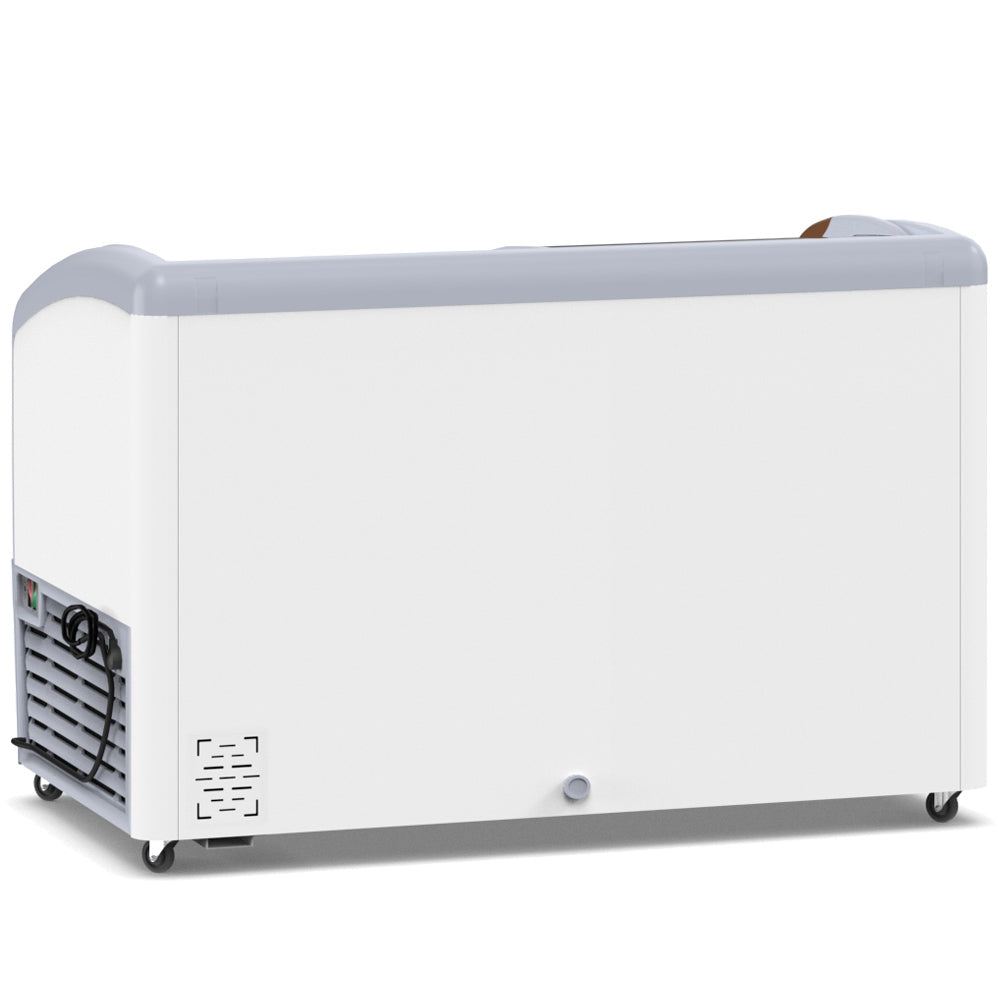

Defrosting is manual. When the frost layer reaches about 5 mm (1/5"), switch it off, take out the product, open the lids and let it melt, then drain the water through the rear drain plug.
USR Brands covers XS-Series freezers for 1 year parts and labor from delivery, in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are parts only; residential use is not covered.
The Coldline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | XS360 |
| Quantity | 1/Each |
| Shipping Weight | 181 lb. |
| Net Weight | 153 lb. |
| Width | 50 Inches |
| Depth | 27.8 Inches |
| Height | 34.5 Inches |
| Interior Dimensions | 43.8" L x 21.3" D x 26.1" H |
| Packaging Dimensions | 53" L x 30" D x 38" H |
| Voltage | 115 Volts |
| Amps | 4 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 13 cu. ft. |
| Temperature Range | -15 Degrees F and Below |
| Refrigerant | R290 |
| Max. Ambient Temperature | 90 Degrees F |
| Horsepower | 2/5 |
| Defrost | ManualRear Drain Plug |
| Temperature Control | Manual |
| Top Style | Curved Glass |
| Lids | 2 Sliding Low-E Tempered Glass |
| Lock | Built-in |
| Lid Frame Color | Gray |
| Baskets | 3 coated wire baskets, each 22.5" L x 9.6" D x 11.8" H |
| Interior Lighting | LED |
| Exterior | White Powder Coated SteelGray Plastic Lid Frame |
| Interior | Embossed Aluminum |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 4 Low-Profile2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | CommercialIce Cream and Frozen Desserts |
