Coldline XS700YX 79" Curved Glass Top Ice Cream Display Freezer, 24.7 cu. ft., 6 Baskets, LED, -14.8 to -0.4°F, 115V
A 79" curved glass ice cream freezer that puts six baskets of frozen treats in front of your customers.
The Coldline XS700YX is a glass top display freezer for convenience stores, delis, diners and concession stands that sell ice cream, popsicles and frozen novelties. It holds 24.7 cu. ft. at -14.8°F to -0.4°F in six coated wire baskets under two sliding Low-E tempered glass lids with LED lighting. It plugs into a standard 115V outlet with a NEMA 5-15P plug, on a dedicated 15 amp circuit, and rolls on eight casters, four with brakes.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 29.8" depth. Coldline says not to tilt it more than 45° while moving it.

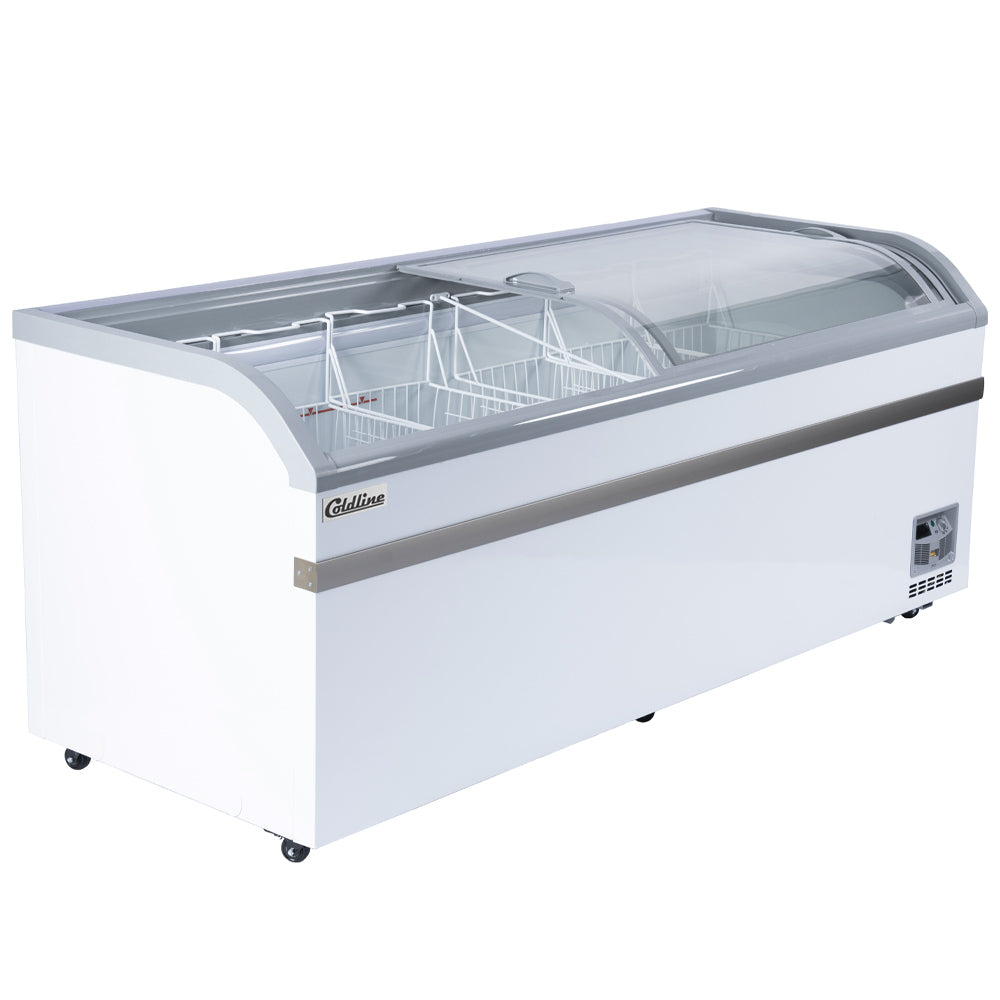

Six coated wire baskets organize pints, bars and cones across the 24.7 cu. ft. cabinet.

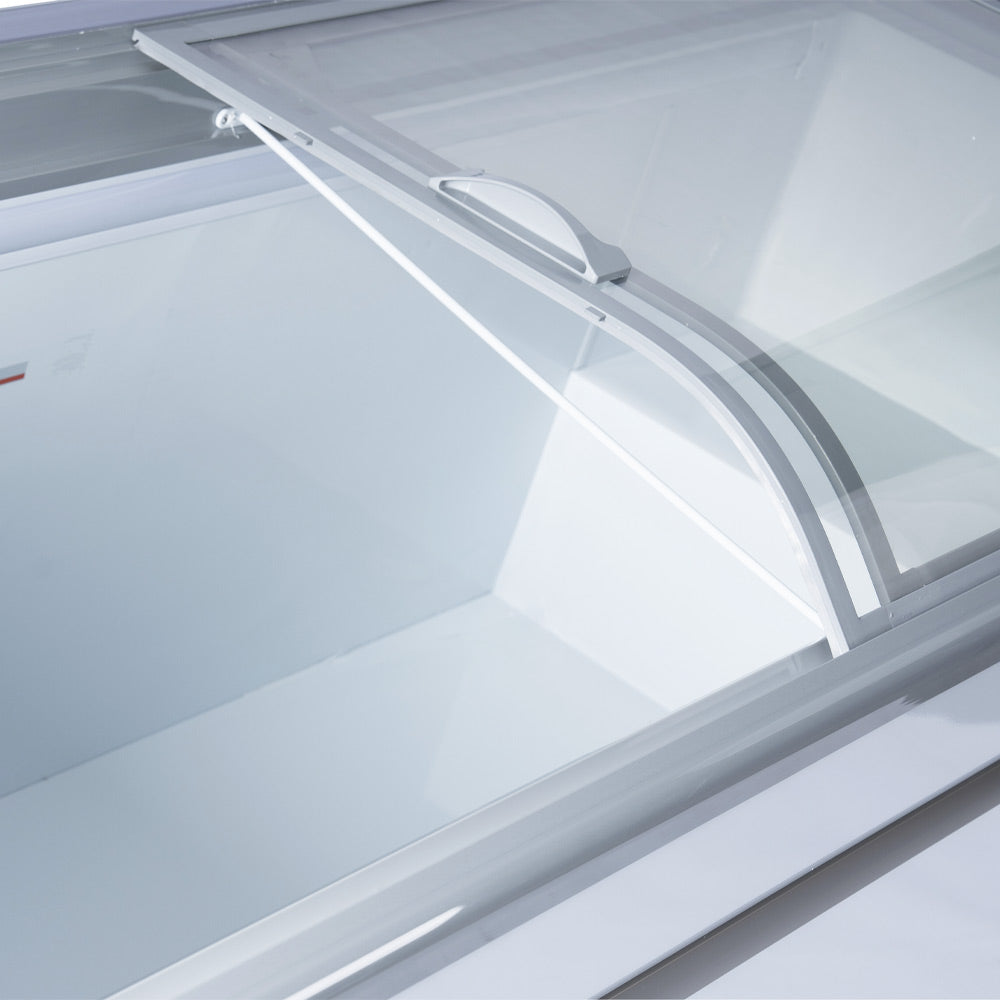

Two sliding Low-E tempered glass lids under a curved top, with LED interior lighting and a built-in lock.
Holds -14.8°F to -0.4°F with R290 refrigerant and a manual control knob.
Eight casters, four with brakes, and a rear drain plug for manual defrosting.
It has a NEMA 5-15P plug on a 72" cord and runs on 115V, 60 Hz, single phase (650 W). USR Brands states it needs a dedicated 15 amp circuit installed by a licensed electrician.
The cabinet is 78.7" wide, 29.8" deep and 33.6" high. The Coldline manual asks for more than 20 cm (7.9") between the back and the wall and on both sides, in a dry, well-ventilated spot away from direct sun, sinks and heat sources.
It has 24.7 cu. ft. of storage and comes with 6 coated wire baskets, each 21.8" L x 11.3" D x 13.6" H. The manual says it is meant only for ice cream and other frozen desserts, not for bottled or canned drinks.
Defrosting is manual. The manual says to defrost when the frost layer reaches 4-5 mm: switch off the power, take out the product, open the lids and let it melt, then drain the water through the rear drain plug.
Coldline rates it for room temperatures up to 90°F. Keep it out of direct sun and leave the vent clearances free.
USR Brands covers the XS-Series for 1 year parts and labor from delivery, in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are covered for parts only, and residential use is not covered.
The Coldline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | XS700YX |
| Quantity | 1/Each |
| Shipping Weight | 236 lb. |
| Net Weight | 203 lb. |
| Width | 78.7 Inches |
| Depth | 29.8 Inches |
| Height | 33.6 Inches |
| Packaging Dimensions | 81" L x 32" D x 37" H |
| Clearance | 20 cm (7.9") at Back and Both Sides |
| Voltage | 115 Volts |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 650 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 24.7 cu. ft. |
| Temperature Range | -14.8 to -0.4 Degrees F |
| Refrigerant | R290 |
| Max. Ambient Temperature | 90 Degrees F |
| Defrost | ManualRear Drain Plug |
| Temperature Control | Manual Control Knob |
| Top Style | Curved Glass |
| Lids | 2 SlidingLow-E Tempered Glass |
| Lock | Built-in |
| Baskets | 6 Coated Wire21.8" L x 11.3" D x 13.6" H |
| Interior Lighting | LED |
| Exterior | White Painted SteelGray Plastic Trim |
| Interior | Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 84 with Brakes, 4 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | CommercialIce Cream and Frozen Desserts |
