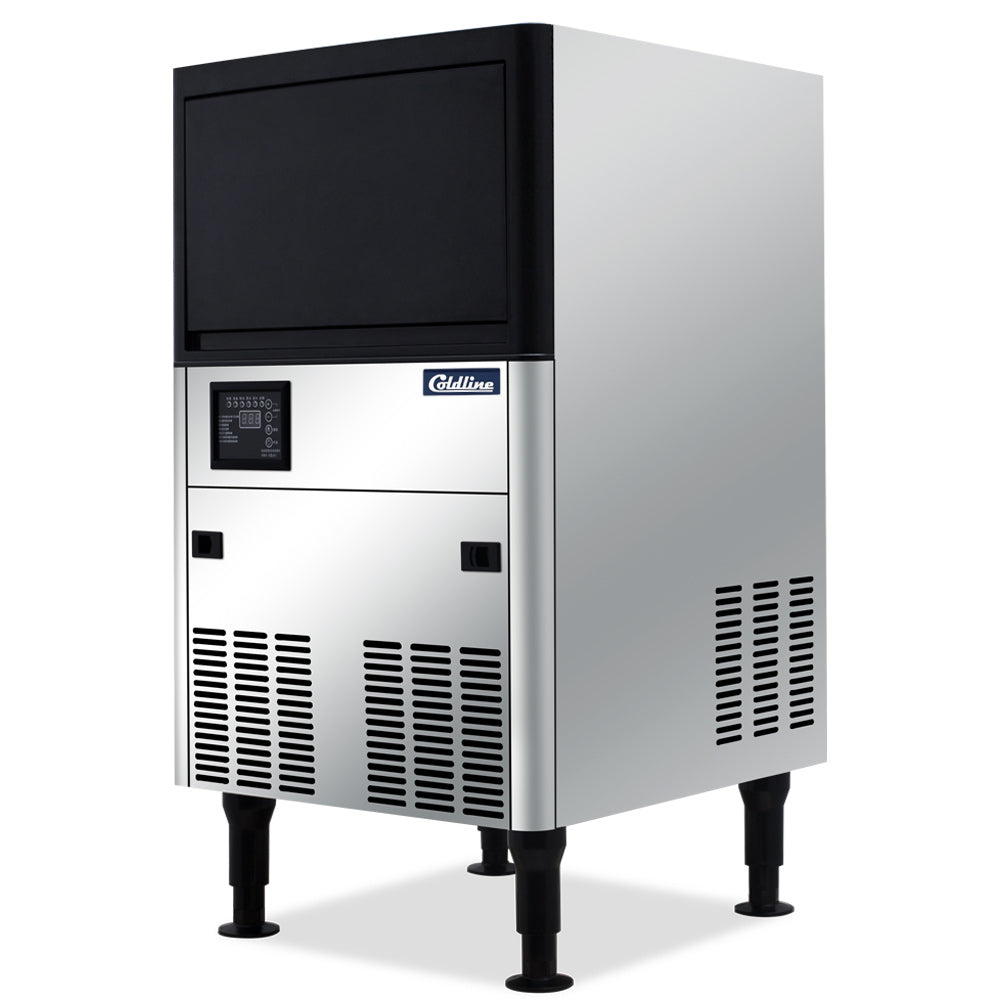

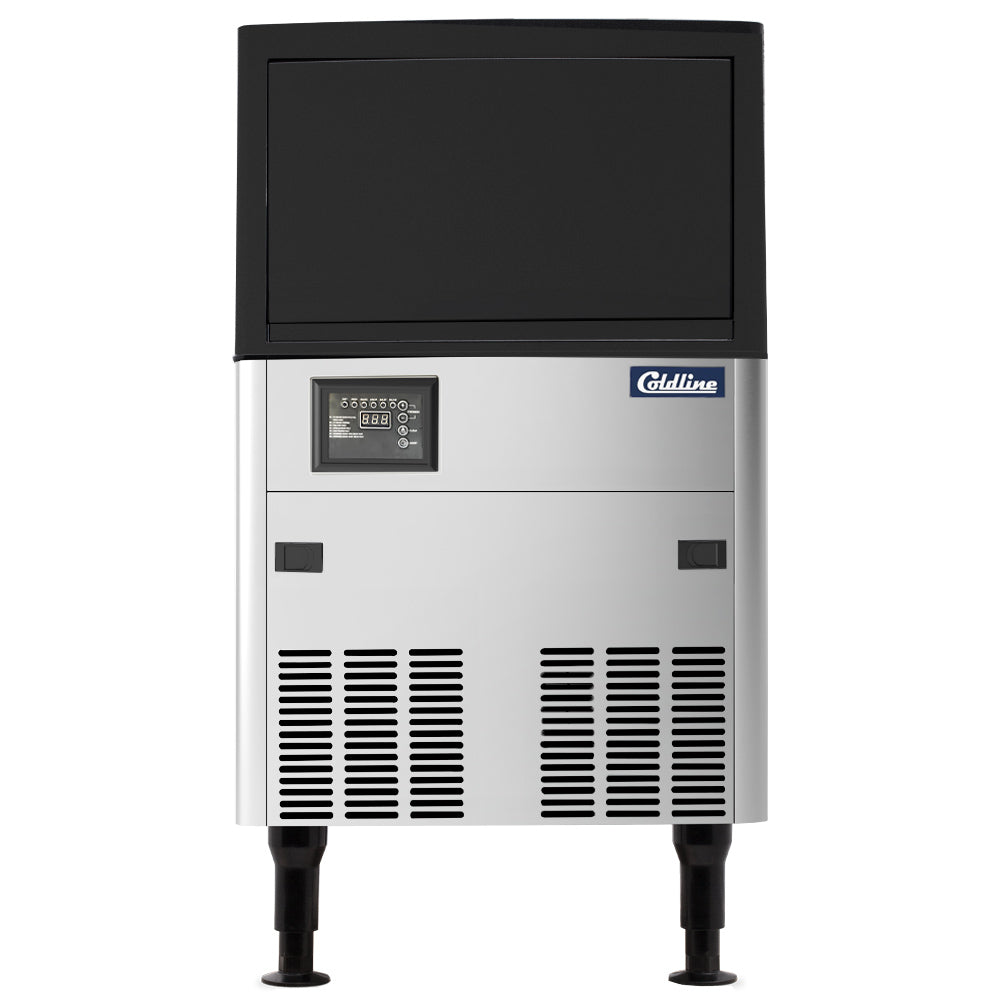

Coldline ICE120 20" Undercounter Half Cube Ice Machine with 40 lb. Bin, 120 lb./Day, Air Cooled, 110V
A 20"-wide undercounter half cube ice maker with a 40 lb. bin that plugs into a standard outlet.
The Coldline ICE120 makes up to 120 lb. of half cube ice a day for bars, cafes, restaurants and offices. It is 19.69" wide and 36.34" tall on 6.3" legs, stores 40 lb. of ice in its built-in bin, and runs on 110V with a NEMA 5-15P plug on a 60" cord. A digital controller handles production, ice thickness and the self-clean cycle; the air-cooled system uses R290 refrigerant.
Measure the height under your counter: the unit stands 36.34" on its legs. The compressor sits below the bin and breathes through the front and rear grilles, so keep them clear.
1/2" x 7/8" x 7/8" half cubes, up to 120 lb. every 24 hours, with adjustable thickness.
The insulated bin shuts production off automatically when it is full.
A digital controller and display run production and the self-clean system.
Stainless steel cabinet, polyethylene interior and foamed-in-place insulation.
A grounded outlet with leakage (ground fault) protection for the NEMA 5-15P plug on the 60" cord. The spec sheet rates it at 110V, 60 Hz, single phase, 5 A, 400 W.
Potable cold water at 19 to 80 PSIG (spec sheet) and a floor drain nearby. A drain hose, an inlet water filter and an ice scoop come in the box; the manual says to replace the filter every 1 to 3 months. Do not connect it to hot water.
Up to 120 lb. of half cube ice in 24 hours, stored in a 40 lb. bin. Real output drops in hot rooms or with warm supply water, so size for your peak day with some margin.
It is 19.69" wide, 23.23" deep and 36.34" tall including its 6.3" legs. The manual asks for 20 to 30 cm (8" to 12") of ventilation space in front and behind.
Indoors only, in a dry spot away from heat sources and direct sun. The manual rates it for room temperatures of 5 to 40°C (41 to 104°F) and supply water of 5 to 35°C (41 to 95°F).
USR Brands covers Coldline ICE-Series ice machines for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only; residential use is not covered.
The Coldline ice machine warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | ICE120 |
| Quantity | 1/Each |
| Shipping Weight | 110 lb. |
| Net Weight | 99 lb. |
| Width | 19.69 Inches |
| Depth | 23.23 Inches |
| Height | 36.34 Inches |
| Leg Height | 6.3 Inches |
| Packaging Dimensions | 23" W x 26" D x 33" H |
| Voltage | 110 Volts |
| Amps | 5 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 400 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 60 Inches |
| Ice Type | Half Cube |
| Ice Size | 1/2" x 7/8" x 7/8" |
| Capacity | 120 lb./Day40 lb. Storage |
| Condenser | Air Cooled |
| Refrigerant | R290 |
| Water Pressure | 19 - 80 PSIG |
| Bin Control | Automatic Shut-Off When Bin Is Full |
| Controls | Digital Controller and Display |
| Cleaning | Self-Clean System |
| Ice Thickness | Adjustable |
| Exterior | Stainless Steel |
| Interior | HIPS |
| Insulation | Foamed-in-Place Polyurethane |
| Feet | Adjustable Leveling |
| Accessories Included | Ice ScooperDrain HoseWater Filter |
| Clearance | 20 - 30 cm (8 - 12") Front and Rear |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialIndoor Use Only |
