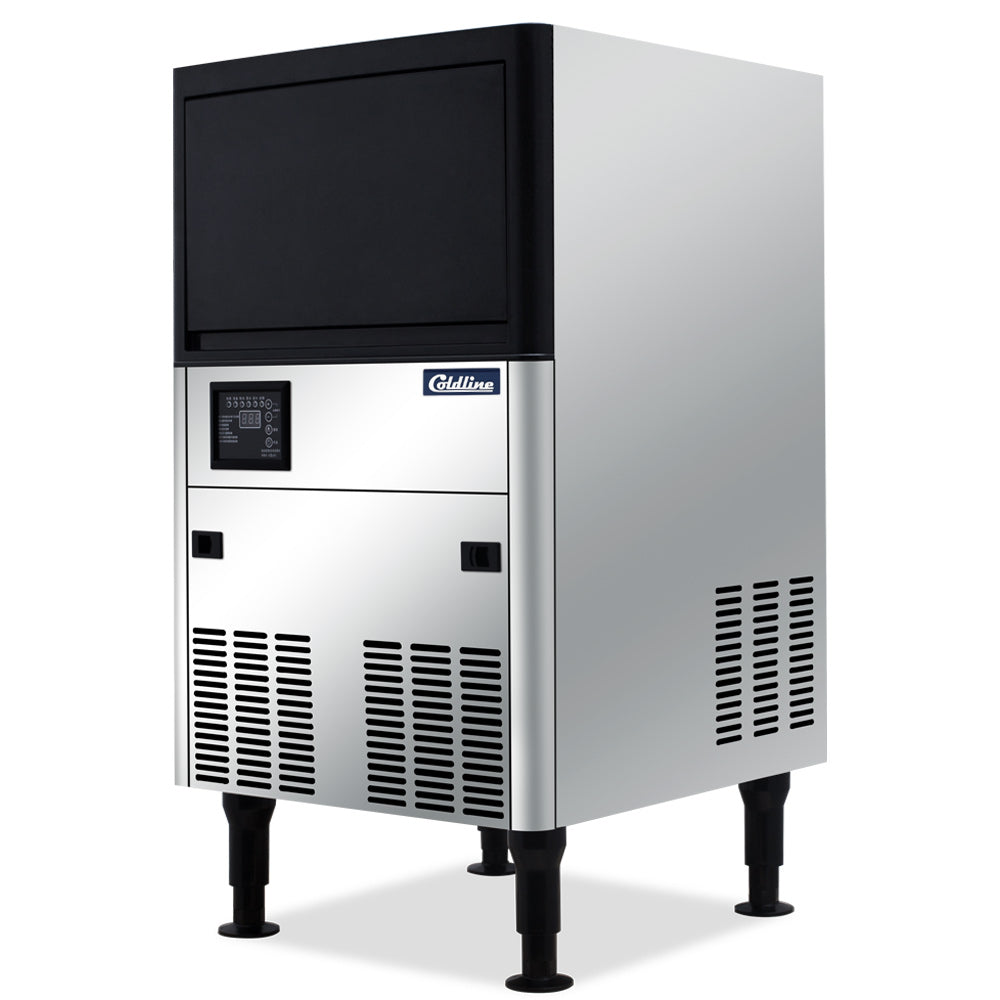

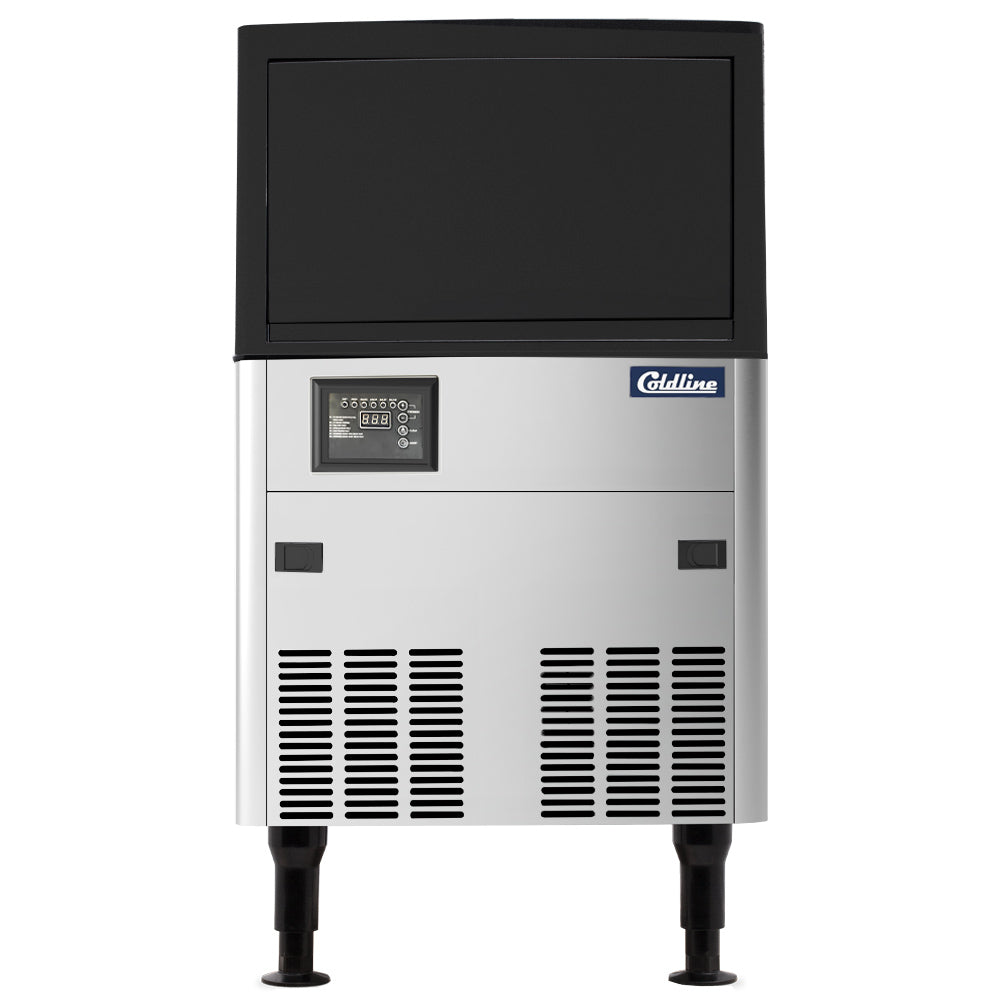

Coldline ICE80 20" Undercounter Half Cube Ice Machine with 33 lb. Bin, 80 lb./Day, Air Cooled, 110V
A 20"-wide undercounter half cube ice maker with a 33 lb. bin that plugs into a standard outlet.
The Coldline ICE80 makes up to 80 lb. of half cube ice a day for bars, cafes, restaurants and offices. It is 19.69" wide and 35.83" tall on 6.3" legs, stores 33 lb. of ice in its built-in bin, and runs on 110V with a NEMA 5-15P plug on a 60" cord. A digital controller handles production, ice thickness and the self-clean cycle; the air-cooled system uses R290 refrigerant.
Measure the height under your counter: the unit stands 35.83" on its legs. The compressor sits below the bin and breathes through the front and rear grilles, so keep them clear.
1/2" x 7/8" x 7/8" half cubes, up to 80 lb. every 24 hours, with adjustable thickness.
Ice drops into an insulated 33 lb. bin behind the front door.
A digital controller and display run production and the self-clean system.
Stainless steel cabinet, polyethylene interior and foamed-in-place insulation.
A grounded outlet with leakage (ground fault) protection for the NEMA 5-15P plug on the 60" cord. The spec sheet rates it at 110V, 60 Hz, single phase, 350 W.
Potable cold water at 19 to 80 PSIG (spec sheet) and a floor drain nearby. A water hose, a drain hose and an ice scoop come in the box. Do not connect it to hot water.
Up to 80 lb. of half cube ice in 24 hours, stored in a 33 lb. bin. Real output drops in hot rooms or with warm supply water, so size for your peak day with some margin.
It is 19.69" wide, 17.72" deep and 35.83" tall including its 6.3" legs. The manual asks for 20 to 30 cm (8" to 12") of ventilation space in front and behind.
Indoors only, in a dry spot away from heat sources and direct sun. The manual rates it for room temperatures of 5 to 40°C (41 to 104°F) and supply water of 5 to 35°C (41 to 95°F).
USR Brands covers Coldline ICE-Series ice machines for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only; residential use is not covered.
The Coldline ice machine warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | ICE80 |
| Quantity | 1/Each |
| Shipping Weight | 88 lb. |
| Net Weight | 75 lb. |
| Width | 19.69 Inches |
| Depth | 17.72 Inches |
| Height | 35.83 Inches |
| Leg Height | 6.3 Inches |
| Packaging Dimensions | 22" W x 20" D x 30" H |
| Voltage | 110 Volts |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 350 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 60 Inches |
| Ice Type | Half Cube |
| Ice Size | 1/2" x 7/8" x 7/8" |
| Capacity | 80 lb./Day33 lb. Storage |
| Condenser | Air Cooled |
| Refrigerant | R290 |
| Water Pressure | 19 - 80 PSIG |
| Controls | Digital Controller and Display |
| Cleaning | Self-Clean System |
| Ice Thickness | Adjustable |
| Exterior | Stainless Steel |
| Interior | HIPS |
| Insulation | Foamed-in-Place Polyurethane |
| Feet | Adjustable Leveling |
| Accessories Included | Ice ScooperWater HoseDrain Hose |
| Clearance | 20 - 30 cm (8 - 12") Front and Rear |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialIndoor Use Only |
