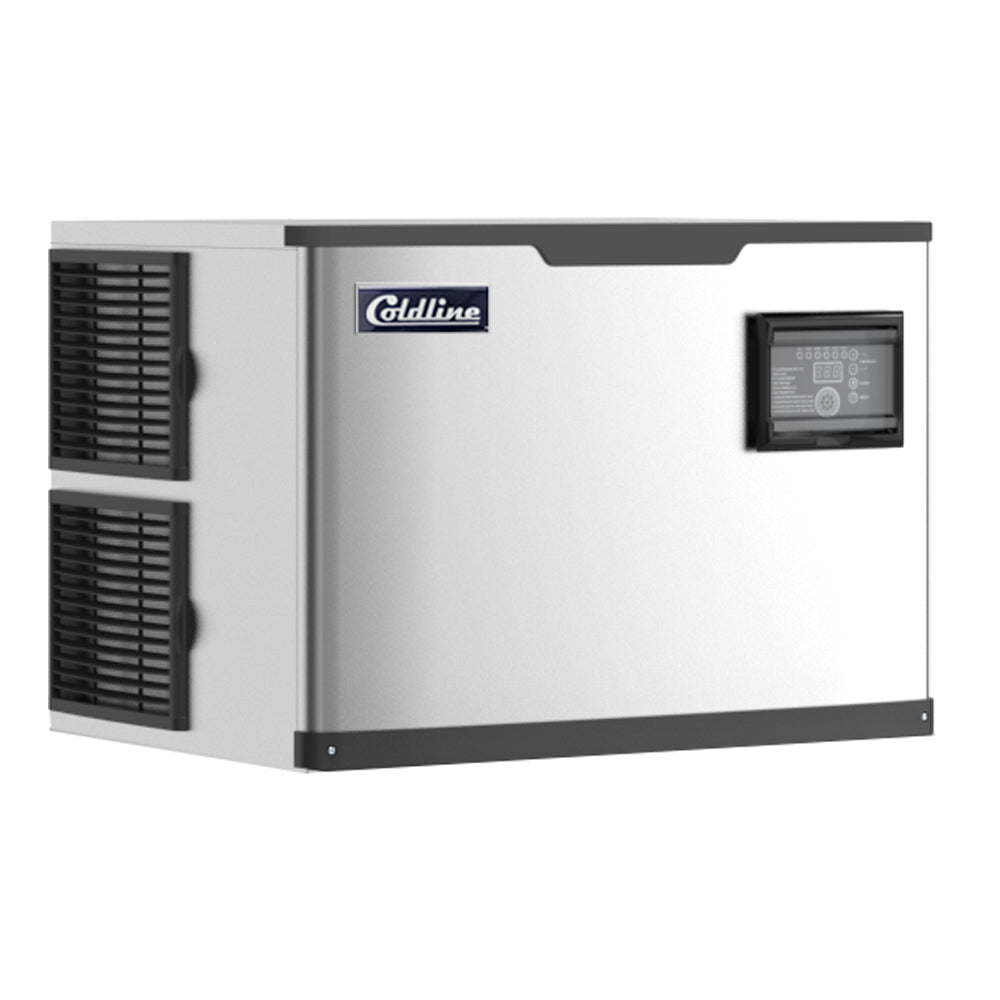

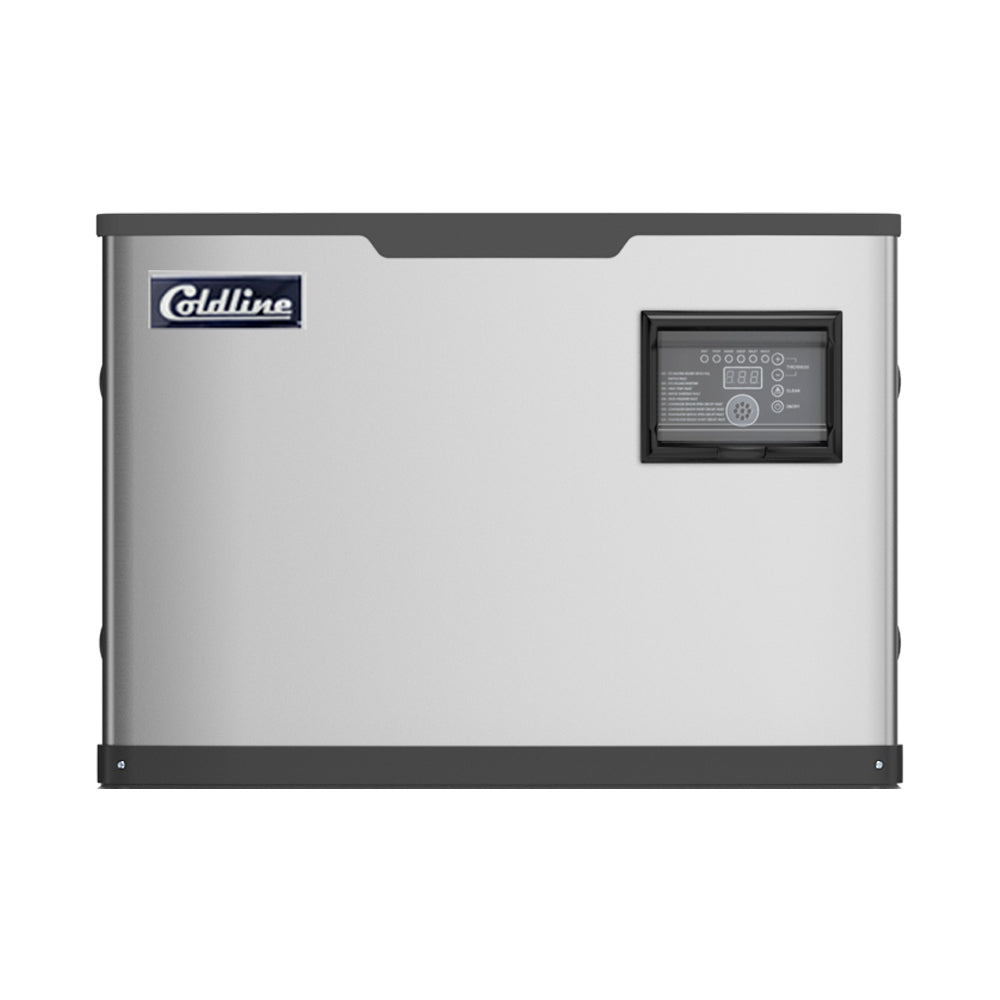

Coldline ICE550T-HA 30" Modular Half Cube Ice Machine Head, 550 lb./Day, Air Cooled, 110V, Bin Sold Separately
A 30"-wide modular half cube ice machine head that makes up to 550 lb. of ice a day on the bin you choose.
The Coldline ICE550T-HA is a modular half cube ice machine head for busy restaurants, bars, hotels and grocery stores. It makes up to 550 lb. of ice every 24 hours, plugs into an outlet with a NEMA 5-15P plug on an 84" cord (110V, 1240 W), and sits on top of a separate Coldline storage or dispensing bin. A digital controller runs production, ice thickness and the self-clean cycle; a side-located air filter protects the air-cooled condenser.
Add the bin height to the 23" head height and check the ceiling clearance, leaving room above for airflow and service.
1/2" x 7/8" x 7/8" half cube cubes, up to 550 lb. every 24 hours, with adjustable thickness.
Sits on a matching Coldline bin, so you can size storage to your service.
A digital controller and display run production, ice thickness and the self-clean system.
Stainless steel exterior.
A grounded 110V outlet for the NEMA 5-15P plug on the 84" cord. The spec sheet rates it at 110V, 60 Hz, single phase, 1240 W; it lists no amps. The manual asks for a grounded socket with leakage (ground fault) protection.
No. This is the ice machine head only; it mounts on top of a separate Coldline storage or dispensing bin. Coldline sells it with a matching bin as the ICE550M-HA-B375-30 (375 lb. bin) and ICE550M-HA-B445-30 (445 lb. bin).
A potable cold water line at 19 to 80 PSIG and a floor drain near the machine. The manual says to use the 3/4" inlet pipe supplied, add a shut-off valve (not supplied), slope the drain line more than 3 cm per meter, replace the inlet water filter every 1 to 3 months, and never connect hot water.
It is 29.9" wide, 24" deep and 23" tall, before you add the bin underneath. The Coldline manual asks for at least 30 cm (12") in front, 15 cm (6") at the sides and 20 cm (8") behind for airflow.
Indoors only, on a level floor that can carry its weight, away from heat sources and direct sun. The manual rates it for 5 to 40°C (41 to 104°F) rooms and 5 to 35°C (41 to 95°F) supply water, and says to let it stand upright for more than 24 hours after delivery before starting it.
USR Brands covers Coldline ICE-Series ice machines for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only; residential use is not covered.
The Coldline ice machine warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | ICE550T-HA |
| Quantity | 1/Each |
| Shipping Weight | 154 lb. |
| Net Weight | 146 lb. |
| Width | 29.9 Inches |
| Depth | 24 Inches |
| Height | 23 Inches |
| Packaging Dimensions | 33" W x 30" D x 24" H |
| Voltage | 110 Volts |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 1240 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84" |
| Ice Type | Half Cube |
| Ice Size | 1/2" x 7/8" x 7/8" |
| Capacity | 550 lb./Day |
| Storage Bin | Not Included |
| Condenser | Air Cooled |
| Refrigerant | R290 |
| Water Pressure | 19 - 80 PSIG |
| Controls | Digital Controller and Display |
| Cleaning | Self-Clean System |
| Ice Thickness | Adjustable |
| Exterior | Stainless Steel |
| Clearance | 30 cm (12") Front15 cm (6") Sides20 cm (8") Rear |

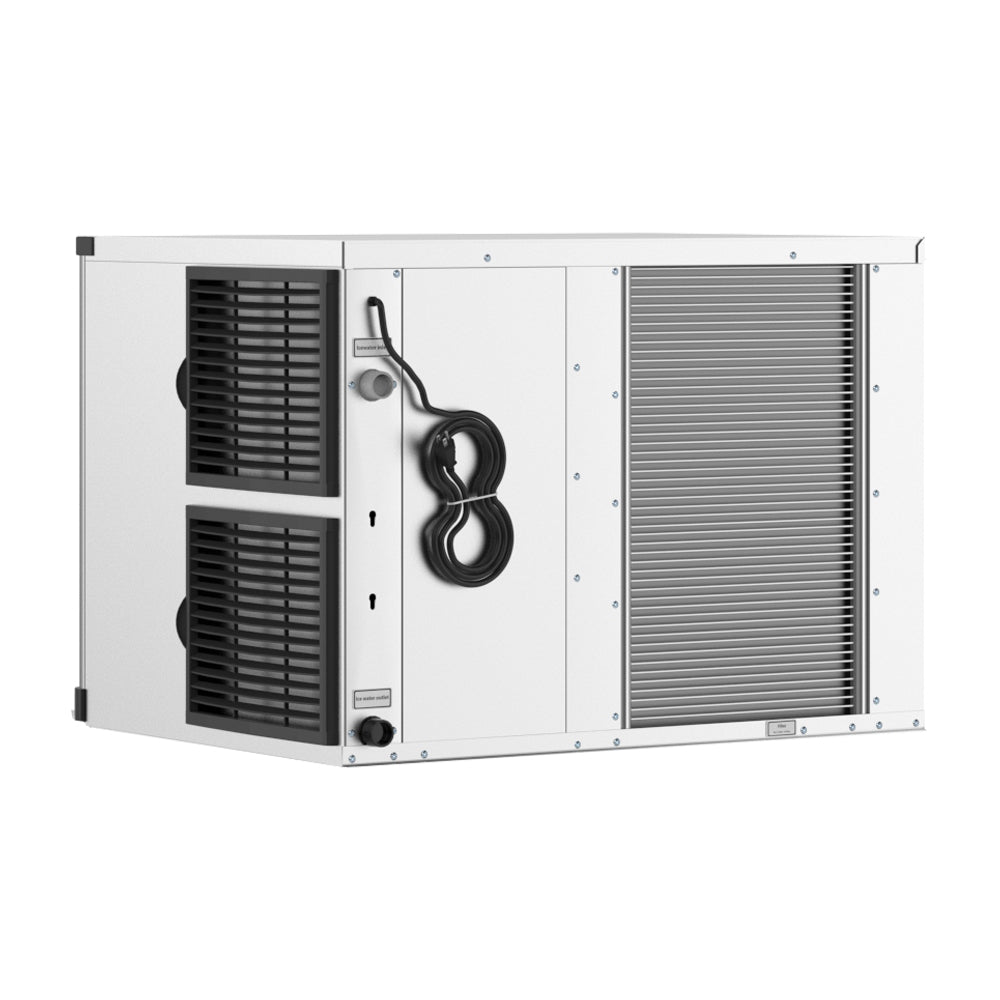

| Air Filter | Side-Located |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialIndoor Use Only |
