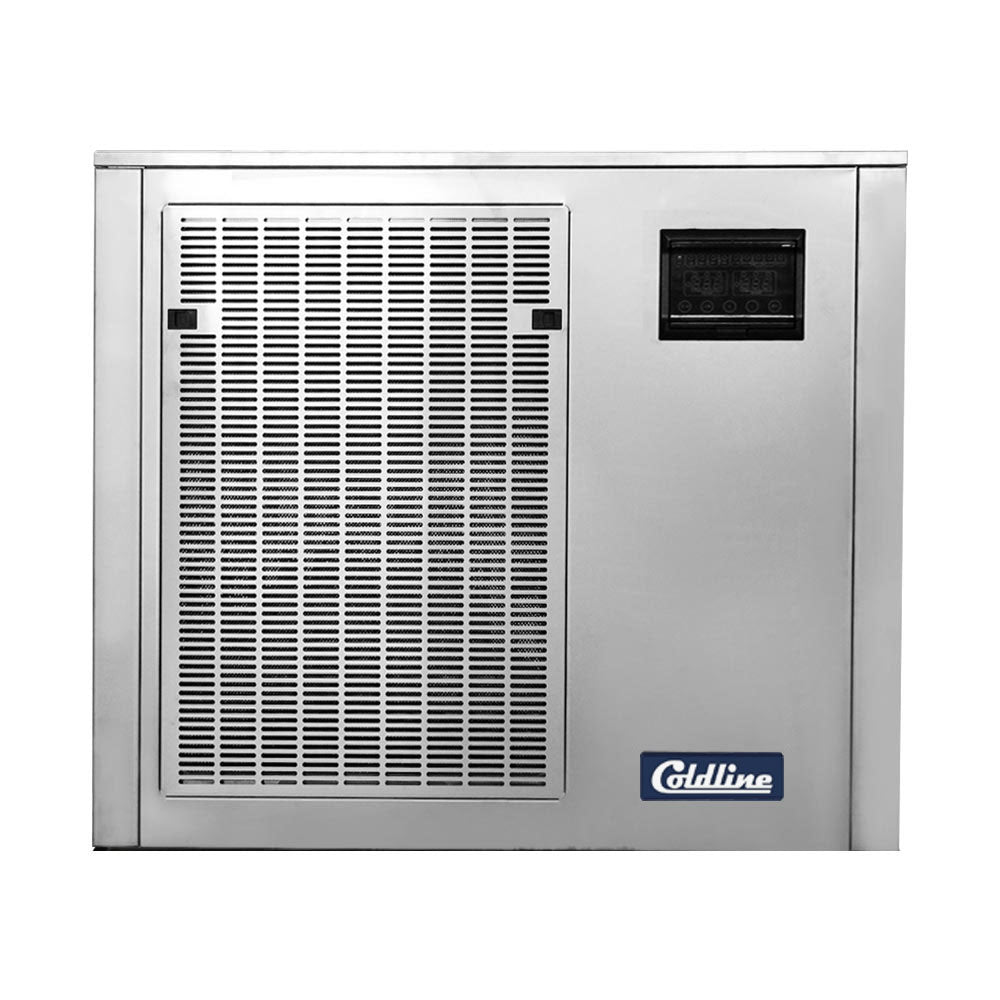

Coldline NU550-T 22" Modular Nugget Ice Machine Head, 550 lb./Day, Air Cooled, 115V, Bin Sold Separately
A 22"-wide modular nugget ice head that makes up to 550 lb. of soft, chewable ice a day on the bin you choose.
The Coldline NU550-T is a modular nugget ice machine head for restaurants, bars, cafes, hospitals and convenience stores that serve soft, chewable ice. It makes up to 550 lb. every 24 hours, plugs into a 115V outlet with a NEMA 5-15P plug on a 60" cord (11.81 A), and sits on a separate Coldline bin. A digital controller runs production and the self-clean cycle, and a side-located air filter protects the air-cooled condenser.
Add the bin height to the 24" head height and check the ceiling clearance, leaving room above for airflow and service.
Nugget cubes, up to 550 lb. every 24 hours, with adjustable thickness.
Sits on a matching Coldline bin, so you can size storage to your service.
A digital controller and display run production, ice thickness and the self-clean system.
Stainless steel exterior, polyethylene interior and foamed-in-place insulation.
A grounded 115V outlet for the NEMA 5-15P plug on the 60" cord. The spec sheet rates it at 115V, 60 Hz, single phase, 1199.5 W, 11.81 A. The manual asks for a grounded socket with leakage (ground fault) protection.
No. This is the ice machine head only; it mounts on top of a separate Coldline storage or dispensing bin. The Coldline B275-22 bin lists it as a fit, and Coldline sells the pair as the NU550.
A potable cold water line at 13 to 55 PSIG through the 1/4" inlet and a floor drain near the machine. The manual says to add a shut-off valve (not supplied), give the drain pipe a drop of more than 3 cm, install the supplied inlet water filter and replace it every 1 to 3 months, and never use hot water.
It is 22" wide, 24.5" deep and 24" tall, before you add the bin underneath. The Coldline manual asks for at least 30 cm (12") in front, 15 cm (6") at the sides and 20 cm (8") behind for airflow.
Indoors only, on a level floor that can carry its weight, away from heat sources and direct sun. The manual rates it for 5 to 40°C (41 to 104°F) rooms and 5 to 35°C (41 to 95°F) supply water, and says to let it stand upright for more than 24 hours after delivery before starting it.
USR Brands covers Coldline ICE-Series ice machines for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only; residential use is not covered.
The Coldline ice machine warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | NU550-T |
| Quantity | 1/Each |
| Shipping Weight | 196 lb. |
| Width | 22 Inches |
| Depth | 24.5 Inches |
| Height | 24 Inches |
| Packaging Dimensions | 25" W x 26" D x 26" H |
| Voltage | 115 Volts |
| Amps | 11.81 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 1199.5 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 60" |
| Ice Type | Nugget |
| Capacity | 550 lb./Day |
| Storage Bin | Not Included |
| Condenser | Air Cooled |
| Water Pressure | 13 - 55 PSIG |
| Water Inlet | 1/4" |
| Controls | Digital Controller and Display |
| Cleaning | Self-Clean System |
| Ice Thickness | Adjustable |
| Exterior | Stainless Steel |
| Interior | Polyethylene |
| Insulation | Foamed-in-Place Polyurethane |
| Clearance | 30 cm (12") Front15 cm (6") Sides20 cm (8") Rear |
| Air Filter | Side-Located |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialIndoor Use Only |
