Description
A 36" range with 6 open burners and a full oven for everyday restaurant cooking.
The Atosa CookRite AGR-6B puts 6 burners at 32,000 BTU each and an oven at 27,000 BTU in one 36" wide unit, so a restaurant can boil, sauté and bake from one station. This listing is the liquid propane (LP) unit: 3/4" NPT rear connection with the regulator included, on four casters for cleaning.
Will it fit · Will it plug in
- Outside size
- 36" W × 31" D × 57-3/8" H to the top of the overshelf
- Cooking height
- 36-7/8" to the cooktop (Atosa drawing)
- Oven
- 26-1/2" W × 26" D × 14" H inside
- Gas
- Liquid Propane, 3/4" NPT rear connection; regulator set at 10" W.C.
- Clearance
- 6" at both sides and back; noncombustible floor (Atosa manual)
- Shipping weight
- 568 lb. (440 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 31" depth. Atosa says to lift the range rather than drag it when moving it.
6 open burners
6 burners at 32,000 BTU each on 12" x 12" removable cast iron grates, with standing pilots.
Oven underneath
An oven, 26-1/2 x 26 x 14 inches, 27,000 BTU, 175°F to 550°F, with 2 chrome racks.
Easy to clean
A drip tray under the burners, removable parts and enamel oven interiors.
Mobile on casters
Four casters come standard; Atosa sells a leg kit (part 301110006) if you prefer legs.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on a pallet. Check the crate and the range for damage before signing; Atosa's manual asks for claims with the carrier within 15 days.
- Gas hookup, leak test and pressure check must be done by a licensed installer.
Questions buyers ask
What gas hookup does it need?
A 3/4" NPT rear gas connection. Atosa supplies the pressure regulator, factory set at 10" W.C. for propane. Installation must be done by a licensed gas installer under your local codes.
Is this the propane version?
Yes. This listing is the liquid propane (LP) unit. Atosa builds the AGR-6B for natural gas or propane, and we list the natural gas unit separately; call us before ordering if you are not sure which gas your kitchen has.
Does it need a hood?
Plan on it. Atosa's manual says to install the range in a well-ventilated spot following local codes and NFPA requirements, which for commercial gas cooking normally means a ventilation hood. Check with your local inspector.
How much clearance does it need?
Atosa's manual asks for a noncombustible floor and at least 6" of clearance on both sides and the back, with nothing stored on or under the range.
Does it need electricity?
Atosa lists no electrical connection: the top burners use standing pilots and the ovens have pilots with safety shut-off.
What does the warranty cover?

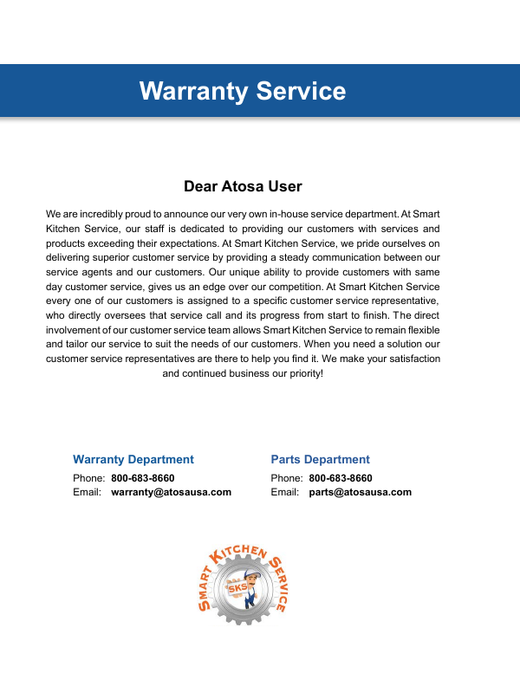

Atosa's CookRite cooking equipment warranty covers parts and labor for 1 year from the date of shipment from Atosa. Register the unit with Atosa and keep your invoice.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa (CookRite) |
|---|---|
| Model Number | AGR-6B |
| Quantity | 1/Each |
| Shipping Weight | 568 lb. |
| Net Weight | 440 lb. |
| Width | 36 Inches |
| Depth | 31 Inches |
| Height | 57-3/8 Inches (with overshelf) |
| Cooktop Height | 36-7/8 Inches (drawing) |
| Oven Interior | 26-1/2 x 26 x 14 Inches |
| Grate Size | 12 x 12 Inches |
| Gas Type | Liquid Propane |
| Total BTU | 219,000 BTU/H (192,000 top + 27,000 oven) |
| Burner BTU | 32,000 BTU/H each (6) |
| Oven BTU | 27,000 BTU/H |
| Gas Connection | 3/4" NPT RearRegulator Included |
| Manifold Pressure | 10 Inches W.C. (Liquid Propane) |
| Number of Burners | 6 Open Burners |
| Number of Ovens | 1 Standard Oven |
| Oven Racks | 2 Chrome RacksExtra Rack Part 301100012 |
| Exterior | Stainless Steel Front, Sides, Kick Plate, Back Guard and Overshelf |
| Oven Interior | Enamel |
| Ignition | Standing Pilot (Top)Oven Pilot with 100% Safety Shut-Off |
| Controls | Manual KnobsOven Thermostat 175 - 550 Degrees F |
| Grates | Removable Cast Iron |
| Grease | Drip Tray |
| Casters | 4 StandardLeg Kit 301110006 Optional |
| Certifications | ETL Sanitation, cETLus |
| Standards | ANSI Z83.11b, CSA 1.8b, NSF/ANSI 4 |
| Warranty | 1 Year Parts & Labor (from Shipment) |
| Clearance | 6 Inches Sides and BackNoncombustible Floor |
| Usage | Commercial Indoor Use |
