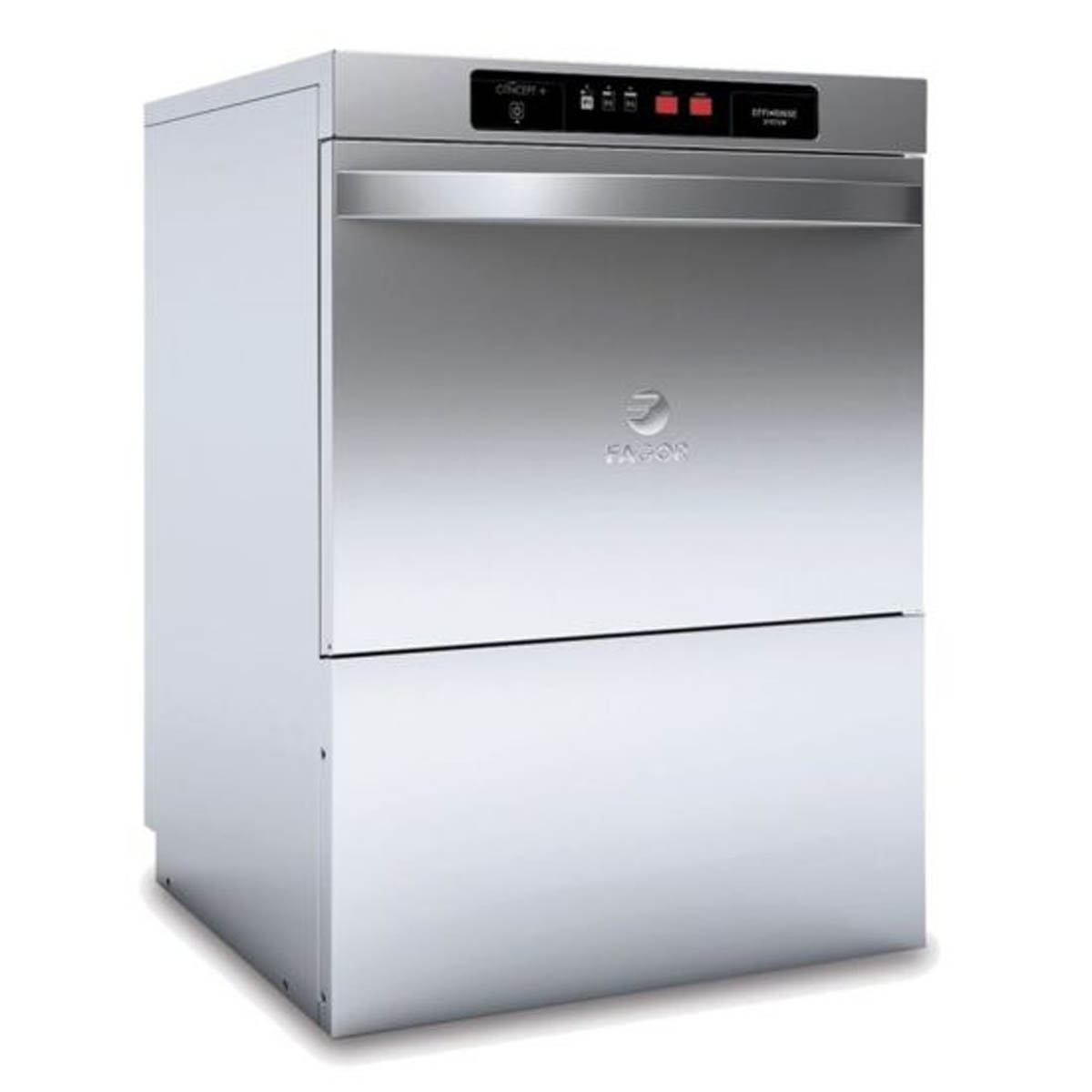

Fagor COP-504W 23-5/8" Undercounter Dishwasher, High Temp with Booster, Up to 40 Racks/Hr, 20" x 20" Racks, 208-240V, ENERGY STAR
A 23-5/8" high-temperature undercounter dishwasher with a built-in rinse pump, for kitchens with low water pressure.
The Fagor COP-504W is the Concept+ undercounter dishwasher for restaurants and cafes that need more output from a 24" space. A built-in rinse pump and air break give a full 180°F rinse even where the water pressure is low, and Fagor rates it at up to 40 racks per hour. It ships set for single phase half power with a 6 ft. NEMA 6-20P cord, and an electrician can reconnect it for more power or three phase.
Measure the opening under your counter and allow 40-1/8" from the wall to the front of the open door. The cord and plug are for the factory 1 phase half power setting; other settings are wired by an electrician.
Effi Rinse uses a built-in pressure pump and air break for a linear 180°F rinse, even below the usual 15-25 psi.
Multi Power and a multi-connection box let you run half, 2/3 or full power, on single or three phase.
Double-skin insulation on the body and door keeps noise under 65 dBA and holds heat in.

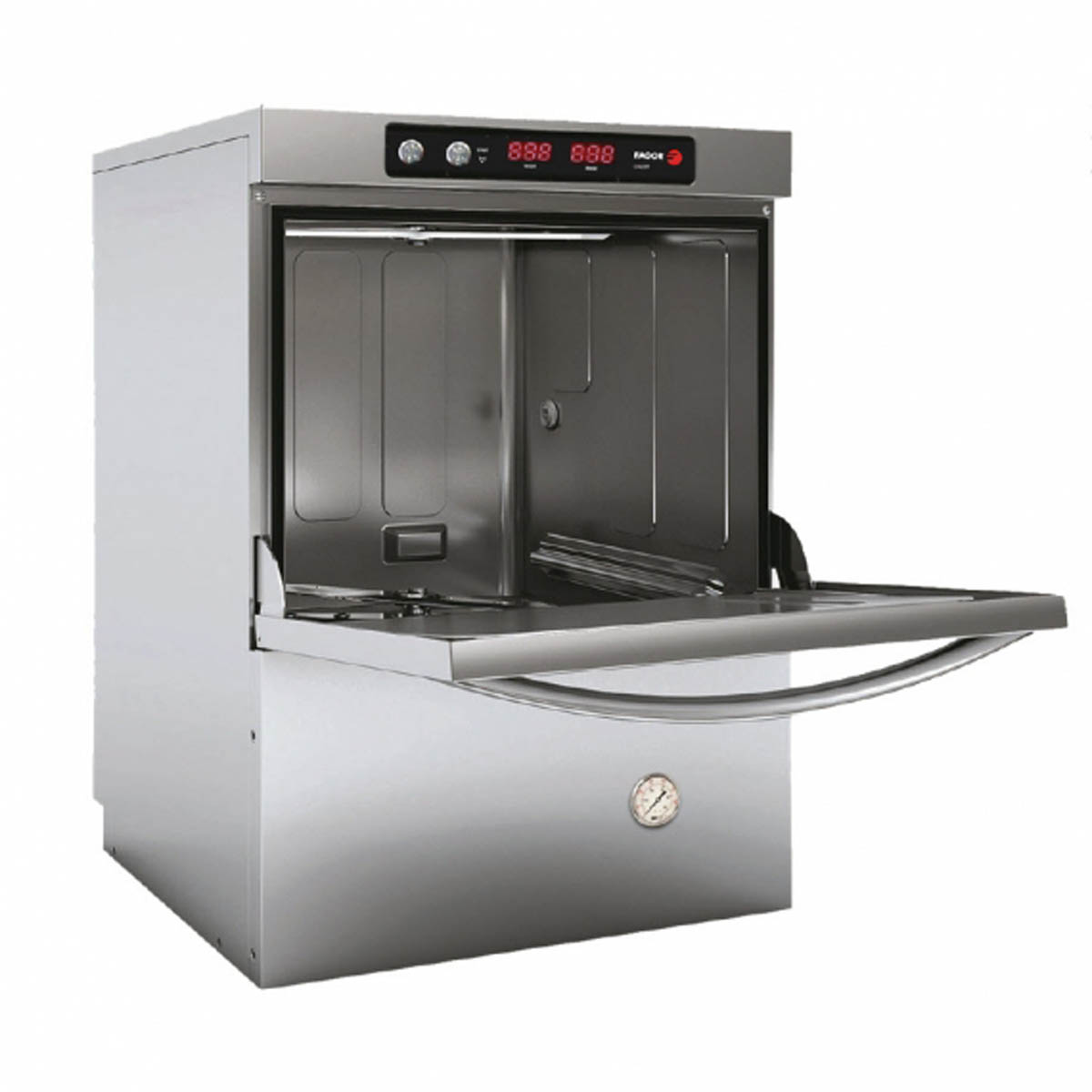

Double springs and stainless steel hinges; the door opens in 3 steps to let steam out before you reach in.
As shipped it runs on 208-240V single phase at half power, drawing 13.33 to 15.38 amps, with a 6 ft. cord and NEMA 6-20P plug. For 2/3 or full power, or three phase, an electrician connects it through the multi-connection box; full power on single phase draws 24.34 to 28.08 amps.
Fagor lists 40, 30 and 20 racks per hour for this model, up to 1,000 dishes or 1,440 glasses an hour.
Yes. Its built-in rinse pump and air break give a full 180°F rinse even when the supply does not reach the usual 15-25 psi. Fagor lists 122-140°F inlet water at 20-58 psi dynamic pressure.
No. The built-in drain pump pushes water through a 5 ft., 1/2" hose up to 26-3/4" high.
No. It is a high-temperature machine: Fagor sets a 150°F minimum wash and 180°F minimum rinse, and the built-in booster heater brings the rinse water up to temperature. You still use detergent and rinse aid, fed by the built-in dispensers.
Fagor's spec sheet for this model does not state the warranty terms. Call us before you order and we will confirm the current Fagor warranty for your location.
Specs
| Manufacturer | Fagor |
|---|---|
| Model Number | COP-504W |
| Series | EVO Concept+ |
| Quantity | 1/Each |
| Shipping Weight | 184 lb. |
| Net Weight | 170 lb. |
| Shipping Dimensions | 26" W x 29-1/2" D x 40-1/2" H |
| Width | 23-5/8 Inches |
| Depth | 23-5/8 Inches |
| Height | 33-11/16 Inches |
| Height Range | 32-11/16 - 33-11/16 Inches per Fagor Drawing |
| Depth with Door Open | 40-1/8 Inches |
| Clearance | 14-3/16 Inches Maximum Ware Height |
| Voltage | 208 - 240 Volts |
| Amps | 13.33 - 15.38 Amps |
| Phase | 1 or 3 Phase |
| Hertz | 60 Hz |
| Factory Setting | 1 Phase, Half Power: 13.33 A at 208V14.10 A at 220V15.38 A at 240V |
| Other Power Settings | 1 Phase 2/3 Power: 17.00 - 19.61 A1 Phase Full Power: 24.34 - 28.08 A3 Phase Full Power: 15.03 - 17.35 A |
| Plug Type | NEMA 6-20P |
| Cord | 6 ft. Cord and Plug, 1 Phase Half Power Only |
| Total Power | 3.69 kW Half4.71 kW 2/36.74 kW Full |
| Capacity | 40 / 30 / 20 Racks per Hour |
| Hourly Output | Up to 1,000 Dishes or 1,440 Glasses per Hour |
| Wash Cycles | 90, 120 and 180 Seconds |
| Rack Size | 19-3/4" x 19-3/4" |
| Sanitizing Method | High Temperature with Built-In BoosterHot Water Assurance |
| Minimum Temperatures | Wash 150°FRinse 180°F |
| Wash Pump | 3/4 HP |
| Tank Capacity | Wash Tank 5.40 Gal.Booster 1.85 Gal. |
| Water Consumption | 0.53 Gal. per Cycle per Spec Table0.63 Gal. per Rack per Quick View23.31 Gal. per Hour Maximum |
| Noise Level | Under 65 dBA |
| Water Inlet | 3/4" Female Hose Connector on 5 ft. Hose, Garden Hose Adapter Included |
| Inlet Water | 122 - 140°F20 - 58 psi Dynamic Pressure at the Inlet |
| Drain | 5 ft. Hose, 1/2" I.D.Built-In Drain Pump, Up to 26-3/4" Drain Height |
| Material | Double-Skin AISI-304 Stainless Steel BodyStamped Wash Tank, Rack Guides and Control Panel |
| Door | Counterbalanced, Double Spring and Stainless Steel Hinges3-Step Opening |
| Wash System | Stainless Steel Double Wash and Rinse ArmsStainless Steel Tray FiltersRinse Pump with Air Break |
| Controls | Electronic Control Panel with Digital DisplayIPX4 Water Protection |
| Built-In Features | Drain PumpRinse PumpDetergent and Rinse Aid DispensersMulti-Connection Electrical Box |
| Included | 1 Flat Rack1 Peg Rack1 Cutlery Container |
| Usage | Dishwasher, Glasswasher and Sanitizer |
| Fagor Accessories | Racks for Dishes, Glasses and TraysCutlery Containers and Grids6" and 16" High Base StandsDrain Tempering Valve |
| Certifications | ENERGY STAR, ETL Sanitation, cETLus |
