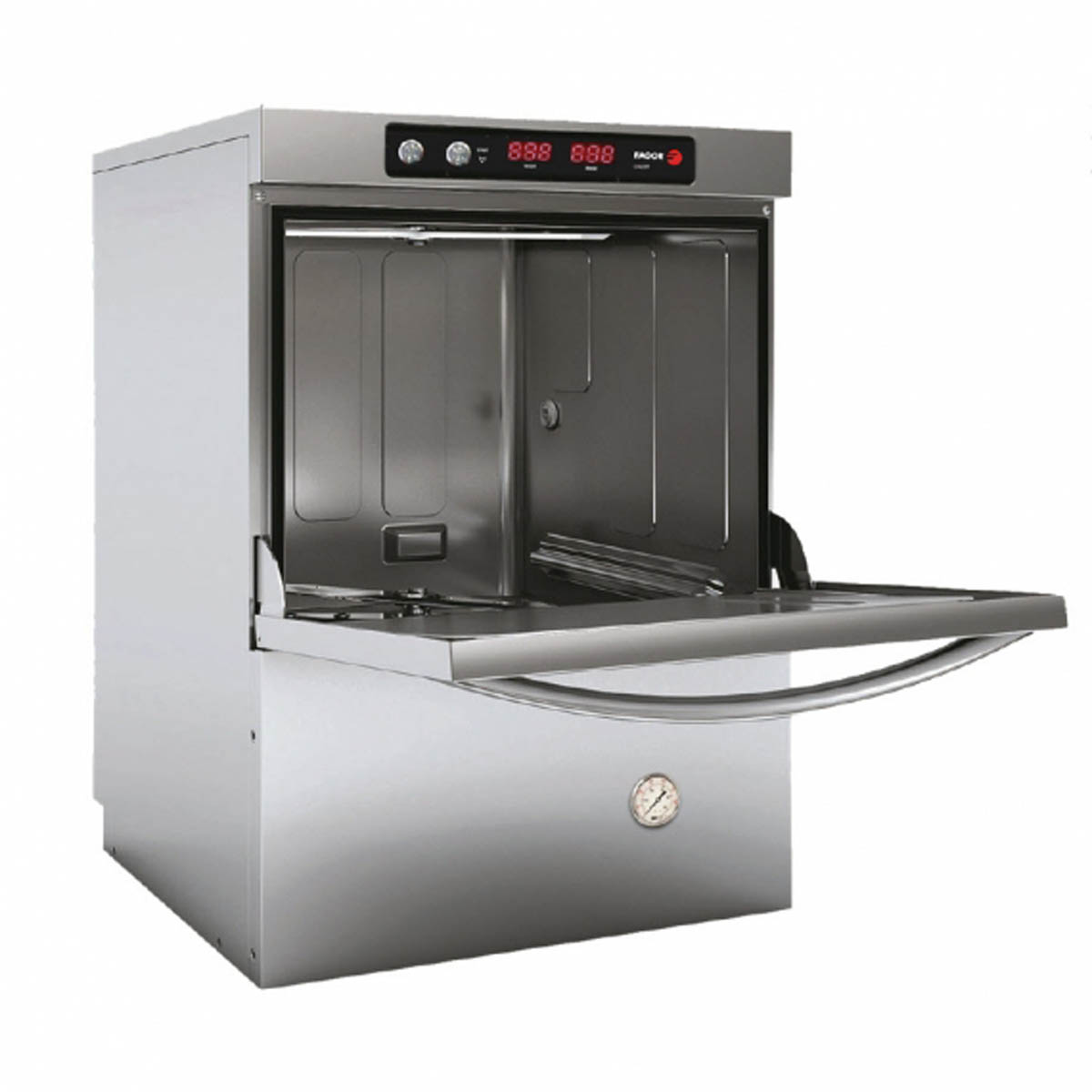

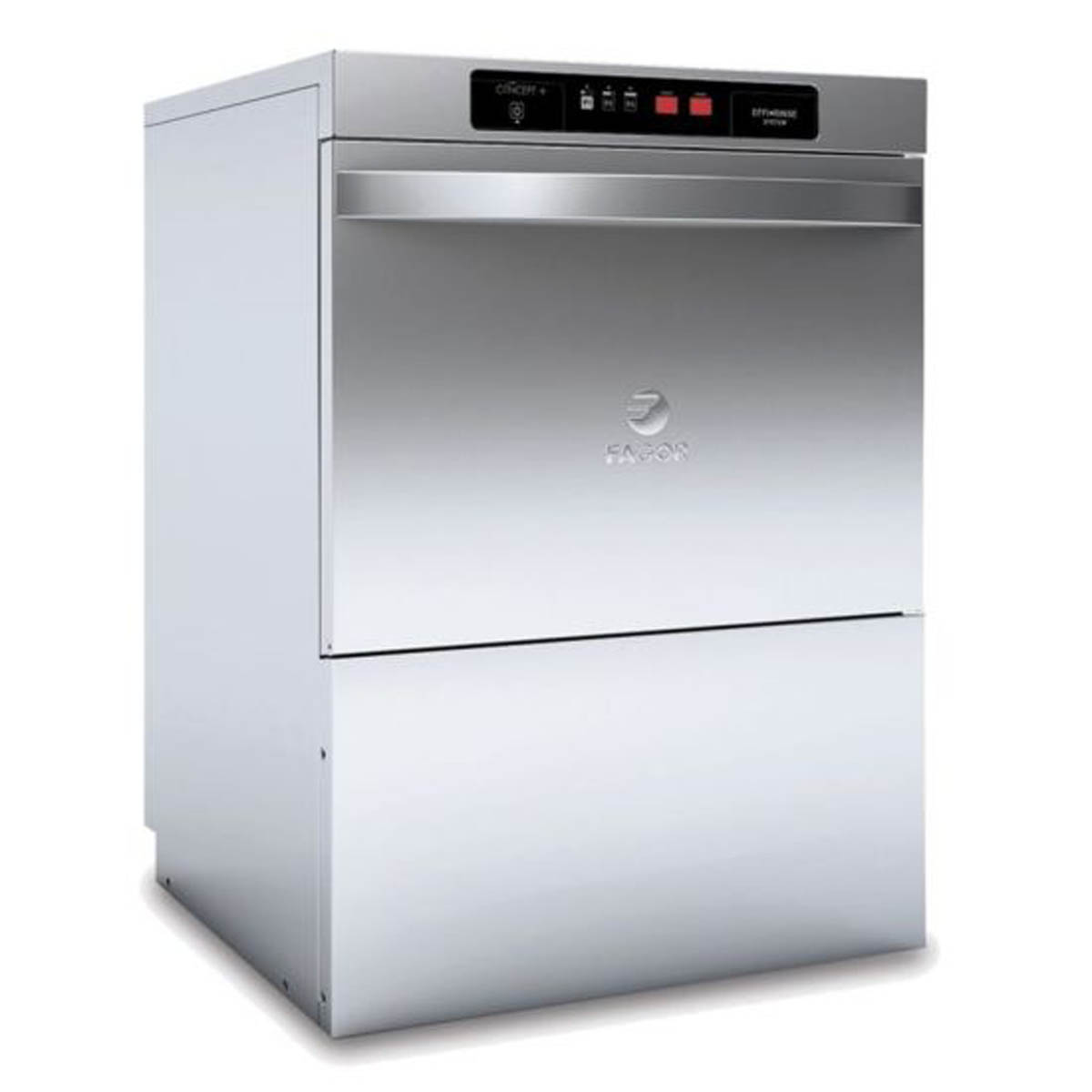

Fagor CO-502W 23-5/8" EVO Concept High-Temp Undercounter Dishwasher with Booster, 30 Racks/Hr, 208-230V, ENERGY STAR
A high-temperature undercounter dishwasher that washes up to 30 racks an hour and sanitizes with a 180°F rinse.
The Fagor CO-502W from the EVO Concept line fits under a counter in restaurants, cafes and bars. Its built-in booster heats the final rinse to 180°F, so it sanitizes with hot water instead of chemicals, and it uses 0.53 gallons per rack. It washes dishes, glasses or works as a sanitizer, and comes with a flat rack, a peg rack and a cutlery container.
Measure the counter opening and the delivery path. This unit needs a 208-230V circuit, a hot water line and a drain within reach of its 5 ft. hoses; have a licensed electrician and plumber connect it.
The built-in booster brings the rinse to 180°F, and hot water assurance keeps the cycle from advancing until it gets there.
Multi Power lets you run at half, 2/3 or full power, trading speed against electrical load.
Double-skin insulation keeps noise under 65 dBA, and Soft Start ramps up the wash pump to protect glassware.
Drain pump, detergent pump, rinse aid dispenser and pressure gauge come standard.
A 208-230V, 60 Hz supply. It ships set to half power, drawing 15 A at 208V to 17 A at 240V on single phase, with a 6 ft. cord and NEMA 6-20P plug. Higher power settings draw up to 30 A single phase or 19 A three phase and need a matching circuit, so ask an electrician before changing it.
No. A booster is built in and heats the final rinse to 180°F.
A hot water line at 120 - 140°F with 20 - 25 psi flow pressure, connected to the 3/4" female hose connector on the 5 ft. inlet hose.
Yes. The built-in drain pump pushes water up to 26-3/4" high through the 5 ft., 1/2" ID drain hose.
The door clearance is 15-1/4". Racks are 19-3/4" x 19-3/4".
Yes. Fagor designs it to work as a dishwasher, glasswasher or sanitizer.
Fagor's CO-502W spec sheet does not state warranty terms. Call us and we will confirm the current Fagor dishwasher warranty before you order.
Specs
| Manufacturer | Fagor |
|---|---|
| Model Number | CO-502W |
| Series | EVO Concept |
| Quantity | 1/Each |
| Shipping Weight | 178 lb. |
| Net Weight | 167 lb. |
| Shipping Dimensions | 26" W x 29-1/2" D x 40-1/2" H |
| Width | 23-5/8 Inches |
| Depth | 24-13/16 Inches |
| Height | 32-11/16 Inches |
| Height Note | Up to 33-11/16" with the feet adjusted |
| Depth with Door Open | 41-5/16 Inches |
| Door Clearance | 15-1/4 Inches |
| Voltage | 208-230 Volts |
| Amps | 15 - 17 Amps |
| Amps Detail | Factory set to half power, 1 phase: 15 A at 208V, 16 A at 220V, 17 A at 240V2/3 power, 1 phase: 19 / 20 / 21 AFull power, 1 phase: 26 / 28 / 30 AFull power, 3 phase: 16 / 18 / 19 A |
| Hertz | 60 Hz |
| Phase | 1 or 3 Phase |
| Plug Type | NEMA 6-20P |
| Cord Length | 6 ft., Single Phase Only |
| Total Power | 3.69 kW Half4.71 kW 2/36.74 kW Full |
| Heating Elements | Tank 3.05 kWBooster 3.05 / 4.07 / 6.10 kW |
| Wash Pump | 3/4 HP, 0.64 kW |
| Capacity | 30 Racks per Hour |
| Production | 30 / 20 Racks per Hour750 / 500 Dishes per Hour1,080 / 720 Glasses per Hour |
| Wash Cycles | 90, 120 and 180 Seconds |
| Wash Temperature | 150 Degrees F |
| Rinse Temperature | 180 Degrees F |
| Sanitation | High Temperature, Hot WaterHot Water Assurance |
| Water Use | 0.53 Gallons per Rack15.9 Gallons per Hour Max |
| Tank Capacity | 5.40 Gallons |
| Booster Capacity | 1.85 Gallons |
| Rack Size | 19-3/4" x 19-3/4" |
| Noise Level | Under 65 dBA |
| Water Inlet | 3/4" Female Hose Connector on 5 ft. HoseGarden Hose Adapter Included |
| Inlet Water | 120 - 140°F at 20 - 25 psi |
| Drain | Built-In Drain Pump5 ft. Hose, 1/2" IDMax Drain Height 26-3/4" |
| Body | Double-Skin AISI 304 Stainless Steel, Stamped Wash Tank, Rack Guides and Control Panel |
| Wash and Rinse Arms | Double, AISI 304 Stainless SteelStainless Steel Tray Filters |
| Door | Counterbalanced, Double Spring and Stainless Steel Hinges |
| Controls | Digital Control Panel with Temperature Display, IPX4 |
| Built-In | Drain PumpDetergent PumpRinse Aid DispenserPressure Gauge |
| Included | 1 Flat Rack1 Peg Rack1 Cutlery Container |
| Fagor Accessories | Dish, Glass and Tray RacksCutlery Containers6" and 16" Base StandsDrain Tempering Valve |
| Certifications | ETL Sanitation, cETLus, ENERGY STAR |
| Water Protection | IPX4 |
