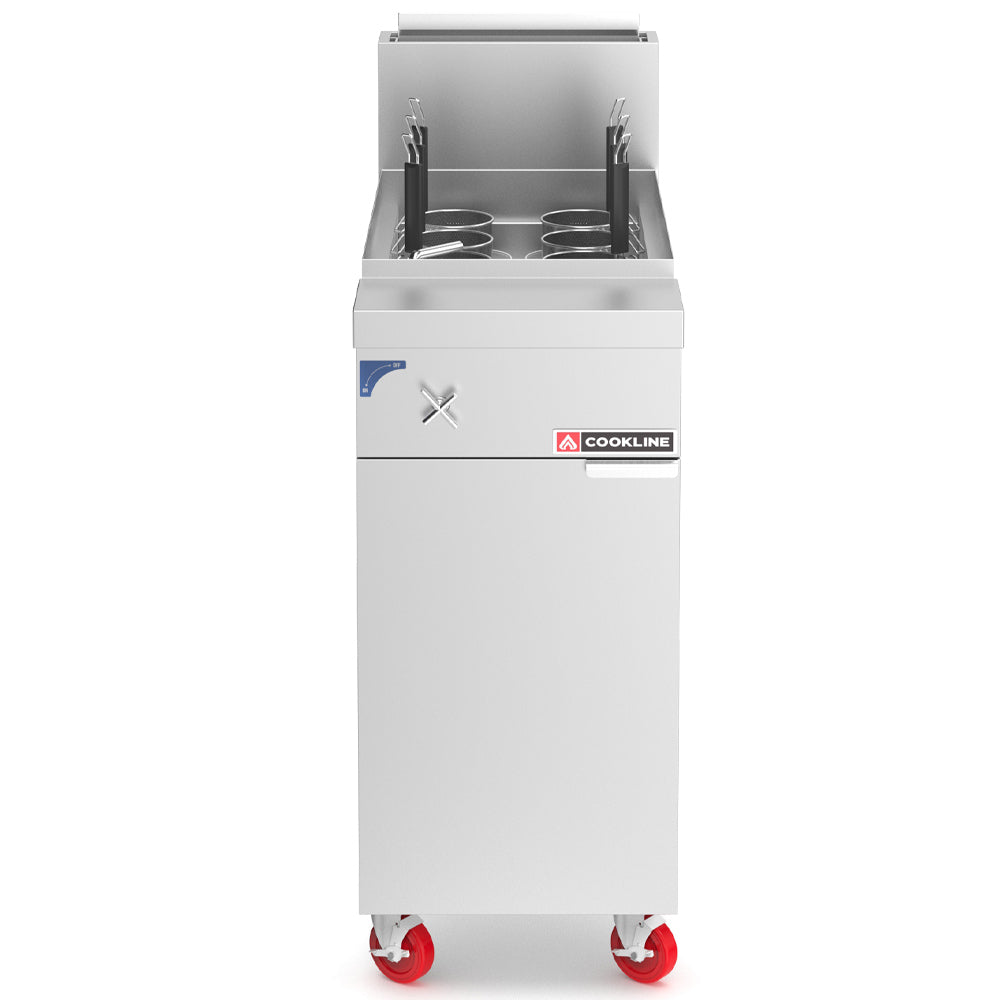

Cookline PC-1-NG 15.7" Gas Pasta Cooker, 12 Gallon, 6 Round Baskets, 70,000 BTU, Natural Gas, Millivolt, on Casters
A 12 gallon gas pasta cooker that boils six baskets of pasta or noodles at once.
The Cookline PC-1-NG suits Italian restaurants, noodle shops and high-volume kitchens. A 70,000 BTU natural gas jet burner heats a 12 gallon water tank holding six round blanching baskets. It runs on a millivolt valve with a standby pilot, so it needs no electrical outlet, and it has a water inlet and a starch skimming drain for refilling and draining.
Install under a ventilation hood with gas, water and a floor drain nearby.
Six round blanching baskets cook separate orders at the same time.
Jet burner on natural gas with a standby pilot.
Millivolt control valve runs without an outlet.
Starch skimming drain and a 1 1/4" full port drain valve.
Natural Gas through the gas inlet, a 1/2" water inlet line and a drain. The sheet table lists a 3/4" gas inlet while its drawing labels NPT 1/2", so have your installer confirm the fitting on the unit. It uses a millivolt valve, so no electrical outlet is needed.
Six round blanching baskets in a 12 gallon tank.
This listing is the natural gas model. The manual says only qualified service personnel may convert it to another gas, and the sheet lists no conversion kit; call us before ordering if you need the other gas.
15.7" W x 31.5" D x 47.5" H on casters. The manual asks for 6" at the sides and back from combustible construction (none from non-combustible) and 24" at the front, under a ventilation hood.
The Cookline sheet lists 4 casters as standard, 2 with brakes, with legs optional. Our product photo shows an earlier version on legs.
The Cookline sheet's temperature figures are copied from a fryer, so we do not list them. Call us if you need the control range confirmed before ordering.
USR Brands covers Cookline gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered; gas connections must be made by a qualified installer.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | PC-1-NG |
| Quantity | 1/Each |
| Shipping Weight | 157 lb. |
| Net Weight | 143 lb. |
| Width | 15.7 Inches |
| Depth | 31.5 Inches |
| Height | 47.5 Inches |
| Packaging Dimensions | 18" L x 37" D x 36" H |
| Gas Type | Natural Gas |
| Total BTU | 70,000 BTU/H |
| Gas Inlet | 3/4" NPT (Sheet Table) |
| Water Inlet | 1/2" |
| Drain | 1 1/4" Full Port Drain ValveStarch Skimming Drain |
| Electrical | None Required (Millivolt Control Valve) |
| Capacity | 12 Gallons |
| Baskets | 6 Round Blanching Baskets |
| Controls | ManualMillivolt ValveStandby Pilot |
| Construction | Stainless Steel Front and SidesWelded Frame |
| Basket Hanger | Stainless Steel Hanger Plate at Back |
| Casters | 4 (2 with Brakes, 2 without) |
| Clearance | 6" Sides and Back from Combustible Construction24" Front |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | Commercial Use Only |
