Description
A one-door glass freezer that shows off frozen items while keeping them at -8°F to 0°F.
The Atosa MCF8701GR gives convenience stores, delis and restaurants 19.1 cu. ft. of frozen storage behind a double-pane glass door, lit by LED lights so customers and staff can see what is inside. It is 27" wide, stainless steel inside and out, and plugs into a standard 115V outlet.
Will it fit · Will it plug in
- Outside size
- 27" W × 31-3/4" D × 83-1/8" H (with 4" casters)
- Door open
- 56-1/4" deep with the door open
- Inside
- 22-1/4" W × 25-1/4" D × 60" H
- Power
- 115V, 60 Hz, 1-phase, 6.3 amps; NEMA 5-15P plug
- Shipping weight
- 342 lb. (309 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 27" width. Atosa asks for room around the unit to breathe; keep the front grille clear.
Frozen display
Holds -8°F to 0°F with an electronic controller; the double-pane glass door keeps the cold in while showing the stock.
Four shelves
Four epoxy-coated wire shelves come installed; extra shelves are part W0402394.
Door that stays put
The self-closing door has a stay-open feature for restocking and a recessed handle.
Bottom-mount system
Self-contained R290 refrigeration at the bottom, with pre-installed 4" casters for cleaning behind it.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on a pallet with the casters pre-installed.
- Inspect the cabinet and glass for damage before signing for the delivery.
Questions buyers ask
What outlet does it need?
A dedicated, grounded 115V outlet for the NEMA 5-15P plug, with no extension cord. Atosa does not cover damage from extension cords or low voltage.
What temperature does it hold?
Atosa rates it to hold -8°F to 0°F with the electronic controller, and recommends setting it in that range for best food preservation.
Will it fit through my door?
Measure first. Atosa does not publish a minimum doorway; the smallest outside dimension is the 27" width width
Can I add more shelves?
Yes. Atosa sells extra shelves that come with 4 shelf clips each: part W0402394.
Can I use it outdoors?
No. It is built for indoor commercial use; Atosa's instructions for its glass door merchandisers say not to use them outdoors.
What does the warranty cover?

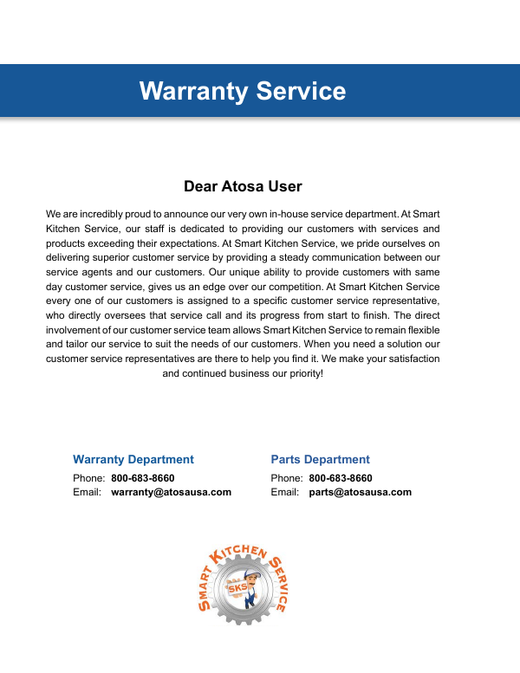

Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the sealed compressor (parts only for the extra 2 years), counted from shipment from Atosa. Keep your invoice and register the unit with Atosa.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.

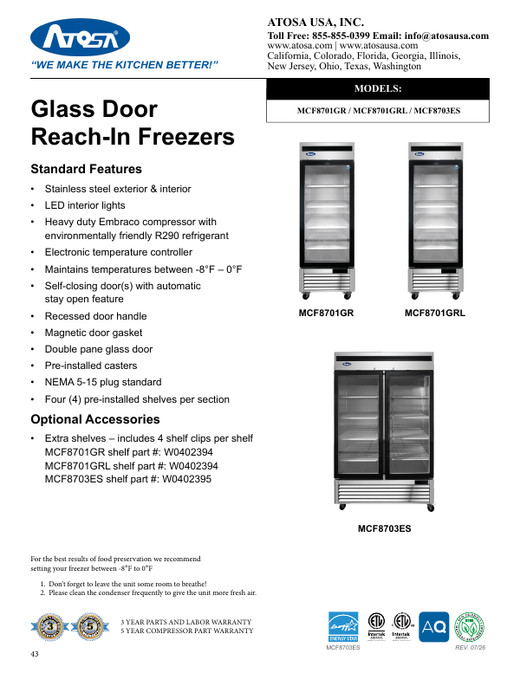

Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | MCF8701GR |
| Quantity | 1/Each |
| Shipping Weight | 342 lb. |
| Net Weight | 309 lb. |
| Width | 27 Inches |
| Depth | 31-3/4 Inches |
| Height | 83-1/8 Inches (with 4" casters) |
| Depth with Door Open | 56-1/4 Inches |
| Interior | 22-1/4 x 25-1/4 x 60 Inches (W x D x H) |
| Caster Size | 4 Inches |
| Voltage | 115 Volts |
| Amps | 6.3 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 19.1 cu. ft. |
| Temperature Range | -8 - 0 Degrees F |
| Horsepower | 1/2 hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained, Bottom Mount |
| Controls | Electronic Temperature Controller |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Number of Doors | 1 |
| Door Type | Glass |
| Door Style | Swing |
| Door Features | Double-Pane GlassSelf-Closing with Stay-Open FeatureRecessed HandleMagnetic GasketRight Hinge |
| Number of Shelves | 4 (Epoxy-Coated, Shelf Part W0402394) |
| Lighting | LED Interior |
| Casters | Pre-Installed 4" Casters |
| Certifications | ETL Sanitation, cETLus |
| Standards | UL 471, CSA C22.2 No. 120 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
