Description

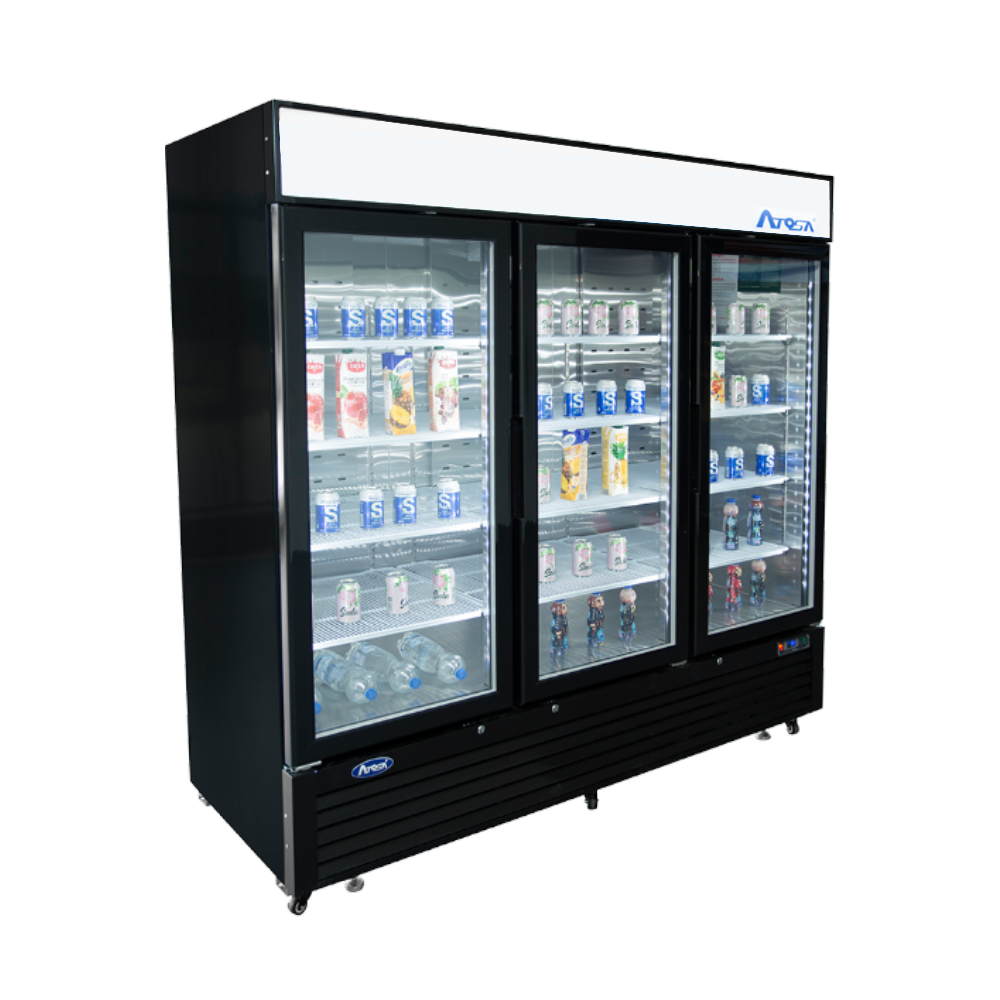

A three-door black freezer merchandiser that turns 68 cu. ft. of frozen stock into a lit display.
The Atosa MCF8728GR is built for convenience stores, markets and grab-and-go counters: three glass doors, 12 shelves and a lighted header panel for your branding, all holding -8°F to 0°F. It needs a 115/208-230V circuit with a NEMA L14-20 receptacle, not a standard wall outlet.
Will it fit · Will it plug in
- Outside size
- 81-9/10" W × 31-1/2" D × 81-1/5" H (with 2" casters)
- Door open
- 56" deep with the doors open
- Door openings
- Three openings, 23-1/8" wide each (Atosa drawing)
- Inside
- 77-1/8" W × 25-1/4" D × 60" H
- Power
- 115/208-230V, 60 Hz, 1-phase, 6.2 amps; NEMA L14-20P plug
- Shipping weight
- 781 lb. (673 lb. net)
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 31-1/2" depth. Plan the L14-20 receptacle before the unit arrives.
Lighted header
An 81-7/16" lighted header panel above the doors for signage, plus LED interior lighting.
Even cold air
A down duct channel spreads airflow through the cabinet to hold -8°F to 0°F.
Secure doors
Self-closing doors with stay-open feature, recessed handles and standard door locks.
Black and stainless
Black steel exterior with a stainless steel interior and 12 shelves.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight on a pallet with the casters pre-installed.
- Inspect the cabinet and glass for damage before signing for the delivery.
Questions buyers ask
What outlet does it need?
A 115/208-230V, single-phase circuit with a NEMA L14-20 locking receptacle for the factory L14-20P plug; it draws 6.2 amps. This is not a standard wall outlet, so have an electrician confirm it before delivery.
What temperature does it hold?
Atosa rates it to hold -8°F to 0°F with the electronic controller, and recommends setting it in that range for best food preservation.
Will it fit through my door?
Measure first. Atosa does not publish a minimum doorway; the smallest outside dimension is the 31-1/2" depth depth
Does it lock?
Yes. Atosa lists door locks as standard.
Can I add more shelves?
Yes. Atosa sells extra shelves that come with 4 shelf clips each: part W0402395, and W0402396 for the middle section.

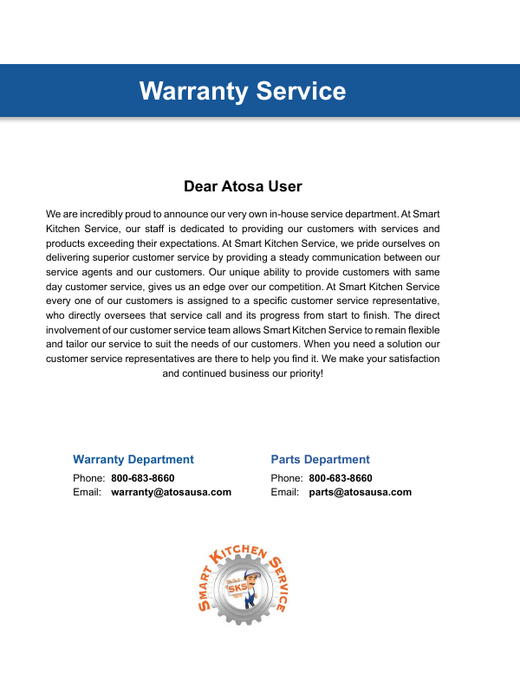

What does the warranty cover?
Atosa's 2026 refrigeration warranty gives 3 years parts and labor and 5 years on the sealed compressor (parts only for the extra 2 years), counted from shipment from Atosa. Keep your invoice and register the unit with Atosa.
Do you match lower prices?
Yes. Atosa products are covered by our Best Price Guarantee. Call (201) 467-8222 with the lower price.
Specs
| Manufacturer | Atosa |
|---|---|
| Model Number | MCF8728GR |
| Quantity | 1/Each |
| Shipping Weight | 781 lb. |
| Net Weight | 673 lb. |
| Width | 81-9/10 Inches |
| Depth | 31-1/2 Inches |
| Height | 81-1/5 Inches (with 2" casters) |
| Depth with Door Open | 56 Inches |
| Interior | 77-1/8 x 25-1/4 x 60 Inches (W x D x H) |
| Door Opening Width | 23-1/8 Inches (each) |
| Lighted Header Panel | 81-7/16 x 9-1/16 Inches |
| Caster Size | 2 Inches |
| Voltage | 115/208-230 Volts |
| Amps | 6.2 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA L14-20P |
| Capacity | 68 cu. ft. |
| Temperature Range | -8 - 0 Degrees F |
| Horsepower | 1 hp |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Self-Contained, Bottom Mount |

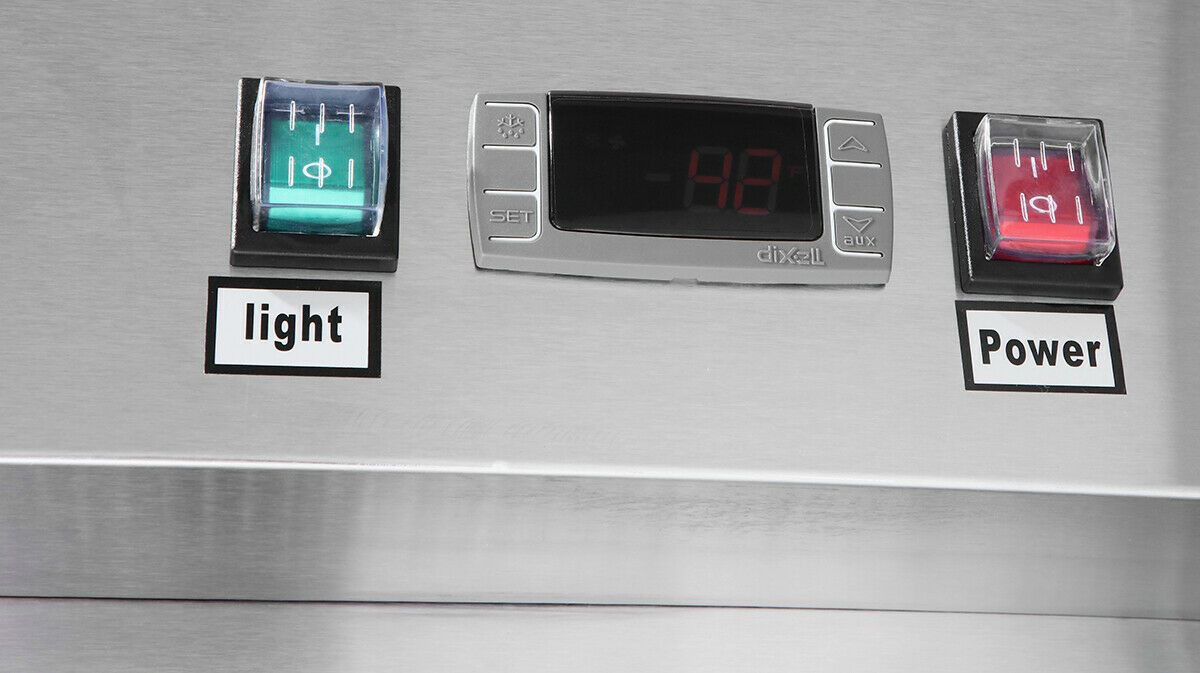

| Controls | Electronic Temperature Controller |
| Exterior Material | Black Steel |
| Interior Material | Stainless Steel |
| Number of Doors | 3 |
| Door Type | Glass |
| Door Style | Swing |
| Door Features | Double-Pane GlassSelf-Closing with Stay-Open FeatureRecessed HandlesDoor LocksMagnetic Gaskets105 Degree Swing |

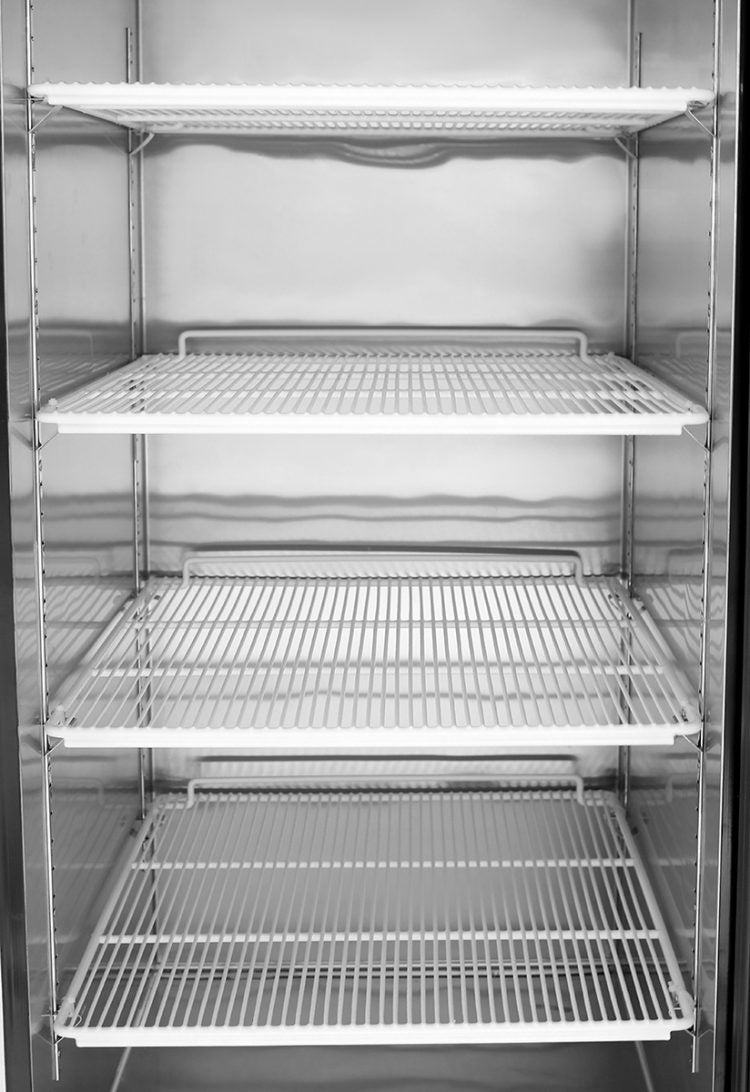

| Number of Shelves | 12 (Shelf Parts W0402395, W0402396 Middle) |
| Lighting | LED InteriorLighted Header Panel |
| Airflow | Down Duct Channel |
| Casters | Pre-Installed 2" Casters |
| Certifications | ETL Sanitation, cETLus |
| Standards | UL 471, CSA C22.2 No. 120 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
